XK300 Small CNC Milling Machine Multi-function CNC drilling and milling machine

Click here to contact
Product details
port:Shenzhen, ChinaRepeatability (X/Y/Z) (mm):0.005
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramSupply capacity:1000 pieces per month
Core components:enginePackaging Preview:
Number of axes:4Voltage:AC220V/50Hz
Main selling point:high accuracybrand:Denver
Showroom location:not anySpindle taper:MT3
Marketing Type:Hot Products 2022Table travel (Y) (mm):175
place of origin; place of origin:Guangdong, ChinaFast movement speed:2500mm/min
Positioning accuracy (mm):0.02Dimensions (L*W*H):900*950*1750mm
type:verticalCore Components Warranty:1 year
Table stroke (X) (mm):300Maximum clamping drill diameter:13mm
Table travel (Z) (mm):270Video external inspection:Not available
Weight (kg):300Applicable industries:Building material stores, manufacturing plants, mechanical repair shops, printing shops, construction works
CNC tail center height:65mmSpindle motor power (kW):1.1
Processing capacity:relaxing workHealth status:new
Mechanical test report:Not availablemaximum. Table load (kg):20 kg
Maximum clamp diameter:50mmmodel:XK300
CNC control system:980MCWarranty:1 year
Spindle speed range (rpm):300 - 3500cooling system:Equipped with cooling system
Packaging Details:carton
Product Description
Applicable industries
Hardware processing factory small parts processing, enterprise or university scientific research and development, first board production, maker innovation laboratory, can also be used for numerical control technology training and teaching in colleges and vocational colleges.

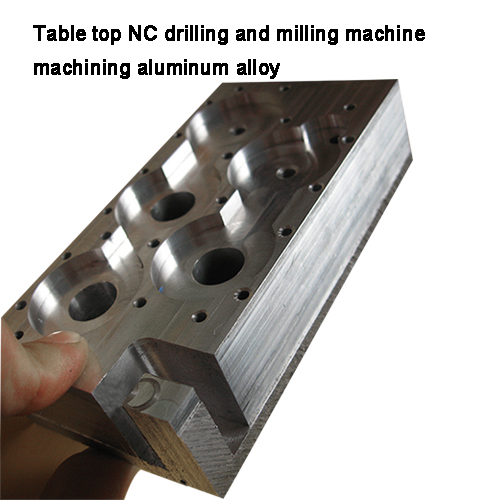

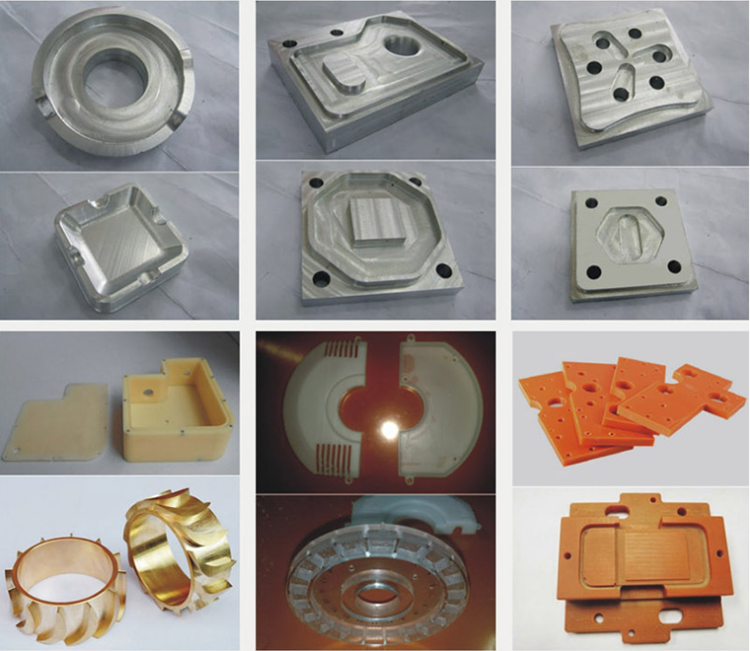

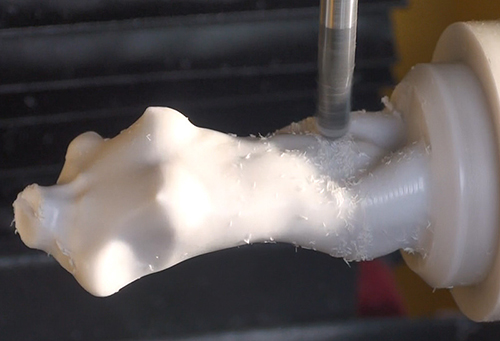

Sample display

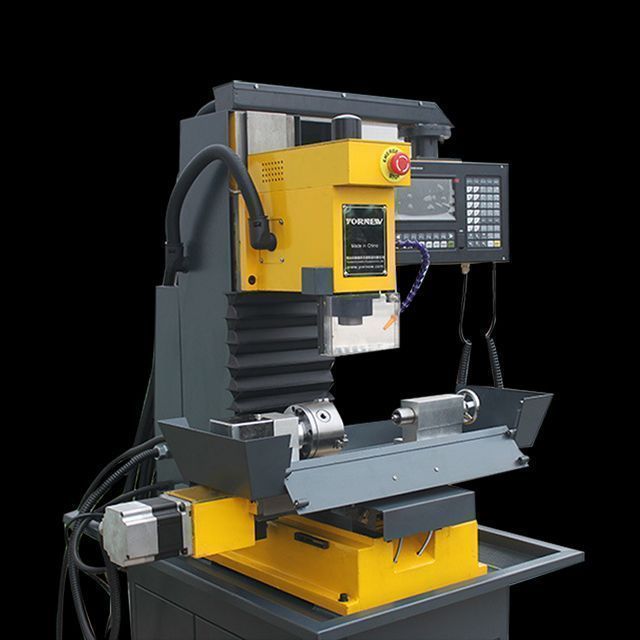

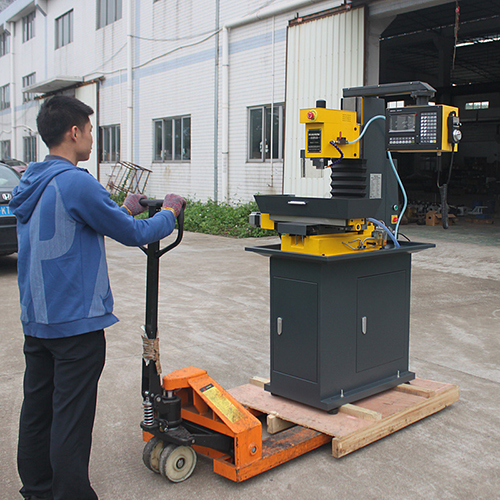

Machine display
Specification
Repeatability
0.02mm
4-axis CNC indexing head accuracy
0.005mm (optional)
Center height of CNC indexing head and tailstock
65 mm
Maximum hole diameter
13mm
Maximum milling diameter
50mm
system resolution
0.01mm
table size
450*160mm
Travel in X/Y/Z direction
300mm/175mm/270mm
Table t slot size
12mm
Number of T-slots on the table
3
Spindle taper
MT3
Spindle speed range
300-3500 rpm (optional 24000 rpm)
move fast
2500mm/min
Motor Power
1100W
power supply
AC220V/50Hz
Machine size
900×950×1750mm
Package dimensions
1100×1040×2000mm
net weight gross weight
300Kg /350Kg
cooling system
Equipped with cooling system (G code control pump)
Electronic handwheel
Equipped with 4-axis electronic handwheel
CNC system
Education 980MC Industrial CNC System
Multi-axis linkage function
There is a reserved interface for the fourth axis, and a fourth axis can be added to realize four-axis linkage
Precision testing equipment
Accurate detection with Renishaw laser interferometers
Accessories
Cooling system, electronic handwheel, drill chuck key, drill chuck, drill chuck taper shank, vise, hexagon bolt, washer,
T-nut, hexagon wrench, double-ended wrench, screwdriver, oil tank, socket wrench, torsion head 1, milling cutter 2, tie rod, CNC
System Manual, Hardware Manual
Product Features and Benefits
1. Good rigidity, small footprint, simple operation, safe and practical, stable performance and high cost performance;
2. Standard education can 980MC industrial numerical control system, micron-level interpolation accuracy, G code control spindle speed, 7-inch large color LCD display;
3. Fully compatible with FANUC, Mitsubishi and other international standard G codes and various CAM software (MasterCAM, UG, etc.); Support powerful B-type macro analysis function, which is convenient for users to develop their own motion control programs;
4. Equipped with electronic hand wheel, easy to operate and flexible, CNC system with automatic centering, tool meter and other tools;
5. Adopt industrial high-precision ball screw to ensure machining accuracy and machine stability;
6. Equipped with high-precision spindle motor (air-cooled 1.5KW electric spindle is optional) to realize stepless speed regulation of the spindle, equipped with a cooling system, and the spindle speed is controlled by G code;

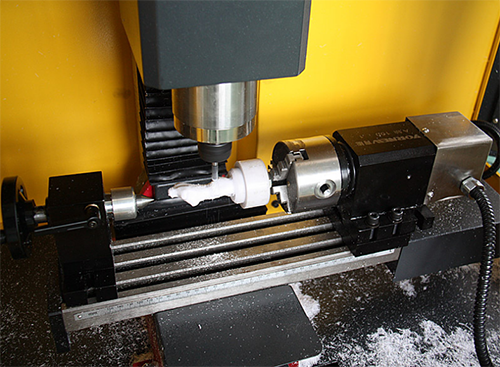

7. The fourth-axis CNC indexing head is optional to process more complex parts, the CNC indexing accuracy returns to zero error, and the positioning accuracy is 0.005mm;
8. The positioning accuracy of the machine is accurately detected by Renishaw laser interferometer;
9. Selecting special accessories has more powerful functions and more flexible use;
