200 Amp Residential Power Meter Outlet/Energy Meter Outlet for Wattmeters

Supplier: Wenzhou Roey Electricity Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Arlen Gen
Price: $8.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

port:	Ningbo/Shanghai	place of origin; place of origin:	Zhejiang, China
Certification:	ISO9001	custom made:	Do not
type:	wall socket	Maximum current:	200 amps
Supply capacity:	70,000 meter sockets per month	Custom Support:	OEM, ODM
Rated current:	200 amps	Wifi:	Do not
model:	RE-200-4J-R	product name:	Meter socket
Building Materials:	1.5mm galvanized steel sheet	Packaging Details:	Inner box + standard export carton
Rated voltage:	600V	Certificate:	ISO9001, CE
Maximum voltage:	600V	Warranty:	3 years
Insulation block:	Epoxy / Polycarbonate	brand:	Roy
waterproof level:	NEMA3R	Ground:	Standard ground
color:	Lal 7032	standard:	ANSI 12.7
application:	Residential/General Purpose	payment terms:	L/C,Western Union,T/T

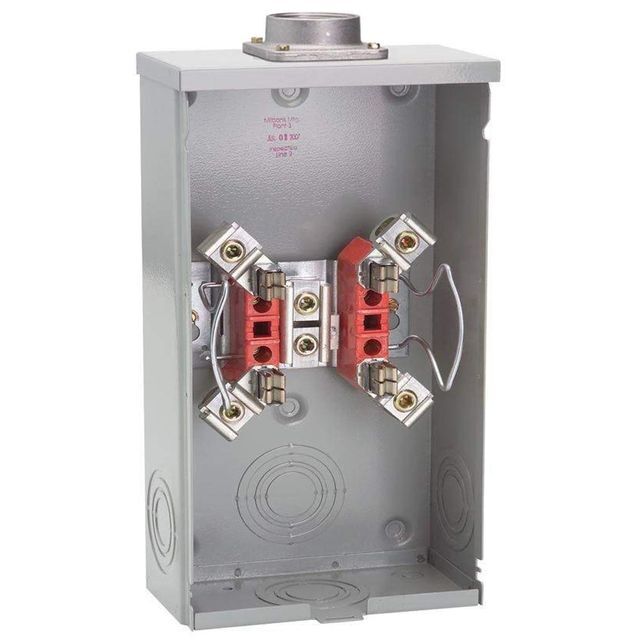

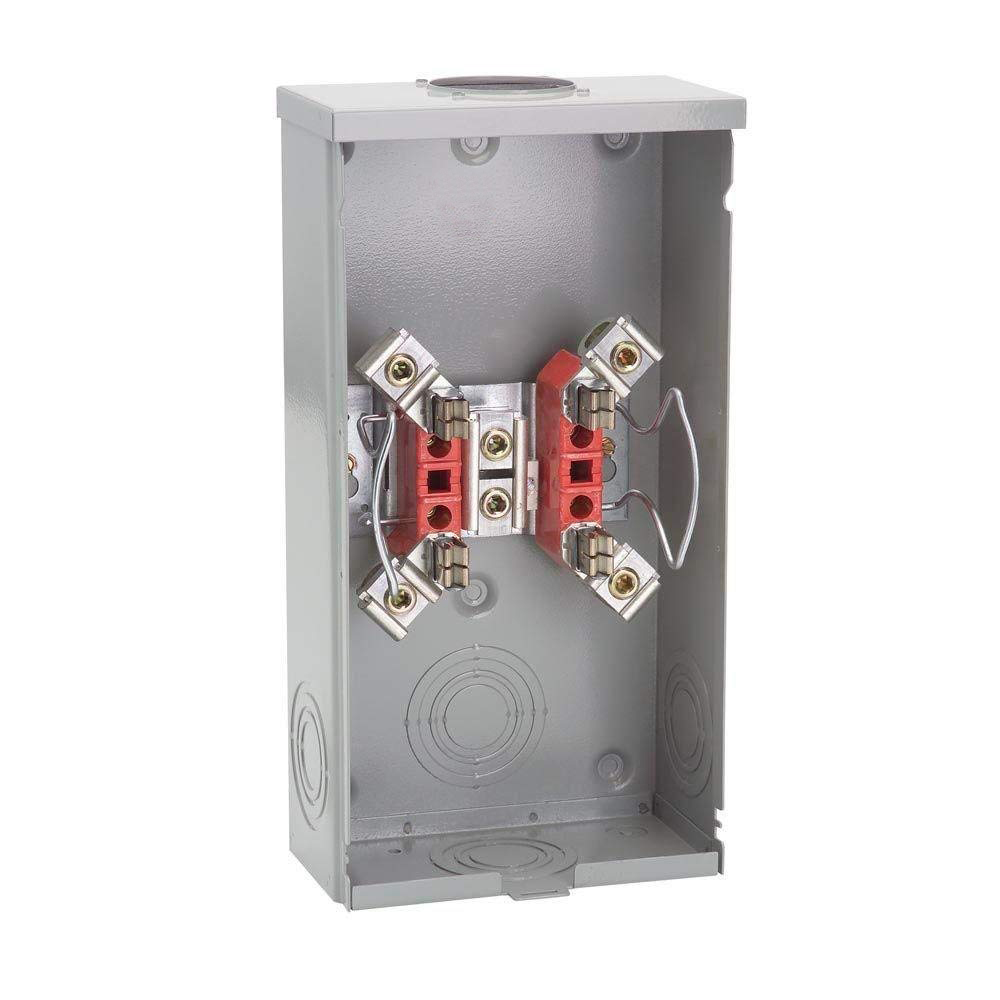

200 Amp Residential Power Meter Outlet/Energy Meter Outlet for Wattmeters

Product Description

Roey Electric offers a variety of single-position, residential, individual meter sockets, and meter grade meter sockets. Applications range from single-family homes to large industrial plants. Hundreds of configurations are available, including multiple sizes, knock-off configurations, terminal configurations, hubs, locks, and connectors

feature:

200 Amp, 600V AC, Single Phase, 4 Terminals, 2 or 3 Wire
Heavy duty long copper prongs, copper or aluminum connectors
Die-cast aluminum housing. Electrostatically applied epoxy and polyester resins, baked. Grey look.
The current-carrying parts are made of phosphor bronze.
Ground connectors are designed to ensure a positive electrical connection by effectively clamping the conductors against jagged surfaces.
Stainless Steel Seal
Fixed hub size: 1/2, 3/4, 1, 1-1/4 optional

scope:

Product number	describe	aspect
RE-200-4J-R	1 Phase, 200A, 4 Jaws, Ring Type	396, 203, 108
RE-200-4J-RL	1 Phase, 200A, 4 Claws, Ringless	396, 203, 108
RE-200-7J-R	3-phase, 200A, 7-jaw, ring type	396, 203, 108
RE-200-7J-RL	3-phase, 200A, 7-jaw, ringless type	396, 203, 108
