16A 110V/220V LCD Digital Weekly Programmable Timer Switch/Timer Relay details
Operate Temperature:-10 to +40 C;Selling Units:Single item;
Full Time Range:1Min-168Hours;Packaging Detail:inner box+ carton;
Max. Voltage:250V AC;Model Number:CN101A;
Certificate:ISO9001,CE,TUV,ROHS;Color:white;
Brand Name:ROEY;Contact Capacity:16A;
Single package size:10X8X5 cm;Product name:time switch;
Max. Current:16A;Mounting:Panel Mounting;
Battery:1.2V/40mA;Place of Origin:Zhejiang China;
Single gross weight:0.12 KG;Power failure memory:60days;

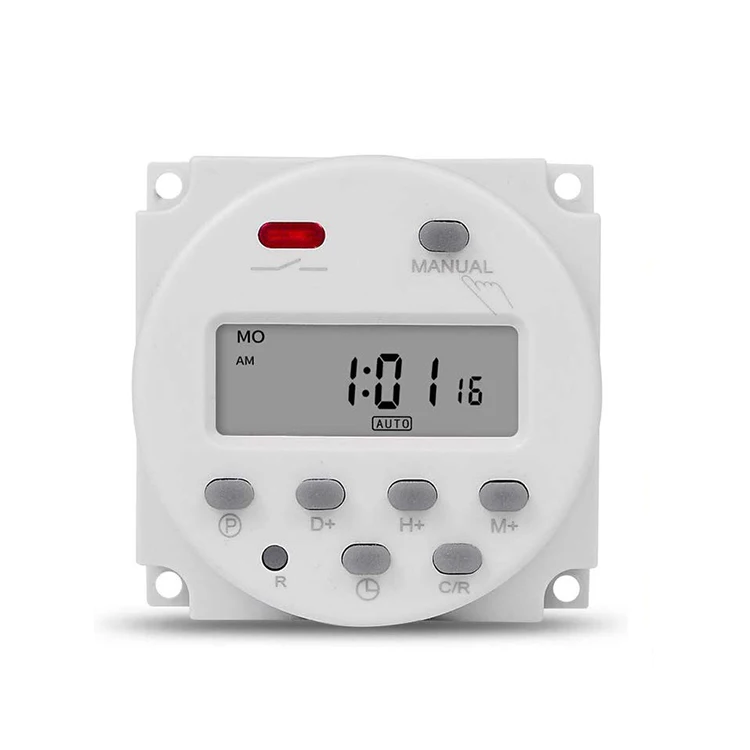

      CN101 16A 220V Relay Digital LCD Power Programmable Timer Time Switch

Product Description

Roey Programmable Digital Timer makes it easy to set all your indoor or outdoor electric devices, including lights and hydroponic equipment. Save time and energy by programming your equipment to turn on only when you need it.

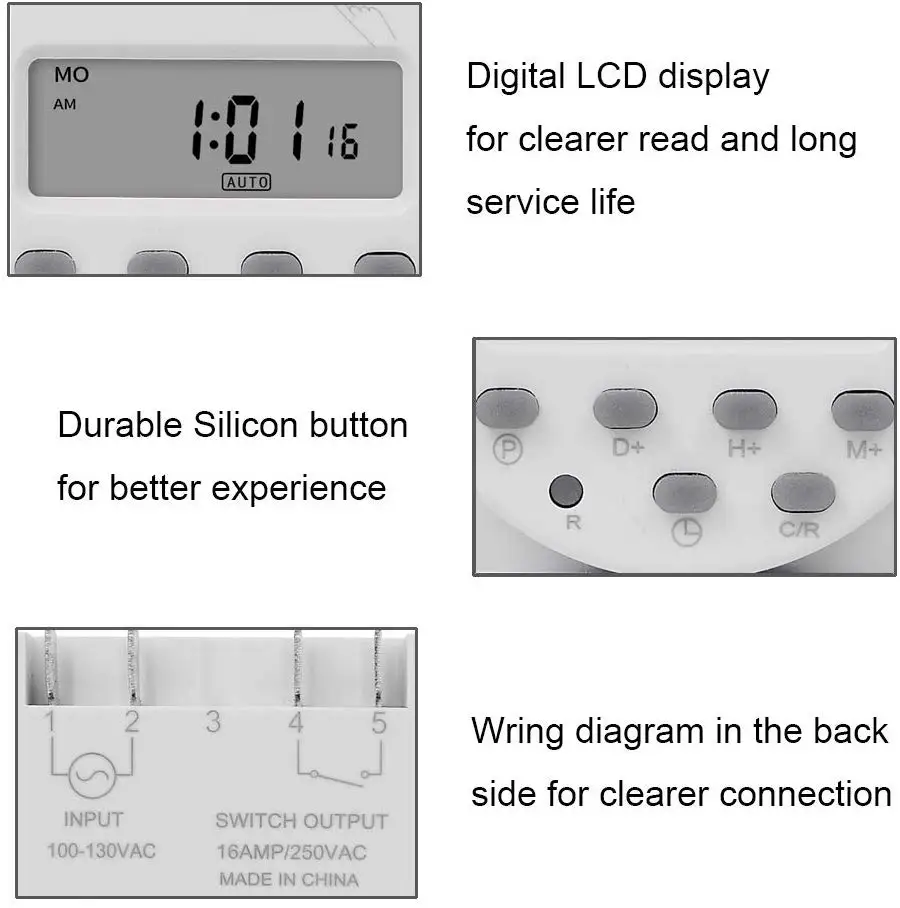

 Features:



  • LED display,time modules
  • Daily & Weekly program
  • Low Power Consumption
  • Contact Capacity: 16A
  • Full Time Range: 1Min-168Hours
  • Programmable: 17times/week or day
  • Internal battery: 1.2V/40mA (rechargeable batteries)
  • Power failure memory: 60days;
  • Net weight: 120g

Technical data:

Operation voltage AC200V-250V
Frequency 50/60Hz
Model CN101C
Number of channel 1C
Load Capactiy 16A 250VAC
No.of Memory 34
Minimum Interval 1 min.
Power Consumption 5VA
Power Reserve 60 days
Ambient Temperature -10 ~ +55℃
Protection Class II,IP2
Connection Type Flat din 6.3mm
Installation Type Panel Mounting
Display LCD

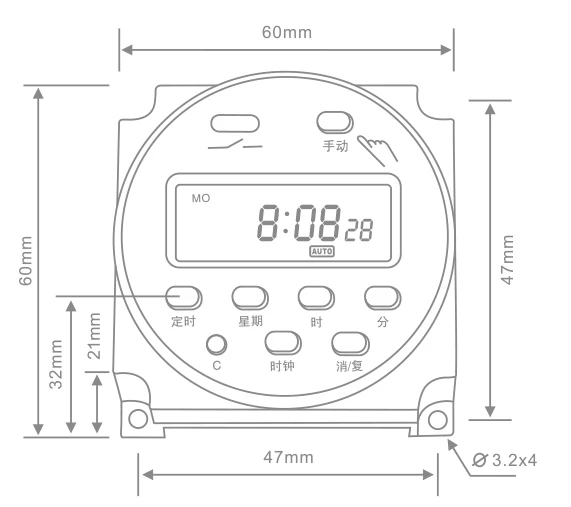

Dimension:

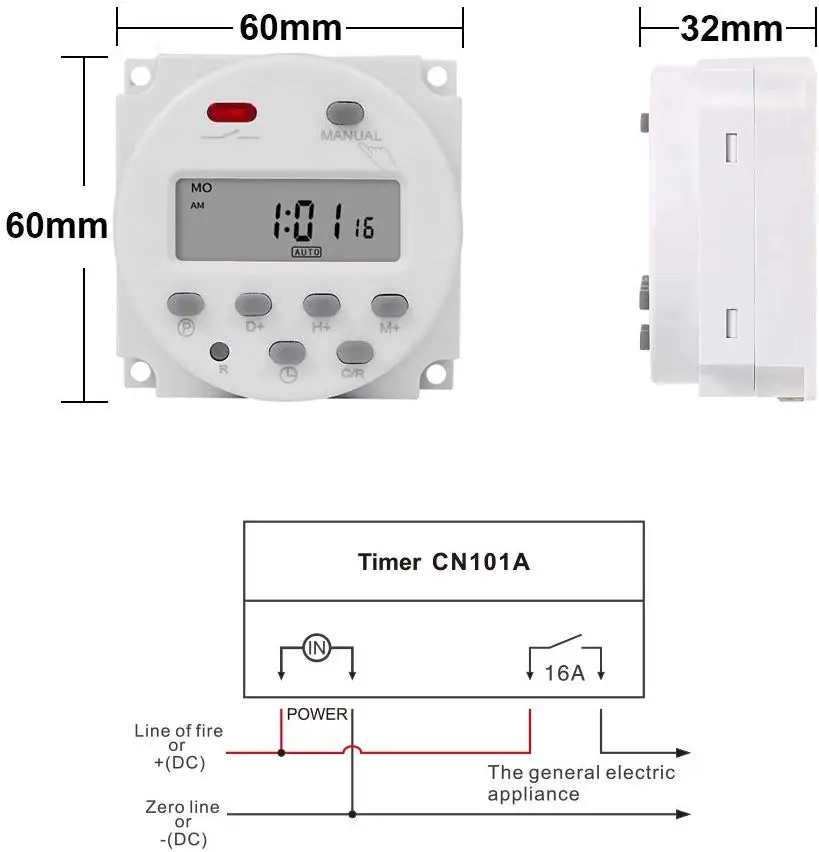

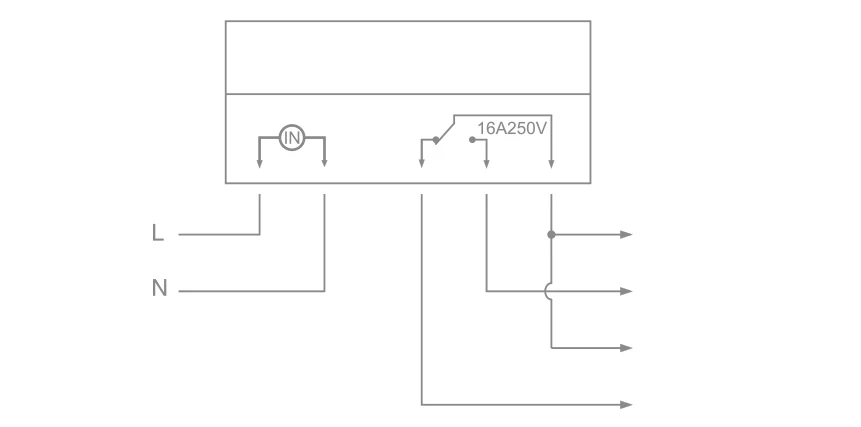

Wiring Diagram:

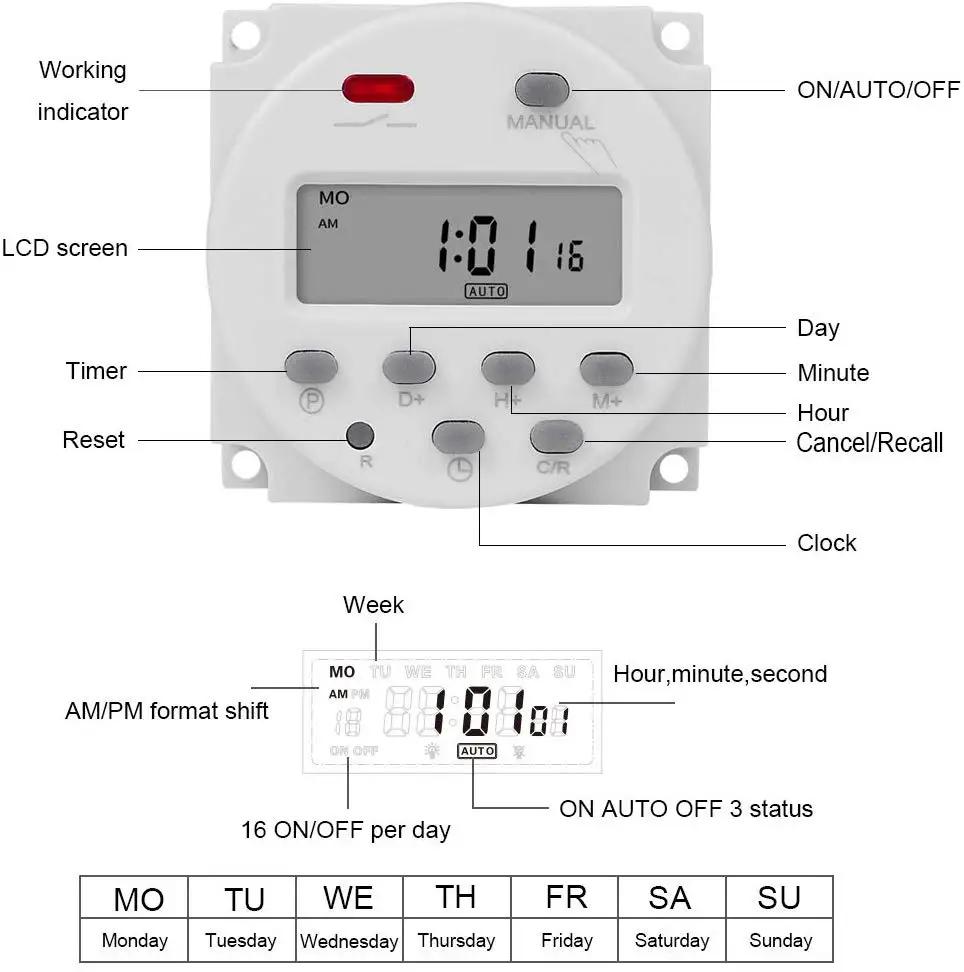

Product Overviews

Workshop

Packaging & Shipping

FAQ



1.How to contral the quality?

A. All products will be strictly Quality Checked in house before packing;

B. All products will be well packed before shipping.

C. All products have warranty.

2.About making sample.

we can help provide samples for you to test before order if really needed. The sample is charge.

3. Minimum Order Quantity?

A.For the common model,MOQ 100pcs

B. For Custom models,MOQ 1000pcs

C. You can mix all items into one 100pcs

(If your order quantity is low,Pls kindly contact me and see if we have some at stock for small order quantity).

Our Services



1. Free custom sample,send within 3-5 days .



2. Reply your email and message within 5 hours



3. 3 year warranty
