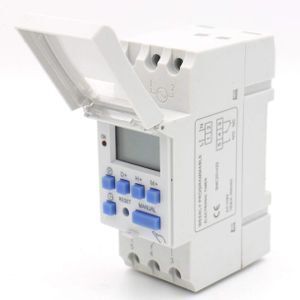

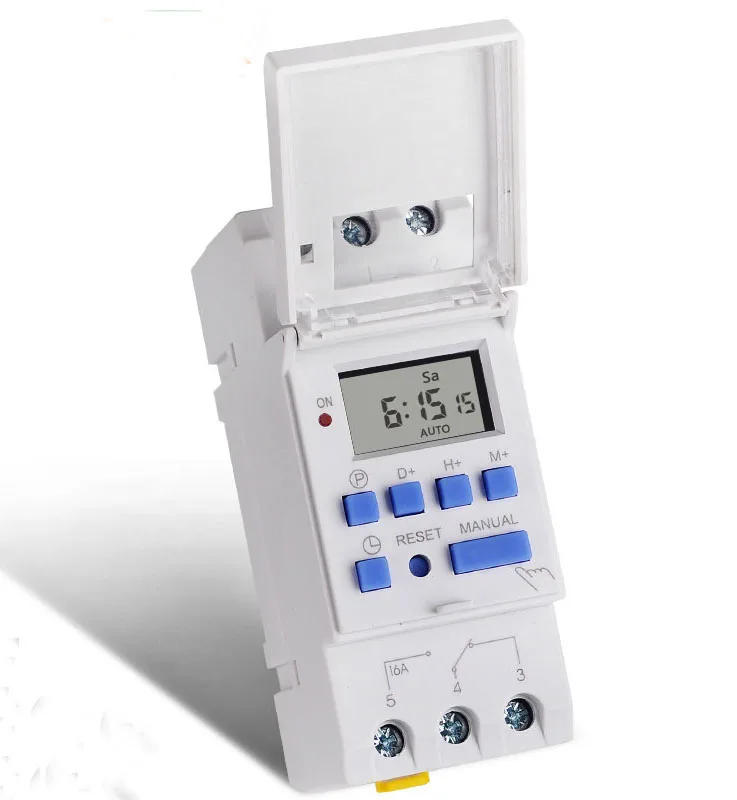

THC-15 16A 110V/220V Relay Digital LCD Power Programmable Timer Time Switch
-
Supplier: Wenzhou Roey Electricity Technology Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Arlen Gen -
Price: $2.20 /piece -
Min. Order: 1 piece
| Contact Capacity: | 16A; | Single gross weight: | 0.18 KG; |
| Single package size: | 10X8X5 cm; | Certificate: | ISO9001,CE,ROHS; |
| Packaging Detail: | inner box+ carton; | Battery: | 1.2V/40mA; |
| Place of Origin: | Zhejiang China; | Color: | white; |
| Max. Current: | 16A; | Full Time Range: | 1Min-168Hours; |
| Power failure memory: | 60days; | Brand Name: | ROEY; |
| Max. Voltage: | 110V/220V AC; | Model Number: | THC-15; |
| Selling Units: | Single item; | Operate Temperature: | -10 to +40 C; |
| Product name: | time switch; |
THC-15 16A 110V Relay Digital LCD Power Programmable Timer Time Switch
Roey Programmable Digital Timer makes it easy to set all your indoor or outdoor electric devices, including lights and hydroponic equipment. Save time and energy by programming your equipment to turn on only when you need it.
Features:
- Rated Voltage: 110V AC; Contact Capacity: 16A
- Full Time Range: 1Min-168Hours; Programmable: 17times/week or day
- Internal battery: 1.2V/40mA (rechargeable batteries)
- Power failure memory: 60days; Operate Temperature: -20 to +55℃
- Net weight: 120g
Technical data:
| Operation voltage | AC220V,110V,DC12V 24V | |||
| Frequency | 50/60Hz | |||
| Model | THC-1516 | THC-1520 | THC-1530 | |
| AC switching capacity | resistive load | 16A | 20A | 30A |
| inductive load | 8A | 10A | 15A | |
| Accuracy | ±1s/day at 20 ℃ | |||
| Power Reserve | 60 days | |||
| Power Consumption | ≤7.5VA | |||
| Switching Contact | 1 Changeover switch | |||
| Min Interval time | 1 Min | |||
| No.of program | 17 groups | |||
| Installation Type | Din Rail Mounting | |||
| Ambient Temperature | -20 ~ +55℃ | |||
Dimension:

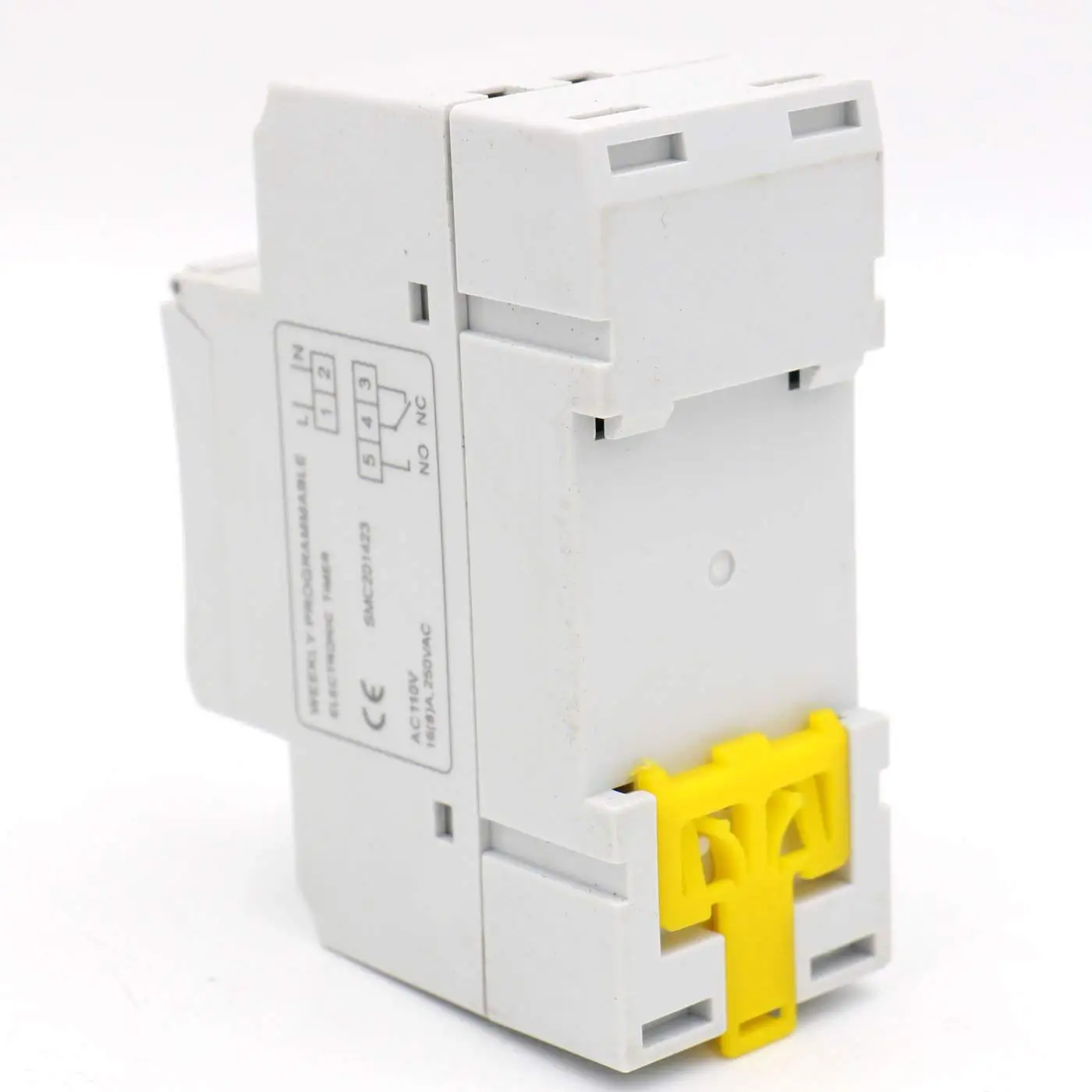

Wiring Diagram:
