Stirrup bending machine / Bending machine with simple structure Products from Beijing OCEPO Construction Machinery Ltd.

Product Details

brand:	OCEPO	Extra Services:	Painting/Powder Coating
place of origin; place of origin:	Beijing China	automation:	automatic
strength:	hydraulic	Certification:	ISO 9001:2000
Material/Metal Finishing:	Carbon steel	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Type of machine:	beading machine	Packaging Details:	wooden box
Supply capacity:	10000 sets per month	Delivery Details:	3-6 days
After-sales service provided:	Engineers can repair machinery overseas	Raw materials:	metal rod
port:	Tianjin harbor	Health status:	new
model:	AGW

Product Description

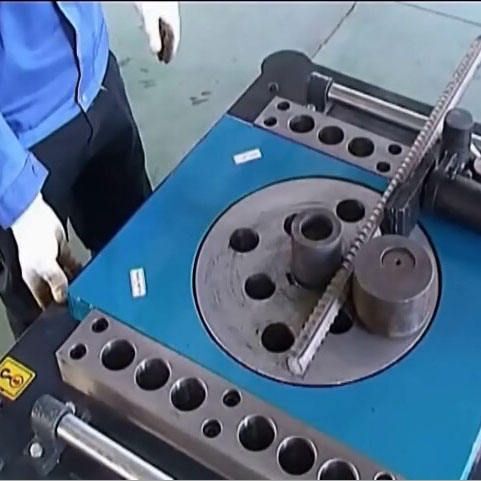

AGW40 steel bar bending machine

Advantage
1. Compact structure and convenient operation.
2. Using special thickened steel plate, high rigidity iron plate, high quality motor, more stable performance.
3. Eccentric bushings, ultra-high hardness attachments and adjustable baffles ensure longer service life,
4. Wide range of bending.

Specification
AGW-40 and 50 are equipped with worms,
AGW-40B is a cheap outfit gear. The quality of the worm is better than that of the gear.
The AGW-40C and 50C are fitted with a worm that automatically returns.

Model	AGW-40 AGW-40B AGW-40C
Bending diameter	6-40mm 6-40mm 6-40mm
Working plate specifications	320mm 350mm 320mm
Spindle speed	7r/min 7r/min 7r/min
Motor Power	3KW, 380V, 1440r/min
dimension	850×750×840mm 940×720×780mm 850×750×840mm
weight	300kg

Product display

main part

our company

factory

workshop

storehouse

team

Packaging and Delivery

Packaging details: wooden box

deliver goods:3-5sky

1. Tray

2. Wooden box

3. Transportation

Our certification

feature

For bending ordinary round bars, ribbed steel bars, etc. The machine design is reasonable. The model structure is adopted, the operation is safe and the performance is reliable. Easy to move and easy to maintain.

BAGS-40C Rebar Thread Rolling Machine

Thread rolling does not cut threads and thus preserves the highest tensile strength of the base metal. Meet the requirements of JGJ107, ACI318, BS8110, DIN1045, UBC1997, etc.

HLY-32 steel bar cold stamping machine

High tensile strength. The following criteria can be met:

JGJ107, ACI318, BS8110, DIN1045, UBC1997, etc. are used for the punching connection of connectors and steel bars, and are suitable for steel bars with a diameter of 16-32mm.

ACQ series steel bar cutting machine

It is used to cut ordinary round steel and ribbed steel bar, as well as flat steel, square steel and angle steel. Small size, light weight, compact structure, strong and reliable.
