Fast Stirrup Bending Machine Small CNC Stirrup Bending Machine

Click here to contact
Product details
Origin:Hebei chinasize:3300*1300*1600mm
Bending motor:1.5 kWautomation:automatic
Single pack size:10X10X10 cmProduction:2300pcs/hour
Core component warranty:1 yearBend Diameter:4-8mm
spinning speed:40m/minCutting motor:7.5 kW
Mechanical test report:ifWeight (kg):600
Applicable industries:building materials storeWarranty:1 year
Health status:newLength Accuracy:±1mm
Showroom location:not anybrand:Bai Lun
weight:600 kgGross weight per piece:10.000 kg
Main selling points:easy to operatecolor:custom made
Sales unit:single productVideo outbound inspection:if
Name:CNC stirrup bending machineMarketing Type:2020 New Products
Core components:Programmable controller, motorMaterial/Metal Processing:Carbon steel

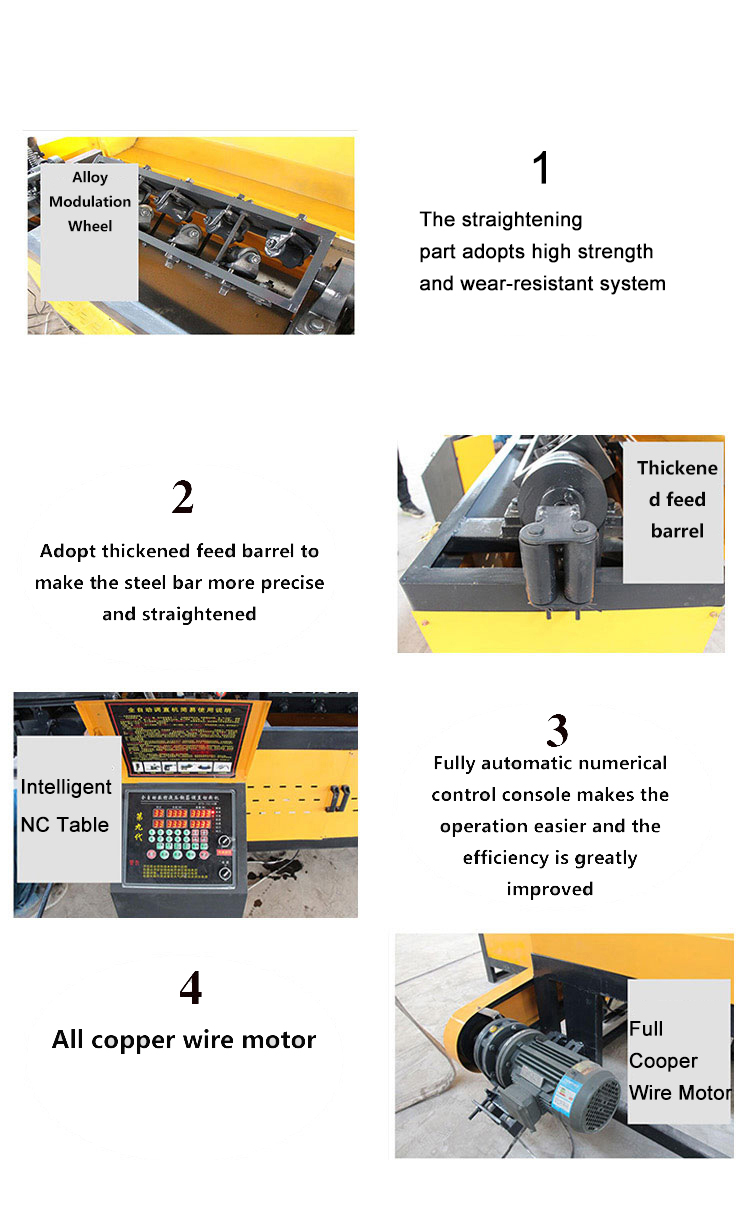

Our CNC automatic steel bar bending machine #BLM4-10 can complete the straightening, cutting, hoop forming and bending process of steel bars.

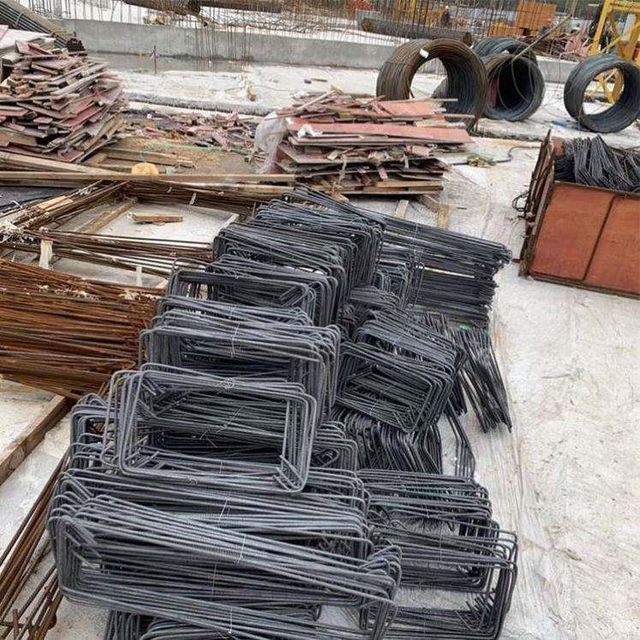

Cut steel bars with a diameter of 4-10mm into the required rectangle, triangle or square at one time, with high efficiency. The process is simple and easy to operate.
This machine is widely used in steel wholesale, steel processing plants, small construction sites, etc.
Product Description
Specification
Diameter range of round bar/ribbed bar
4-10mm
Bending power motor
2.2kw (with reducer)
Straightening power motor
9 kW
Bending Stirrup Efficiency
2200PCS/hour
(Example: a square hoop with a side length of 20cm)
Machine net weight
900 kg

Machine size:

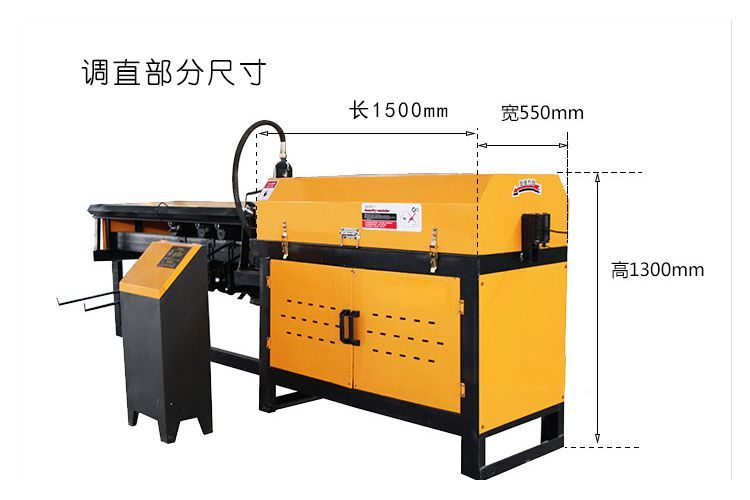

Straightening piece size:
1500*550*1300mm

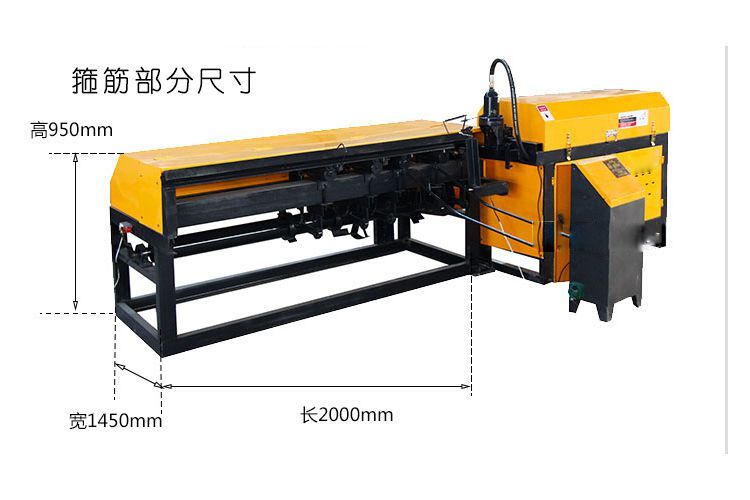

Bend part size:
2000*1450*950mm
