CE certified OCEPO Construction tool wire binding machine

Supplier: Beijing OCEPO Construction Machinery Ltd.
Region: Beijing, China
Contact: Mr Rogers Zhang
Price: $285.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Details:	Plastic box, 1pc/box, GW: 7.5KG	Delivery Details:	3 days after order
strength:	lithium ion	product name:	CE certified OCEPO Construction tool wire binding machine
Certification:	Chief Executive	After-sales service provided:	Engineers can repair machinery overseas
Winding per knot:	2-3 laps	port:	Tianjin
type:	automatic	place of origin; place of origin:	Beijing China
Warranty:	1 year	payment terms:	Letter of Credit, T/T, Western Union, MoneyGram
model. :	(Li-ion) WL-210/WL-400	brand:	OCEPO
application:	Rebar Binding Machine	Maximum bundle diameter:	21mm/40mm
Supply capacity:	450 sets of CE certified OCEPO construction tool wire binding machine per month	model:	WL-210, WL-400

Product Description

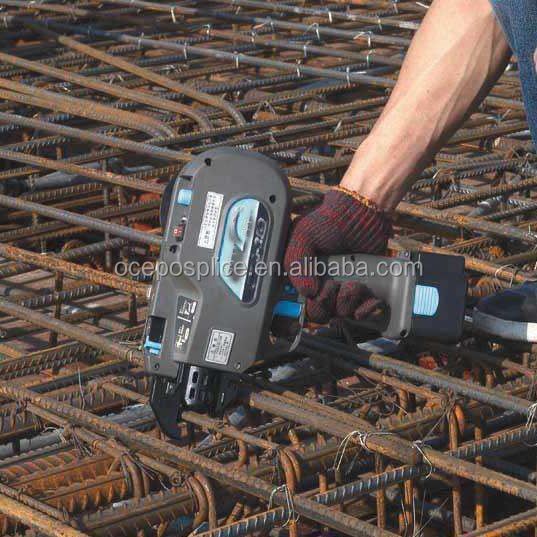

It is used to fasten steel bars in construction.

1. Fully automatic, the operation is very simple.
2. High quality.

model.	WL-210 Lithium Ion	WL-400 Lithium Ion
Max Tying Dia.	21mm	40mm
voltage and capacity	DC14.4V(4.4AH)	DC14.4V(4.4AH)
charging time	about 70 minutes	about 70 minutes
Knotting speed per knot	0.7s	0.75s
Ties per charge	Over 3200 relationships	Over 3200 relationships
Revolutions per draw	2 turns/3 turns	2 turns/3 turns
tie for each coil	About. 195 (3 turns)	About. 130 (3 turns)
Tie length	380mm/2 turns, 550mm/3 turns	650mm/2 turns, 750mm/3 turns
line type	Black annealed or galvanized wire	Black annealed or galvanized wire
northwest	1.8kg	1.9kg
Dimensions (LxWxH)	275x120x275mm	295x120x275mm

Product display

Accessories

metallic line

Model: WL

Diameter: 0.8mm

Material: Q195

Length: 100m

Packing: 50pcs/carton, 449*310*105mm, 20.5kg, 0.017CBM

2500pcs/pallet, 1020*920*1000mm, 1000kg, 0.94CBM

charger

Model: WL-A4

Charger voltage: 110-240V

50/60Hz

Rebar Binding Machine

1 machine

2 battery packs

1 fast charger

3pcs wire coil

1 specification

1pc Allen key

1 pc needle nose pliers

Our certification

Packaging and Delivery

Packaging details: plastic box, 1pc, GW: 7.5kg

Delivery Details: 3 days after placing the order.

production line

internal view

outer bag

plywood box

Express

transportation

our company

factory

workshop

Rebar coupler

Type: 16-40mm

Parallel, reducing, end upsetting, cold stamping, conical, weldable joints, etc. for mechanical connection of steel bars.

Thread rolling machine

Model: AGS-40C

Thread rolling does not cut threads and thus preserves the highest tensile strength of the base metal. Meet the requirements of JGJ107, ACI318, BS8110, DIN1045, UBC1997, etc.

Can process steel bars with a diameter of 16-40mm

Upsetting machine

Model: GD-150

Can meet the standards: JGJ107, ACI318, BS8110, DIN1045, UBC1997, etc. Rebars with a diameter of 16-40mm can be processed.

touch

OCEPO, a professional manufacturer and system solution provider of rebar connection machines, rebar processing machines, and small road machines in China.

OCEPO was established in the 1990s. For 20 years, it has been focusing on the research and development, production and sales of steel bar connecting machines and steel bar processing machines. The company is located in Beijing, the capital of China, only 4.2 miles away from the 2008 Olympic Stadium-Bird's Nest in the west, 35 miles away from the world-famous Great Wall in the north, 9 miles away from the Forbidden City in the south, and 98 miles away from the fourth largest port in the world-Tianjin Port in the east. The unique geographical location and cultural environment here have created a famous Chinese brand - OCEPO.
