Deep groove ball bearing remover TMMD100 Easy removal of bearings in blind housings

Easy removal of bearings in blind covers

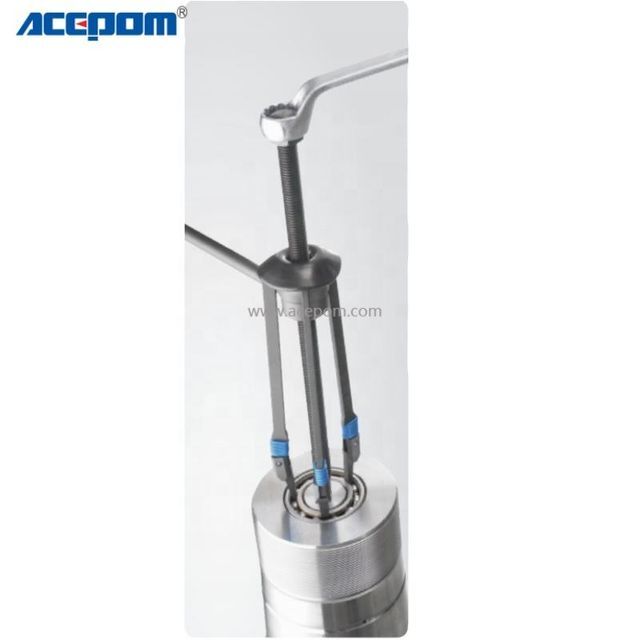

The TMMD100 is specially designed for easy and quick removal of deep groove ball bearings with an interference fit on both rings. Pullers are available for blind hood and shaft applications. In addition to dismounting open bearings, TMMD 100 can also be used to dismount sealed bearings after removing the seals. The puller kit contains six sets of different sized pulling arms, two spindles and a handle, packaged in a carrying case. The TMMD 100 is suitable for dismounting up to 71 different SKF deep groove ball bearings from 10 to 100 mm (0.4 - 3.9 in) shaft diameters.

• The special design of the claws helps to precisely fit the raceway of the bearing, providing a good grip and allowing higher dismounting forces to be applied
• Each puller arm is spring-loaded for easy installation
• Puller arms are made from a single piece of laser cut hardened steel for strength and longevity
• Arm sizes 4, 5 and 6 have filler plates to accommodate various bearings
• Spindle hex head with anti-skid pin to prevent the wrench from slipping off the spindle during disassembly
• The angle of rotation of the jaws is limited to facilitate insertion
• The name is laser engraved on the arm for easy identification and selection

The rubber cover allows easy and quick attachment of the arm to the spindle.
It also prevents the puller arm from disengaging from the spindle during operation. (figure 1)

Suitability Chart
Bearing code	Shaft diameter
6000–6020	10–100 mm	(0.4–3.9 inches)
6200–6218	10–90 mm	(0.4–3.5 inches)
6300–6313	10–65 mm	(0.4–2.6 inches)
6403–6410	17–50 mm	(0.7–2.0 inches)
62/22, 62/28, 63/22, 63/28	22, 28, 22, 28 mm	(0.9, 1.1, 0.9, 1.1 inches)
16002, 16003, 16011	15, 17, 55 mm	(0.6, 0.7, 2.2 inches)
16100, 16101	10, 12 mm	(0.4, 0.5 inches)
