LAGD125/WA2 Gas driven single point automatic grease lubricators

Supplier: Jingjiang Acepom Instrument Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Mr Shawn Cai
Price: $22.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Brand Name:	OEM;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Energy & Mining;
General Composition:	Base Oil;	Package Type:	Caton packing for LAGD125/WA2 Gas driven single point automatic grease lubricators;
Place of Origin:	Switzerland;	Type:	single point automatic grease lubricators;
Package size per batch:	20X30X20 cm;	Selling Units:	Multiple of 10;
Gross weight per batch:	3 KG;	Material:	pe;

Product Description

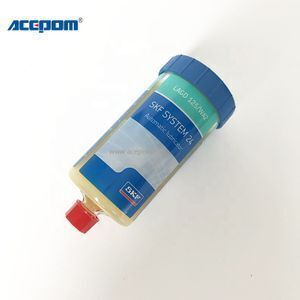

SYSTEM 24

The units are supplied ready-to-use straight from the box and filled with a wide range of high performance SKF lubricants. Tool-free activation and time-setting allow easy and accurate adjustment of lubrication flow.

Flexible dispense rate from 1 to 12 months
Stoppable or adjustable if required
Intrinsic safety rating: ATEX approved for zone 0
Transparent lubricant container allows visual inspection of dispense rate
Compact size, permits installation in restrictive areas
Greases and chain oils available
SKF DialSet software helps to calculate the correct dispense rate
Extensive range of accessories.

Ordering details
Grease	Description	Unit 60 ml	Unit 125 ml
LGWA 2	Multi-purpose EP type grease	LAGD 60/WA2	LAGD 125/WA2
LGEM 2	High loads, slow rotations	LAGD 60/EM2	LAGD 125/EM2
LGGB 2	Biodegradable	–	LAGD 125/GB2
LGHB 2	High temperature and loads, plain bearings	LAGD 60/HB2	LAGD 125/HB2
LGHP 2	High performance polyurea	LAGD 60/HP2	LAGD 125/HP2
LGFP 2	Food processing industry	–	LAGD 125/FP2
LGWM 2	High load, wide temperature	–	LAGD 125/WM2
Chain oil
LHMT 68	Medium temperature oil	LAGD 60/HMT68*	LAGD 125/HMT68*
LHHT 265	High temperature oil	–	LAGD 125/HHT26*
LHFP 150	Food grade, NSF H1 approved oil	–	LAGD 125/HFP15*
LFFM 80	Food grade, NSF H1 approved oil	–	LAGD 125/FFM80*
LFFT 220	Food grade, NSF H1 approved oil	–	LAGD 125/FFT22*
	Empty unit suitable for oil filling only	LAGD 60/U*
	Empty unit suitable for oil filling only	–	LAGD 125/U*

Technical data
Designation	LAGD 60 and LAGD 125
Grease capacity – LAGD 60 – LAGD 125	60 ml (2 US fl. oz) 125 ml (4.2 US fl. oz)
Nominal emptying time	Adjustable; 1–12 months
Ambient temperature range	–20 to +60 °C (–5 to +140 °F)
Maximum operating pressure	5 bar (75 psi) (at start-up)
Drive mechanism	Gas cell producing inert gas
Connection thread	R1/4
Maximum feed line length with: – grease – oil	300 mm (11.8 in.) 1 500 mm (59.1 in.)
Intrinsically safe approval	II 1 G Ex ia IIC T6 Ga II 1 D Ex ia IIIC T85 °C Da I M1 Ex ia I Ma
EC Type Examination Certificate	Kema 07ATEX0132 X
Protection class	IP 68
Recommended storage temperature	20 °C (70 °F)
Storage life of lubricator	2 years
Weight	LAGD 125 approx 200 g (7.1 oz) LAGD 60 approx 130 g (4.6 oz) Lubricant included

Note: For optimum performance, SKF SYSTEM 24 LAGD units filled with LGHP 2 should not be exposed to ambient temperatures over 40 °C (105 °F), or have a time setting longer than 6 months.
