Hot selling wood laser cutting machine 150w

Click here to contact

Product details

place of origin; place of origin:	Shandong China	control:	offline
Cutting thickness:	0-30mm	Applicable materials:	Acrylic, Leather, MDF, Paper, Plastic, Plexiglass, Plywood, Rubber, Wood
Health status:	new	payment terms:	letter of credit, wire transfer
model:	GT-1390	product name:	CNC Laser Cutting Machine
brand:	golden technology	Work area:	1300*900mm
Cutting area:	1300*900mm	cool down:	Chiller cw5200
CNC or not:	Yes	Certification:	ce
Laser tube:	Sealed carbon dioxide glass tube	table:	Honey Crome + Blade Knife Double Table
After-sales service provided:	Engineers can repair machinery overseas	color:	Blue and white
Function:	Cutting non-metallic materials	application:	laser cutting
Laser power:	150W	Supply capacity:	200 sets per month
port:	Qingdao	controlling software:	Ritar
Packaging Details:	Plywood Box Packaging	cooling method:	water cooling
Cutting speed:	0-40000mm/min	Supported graphic formats:	AI,BMP,Dwg,DXF,DXP,PLT
type:	Water-cooled CO2 laser cutting machine	Laser Type:	carbon dioxide

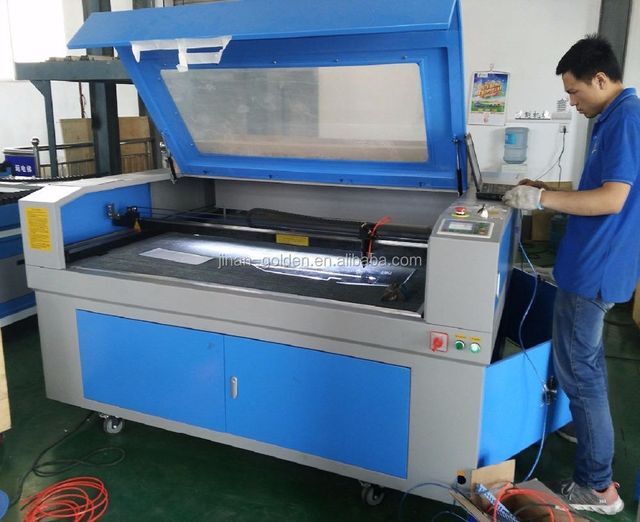

machine photo

parameter

type	GT-1390
engraving area	1300X900mm
Laser power	150w (10 months warranty)
Lenses and mirrors	3 mirrors + 1 focusing mirror
driving style	stepper motor
table	Blade knife table + honey comb table
Control System	Ritar offline USB control
power supply	220V(or 110V)±10% 50HZ
software	RDCAM
Supported Graphics Formats	PLT,DXF,BMP,JPG,GIF,PGN,TIF
Operating temperature	0-45°C
Working humidity	35-70°
spread	belt
rail	Taiwan Shangyin Square Rail
Water cooling (yes/no)	Yes, Chiller CW5200
air pump	Yes
fan	Yes
Laser tube (hour life)	5000-8000 hours
Recommended Spare Parts/Consumables	Laser Tubes and Lenses
Laser Tube Warranty	Wynn 150W , 10 months warranty
laser machine	12 month warranty excludes laser tube and lens
Certificate	CE FDA BV

Mechanical Parts

Cut the sample
