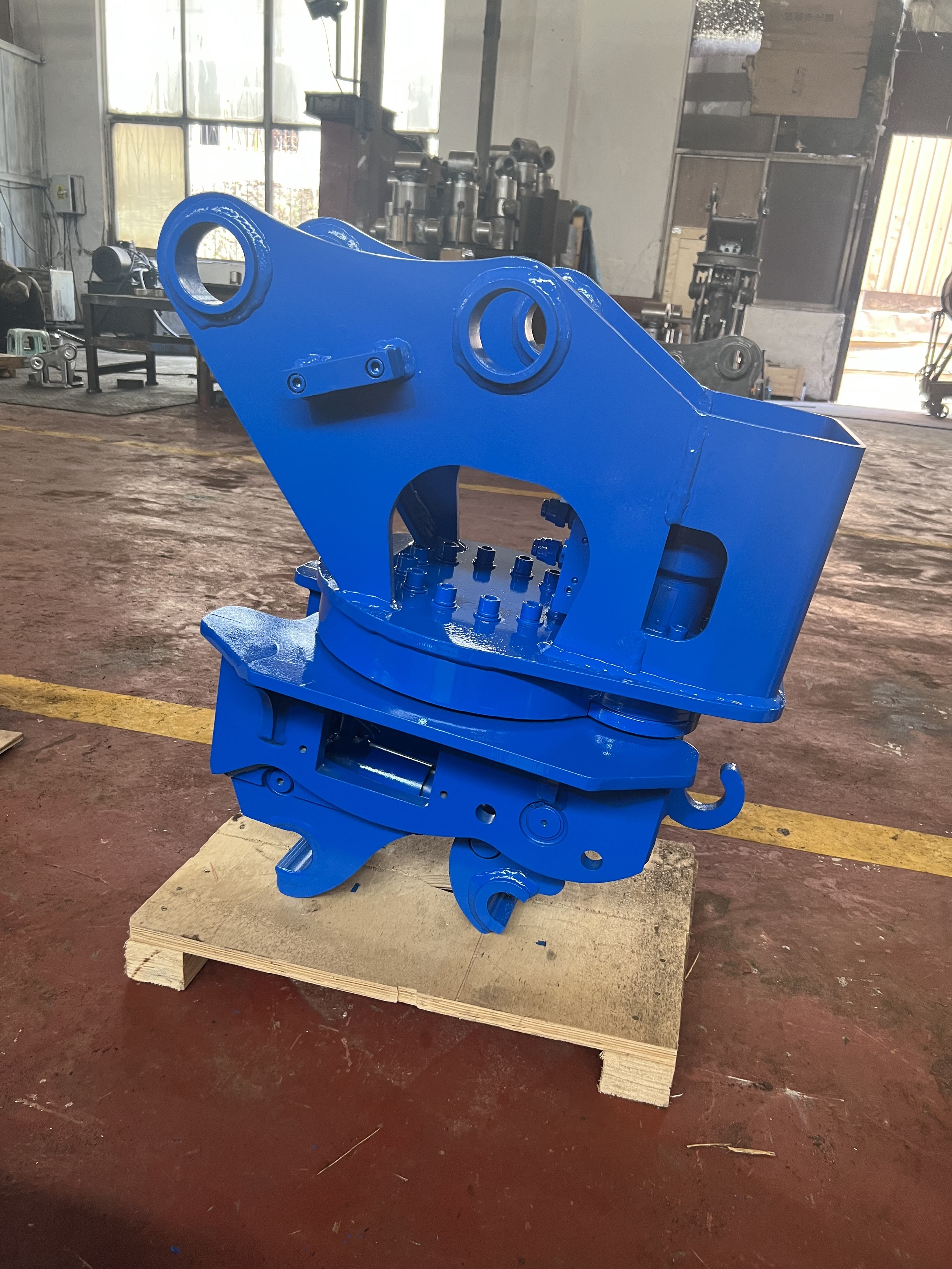

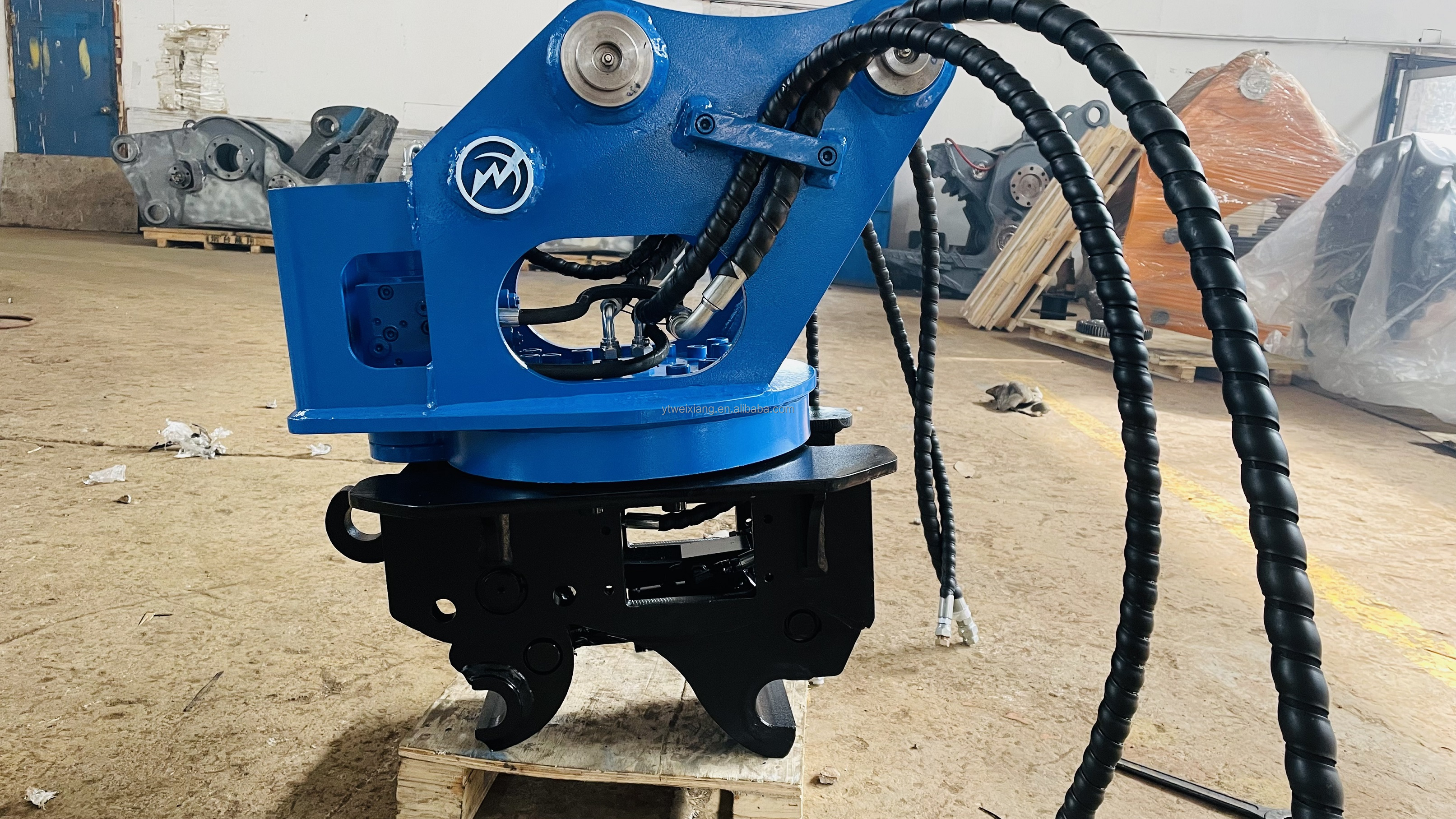

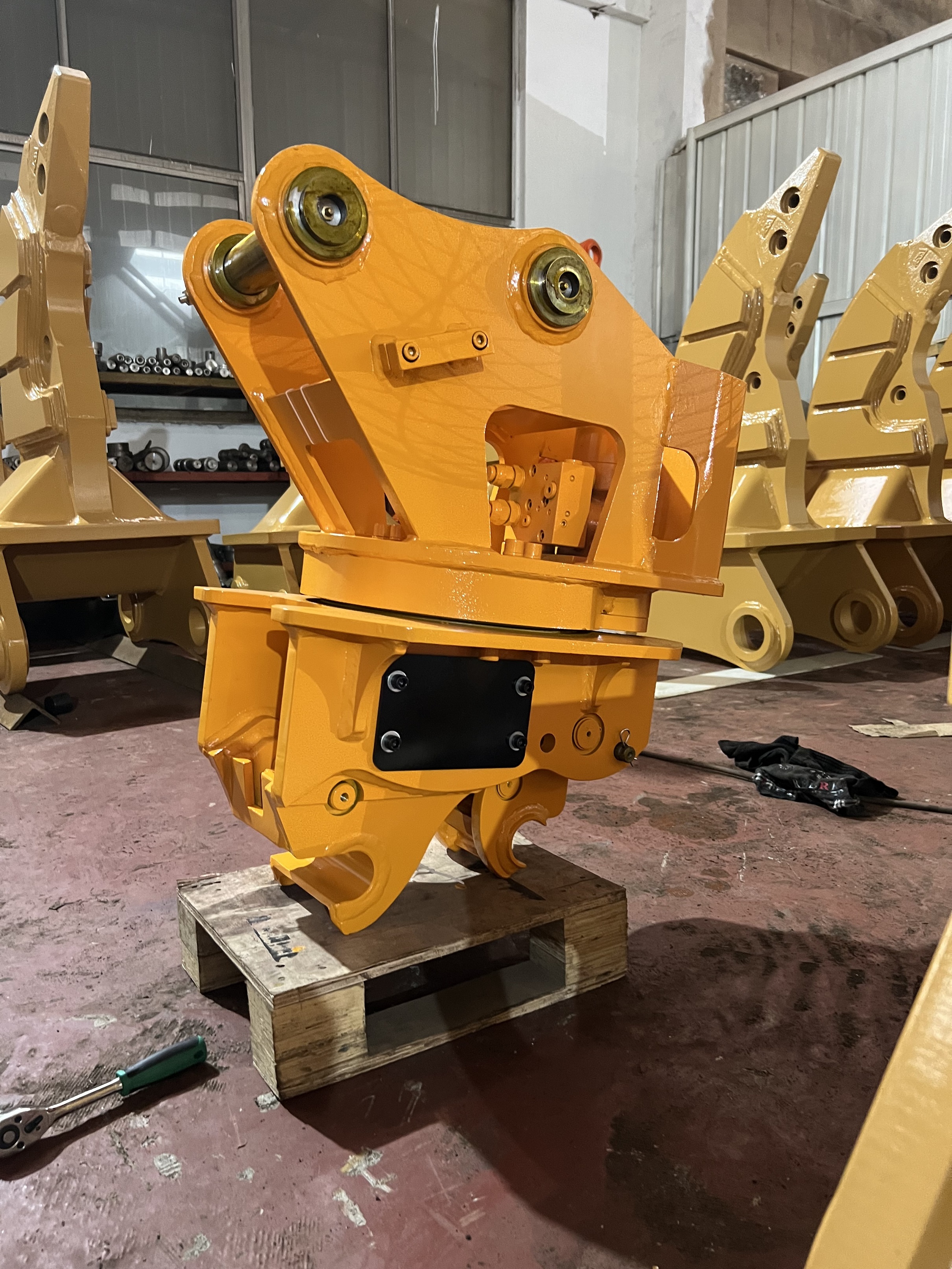

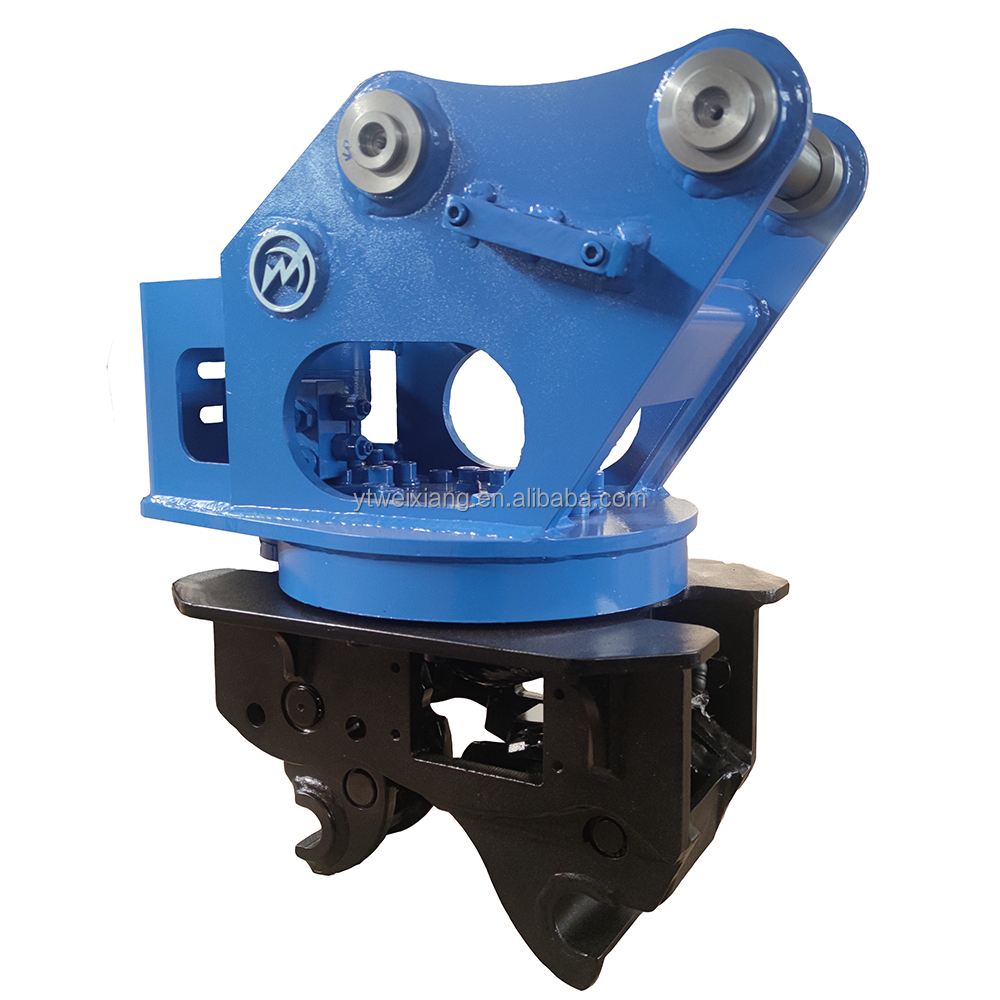

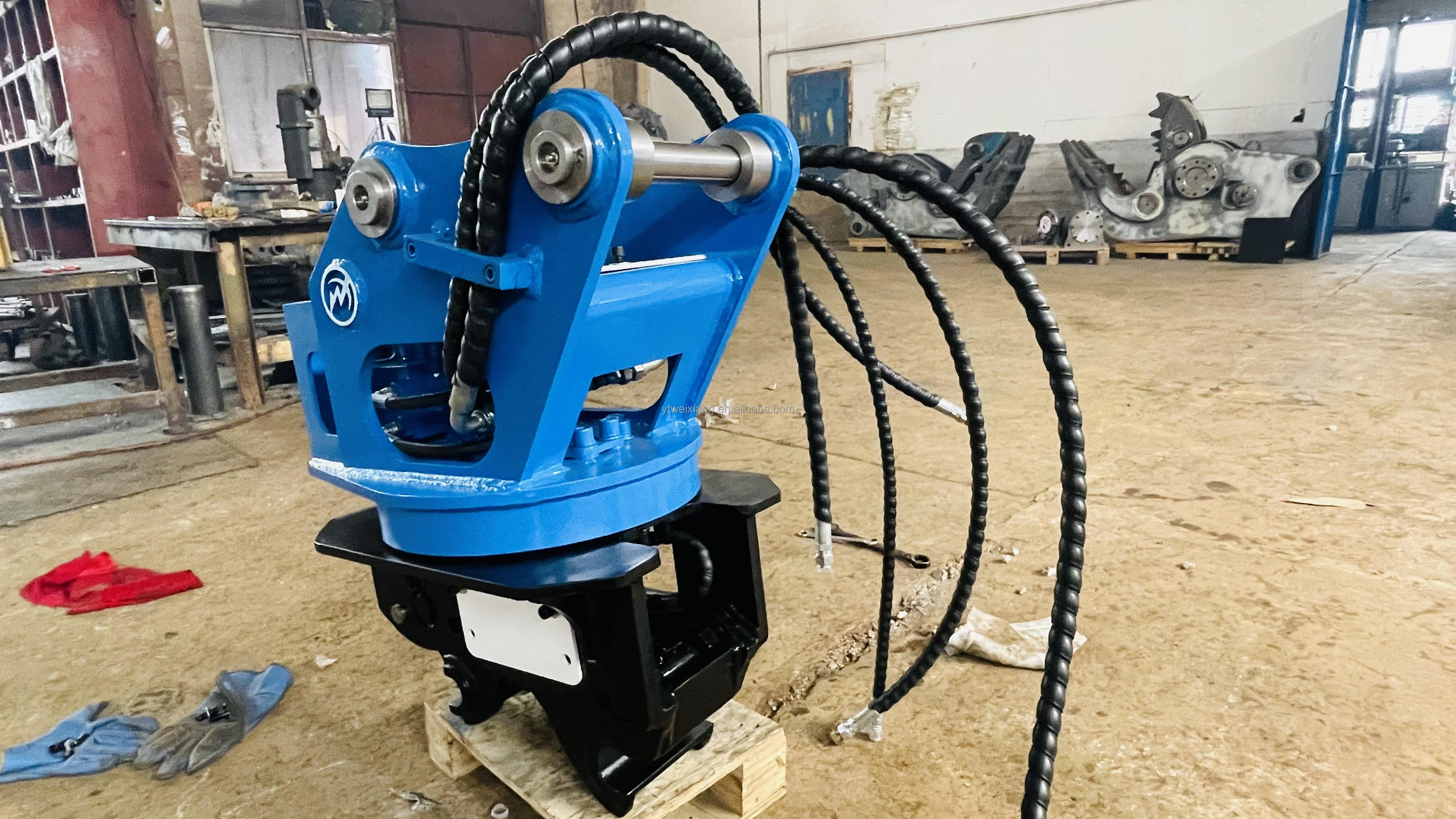

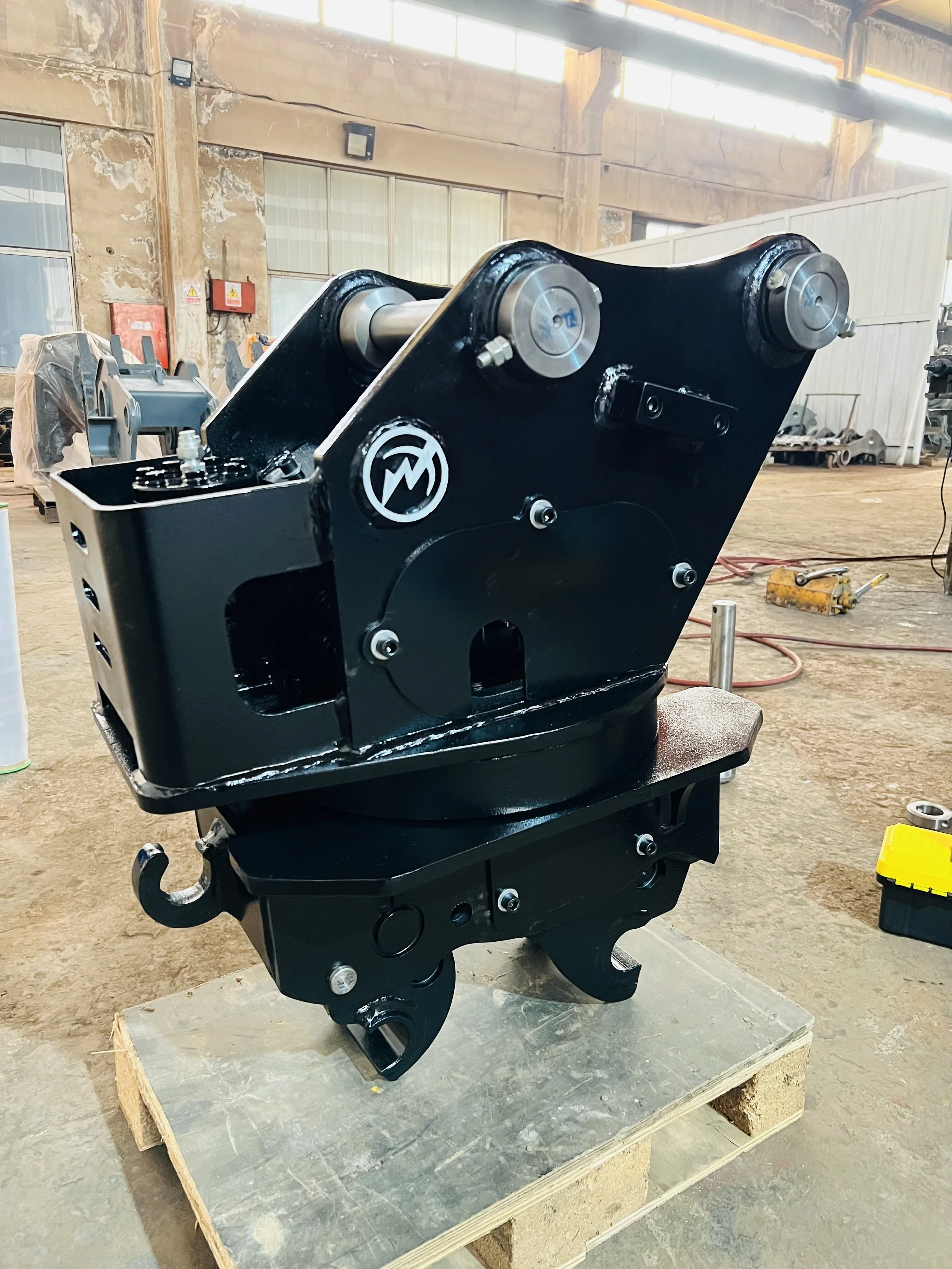

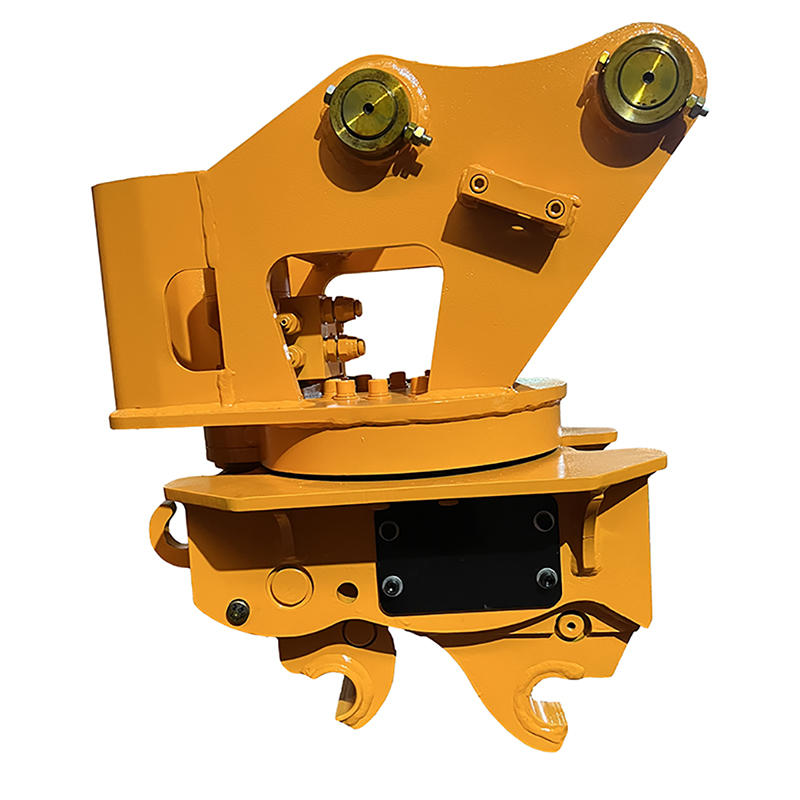

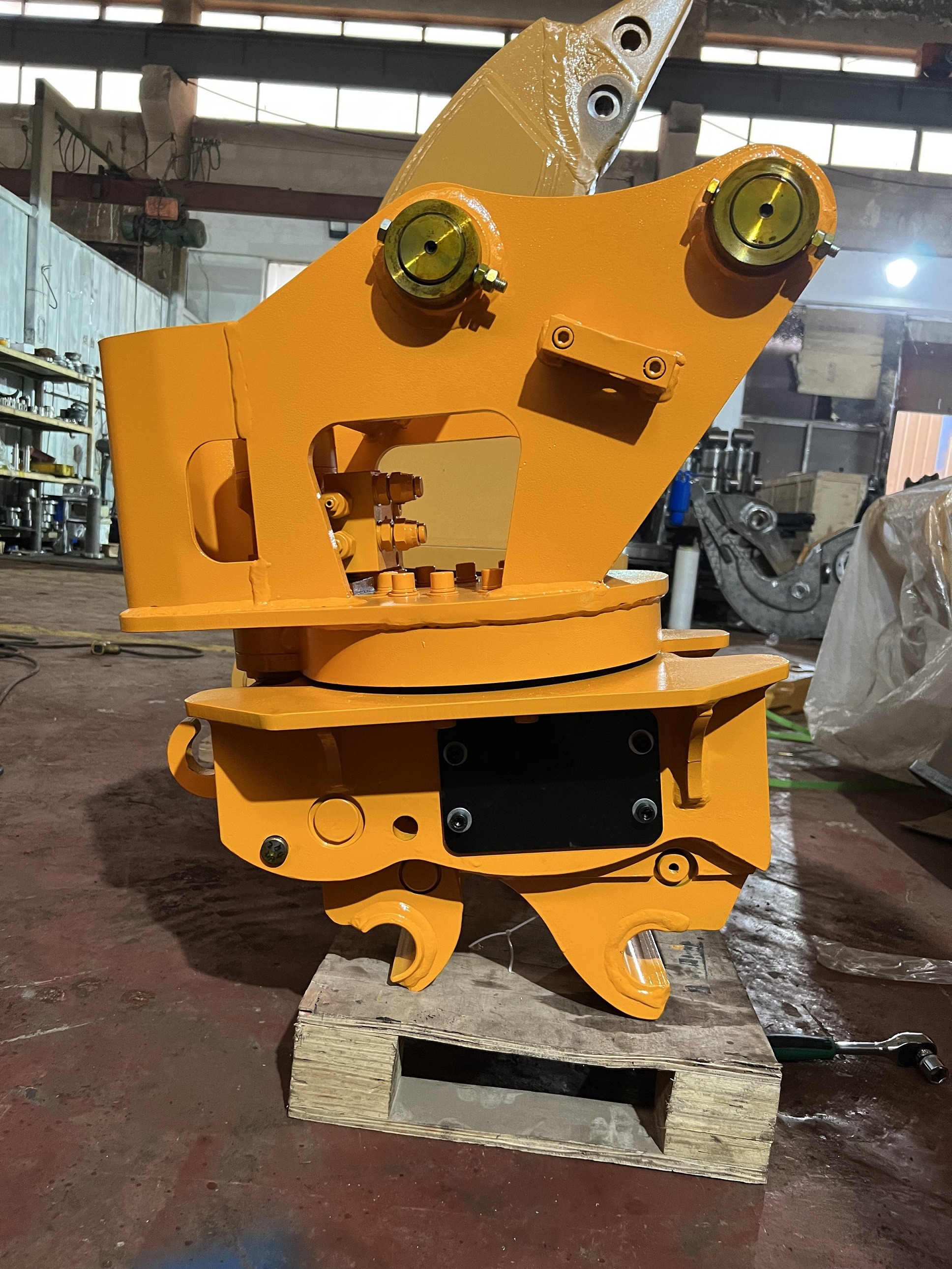

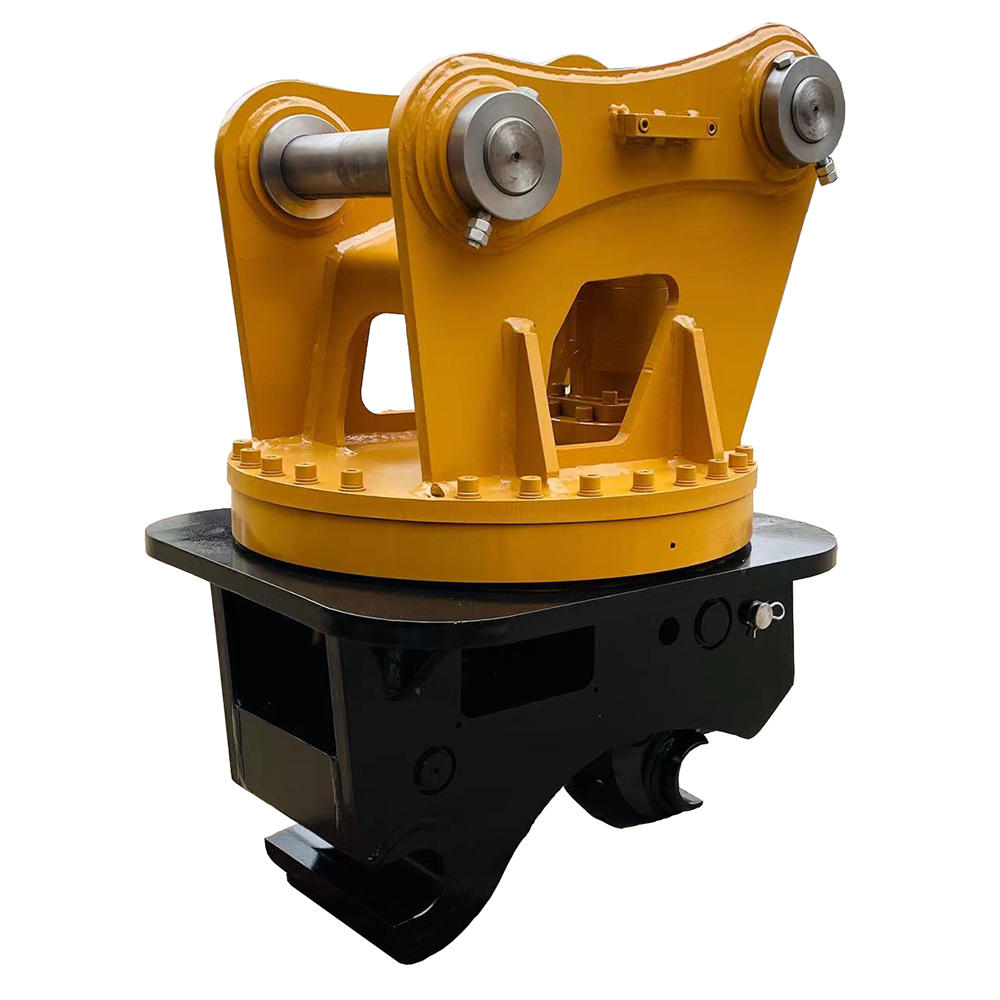

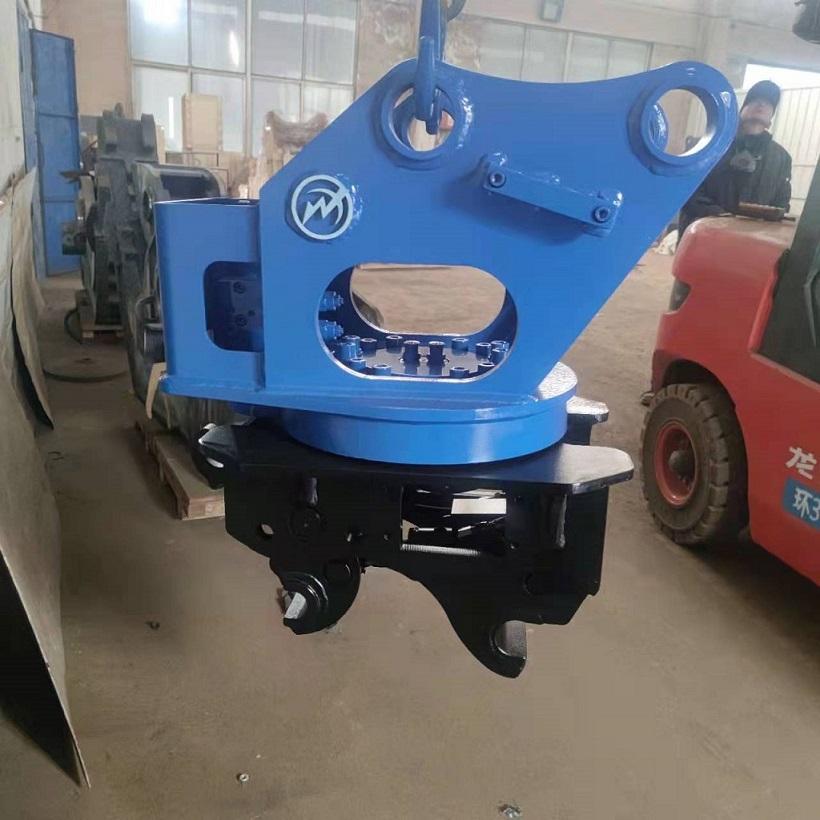

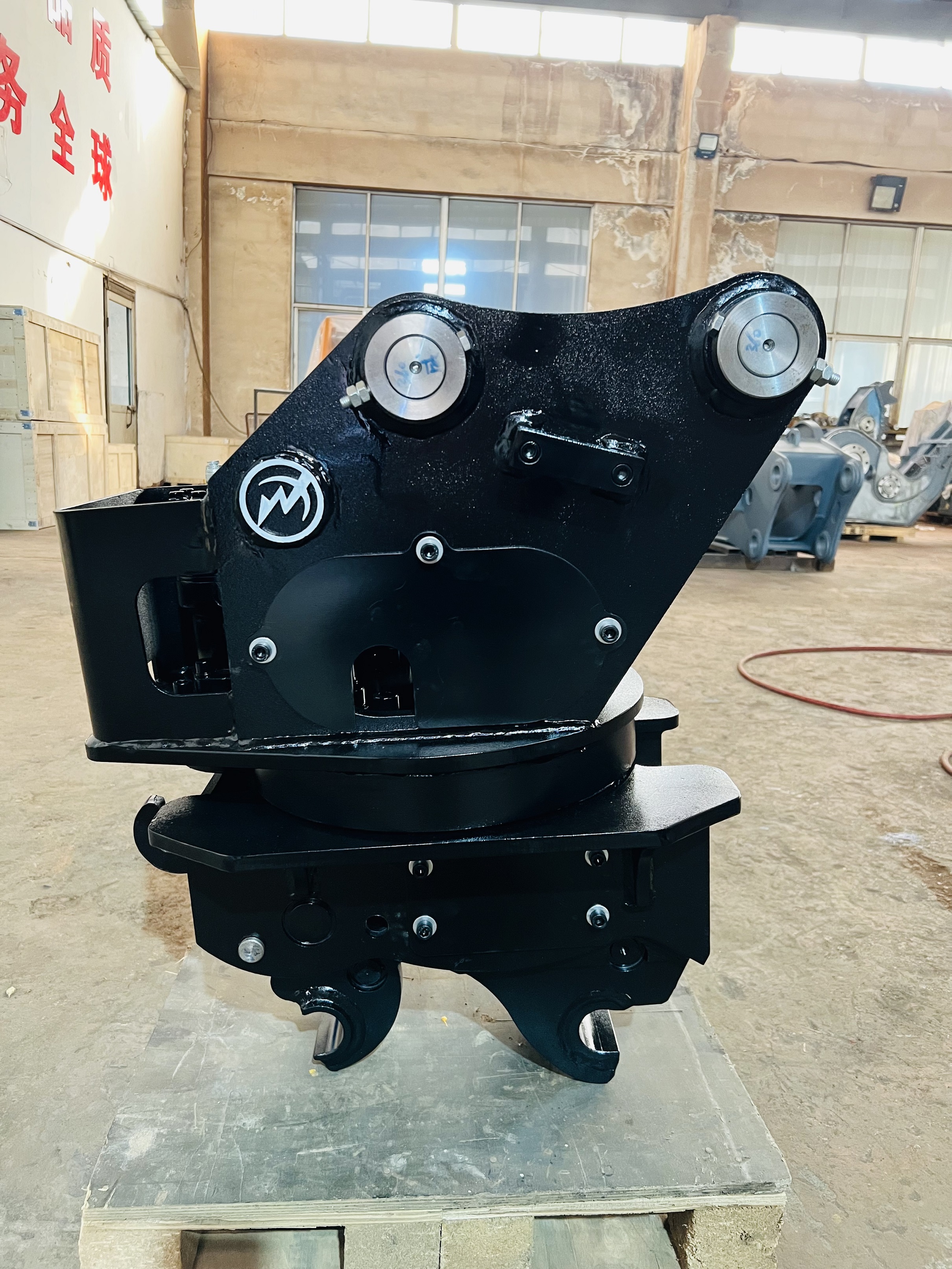

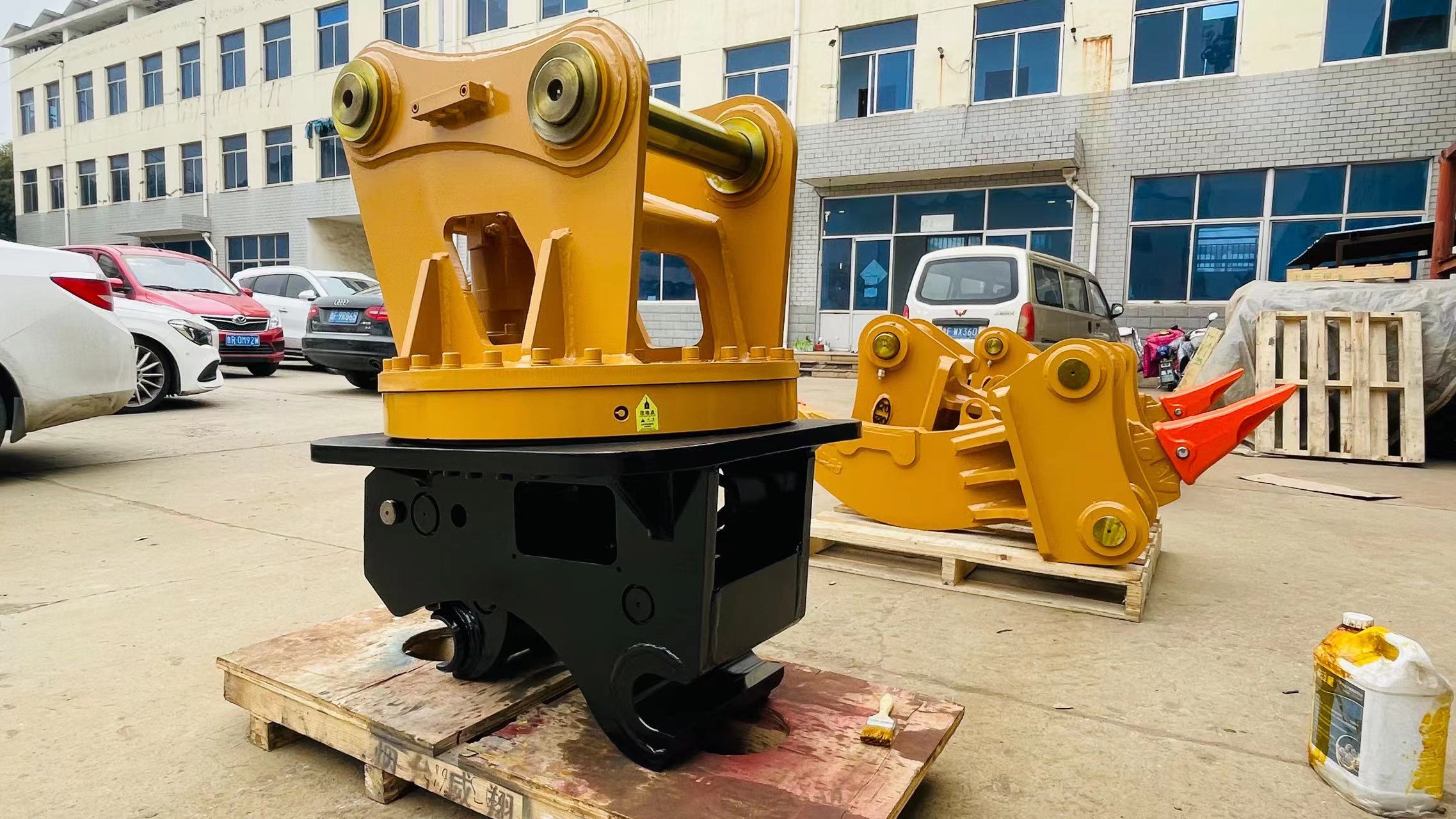

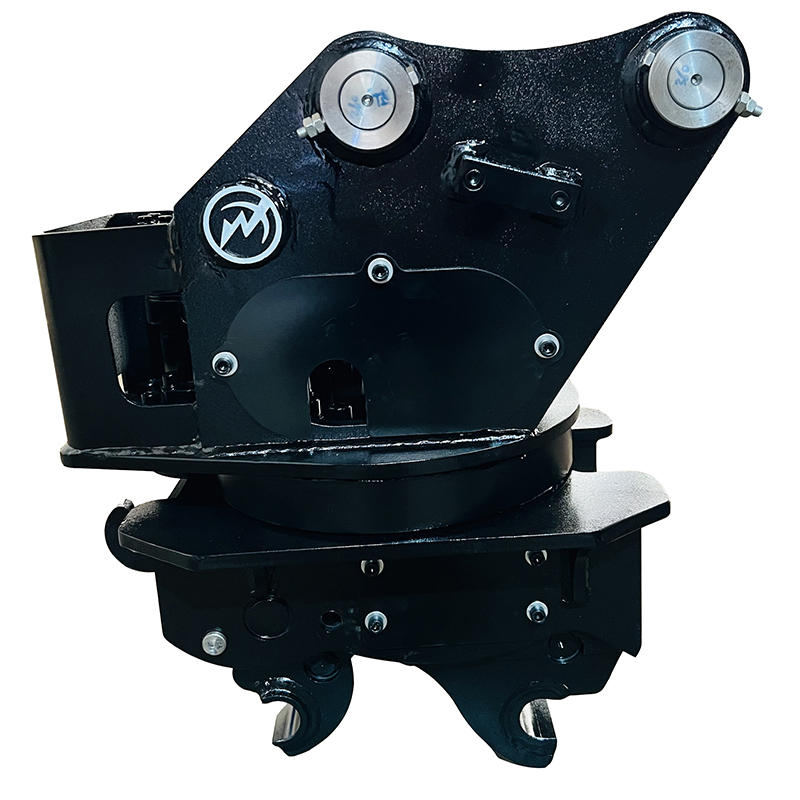

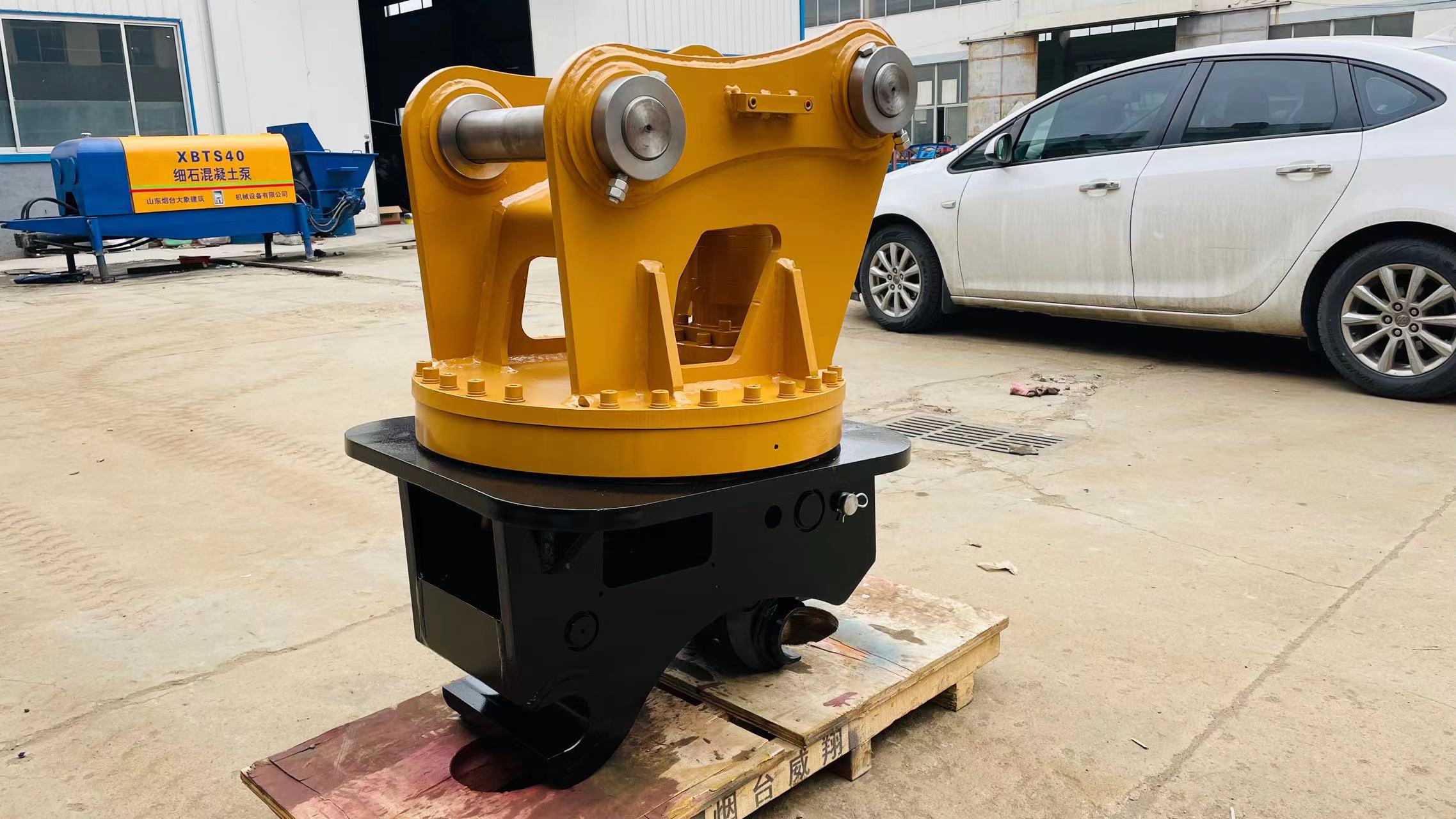

Yantai Weixiang Manufacturer Excavator Rotary Quick Coupler
- 2300.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Warranty: | 1 year | Pin diameter: | 60-70mm, 60-70MM |
| Applicable excavators (tons): | 10-15 tons | Overall width: | 353-436mm |
| Marketing Type: | normal product | Showroom location: | not any |
| brand: | Weixiang | Overall length: | 765mm |
| place of origin; place of origin: | Shandong China | Health status: | new |
| Video external inspection: | if | type: | Hydraulic Quick Coupler |
| payment terms: | L/C,Western Union,T/T,MoneyGram | Safety: | Needle catch design |
| Pin-to-pin distance: | 360-420mm | Applicable industries: | Farms, Mechanical Repair Shops, Manufacturing Plants, Energy & Mining, Retail, Building Materials Stores, Construction Works |
| weight: | 460 kg | model: | WXQH06 |
| port: | Yantai Qingdao Port | color: | black, yellow, red, blue, etc. |
| Mechanical test report: | if | total height: | 388mm |
| application: | Quick Connect Excavator Attachments | Packaging Preview: | |
| Core components: | cylinder | Packaging Details: | wooden box |
| Supply capacity: | 1000 sets per month | Quality Control: | 100% inspection before shipment |
Product Description
Weixiang Excavator/Backhoe Installation Quick Coupler
Quick couplers (quick couplers) are used with construction machinery to allow quick replacement of buckets and other attachments on the machine,Efficient and easy to operate. Widely used in excavators, mini excavators, backhoe loaders, etc. .
Choosing the right and high quality product isVery important, looking forward to yourtracking order, we will be your long-term reliablefactory partnerThe future is in China.
Item/Model | unit | mini | WXQH02 | WXQH04 | WXQH06 | WXQH08 | WXQH10 |
Overall length | mm | 388 | 534-545 | 600 | 765 | 924-944 | 983-1050 |
total height | mm | 246 | 307 | 310 | 388 | 492 | 574 |
overall width | mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 |
Pin-to-pin distance | mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 |
Forearm open width | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 |
pin diameter | mm | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 |
weight | Kilogram | 25 | 50-70 | 60-80 | 120-130 | 280-290 | 420-430 |
operational pressure | kg/cm² | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 |
oil flow | L/min | 10-20 | 20-40 | 30-50 | 60-80 | 80-100 | 100-140 |
The right excavator | Ton | 1.5-4 | 4-7 | 5-8 | 9-16 | 17-23 | 25-35 |
