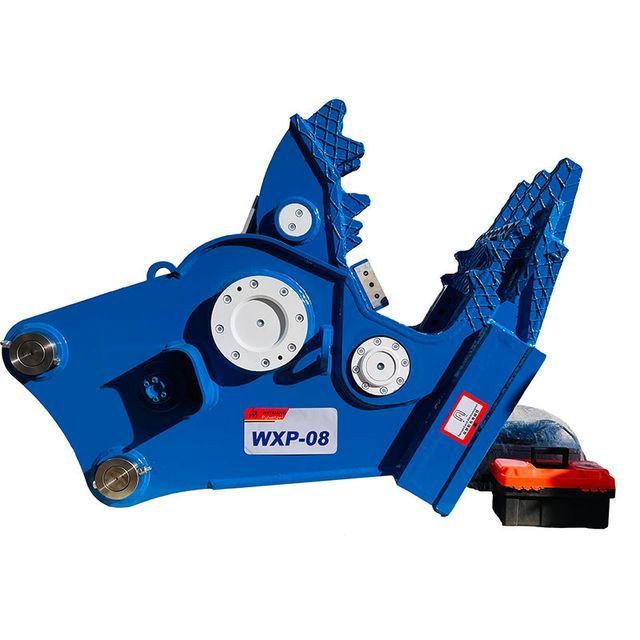

Yantai WEIXIANG 20 Ton Hydraulic Pulverizer Excavator Crusher

Supplier: Yantai Weixiang Building Engineering Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Jenna Weixiang
Price: $2500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cycle time (open, close):	2.8 seconds, 3.2 seconds	Breaking force (tip, center):	65 tons, 80 tons
Packaging Details:	wooden box	model:	WXP06, WXP08, WXP10
Opening:	600mm	Mechanical test report:	if
Video outbound inspection:	if	Package preview:
Marketing Type:	New Products for 2021	brand:	Wei Xiang
Supply capacity:	500 sets per month	Core components:	cylinder
high:	1900mm	Warranty:	1 year
payment terms:	L/C, Western Union, T/T, MoneyGram	Applicable industries:	Energy & Mining, Building Materials Stores, Construction
Showroom location:	not any	port:	Qingdao Port
width:	420mm	product name:	Excavator hydraulic concrete pulverizer
length:	1200mm	Health status:	new
Applicable excavator (ton):	5-35 tons	Origin:	Shandong Province, China

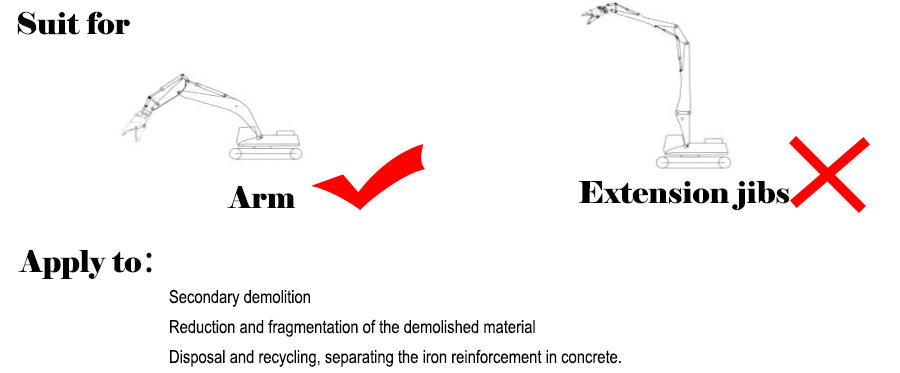

usage:	Second demolition	application:	Shears, crushers and pulverizers for building demolition
depth:	700mm	weight:	1600

Product Description

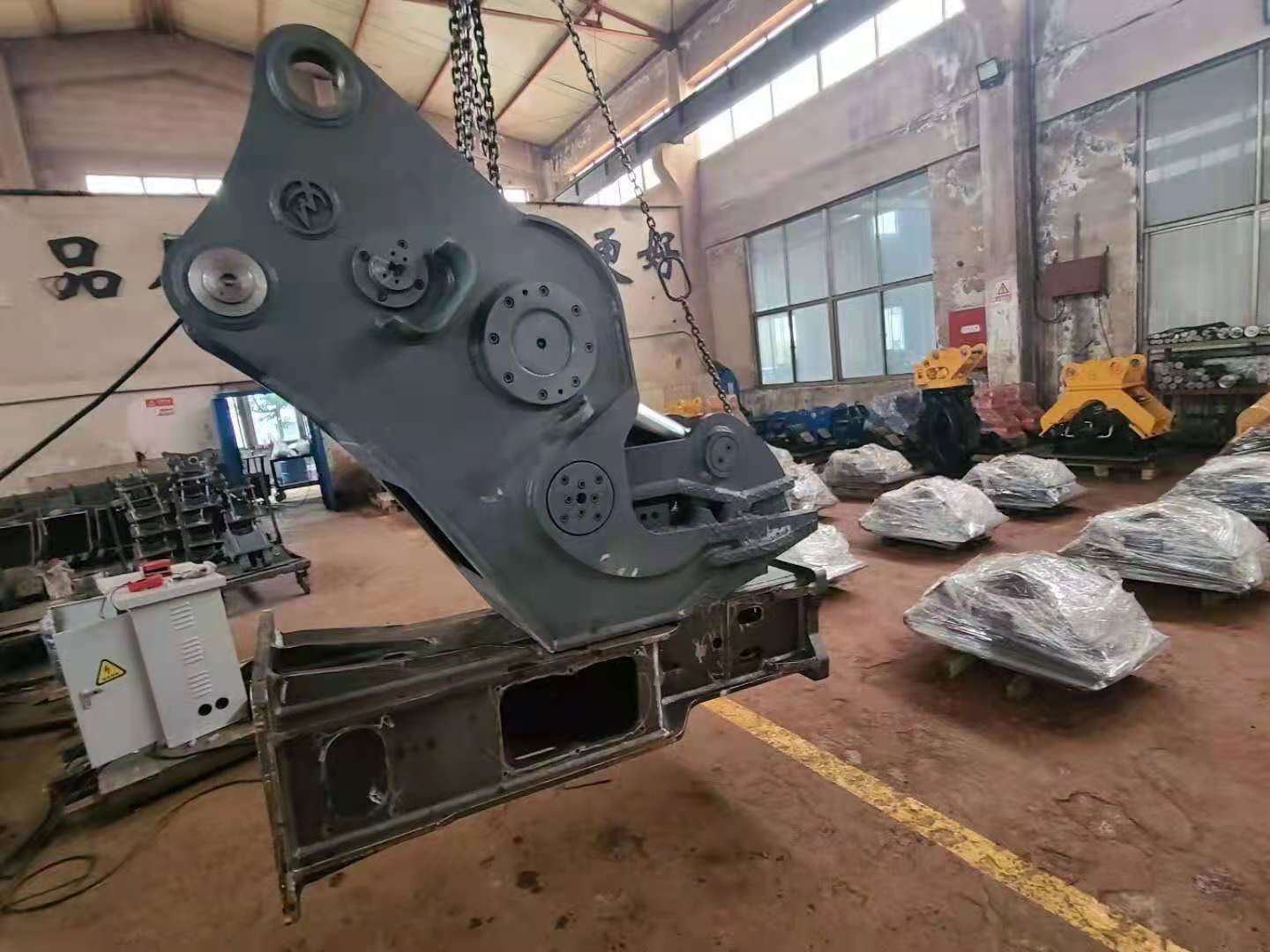

hydraulic pulverizer

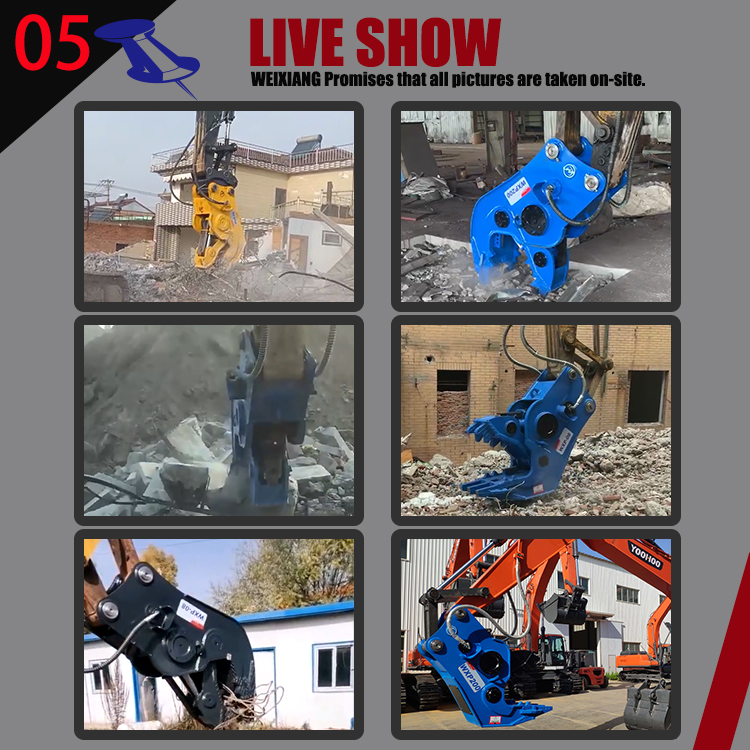

The device is mainlyFor demolition, crushing concrete, Taking out steel bars from concrete, cutting steel bars, compacting steel bars, crushing waste castings, loading, secondary demolition, etc.

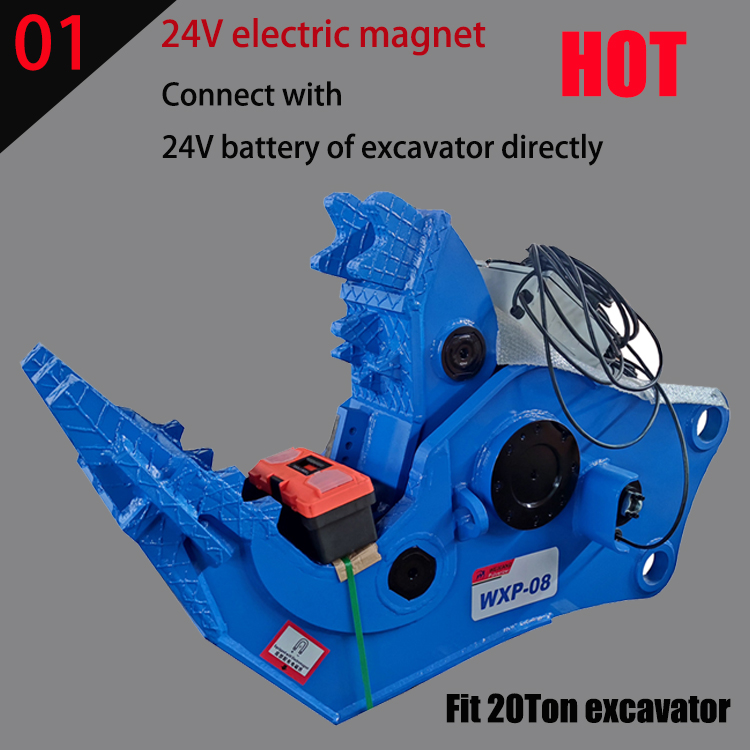

One unique design available:The pulverizer is equipped with a 24V magnet, which is very useful to attract the pulverized steel shavings, safe to use and more effective.

Weixiang Concrete Crusher

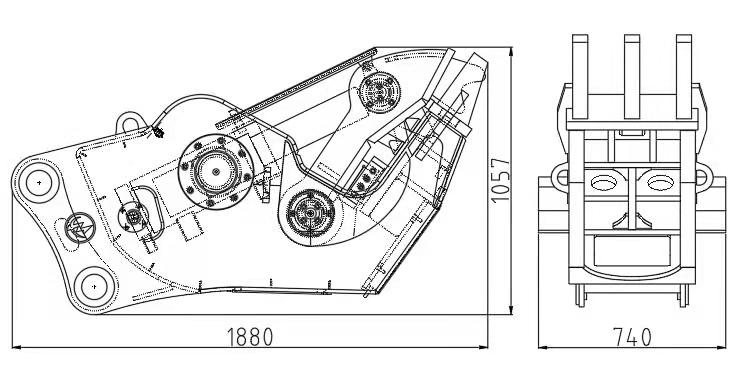

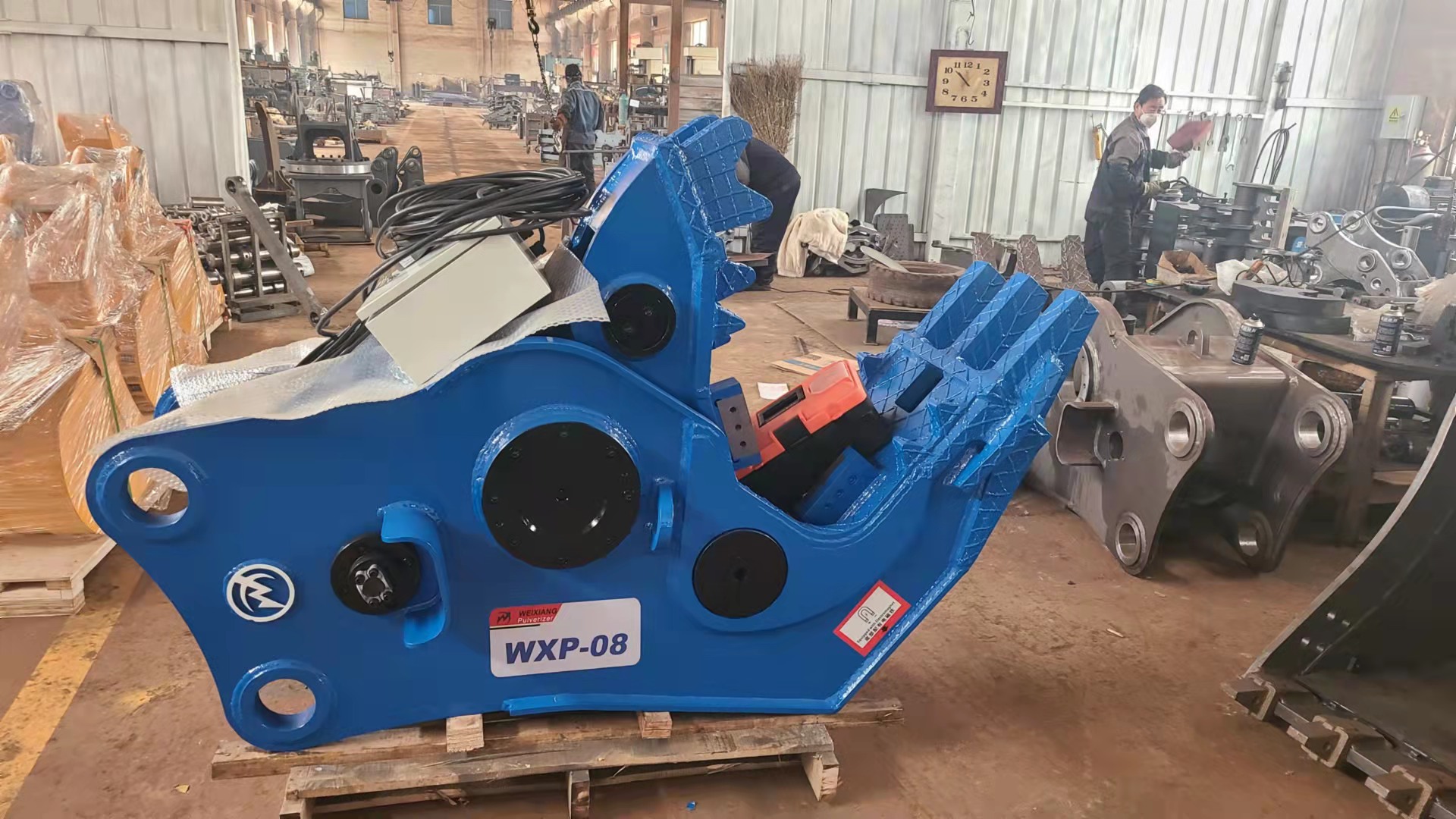

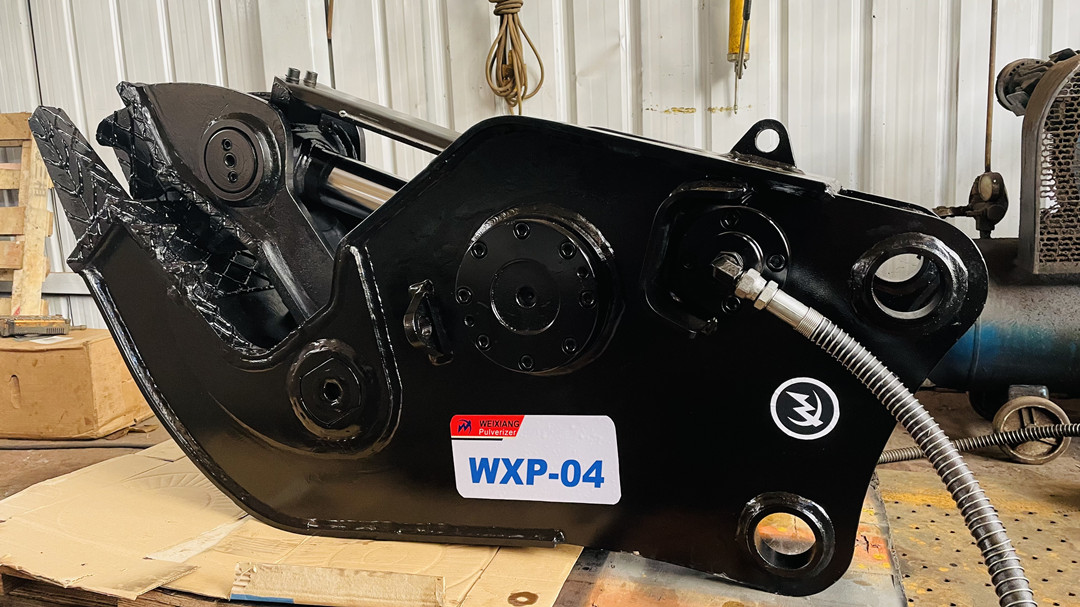

Item/Model Unit	unit	WXP04	WXP06	WXP08
Applicable excavator	Ton	5-9	10-15 days	18-24 days
weight	Kilogram	350	950	1600
the opening	mm	450	600	800
depth	mm	500	700	900
high	mm	850	1200	1400
width	mm	Chapter 420	600	750
length	mm	1200	1800	2150
preset pressure	kg/m3	230	300	320
Rated luminous flux	l/min	220	220	240
Breaking force (medium)	Ton	65	80	100
(hint)	Ton	50	65	80
Cycle time (open)	Second	2.8	2.8	2.2
(closure)	Second	3.2	3.2	2.5

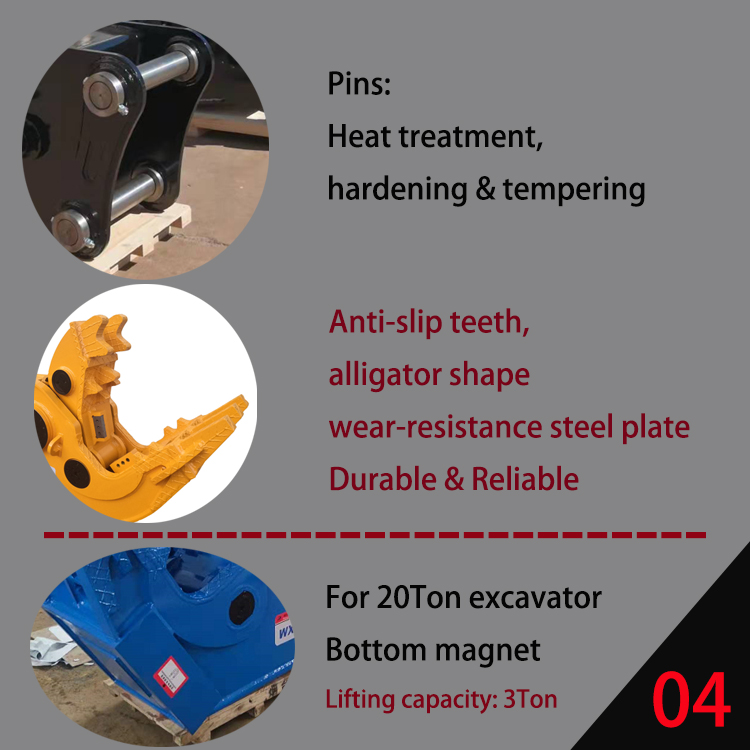

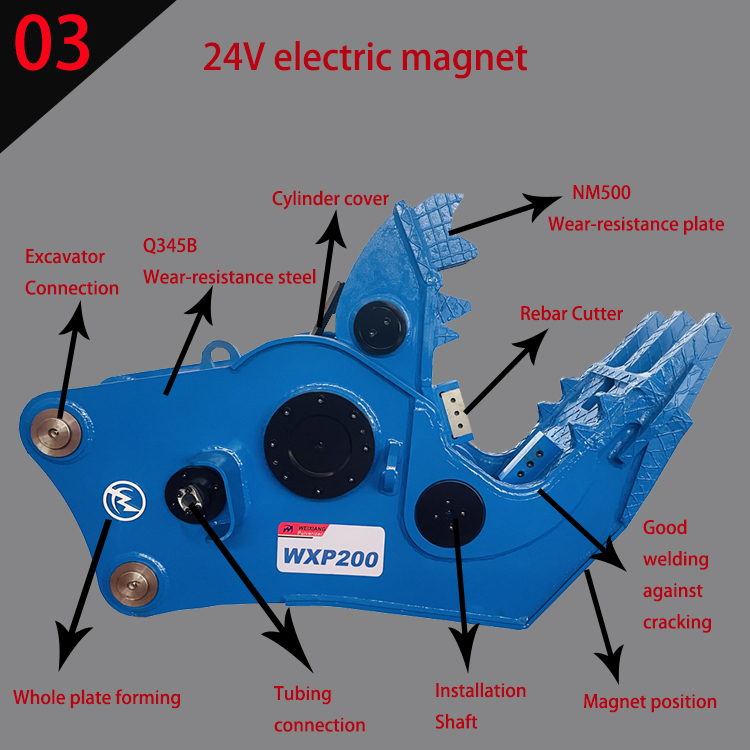

magnet optional: Equipped at the bottom24V electromagnet, the steel bar can be cut and used for absorption. Directly connected to the excavator battery, no need to install a generator, the installation is simple and more effective.

feature:
1. ofwork efficiency3-5 times higher than the traditional hydraulic breaker;
2. The opening is larger, the occlusal force is greater, and the occlusal gap is smaller;
3. High-strength, light-weight and wear-resistant manganese plate is used, which has a long service life;
4. Easy disassembly and assembly, unique oil circuit design, fast oil cylinder speed;
5. Flexible and convenient operation, low noise and no vibration.
