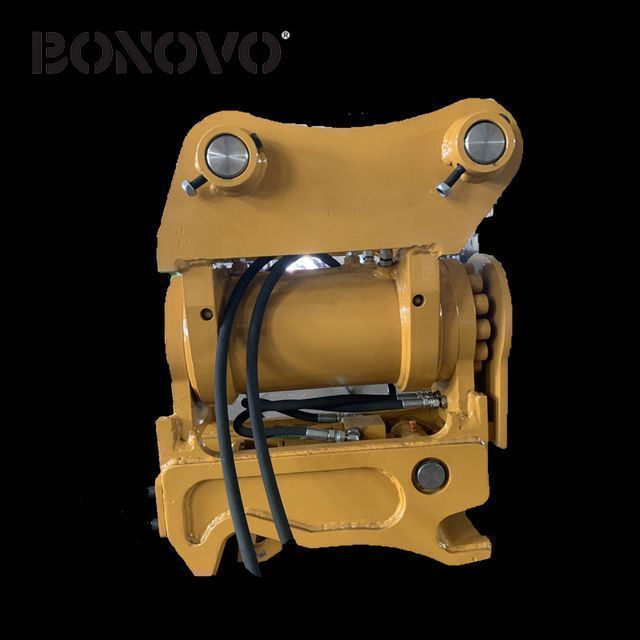

SK17 inclined quick connector quick hook

Click here to contact

Product details

model:	Kubota B26 Quick Connector	Applicable industries:	Farms, machinery repair shops, energy and mining, construction
Package preview:		After warranty service:	online support
port:	Qingdao/Lianyungang/Shanghai	Warranty:	12 months, 1 year
After-sales service provided:	Video Technical Support	brand:	Bonovo
Showroom location:	Canada, UK, US	Marketing Type:	2019 Hot Products
name:	Backhoe Quick Coupler/Quick Hitch	Processing:	usable
State of health:	100% brand new, brand new	payment terms:	L/C, Western Union, D/P, T/T
brand:	Bonovo	Mechanical test report:	Not available
weight:	150 kg	Material:	Q345
Certification:	ISO 9001:2008	Core components:	steel
Video shipment inspection:	if	Supply capacity:	300 quick connectors per month
Packaging Details:	Wooden box packing, Kubota B26 quick connector	Applicable excavator (ton):	30
place of origin; place of origin:	Jiangsu, China

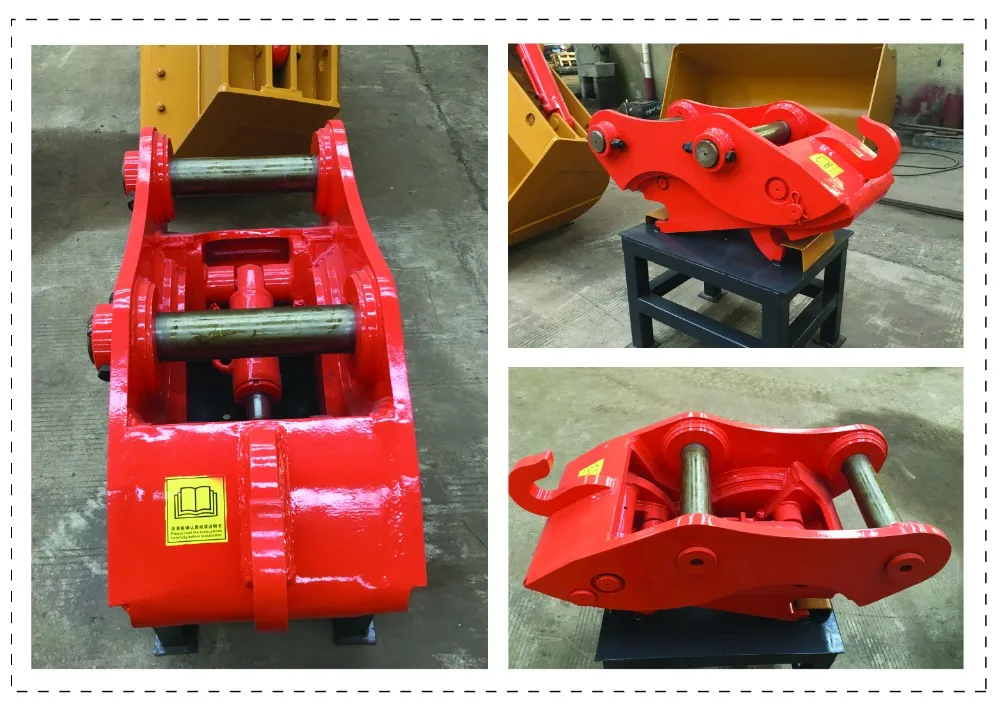

Quick Connector/Quick Connector

feature

Name: Sales backhoe hydraulic quick coupler

Brand: BONOVO backhoe

red

Condition: 100% brand new

Material: Q345

Type: Hydraulic Quick Connector

Warranty: 12 months

Certification: ISO 9001:2008

Delivery: by sea and by air

OEM: Available

detail

data

scope	QC-10	QC-40	QC-60	QC-120	QC-180	QC-250	QC-260	QC-300	QC-400
Bearing capacity (tons)	1-4	4-6	6-8	12-16	18-25	25-26	26-30	30-40	40-90
overall length (length) (mm)	300-450	520-542	581-610	760	920-955	950-1000	965-1100	1005-1150	1250-1400
overall width (B (mm)	150-250	260-266	265-283	351-454	450-483	445-493	543-572	602-666	650-760
total height (G) (mm)	225-270	312	318	400	512	512-540	585	560-615	685-780
forearm width (A) (mm)	82-180	155-172	181-205	230-317	290-345	300-350	345-425	380-480	420-520
Pin distance (depth) (mm)	95-220	220-275	290-350	350-400	430-480	450-505	485-530	520-630	620-750
Pin diameter (mm)	20-45 years old	40-45 years old	45-55	50-70	70-90	Post-90s	90-100	100-110	100-140
pin height (mm)	170-190	200-210	205-220	240-255	420-510	450-530	460-560	500-650	400-500
Weight (kg)	30-40	50-75	80-110	170-210	350-390	370-410	410-520	550-750	700-1000
hydraulic kit	Complete set ready to install including tubes, pins, solenoid valves, switches, bolts and nuts
