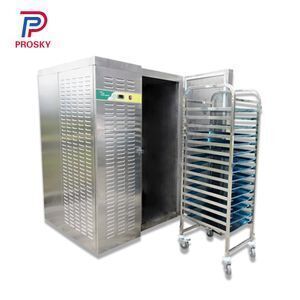

Large Shock Freezing Ultra Low Deep Refrigerator Blast Freezer
- 2000.00 set
| Phase: | 3; | Condition: | New; |
| Temperature: | Reach -25C in 30 minutes; | Expansion valve: | Use Denmark Danfoss; |
| Place of Origin: | Jiangsu China (Mainland); | Bottom Temperature: | -40C; |
| Brand Name: | PROSKY; | Supply Ability: | 300 Set/Sets per Month Large Shock Freezing Ultra Low Deep Refrigerator Blast Freezer; |
| Cooling Capacity: | 100KGS/H; | Weight: | 648KGS; |
| Payment Terms: | L/C,T/T,Alibaba Trade Assurance; | Power(W): | 3900W; |
| Condenser: | Air; | Certification: | CE ISO; |
| Warranty: | 1 Year; | Function: | Large Shock Freezing Ultra Low Deep Refrigerator Blast Freezer; |
| Applicable Industries: | Hotels,Food & Beverage Factory,Restaurant,Home Use,Retail,Food Shop,Food & Beverage Shops; | Easy operation: | one-key control; |
| Voltage: | 220V/380V; | Port: | Shanghai, China; |
| Frequence: | 50/60HZ; | Packaging Detail: | Large Shock Freezing Ultra Low Deep Refrigerator Blast Freezer use standard export polywood case packaging suitable for sea and air shipment.; |
| After-sales Service Provided: | Online support; | Compressor: | Germany Bitzer; |
| Type: | Food Quick Frozen Machine; | Capacity: | 830L; |
| Dimension(L*W*H): | 142*146*215CM; |
Large Shock Freezing Ultra Low Deep Refrigerator Blast Freezer
| Model | SAGA 150L | SAGA 220L | SAGA 610L | SAGA 830L |
| Layers | 5 | 10 | 20 | 15*2 |
| Voltage | 220V | 220/380V | 220/380V | 220/380V |
| Frequency | 50/60 | 50/60 | 50/60 | 50/60 |
| Phase | 1 | 1/3 | 3 | 3 |
| Refrigerant | R-404A | R-404A | R-404A | R-404A |
| Condenser | Air | Air | Air | Air |
| Power/KW | 1.2 | 2.5 | 3.6 | 3.9 |
| Inner Capacity/CM | 62*40*60 | 62*40*100 | 62*40*100*2 | 62*77*172 |
| Dimension/CM | 82*77*140 | 82*95*190 | 160*100*190 | 132*136*193 |
| Net Weight/KG | 160 | 250 | 470 | 648 |
1.Aspera or Tecumseh Compressor can be chosen as buyer requirement.
2.According to user environment and local climate to choose Air_Cooler or Water_Cooler .
3.The whole machine material is AISI304 food-grade stainless steel.
4.Other units : Danfoss Expansion Valve ,R404A refrigerant,Italy dixell temperature controller,Top Brand Control Parts.
5.1 year warranty for whole machine, and 3 years for compressor. We will also provide one year's free spare parts to enhance and extend the life cycle of the machines.
1.How long to reach -40 temp ?
Internatinal Standard is that +90 to +3 ℃ takes 90 min.+90 to -18℃ takes 240min.
2.Can we adjust the Temperature according to our requirement?
Yes,you can adjust according to the Instructions.The default temperature is -40℃.
3.How much time will be taken to ship ?
We usually ship the machine in 15 days after payment.If you want to customize the machine please contact us to comfirm the time.
