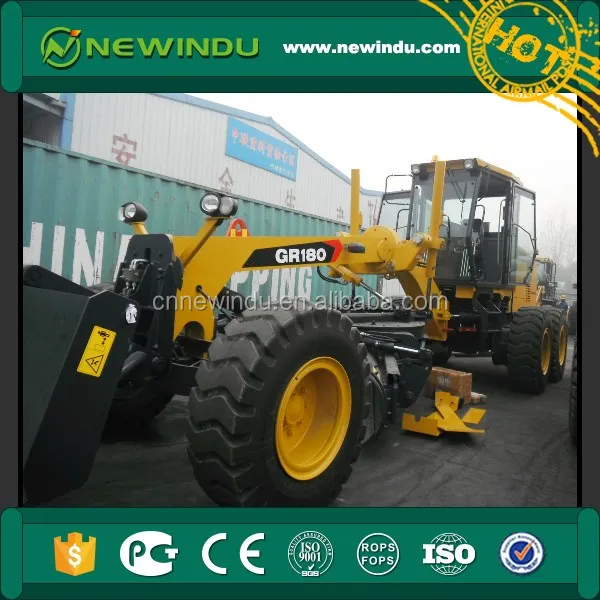

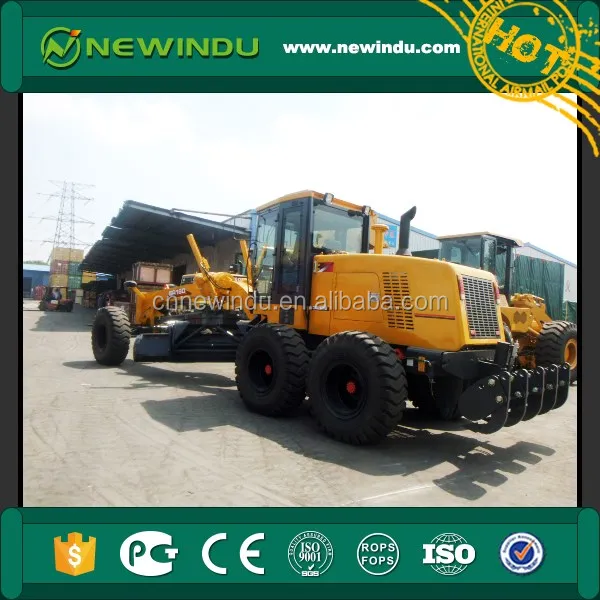

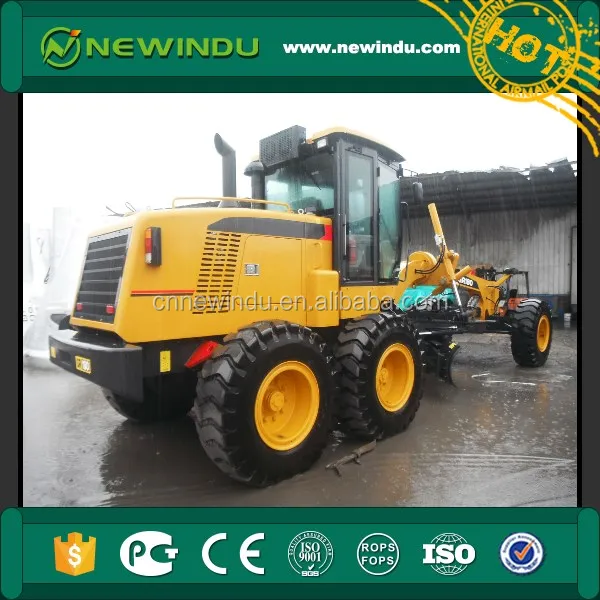

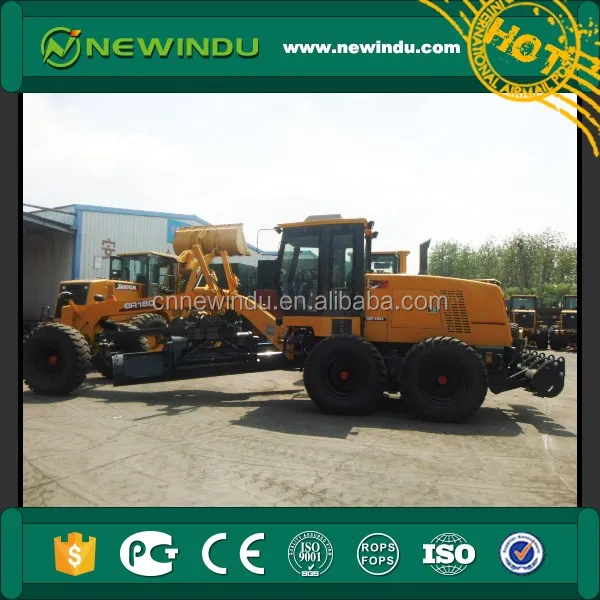

China brand XCMG 180HP small Motor grader price GR1803
-
Supplier: Newindu Construction Engineering (Shanghai) Co., Ltd. -
Region: Shanghai, China -
Contact: Mr Ken Ye -
Price: $36800.00 /unit -
Min. Order: 1 unit
Product details
| Forward Speed(km/h): | 23; | Hydraulic Pump Brand: | other; |
| Engine Brand: | other; | Hydraulic Cylinder Brand: | other; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Packaging Detail: | container or nude; |
| Condition: | New; | Color: | yellow; |
| Reverse Speed(km/h): | 56; | Hydraulic Valve Brand: | other; |
| After-sales Service Provided: | Overseas service center available,Engineers available to service machinery overseas,Overseas third-party support available; | Place of Origin: | Jiangsu China (Mainland); |
| Brand Name: | Chinese famous brand; | Certification: | ISO CE; |
| Dimension(L*W*H): | 8900*2625*3470mm; | Port: | shanghai port; |
| Supply Ability: | 50 Unit/Units per Month; | Warranty: | 1 Year; |
| Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Construction works ; |
China brand XCMG 180HP small Motor grader price GR1803
Product Description
Features
Max. gradeability: 20%
Tire inflation pressure: 260kPa
Parameters
Basic specification | |
|---|---|
| Engine model | 6CTAA8.3 D6114 |
| Rated power/speed | 138kW/2200 140kW/2300rpm |
| Dimension(LxWxH) | 8900×2625×3470mm |
| Operating weight(Standard) | 15400kg |
Performance specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 79KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3965×610mm |
Production Flow
