High-speed automatic needle punching machine KYF series DKY Machinery

Supplier: Dongguan Gaoen Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms stephy shih
Price: $10500.00 / 1 - 9 sets
$8500.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Local service location:	Bangladesh	Local service location:	Thailand
Local service location:	Mexico	Video external inspection:	Not available
After Warranty Service:	Video technical support	Warranty:	1 year
Mechanical test report:	Not available	Health status:	new
Showroom location:	Italy, Mexico, Thailand, Bangladesh	brand:	DKY
payment terms:	letter of credit, wire transfer	Packaging Details:	wooden box
weight:	200kg	After-sales service provided:	Engineers can repair machinery overseas
Certification:	ISO9001 CE	Main selling point:	automatic
model:	KFn8/27 (DWT)	Marketing Type:	normal product
Local service location:	Italy	After Warranty Service:	Online support
Core components:	bearing	port:	FOB
Applicable industries:	Clothing Stores, Manufacturing Plants, Mechanical Repair Shops, Retail	place of origin; place of origin:	China
Core Components Warranty:	1 year

Principle features

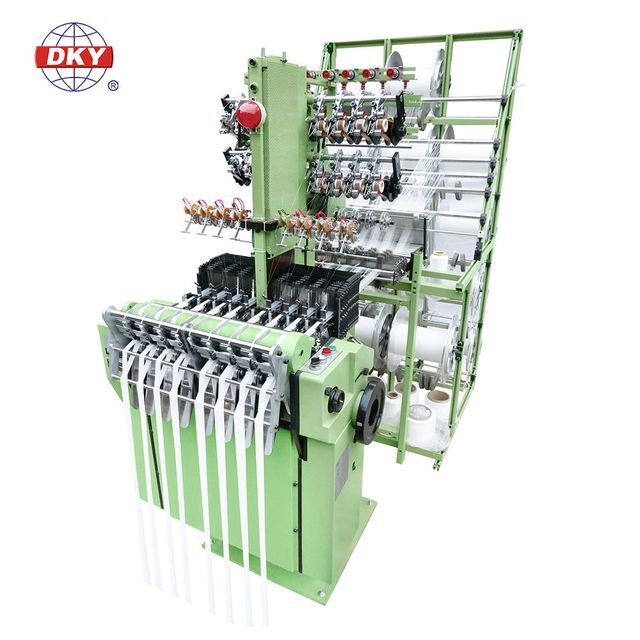

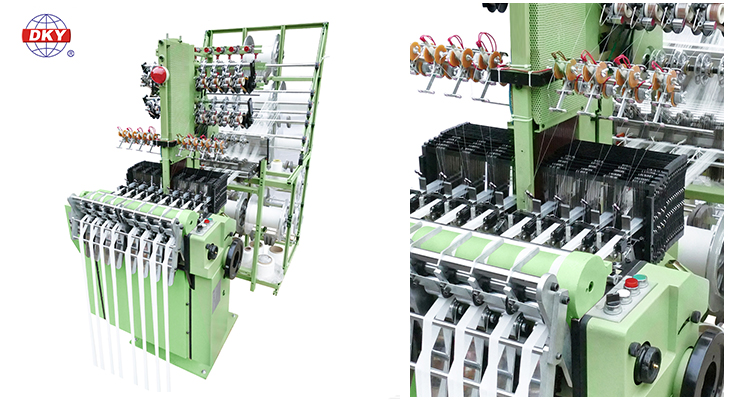

High-speed automatic needle punching machine kfn

The "KFn" type loom is a versatile loom. This machine can produce rigid and elastic straps such as bra straps, panty elastic straps, curtain straps, nylon or ppTape, ribbons, zippers, safety belts, shoelaces and various narrow cloth straps. Suitable for clothing, hats, hair accessories, gifts, medical products, belts, gloves, raincoats, shoes, cameras, watches, handbags and many more applications.

●A new high load capacity dobby chain system (using the pins of the chain) simplifies the transmission of the main loom.
●The main open lever drive has a special traction rubber tension spring that ensures stability of the frame at high speeds.
●Accurate performance, compatible and durable spare parts, easy maintenance and adjustment, timely supply of spare parts,
Standard spare parts can be easily adjusted.
●Mainly to "extend the life" of the shedding rod through the built-in automatic lubrication system.
●Motor controller fast and slow braking speed can be easily adjusted.
●Optional front cover for CE compliance.
●Double layer tape. The pinch roller adopts two separate devices, with the same weft density and higher quality.
●"Double Hook" and "Double Weft" can be attached to this "KFn Model" for special products such as bra curtain tape..etc.

Specification

Model	Rows	Maximum reed width m/m	heald frame	repeat	maximum. Rotating speed	choose destiny picks/cm	special equipment
2/65	2	65	16~20	48	1000~1200	3.5~36.7	DR.DWT
2/80	2	80	16~20	48	1000~1100	3.5~36.7	DR.DWT
2/165	2	165	14	48	500~700	3.5~36.7	doctor
2/135	2	135	14	48	500~700	3.5~36.7	DR.DH.DW.DP.DTN
2/220	2	220	14	48	300~500	3.5~36.7	DR.DW.DP.DTN
4/65	4	65	16~20	48	1100~1300	3.5~36.7	DR.DH.DW
6/50	6	50	16~20	48	1000~1100	3.5~36.7	DR.DH.DW.DP. DWT
6/45	6	45	16~20	48	1000~1100	3.5~36.7	DR.DH.DW.DP.DPW
6/55	6	55	16~20	48	800~1000	3.5~36.7	DR.DH.DW
6/65	6	65	16~20	48	800~1000	3.5~36.7	DR.DH.DW
8/27	8	27	16~20	48	1100~1400	3.5~36.7	DR.DWT
8/35	8	35	16~20	48	1000~1200	3.5~36.7	DR.DWT
8/50	8	50	16~20	48	800~1000	3.5~36.7	DR.DH.DW
10/20	10	20	16~20	48	1200~1400	3.5~36.7	DR.DWT
10/27	10	27	16~20	48	1100~1400	3.5~36.7	DR.DH.DW.DP.DTN
KFV2/135	2	135	10~12	~	500~700	6.4~23.3	shackle
KFV2/175	2	175	10~12	~	500~700	6.4~23.3	shackle
KFV2/220	2	220	10~12	~	300~500	6.4~23.3	shackle
KFV4/65	4	65	12~14	~	900~1000	6.4~23.3	shackle
