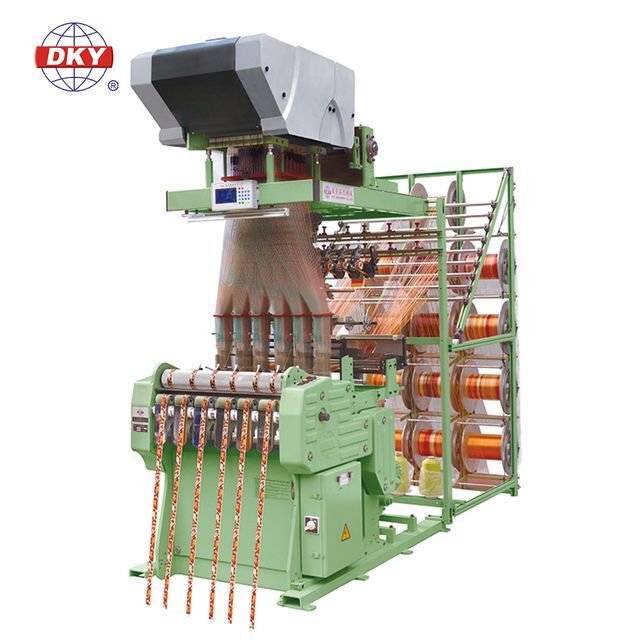

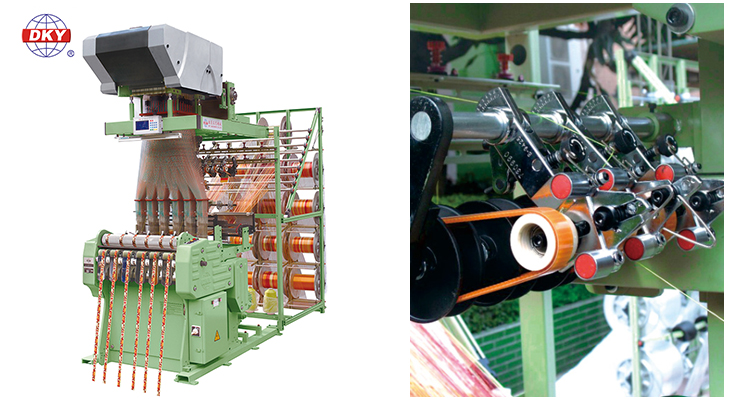

DHJ6-55-384 Computer Narrow Jacquard Loom DKY MACHINERY

Supplier: Dongguan Gaoen Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms stephy shih
Price: $14500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core components:	bearing	Certificate:	European Community International Organization for Standardization
Health status:	new	Showroom location:	Italy, Mexico, Thailand, Bangladesh
weight:	450kg	payment terms:	letter of credit, wire transfer
Video external inspection:	Not available	Main selling point:	automatic
brand:	DKY	Local Service Location 08:	Spain
Mechanical test report:	Not available	Local Service Location 01:	Italy
place of origin; place of origin:	Guangdong	Local Service Location 02:	Indonesia
Core Components Warranty:	1 year	Applicable industries:	Clothing Stores, Manufacturing Plants, Mechanical Repair Shops, Retail
Local Service Location 05:	Vietnam	Warranty:	1 year
Local Service Location 03:	Hong Kong/Taiwan	Local Service Location 04:	Thailand
Marketing Type:	normal product	Local Service Location 06:	Brazil
Local Service Location 07:	Argentina	Local Service Location 09:	Mexico

Principle features

DHJ 6/55/384

●The jacquard head is made of high-strength, high-toughness alloy material, imported CNC machining, high precision, light weight, small load, fast heating, to ensure its stable high-speed operation.

●The module has an independent control panel, which is more convenient and efficient to maintain.

●The new control system is adopted, with high compatibility and increased memory, which can store 16 patterns, and the pattern can reach 13,000 wefts.

●Use USB for data transfer, convenient, fast, stable, USB connection.

● It has strong compatibility with JC5 system to match various software for data entry.

● The LCD screen is used to protect the screen, which has good anti-interference and prolongs the service life of the backlight.

●The automatic disconnection memory function and automatic pattern connection function ensure that the machine restarts after power failure, the fabric is flawless, and the reject rate is reduced.

●Jacquard composite panels and rigidity ropes are imported from Switzerland and Japan.

● Belt weft feeding system, stable and accurate yarn feeding, easy to useAdjust the amount of yarn.

● Two-speed motor control makes the adjustment of the machine easier.

● The fuselage adopts an automatic lubrication system, which is easy to maintain and operates without noise.

● A variety of special devices can be selected to match the production of different products.

● The grounding nameplate is to ensure the stable operation of the machine.

● The needle holder angle is zero, the edge of the tape is more beautiful, and the surface of the finished tape is relatively flat.

Specification

Model	Rows	Maximum reed width m/m	heald frame	repeat	Motor Power	maximum speed	hook up
DHJ12/30	12	30	6 pieces	40	2.2kW	800	192N~256N
DHJ10/40	10	40	6 pieces	40	2.2kW	800	192N~320N
DHJ8/35	8	35	8 pieces	40	2.2kW	800~900	192N~256N
DHJ8/45	8	45	8 pieces	40	2.2kW	800~900	192N~384N
DHJ8/55	8	55	8 pieces	40	2.2kW	800	192N~384N
DHJ6/45	6	45	8 pieces	40	2.2kW	800~900	192N~384N
DHJ6/55	6	55	8 pieces*	40	2.2kW	800~900	192N~480N
DHJ4/55	4	55	8 pieces*	40	2.2kW	900~1000	192N~480N
DHJ4/65	4	65	8 pieces*	40	2.2kW	800~900	192N~560N
DHJ4/80	4	80	8 pieces*	40	2.2kW	800~900	192N~640N
DHJ4/110	4	110	6 pieces	40	2.2kW	700	192N~640N
DHJ2/65	2	65	8 pieces*	40	2.2kW	800~900	192N~560N
DHJ2/80	2	80	8 pieces*	40	2.2kW	800~900	192N~640N
DHJ2/110	2	110	8 pieces*	40	2.2kW	800~900	192N~640N
