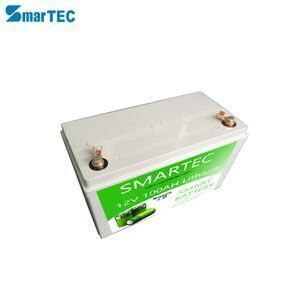

UN38.3 Caravan RV 12v 24v 100ah Solar Battery Bank / Lifepo4 Battery Pack

LiFePO4 Lithium iron phosphate battery are designed as the drop-in replacement for the similar capacity of lead-acid batteries, it offering twice of the run-time but only half of the weight. Moreover, it with non-toxic and non-polluting, Eco-friendly, good thermal stability, and longer run-time features.

Application :

 UPS, Golf Cart, Solar-Wind Power System ,Irrigation solar systemsolar street led lighting ,City Grid (On/Off), Community and Family, Marine, Boat telcom Base, CATV system, Computer Server Center, Medical Instrument, Military Equipment etc.

Two Version:

1,Non Bluetooth Version

2,With Bluetooth Version(you can read the cells health condition on the phone,tablet PC ......)

Specifications:

OUR LIFEPO4 BATTERIES FEATURES:
1.Drop-in replacement for lead acid batteries
2.Maintenance-free, modular, and lightweight
3.Holds a charge for up to 1 year without a load, and no need for a trickle charger - great for unattended storage
4.Can be wired in series up to 48V and unlimited in parallel
5.Built-in Battery Management System (BMS) protects the cells against excessively high or low voltages, high currents, short circuits, and excessive heat or cold
6.Protections: high/low voltage; short circuit; high/low temperature
7.Designed and assembled in Shenzhen, China

Introduction

• Charging voltage is between 14.2v-14.6v. This range will allow the battery to fully charge any higher then this and the built in BMS will send the battery into a protect mode.
• The Built-in BMS also has with equalizing function ,we will reserve aconnector for equalization charger , customers also can use Equalization chargers.
• We built passive cell balancing into our BMS so that you never have to worry about your battery becoming unbalanced.
• Our BMS also has a temperature protection function to ensure that the battery can operate under negative temperature ,If you don't need the battery to operate at a negative temperature, we can also set it .OUR BMS is very smart ,and can set many parameters according to ustomers requests.
• Our batteries are very simple to install, simply connect your positive cables to the positive terminals and your negative cables to the negative terminal. Our battery pack also support to connect in parallel or series configurations (up to 48v). Our batteries come standard with a Circular style terminal post. These terminals include a 3/8” hole that allows for most ring terminals to work well with our batteries. For the best connection, we recommend either copper or brass ring terminals.
•  Multiple battery pack may be mounted in parallel in order to increase the current capacity of the system. When batteries are mounted in parallel, the voltage does not change, but the current will double. For example, two12V 100A batteries mounted in parallel can deliver 200A continuousl and 500A for 10-30 seconds. Therefore, all cables and connections must be able to bear the high currents that can be delivered by the battery. Appropriate fuses and circuit breakers are also highly recommended to protect downstream components from current spikes and short circuits
• 2 battery packs may be mounted in series to increase the voltage of the system up to a 24V system When batteries are mounted in series, current capacities and discharge current remain the same, but the system voltage is additive. should be charged using a  charger voltage of 28.8V, and a float voltage below 27.2V.

Storage

The cell shall be storied within -10°C ~ 35°C range environmental conditions. If the cell has to be stored for a long time (Over 3 months), the environmental condition should be:

Temperature: 23 ± 5°C

Humidity: 65 ± 20%RH

The voltage for a long time storage shall be 3.3V ~ 3.4V range.

Warranty:

The period of warranty is 24 months from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.

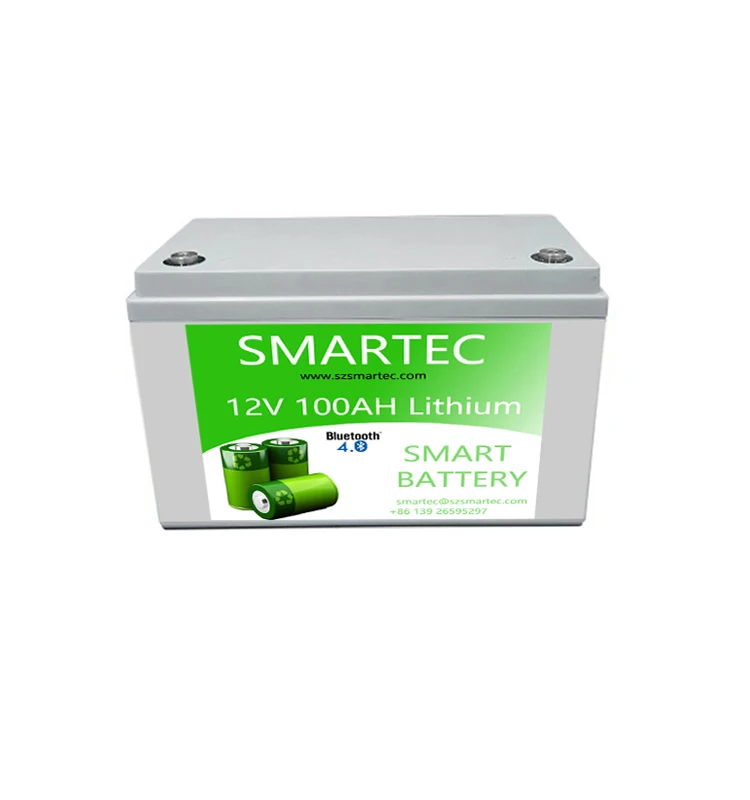

12V 100ah li-ion battery pack with bluetooth Features:

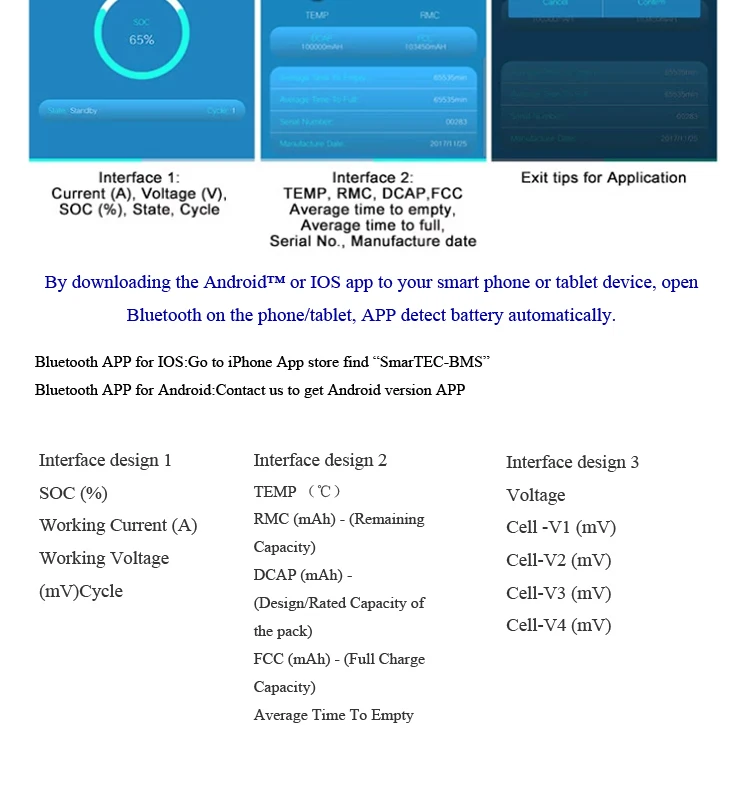

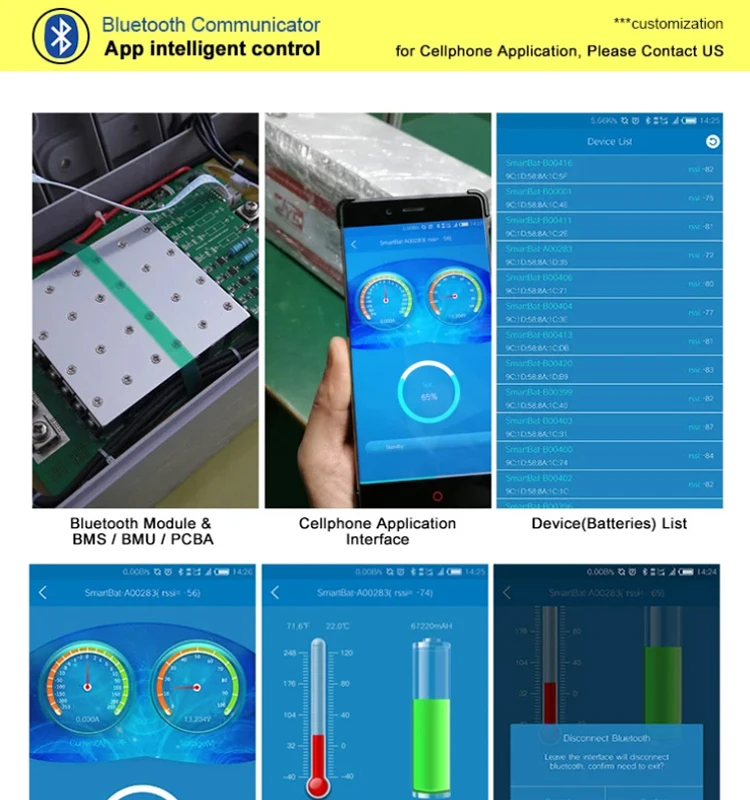

1). With Bluetooth function, mobile phone APP connection;

2). LCD display: battery pack volt., single cell volt., work current, temp, cycle number, design capacity, time to full, time to empty,product serial, production date;

3). Communication interface: Bluetooth module modification,energy display module program;

4). Balancing charge interface: for balancing chargers.

 So why SmarTEC ?

1. 12+ Years of experience in battery industry with extensive knowledge.
2. Joint venture with several manufacturers, so we can provide fast & best services.
3. Two assembly production lines in USA for small, urgent custom orders.
4. Capability of designing and making custom designed batteries.
5. Large selections of batteries, chargers, testing equipments and accessories. Excellent credit & buying power.
6. Private labeling and packaging for either big or small customers. Starting from 10,000 per order, customer can own their own brand name.

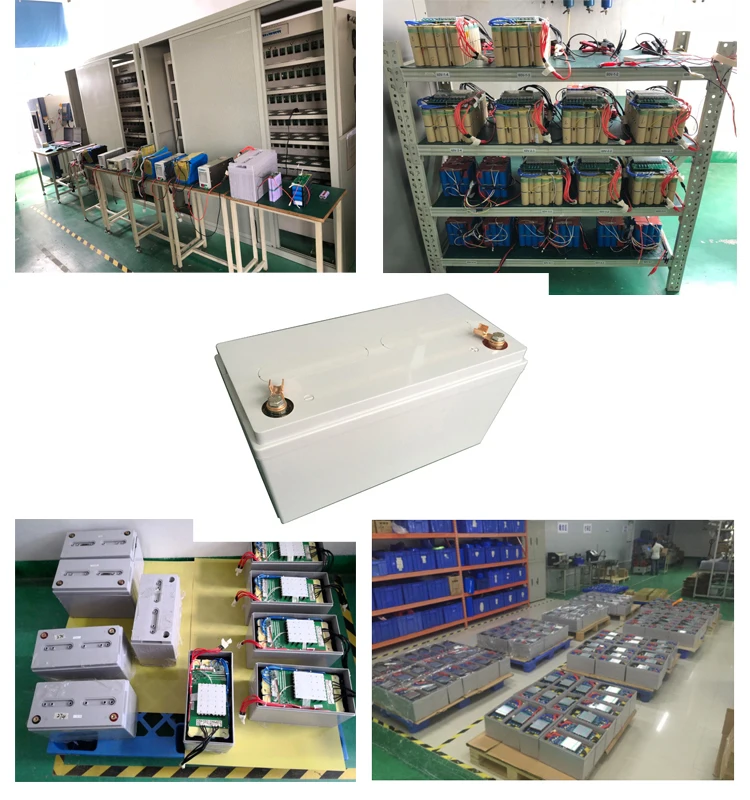

7. Own all buildings and testing equipment.
8. Can provide UN38.3 / IEC62133 safety test service and report.

Do you have in stock ?

Many models have in Stock,please contact with sales

Do you have any certification ?

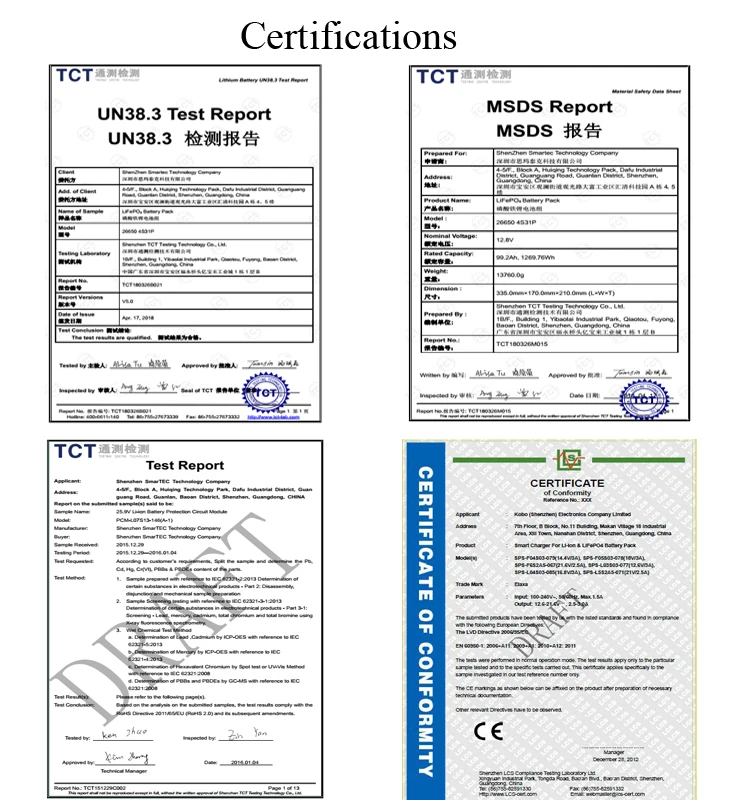

Yes ,we have CE and UN38.3 ,MSDS

Are you a manufacturer or a trader?

We are BMS and bluetooth system original manufacture,We will provide professional battery solutions For you

How do you send battery ?

via UPS,FEDEX ,sea or air freight.etc

How long willl it take for delivery?

12-15 workdays after received your payment .

Do you charge for bluetooth apps ?

No ,it is free .
