The energy storage battery of the Yangtze River solar power generation system is 24v 400ah and 4*12v 200ah. Products from Hefei Yangtze Solar Power Co., Ltd.

Product Details

Warranty:	3 years, 3 years	OEM orders:	acceptable
Self-discharge:	3 months	payment terms:	L/C, Western Union, T/T, Money Gram, Credit Card
Certification:	CE / ISO9001 / ISO14001 / Rohs	terminal:	copper or lead terminal
Supply capacity:	200 units per week	application:	Boats, golf carts, electric forklifts, electric vehicles, power systems, solar storage systems, uninterruptible power supplies
port:	Shanghai/Ningbo/Qingdao/Shenzhen	Certificate:	CE / ISO9001 / ISO14001 / Rohs
weight:	60 kg	Maintenance type:	free
Packaging Details:	Carton with wooden pallet	brand:	Yangtze River Battery
model:	6-GFM-200	Electrolyte:	sulfuric acid
place of origin; place of origin:	Jiangsu, China	Package preview:
Seal type:	seal	size:	522x240x223mm
Design life:	8-10 years old

Product Description

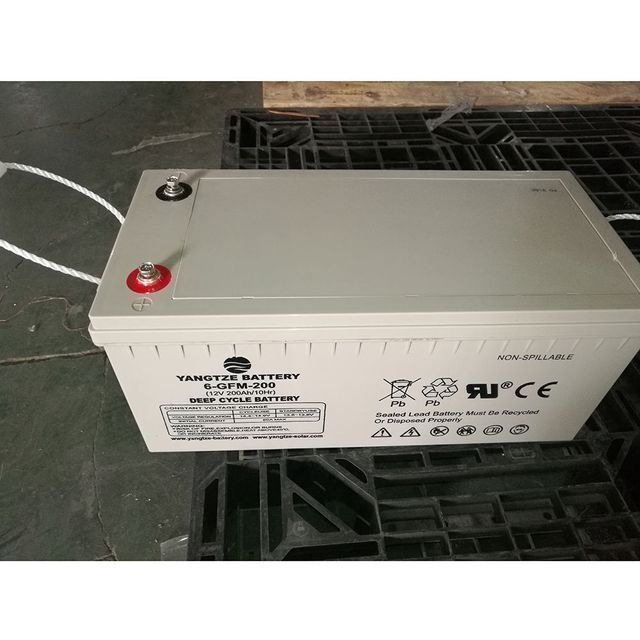

Solar power system energy storage battery 24v 400ah and 4*12v 200ah.

Main features:
♦Maintenance-free, absorbent glass mat technology
♦Low self-discharge
♦Long design life, deep cycle
♦Excellent discharge performance
♦Environmentally friendly
♦Ambient temperature adaptability to a wide range

application:
♦Solar and wind energy storage systems
♦EPS and UPS battery backup
♦Signal system, emergency lighting system, security system
♦Telecommunication equipment
♦Power supply for portable equipment or tools

1. Function parameters		5. Ambient temperature
Q	12V	Exhaust gas temperature	-20~60℃
Nominal capacity (10 hour rate)	200Ah	charging temperature	0~50℃
cell number	6 cells	Storage temperature	-20~60℃
2. Rated capacity at 25°C (77°F)		6. Internal resistance and max. Discharge current
10 hours rate (0.1C, 10.8V)	200Ah	Fully charged battery at 25°C (77°F)	3mΩ
3 hours rate (0.25C, 10.8V)	153.3 ah	maximum. Discharge current	3000A (5 seconds)
1 hour rate (0.55C, 10.5V)	110.4Ah	short circuit current	10000A
3. Capacity is affected by temperature (10 hour rate)		7. Self-discharge at 25°C (77°F)
40°C (104°F)	103%	Capacity after 3 months of storage	91%
25°C (77°F)	100%	Capacity after 6 months of storage	82%
0°C (32°F)	85%	Capacity after 9 months of storage	73%
-15°C (5°F)	65%	Capacity after 12 months of storage	64%
4. Dimensions and weight		8. Charge at constant voltage at 25°C (77°F)
length	522mm	recycle	14.4~14.9V
width	240mm	Maximum charging current	50A
high	219mm	Temperature compensation	-30mV/℃
total height	223mm	floating use	13.6~13.8V
reference weight	60 kg	Temperature compensation	-20mV/℃
