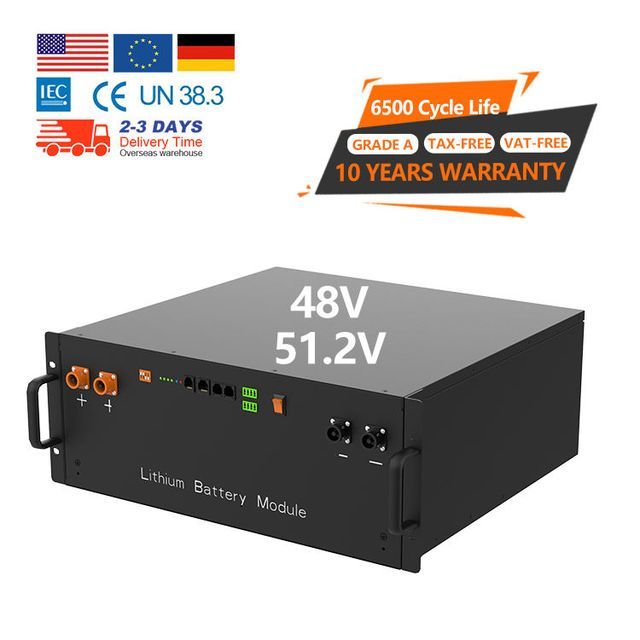

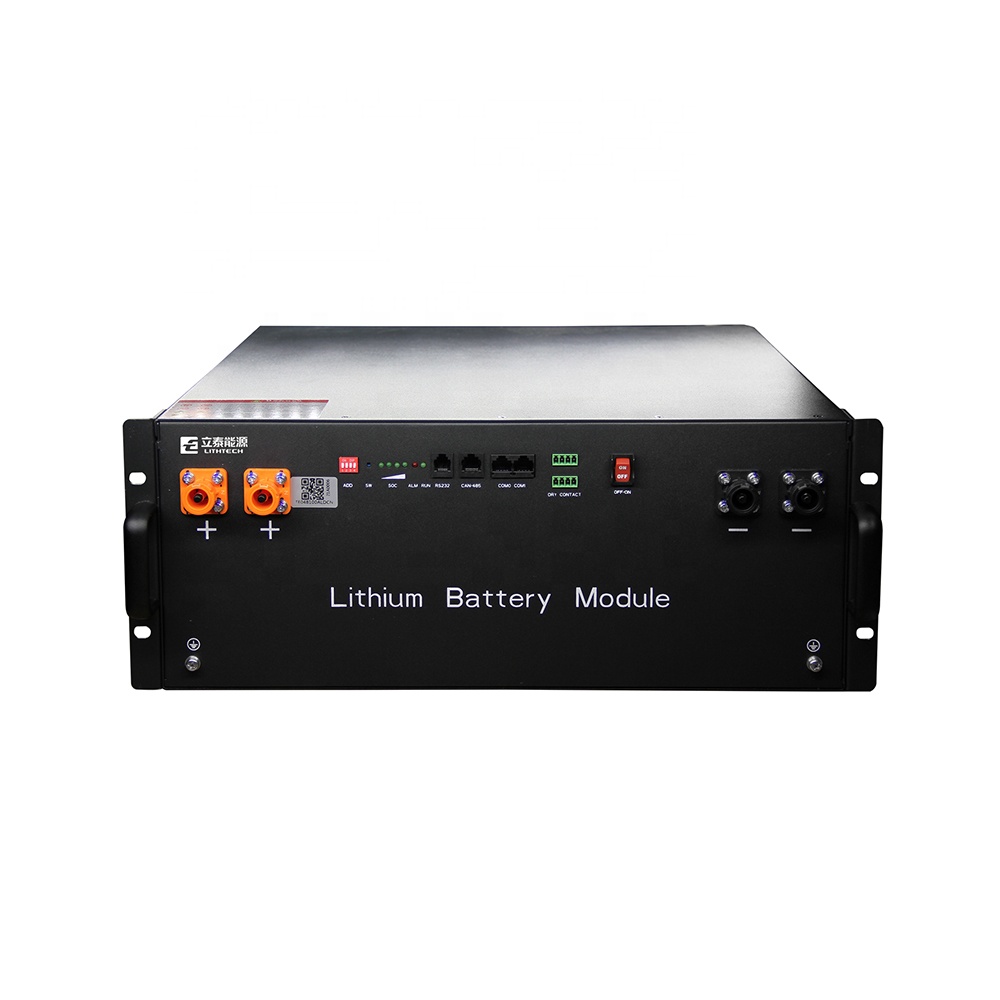

6500 cycles 5kw 10kw lithium iron phosphate battery 51.2V 48V 300Ah 100Ah 200Ah BMS inverter lithium ion energy storage solar battery pack

Supplier: Shenzhen Lithtech Energy Co., Ltd.
Region: Guangdong, China
Contact: Ms Christine Liu
Price: $450.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

usage:	Solar Power System Home	exhibit:	LCD screen
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Package preview:
port:	your choice	application:	Energy storage batteries, power tools, household appliances, consumer electronics, boats, golf carts, submarines, electric bicycles/scooters, electric forklifts, electric vehicles, electric wheelchairs, power systems, solar energy storage systems, UPS, energy storage

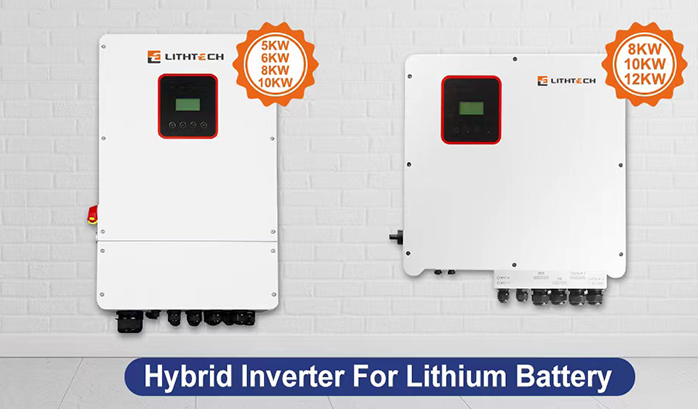

type:	DC/AC Inverter	Packaging Details:	100 kWh Battery LiFePo4 Lithium Battery 51.2V 48V 1000Ah Deep Cycle UPS Solar Backup Energy Storage 1). Standard safety carton packing 2). According to your requirements.
Output frequency:	50/60 Hz	Origin:	Guangdong, China
Certification:	MSDS UN38.3 CE IEC62133 UL1973 UL1642	model:	TE2000/4000
weight:	25 kg	Certificate:	ISO9001/CE/IEC/TUV
Supply capacity:	100000 pieces per month	Battery size:	440420178 mm
brand:	Optical Technology/OEM	cell:	Brand Cell or China cell/Lifepo4
The output voltage:	220V/230V/240V	Warranty:	10 years, 10 years
Input voltage:	100V-580V, 200-1000V DC

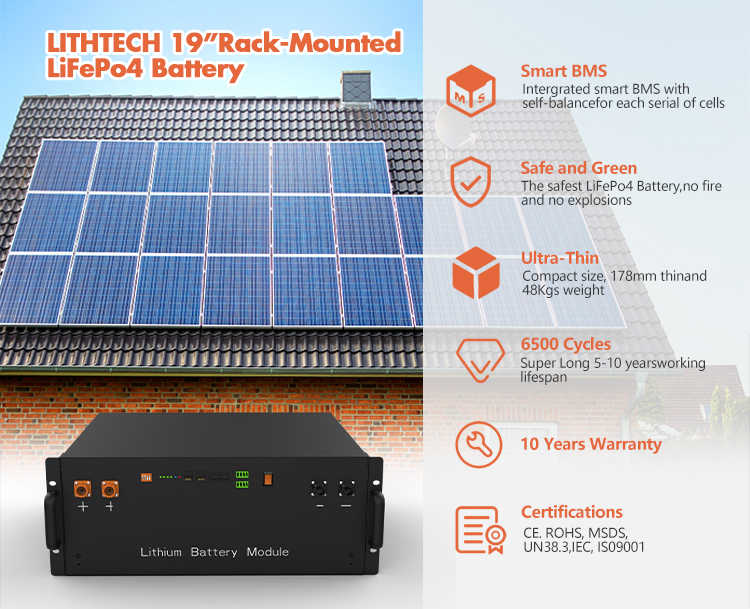

battery characteristics

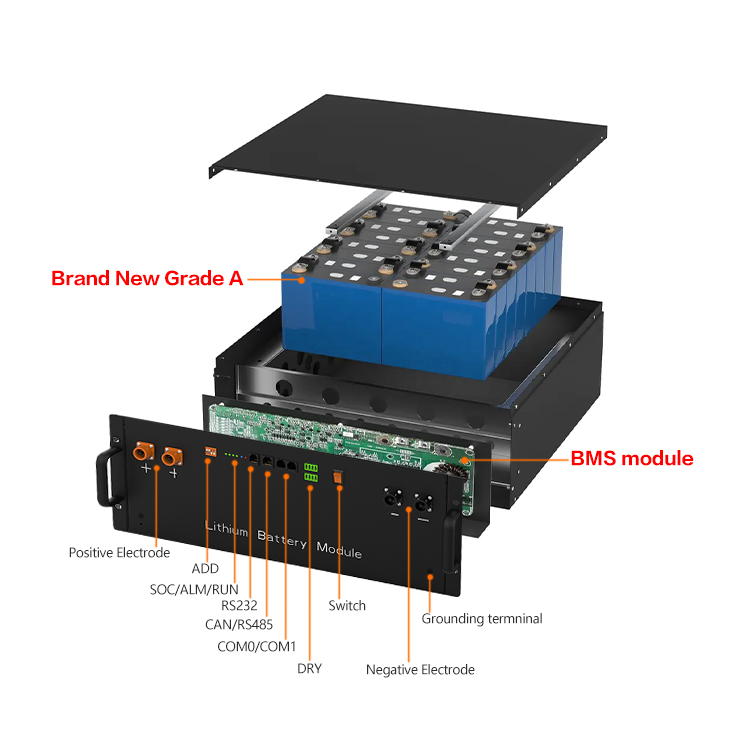

Select monitor digital display

The battery adopts digital display, which is convenient for users to monitor the voltage of each string of batteries, the rated voltage and capacity of the battery, temperature and BMS parameters, etc.

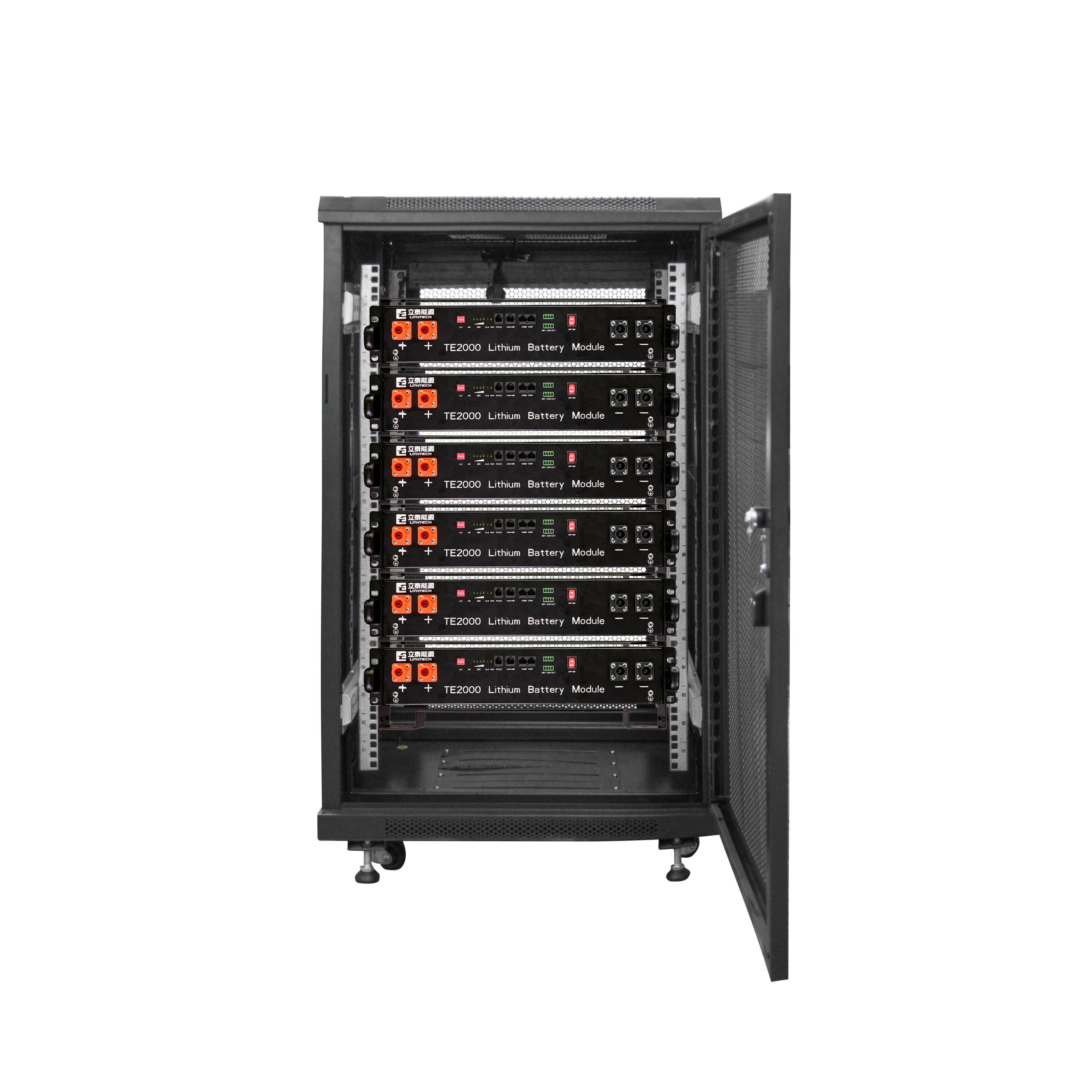

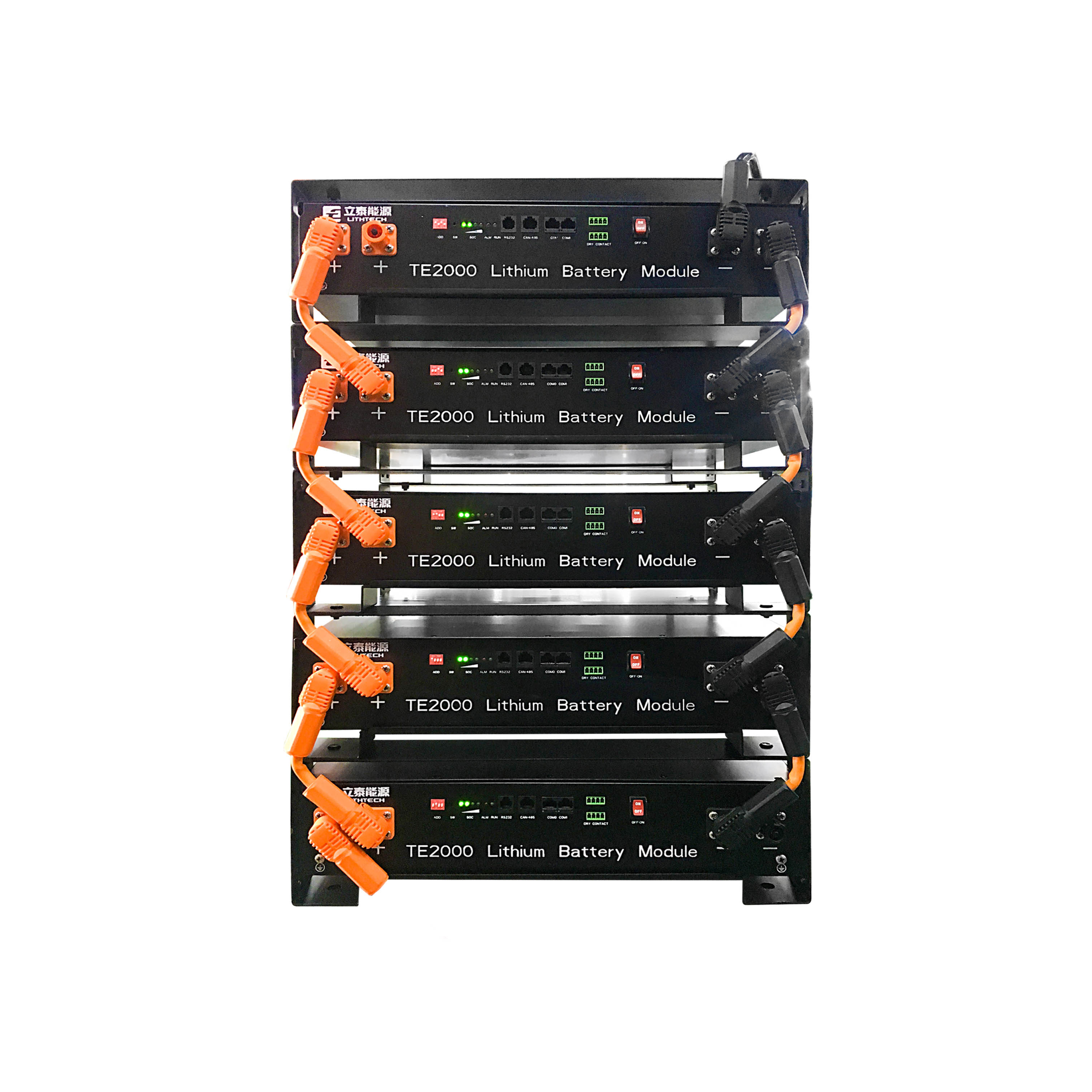

Support max. 6 parallel lines

If there is no master, the maximum support. 6 Parallel up to 30.72Kwh battery system; if equipped with standard master control, more batteries can be connected in parallel and in series.

battery function

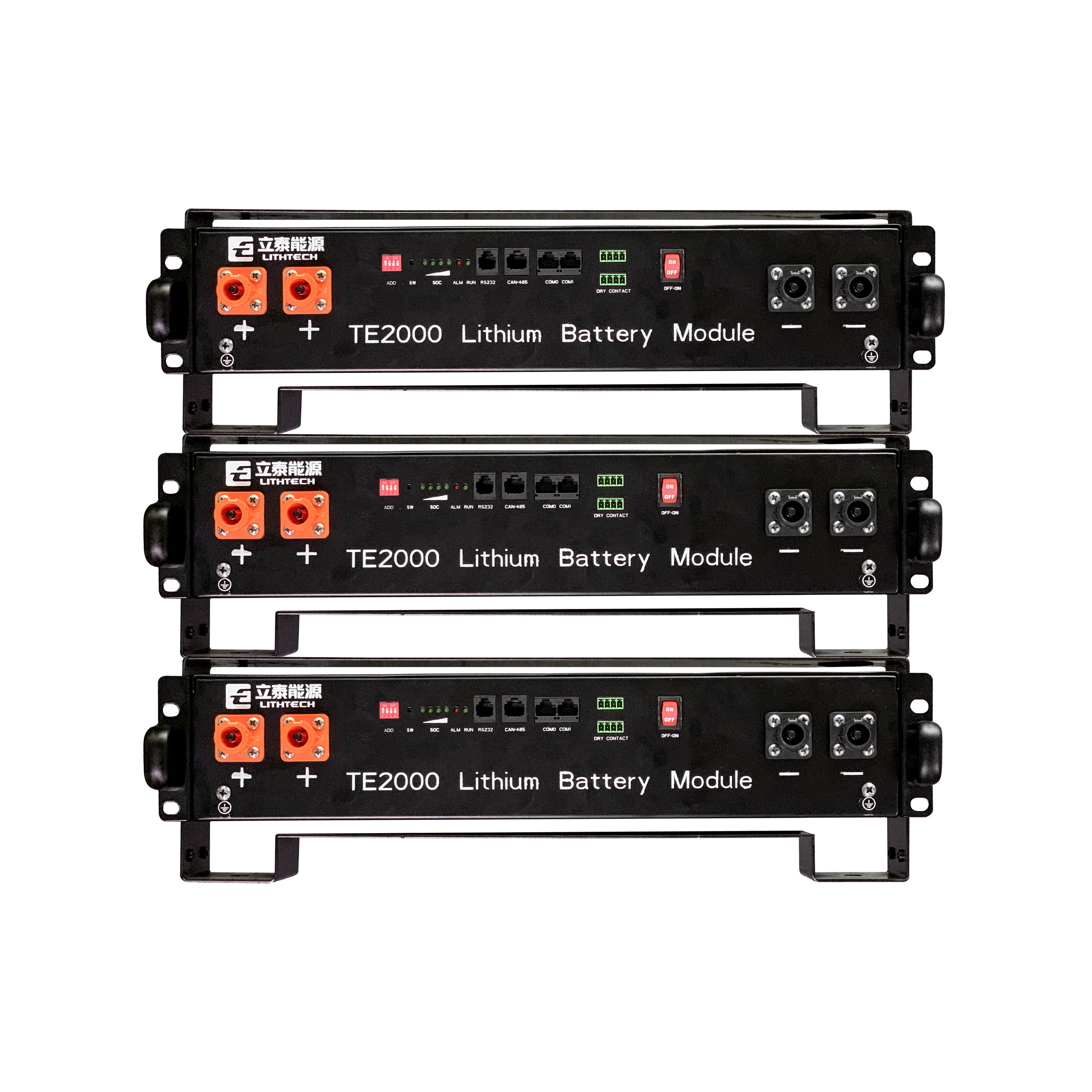

model	TE2000	TE4000	custom made	custom made	custom made
Voltage	48V/51.2V	48V/51.2V	48V/51.2V	48V/51.2V	48V/51.2V
capacity	50 Ah	100 Ah	150 Ah	200 Ah	300 Ah
vitality	2.4 kWh	5.12 kWh	7.68 kWh	10.24 kWh	15.36 kWh
Operating Voltage	35.25-54.75 VDC	37.6-58.4V DC	37.6-58.4V DC	37.6-58.4V DC	37.6-58.4V DC
Maximum charging voltage	54.75V DC	58.4 VDC	58.4 VDC	58.4 VDC	58.4 VDC
Maximum charge and discharge current	50A	100A	100A	100A	100A
Maximum power	2400W	5120W	7680W	10240W	15360W
Service life(25°C)	10 years
Life Cycle (80% DOD, 25°C)	6500+ cycles
Storage Time/Temperature	5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operating temperature	-20°C to 60°C @60+/-25% relative humidity
Storage temperature	0°C to 45°C @60+/-25% relative humidity
Lithium battery standard	U.L1642, IEC62619, UN38.3, ROHS, CE-EMC
Enclosure rating	IP65
Dimensions (length × width × height) mm	48241089	48241089	482430222	482500280	482500280
weight	25 kg	43 kg	65 kg	82 kg	112 kg

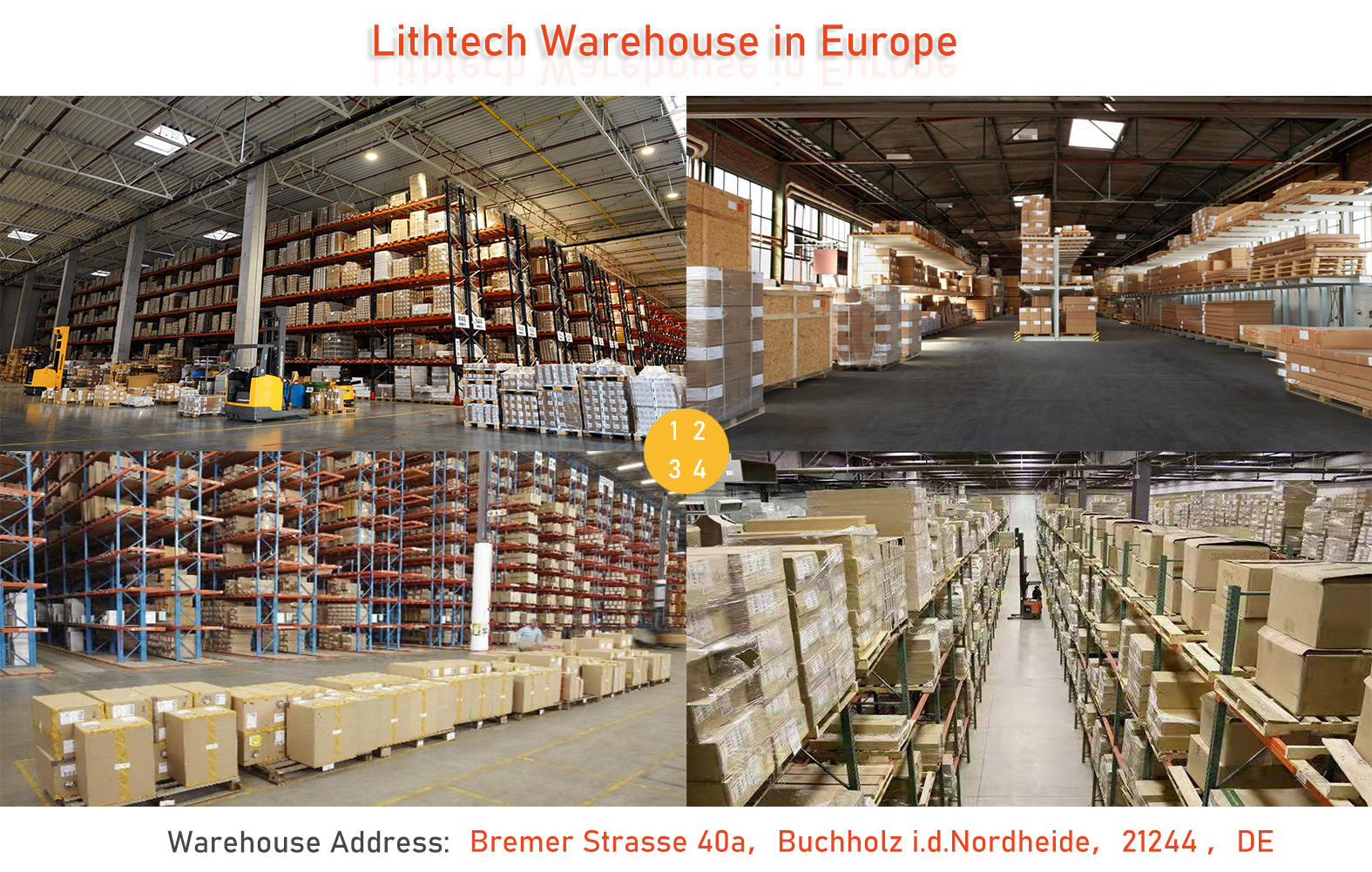

US EU Warehouse

We haveOverseas warehouses in Germany and the United States, you can enjoyFREE SHIPPING + FAST DELIVERY + NO TAX + STOCK IS KING! ! !

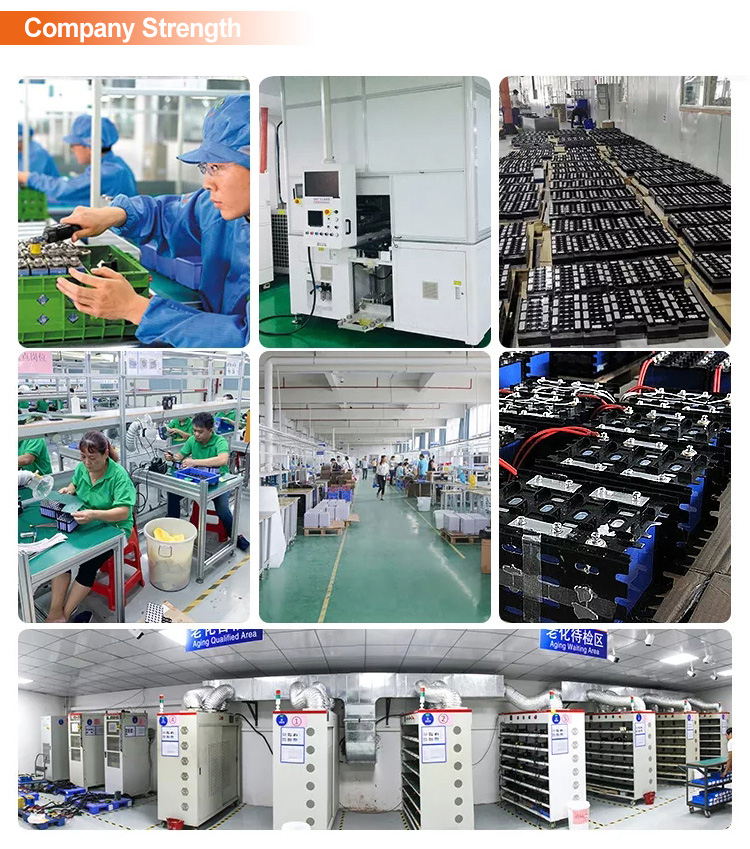

How do we guarantee top quality?
Each battery voltage, internal resistancetest 3 timesBefore shipment.
Make sure you receive high-quality, brand new products with original QR codes.

Shenzhen Lithtech direct distributorEV, CATL, Lishen, AVIC Lithium Battery, Ruipute, Yinlong Battery.Fresh stock is available for them ready to ship. Please feel free to contact us if necessary.
