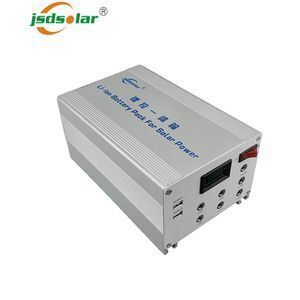

Portable 12v house lithium lifepo4 deep cycle solar battery 200ah

Product details
Weight:2kg;Single package size:34X16X12 cm;
Package Type:Standard inner box and master carton or as client's design For details(just OEM order);Size:245*154*117mm/335*154*117mm;
Single gross weight:10 KG;Output current:30mA-2700mA;
Warranty:3 Years;Certification:ce;
Nominal Capacity:20Ah 30Ah 40Ah 50Ah 60Ah;Cycle life:≥2000cycle;
Charge Current:10A/15A;Brand Name:JSDSOLAR;
Usage:UPS;Working Temperature:-35℃~55℃;
Model Number:solar battery 200ah;Selling Units:Single item;
Delivery Detail:0 days after payment;Sealed Type:Sealed;
Protection Class:IP68;IP Rating:IP68;
Package Preview:https://sc01.alicdn.com/kf/HTB13D47KsbpK1RjSZFy760_qFXak.png_640x640.png;Maintenance Type:Low Rate;
Charging Temperature:0℃~55℃;Place of Origin:Guangdong China (Mainland);

Portable 12v house lithium lifepo4 deep cycle solar battery 200ah

Product Description

Features:

1.Customized.

2.With AC Charge

3.Waterproof IP68.
4.DC Portable Solar System.
5.Small volume, light weight, smooth operation.
6.12V solar power supply, it is suitable for mobile use.
7.Design of lifepo4 battery and solar controller integrated, which is scientific and reliable.
8.High efficient intelligent battery power management system.
9.High efficient intelligent solar charge controller integrated constant current LED driver, with 91%- 96% output efficiency.
10.Solar Controller integrated with dusk to dawn, time and dimming function.
11.Used high&low temperature material and waterproofing process to prolong battery working lifespan.

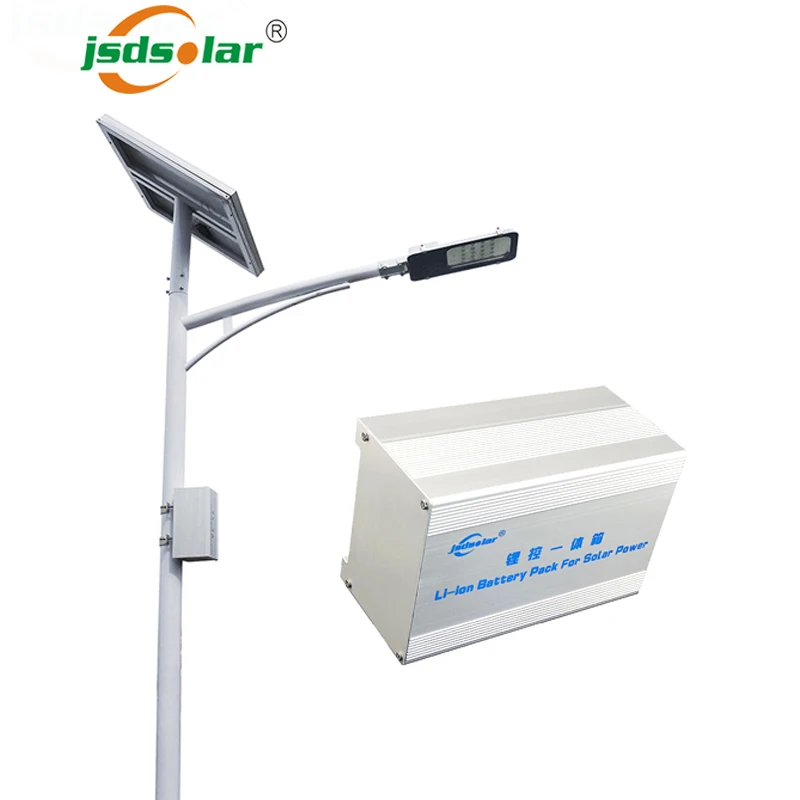

12.Suitable for installing on the pole, more than 2.5 meters from ground.
13.Scientific design to maintenance lifepo4 battery and solar controller more easily.
14.Suitable for 10Ah-80Ah li-ion battery pack.
15.Made of aluminum housing, with the mounting brackets.

16.Style color variety, yellow, blue, white, silver, etc.

Introduction:

This is DC solar system. It can provide power for all kinds of low voltage electrical appliances, such as
DC LED, Mobile phone, digital products. With complete functions, simple operation, no need complex
installation, plug and play.

ModelJSD-LBP
  Battery TypeLithium iron phosphate (LiFeP04) battery
  Nominal capacity10AH20AH30AH40AH50AH60AH
  Recommend  LED lamp10W10-20W10-20W20-30W20-30W30-40W
  Recommend Solar Panel30-40W40-60W60-80W60-100W100-140W120-160W
  Rated Working Voltage12V/24V auto
  Output Efficiency91%-96%
  Life expectation1800 cycles at 100% DOD; 2500 cycles at 80% DOD
  Operation temperatureCharge: 0~55℃; Discharge:-20~60℃
  Maximum discharge current10A
  Maximum charge current10A 15A
  PV input voltage16V-50V
  Output voltage15V~50V (this demands LED lamp without LED driver)
  Output current30mA-2700mA
  Dimming ValueFour periods time with 10%-90%
  ProgrammableLighting Control Option
  Charging ModeMPPT Charge or PWM charge for option
  Fixation MaterialFiller and Protective Cotton(EVA)
  HousingAluminum
  Protection ClassIP68
  Mounting Brackets2pcs * Hold Hoop/ 4pcs* M8*50 Bolt/ 8pcs * Buts
  Size245*154*117mm335*154*117mm
  Weight3.2kg4.2kg5.4kg6.4kg8.4kg9.6kg

Hot Sale

Company Information

Engineering Case

FAQ

Q1: Are you factory or trading company?

A: We are a factory, we provide OEM services. Some famous foreign supermarkets and we often collaborate.



Q2: Does the lamp light on automatically?
A: Yes, it will light on automatically at darkness no matter which mode except "OFF".



Q3: Can I can a sample order for solar street light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q4: What about the lead time?
A: 3 workdays for sample, 5-10 workdays for batch order.



Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.



Q6: Can the lamp be used in strong wind environment?
A: Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.



Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the guarantee period, we will send replacements with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
