ASY-2600A Automatic paper film two-color gravure printing machine
- 8000.00 1 - 4 sets
- 7500.00 >=5 sets
| Showroom location: | Italy, Vietnam, India, Chile, Sri Lanka, South Africa | brand: | Watson |
| place of origin; place of origin: | Zhejiang, China | Supply capacity: | 25 automatic paper film 2-color gravure printing machines per month |
| Warranty: | one year | type: | Gravure printing press |
| weight: | 4000kg | machine: | Automatic paper film two-color gravure printing machine |
| payment terms: | letter of credit, wire transfer | usage: | paper printer, plastic film printer |
| ink: | Solvent ink | Video external inspection: | if |
| Dimensions (L*W*H): | 4.8x1.5x2m | port: | Ningbo or Shanghai Port |
| Packaging Details: | Simple packing in wooden case or stretch film | Core components: | PLC, engine, gearbox, motor |
| Marketing Type: | normal product | Colors and Pages: | two colors |
| Auto grade: | semi-automatic | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Printing Shops, Construction Works, Energy and Mining, Food and Beverage Stores, Others, Advertising Agencies |
| Core Components Warranty: | 1 year | Mechanical test report: | if |
| Health status: | new | Main selling point: | easy to operate |
| Print side: | one side/both sides | Voltage: | 380V/220V |
| After-sales service provided: | Engineers can repair machinery overseas |
ASY-2600A Automatic paper film two-color gravure printing machine
1. Features:
1.1 The combination type, single and double-sided multi-color printing can be completed on time continuously.
1.2 Rewinding and unwinding tension magnetic control system. Ink circulates automatically.
1.3 The far-infrared heating drying system with single drying channel can be used to dry the film.
1.4 Adopt differential, 360 degree free adjustment disc.
1.5 The pressure height and parallelism of the squeegee can be adjusted at will, and it can also reciprocate laterally with the host.
1.6 Adopting a flip-up double-station retracting and discharging structure, the retracting and discharging materials do not stop
machine.
1.7 Suitable for rolling plastic film, OPP, non-woven fabric, PVC, paper, aluminum foil, etc.
2. Main technical indicators
|
machine type |
ASY-2600A |
ASY-4600A |
|
Unwind width |
610mm |
610mm |
|
color number |
2 colours |
4 colors |
|
unit |
4 units |
6 units |
|
printing width |
560mm |
560mm |
|
printing speed |
50m/min |
50m/min |
|
Version accuracy |
±0.25mm |
±0.25mm |
|
print length |
200-1000mm |
200-1000mm |
|
Unwinding diameter |
600mm |
600mm |
|
pressure |
0.6Mpa |
0.6Mpa |
|
fan power |
0.19kw/unit |
0.19kw/unit |
|
heating power |
7.5kW |
11kW |
|
total power |
18kW |
22kW |
|
aspect |
4500×1800×2000mm |
6500×1800×2000mm |

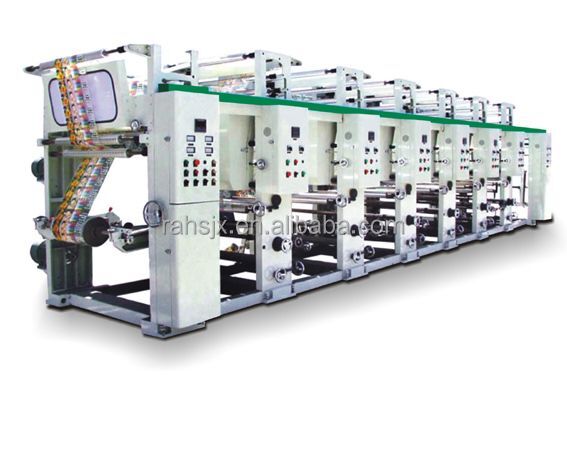

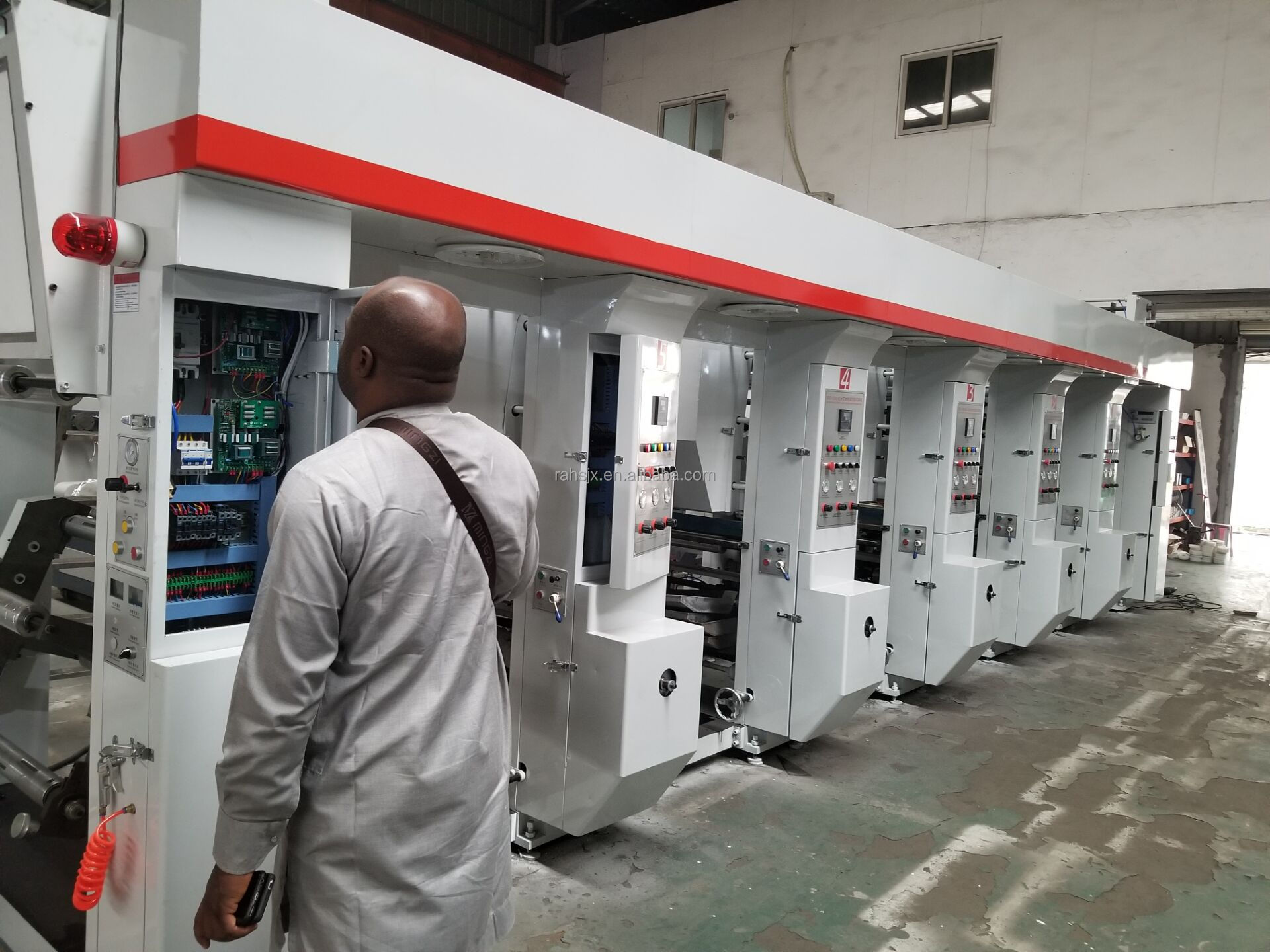

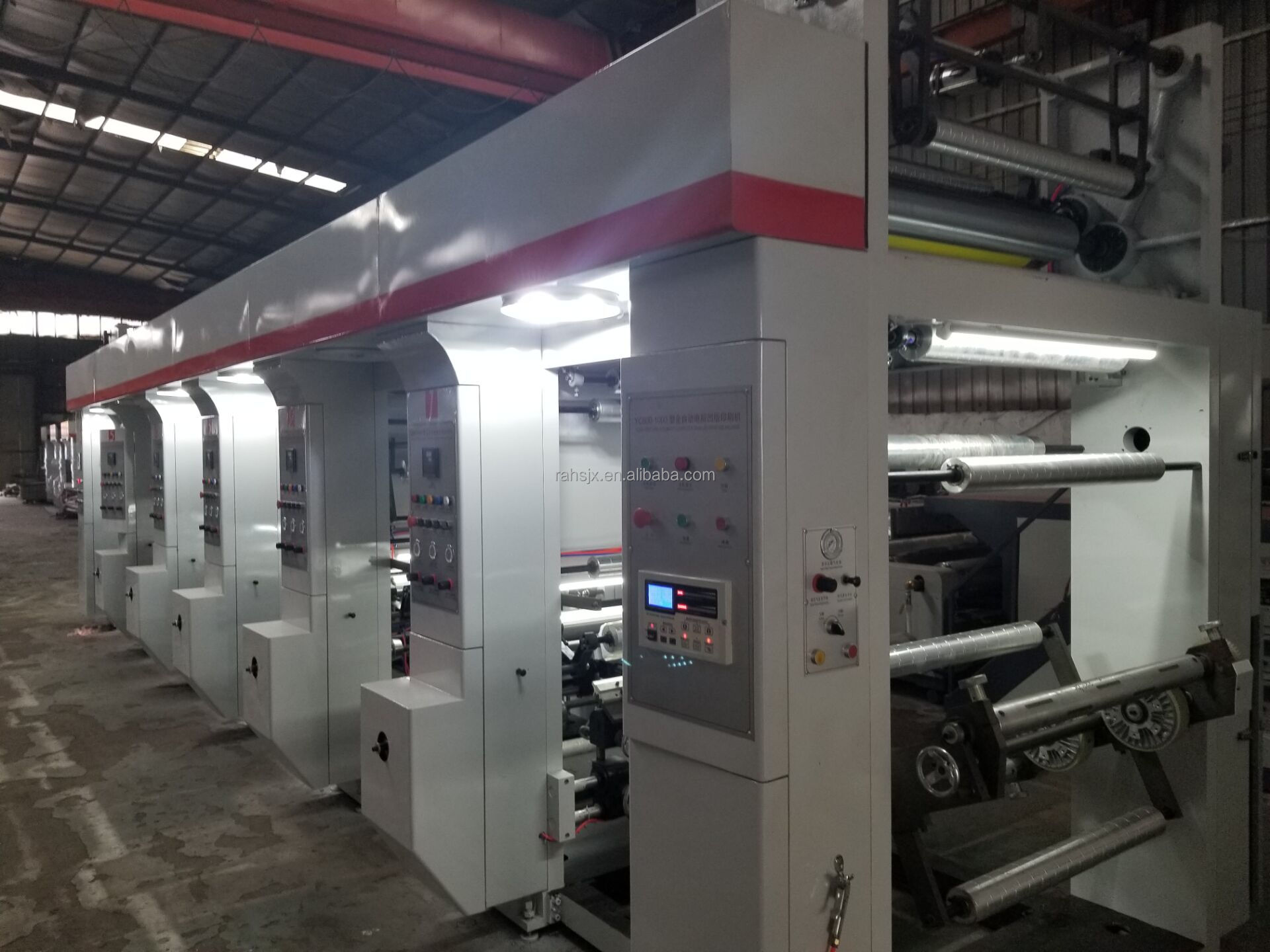

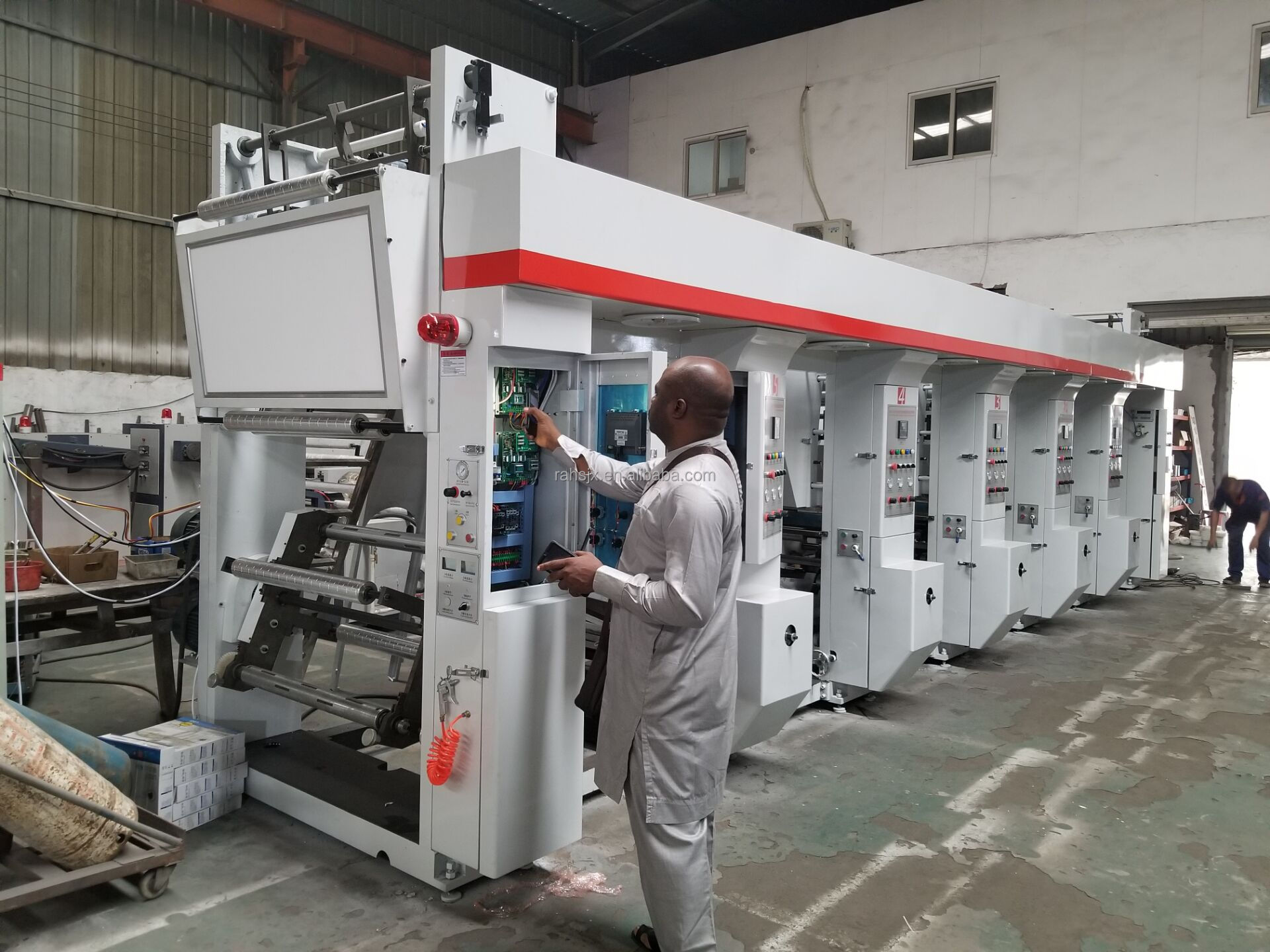

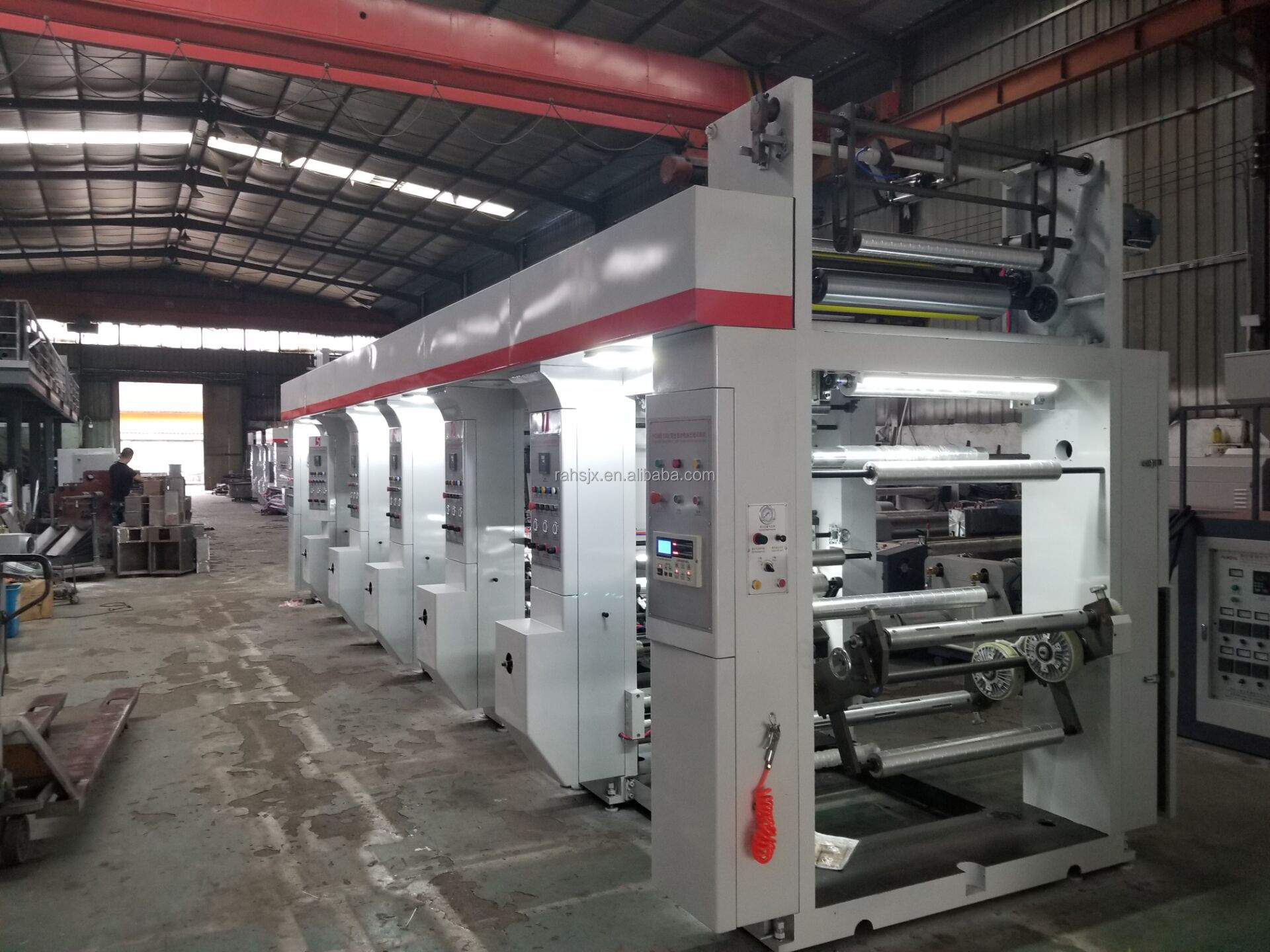

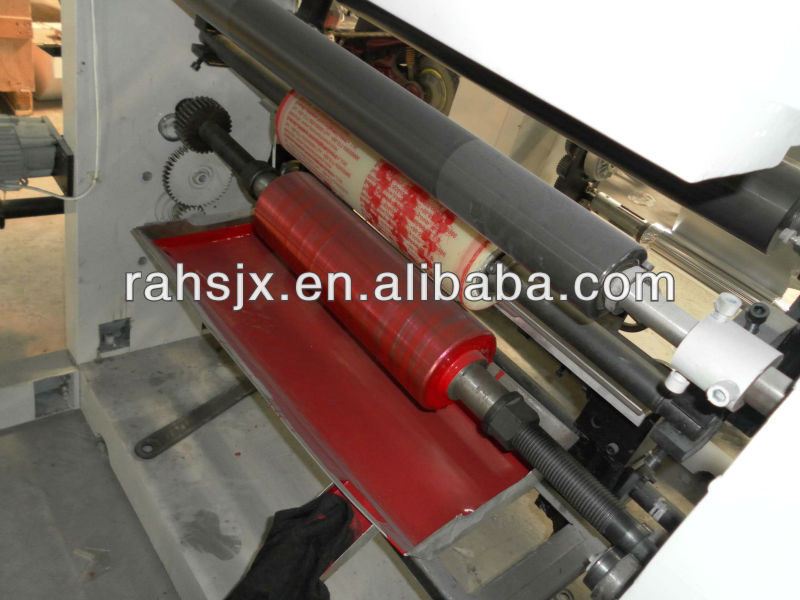

3. Picture showroom
We produce machines with high quality and the best price for many years.
