HTHP Vertical Yarn Dyeing Machine

Main advantages are:

Possibility to dye with liquor ratio from 1:3.5 using in to out single circulation with material not fully covered.

Reduce consumption of chemicals, dyes, water and steam due to low liquor ratio facility.

Reduce power consumption of main pump because pipes are designed to avoid losses of pressure so that main pump is exploited in the best way. High efficiency motor and inverter reduces power consumption as well. Possibility to dye also in traditional way: air pad, material fully covered and flow circulation in to out and out to in directions.

SMDY ENERGY SAVING

The consumption of water, chemicals, electrical energy, thermal energy and the wasted water are important cost factors in every dye house. With this machine all these factors are dramatically reduced, measured and controlled. Right-first-time in dyeing is now assured by lower differences inside-outside the packages, while savings of electric energy, water, chemicals, steam and compressed air will bring extremely fast payback times over the initial investment cost.

New SMDY sizes are from 5 kg to 1500 kg. This machine with this particular pump and inversion group allows to treat polyester textured high density till 0,5 Kg/l as well as very soft material like silk 0,3 kg/l density in order to process every kind of material you can have in your dye house.

In particular can dye bobbin 1.8 kg cotton, 2,4 kg acrylic, polyester 4 kg or 10 kg tops or muffs, tow, flock or beams

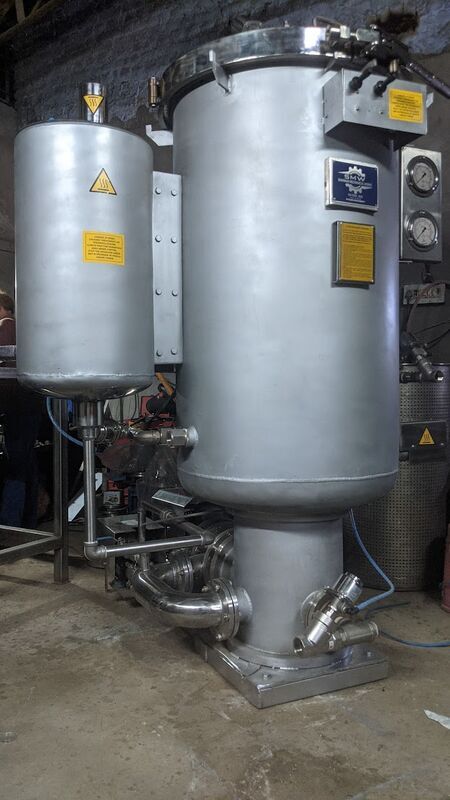

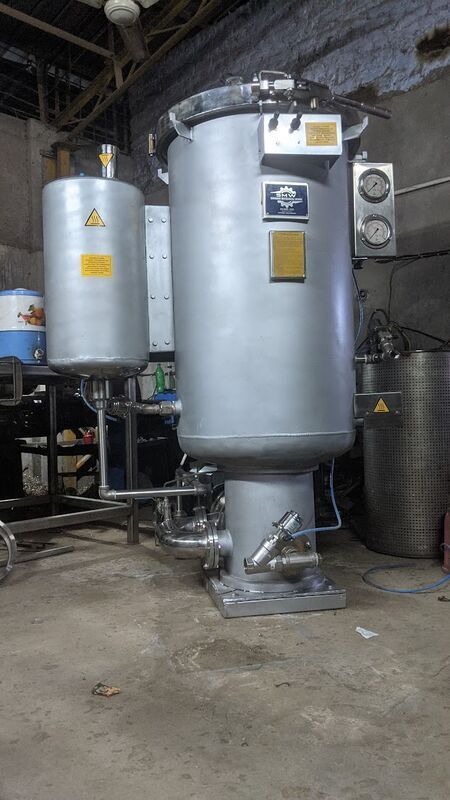

This is our new SMDY yarn dyeing machine!

Yarn dyeing, reinvented!

70% savings on electric energy

30% savings on water, chemicals and utilities

Improved yarn dyeing quality

Faster payback times

Sustainable yarn dyeing

SMDY FEATURES:

• Standard design and manufacturing features:

• Nominal loading capacities from 5 to 1500 kg.

• Pressure rating of 5.0 kg/cm2, up to 160°C tempera-
ture, temperature lock at 140C.
• Construction in AISI 316 stainless steel, for all the
part in contact with dyeing liquor.
• Water protected motors (IEC Standards I).

• Waterproof electrical equipment

• Three-level safety systems..
• Heat exchangers rated for 15.0 kg/cm2 operating
pressure.
• Heating gradient 5°C./minute (range 20-80°C steam
pressure 6.0 kg/cm2) Cooling gradient 3°C./minute
(range 130-108°C water temp. 15°C, pressure 1.5

kg/cm2).
• Pneumatic lid lifting and lowering.

• Rapid lid locking system.
