Network RJ45 RJ11 Telephone LAN Cable Tester Wire Tracer Tracer Tracer

Supplier: Shenzhen HSD Cable Co., Ltd.
Region: Guangdong, China
Contact: Mr HSD Cable
Price: $9.10 / 1 - 99 pieces
$8.80 / 100 - 499 pieces
$8.40 / 500 - 999 pieces
$8.20 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Packaging Preview:		model:	HC-NA-TC01
Certificate:	International Organization for Standardization	Packaging Details:	1 set/carton 25/carton
Warranty:	1 year	place of origin; place of origin:	Guangdong, China
Custom Support:	OEM, ODM, OBM	Material:	plastic
brand:	OEM brand, HSD cable	application:	multifunctional
Package Included:	Cable testers and cutters	strength:	Electronics
product name:	Cable Tester Crimp Tool Set	power supply:	9V PP3 battery
Name:	cable stripper	Function:	Network Ethernet LAN Kit
color:	white and green	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram

Product Description

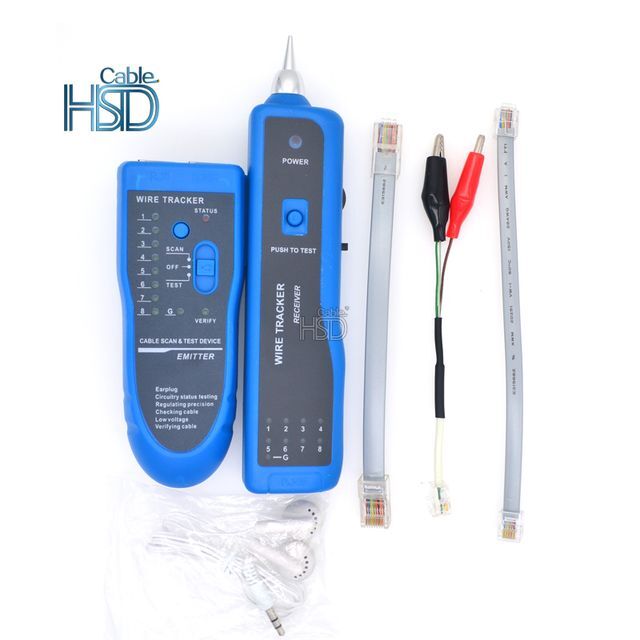

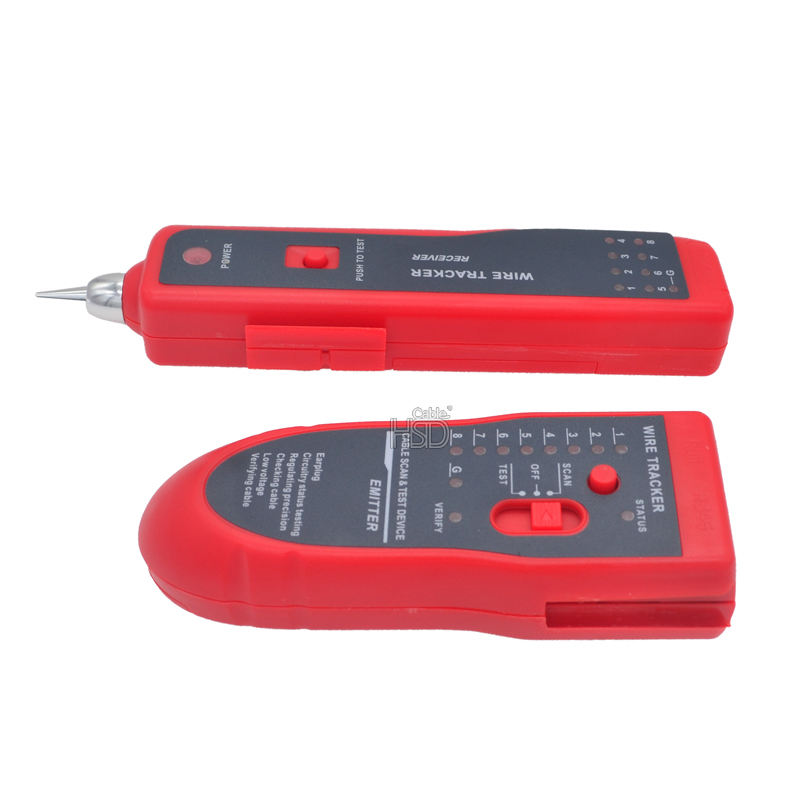

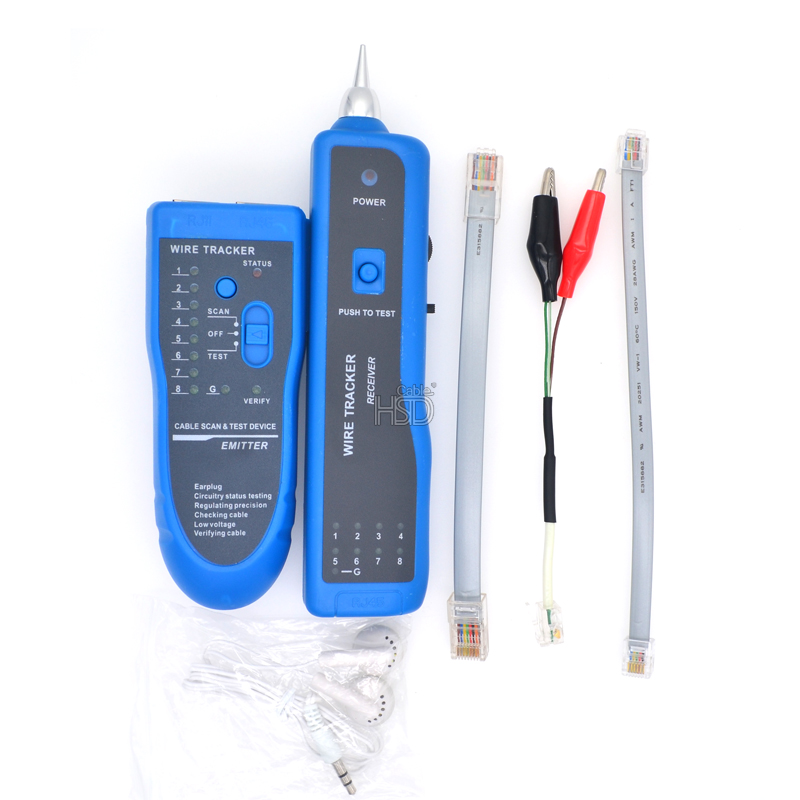

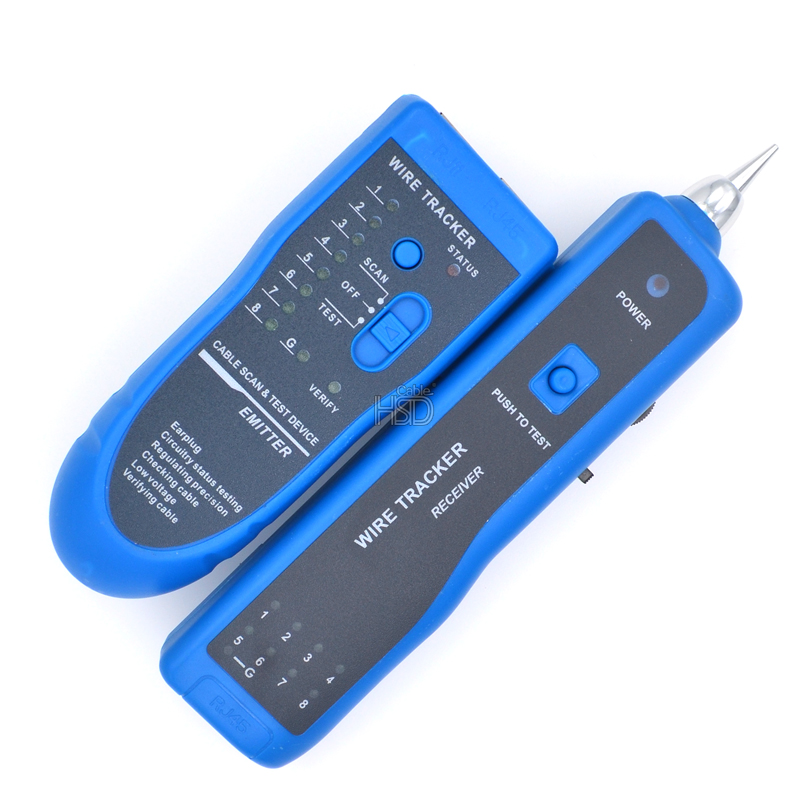

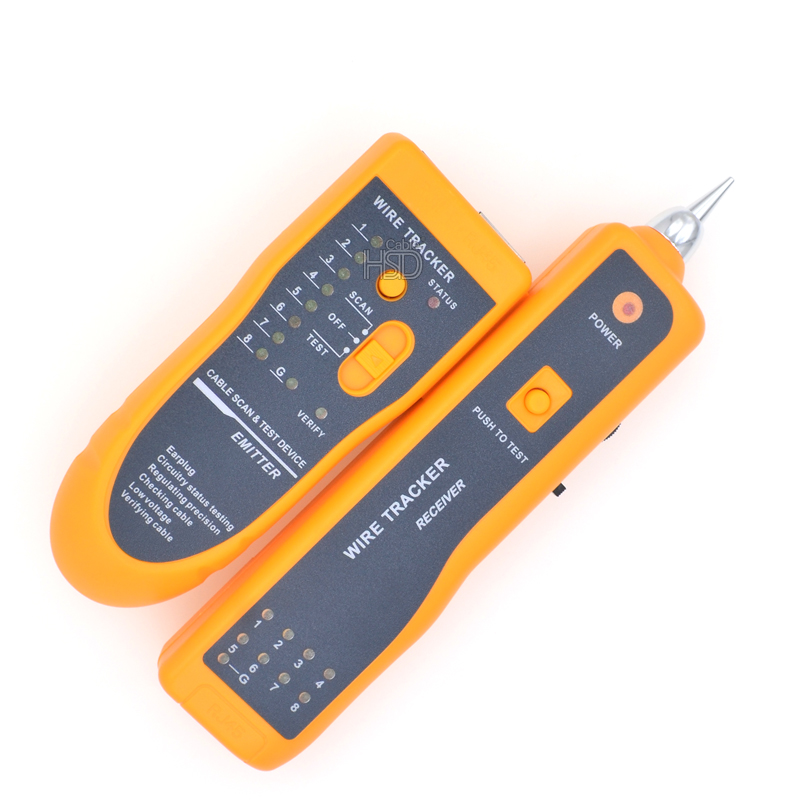

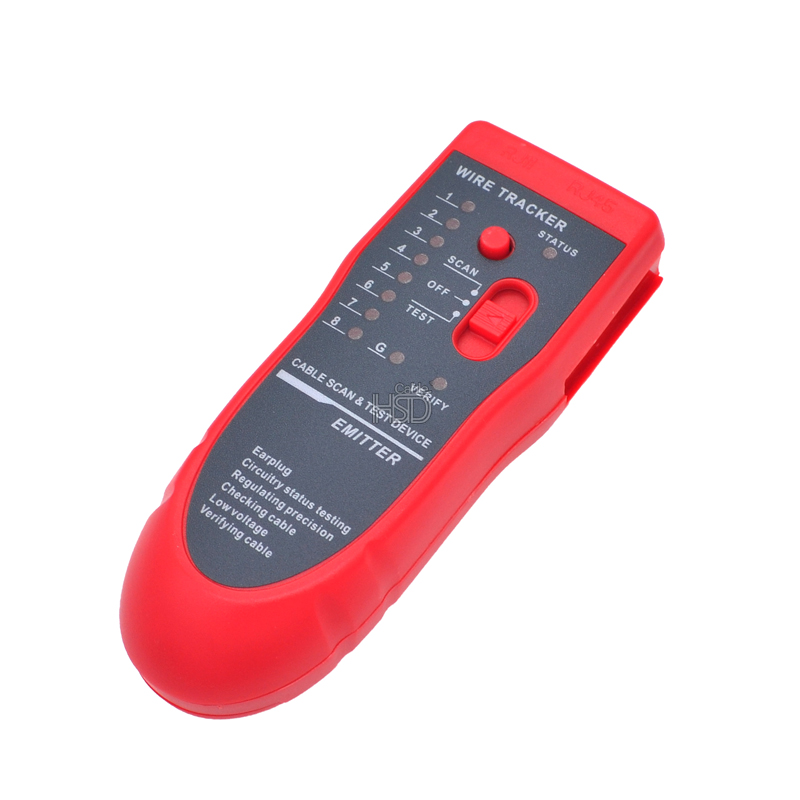

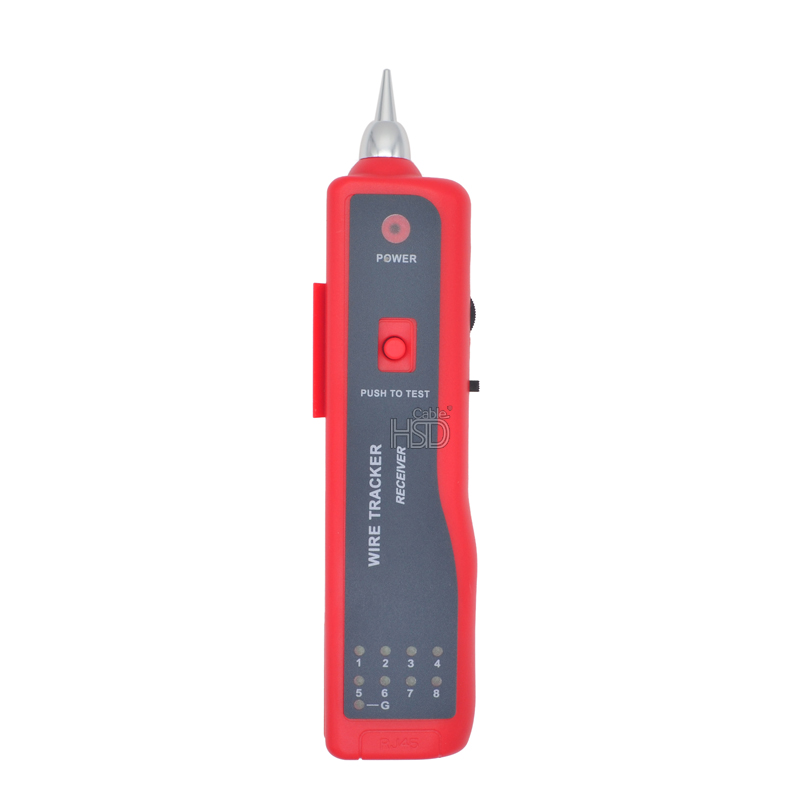

Product Name: Network Line Tracker

Function:

1. Test the twisted pair1, 2, 3, 4, 5, 6, 7, 8 and G, and distinguish which one is wrong, short circuit and open circuit.

2. Switch ON is the normal test speed, S is the slow test speed, and M is the manual gear.

Twisted Pair Test:

Turn on the power and insert the plugs into the main tester and the remote tester respectively. The main indicators light up one by one from 1 to G. The following figure explains:

Main Tester: 1-2-3-4-5-6-7-8-G
Remote Tester: 1-2-3-4-5-6-7-8-G (RJ45)
1-2-3-4-5-6 - - - (RJ12)

1-2-3-4------------ (RJ11)

If the connection is abnormal, it should look like this:
1. When the network line such as Line 3 is disconnected, the No. 3 lights of the main tester and the remote test terminal are not on.
2. When more than one line is not connected, more than one line does not light up, and when there are less than two lines, the light does not light up.
3. When the two ends of the network cable are out of order, example 2 and 4 are out of order, as shown in the figure below:
The main tester remains the same:1-2-3-4-5-6-7-8-G
The remote test side is:1-4-3-2-5-6-7-8-G
4. When there are two short circuits in the network, the main tester does not display it, while the remote test terminal displays two short circuits slightly brighter. If there are more than three (including three)

When a short circuit occurs, the lights of all shorted wires are off.

If testing wiring frame and wall base modules

The tester needs to introduce two matching jumpers (eg 110P4-RJ45).

Such a lightweight tester can be carried anywhere. It is an indispensable tool for general network construction and maintenance. It can detect cable connection problems more efficiently and in less time. The most attractive thing is the price. This product is specially designed for export packaging, and the outer packaging is treated with matte glue. It is waterproof and more beautiful.

Specifications:

Material	plastic
product name	Cable Tester Crimp Tool Set
Package Included	Cable testers and cutters
color	white and green
Warranty	1 year
Function	Network Ethernet LAN Kit
power supply	9V PP3 battery
Certificate	International Organization for Standardization
application	multifunctional
Packaging Details	1 piece per carton
