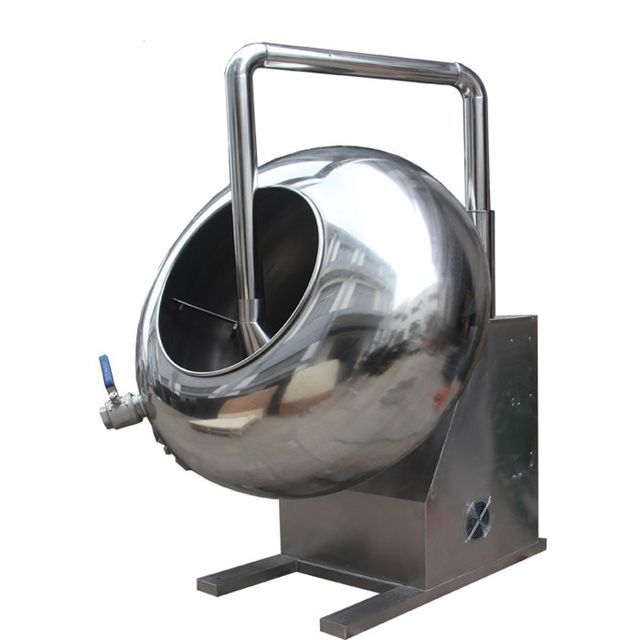

Tablet Sugar Coating Machine Tablet Sugar Film Pan Coating Machine

Supplier: Taizhou Jincheng Pharmaceutical Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jason Xu
Price: $350.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	Coating roller diameter (mm):	1000 mm
Warranty:	1 year, 1 year	Packaging Details:	Sugar film coating pan machine in standard export wooden box
Health status:	new	weight:	85~450kg
Core Components Warranty:	1 year	Supply capacity:	200 sets of sugar film coating pan machine per month
strength:	750/1100/1500/2200/5500/7500	Weight (kg):	200
Applicable industries:	Hotels, Food and Beverage Plants, Farms, Restaurants, Home Use, Grocery Stores, Food and Beverage Stores	place of origin; place of origin:	Jiangsu, China
brand:	Jincheng Machinery	Coating Type:	Heating and coating
port:	any port in China	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Voltage:	110V/220V/380V	Core components:	Bearings, gearboxes, motors
Showroom location:	not any	Marketing Type:	normal product
Net weight/kg):	85-450	Maximum production capacity (kg/h):	500
Voltage (V):	220, 380, 410	Coating temperature (℃):	1 - 80℃
Dimensions (LWH):	Different kinds	Power (kW):	3
Video external inspection:	if	Main selling point:	Famous brand PLC
Bowl diameter (mm):	400-2000	Motor power (KW):	0.75-7.5
Material:	304 stainless steel	usage:	Food and Pharmaceutical

Product Description

Our peanut candy coating machine is available in 304 stainless steel, SS316, copper coating pan. Our peanut icing machine is designed with fabricated structure, with stainless steel cover and drive motor and reduction gear box. The pan of peanut icing machine can be customized with 60°, 180°, 360° angles for easy unloading or a simple unloading valve. The size and shape of the peanut sugar coating machine can be customized according to different uses: 1. Film coating of tablets, pills, etc. in the pharmaceutical industry 2. Sugar and chocolate coating of nuts, fruits, popcorn, etc. in the food industry 3. Powder, Paint, chemical color coating 4. Polishing, polishing and rolling of spherical finished products, such as: pearl balls, chewing gum, candy.

Product parameters

Model	strength	drum power	Thermal power	capacity	revolution	Package dimensions	weight
BY-200	250W	40W	300W	0.5kg/batch	0-60 rpm	400300440mm	12kg

Model	strength	drum power	Thermal power	capacity	revolution	Package dimensions	weight
BY-300	1200w	40w	700w	1-3kg/batch	0-60 rpm	550390680mm	32 kg
BY-400	1200w	40w	700w	3-5kg/batch	0-60 rpm	645445830mm	42 kg

data\model	BY600	BY800	BY1000	BY1250	BY1500
Diameter (mm)	600	800	1000	1250	1500
Number of revolutions (r/min)	50	32	32	25	25
Main power (KW)	750	1.1	1.5	2.2	2.2
Drum power (W)	100	180	180	370	370
Thermal power (W)	800	2000	3000	3000	3000
Capacity (kg/time)	20-30	30-50	50-70	80-150	300-400
Dimensions (mm)	650×450×920	925x900x1400	1100x1100x1500	1200x1250x1630	130015001800
Weight (kg)	85	205	220	350	450
