BYC 800 sugar coating machine, tablet and pill coating machine, sugar coating machine Products from Dandong Flight Trading Co., Ltd.

Product Details

Health status:	new	Weight (kg):	280
weight:	60 kg. 65 kg. 70kg.120kg	After-sales service provided:	On-site installation, commissioning and training
Showroom location:	not any	Applicable industries:	restaurant, food store, food and beverage store, other, advertising agency
brand:	flight	Coating temperature (°C):	30 - 100°C
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Marketing Type:	2019 Hot Products
Core component warranty:	1 year	Coating drum diameter (mm):	800mm
port:	Shanghai	Pot speed (r/min):	0-46
Power (kW):	3.7	Capacity (kg/time):	5
Origin:	Liaoning, China	Mechanical test report:	if
Main selling points:	long lasting	Voltage:	customer voltage
Packaging Details:	Export packing or according to customer's requirement	Core components:	Engines, bearings, pressure vessels
Certification:	ISO:9001	Dimensions (LWH):	7054130
usage:	Food and medicine	Coating Type:	heating and coating
product name:	Automatic coating machine	feature:	Stable transmission and reliable performance
Video shipment inspection:	if	Other heating power(w):	500
Diameter of icing pan (mm):	400	strength:	1.1-2.2
Warranty:	1 year	Supply capacity:	10 units per month

flow chart

- Flowchart -

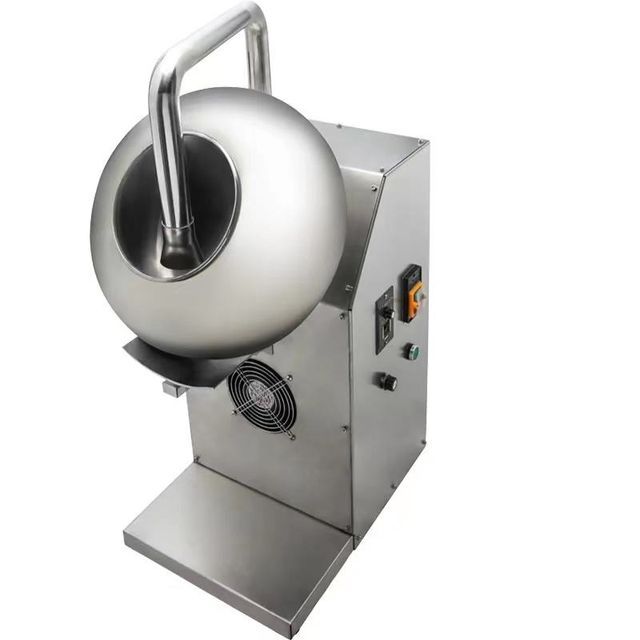

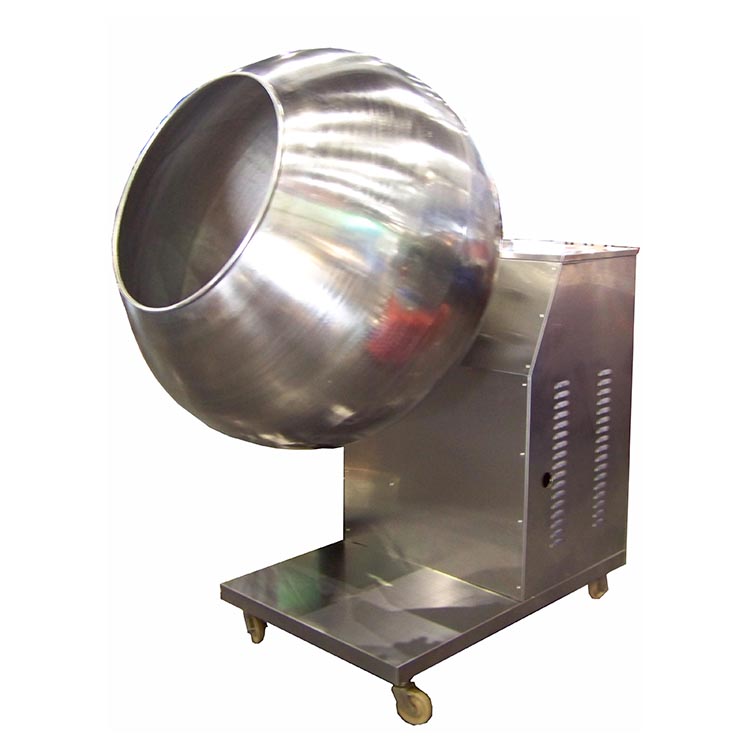

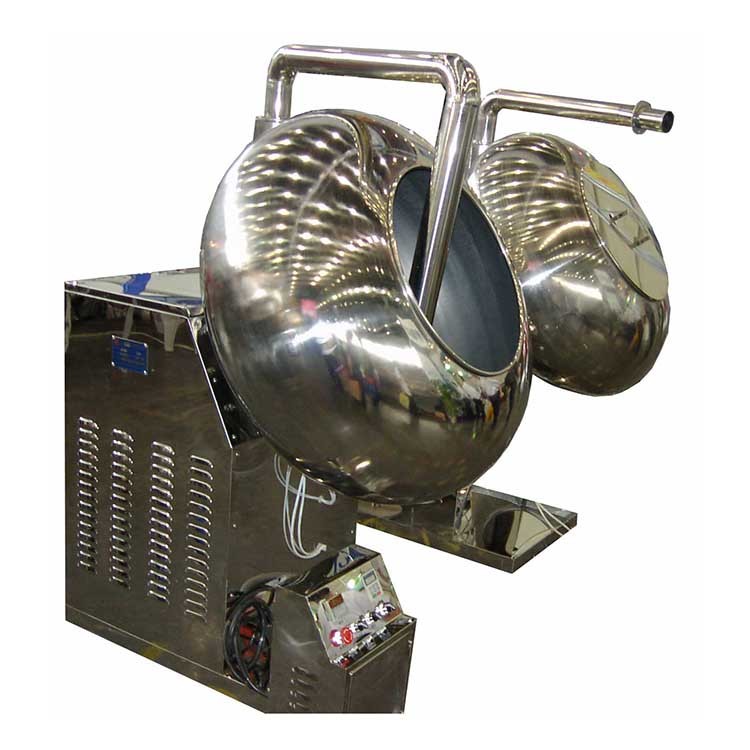

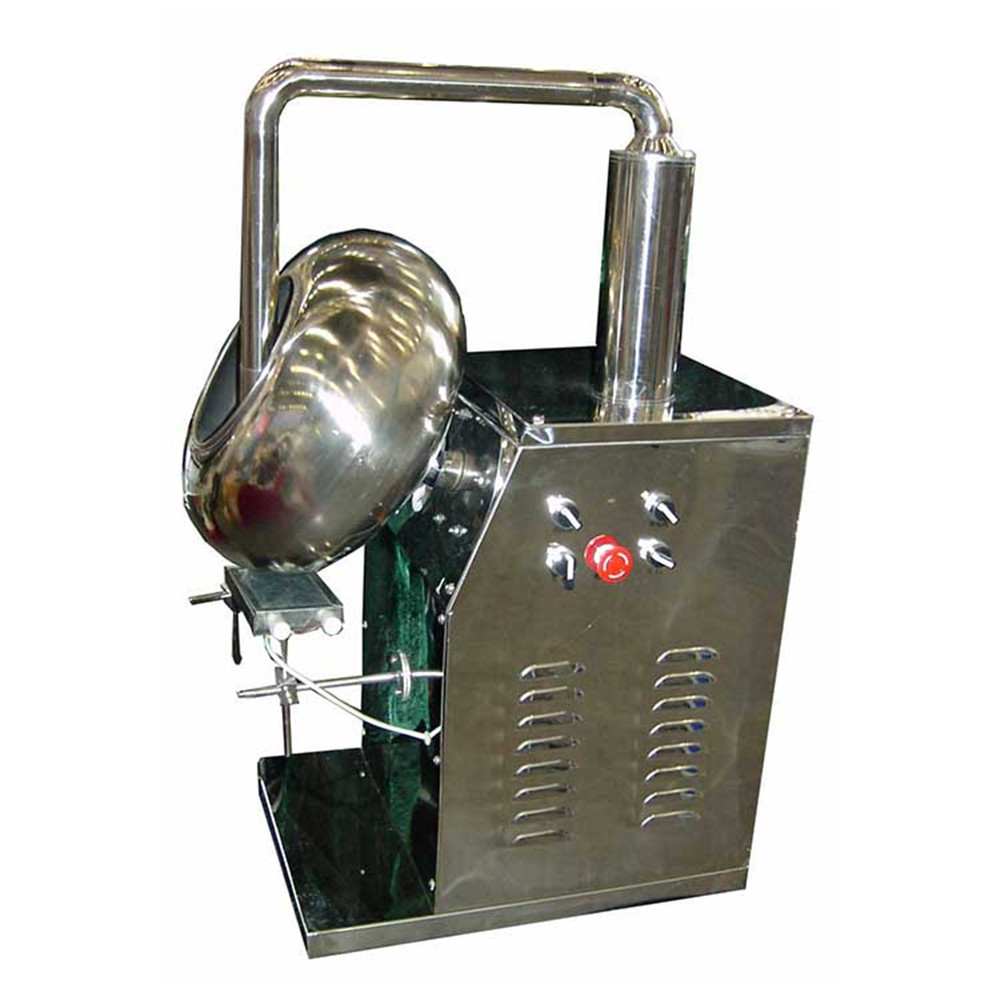

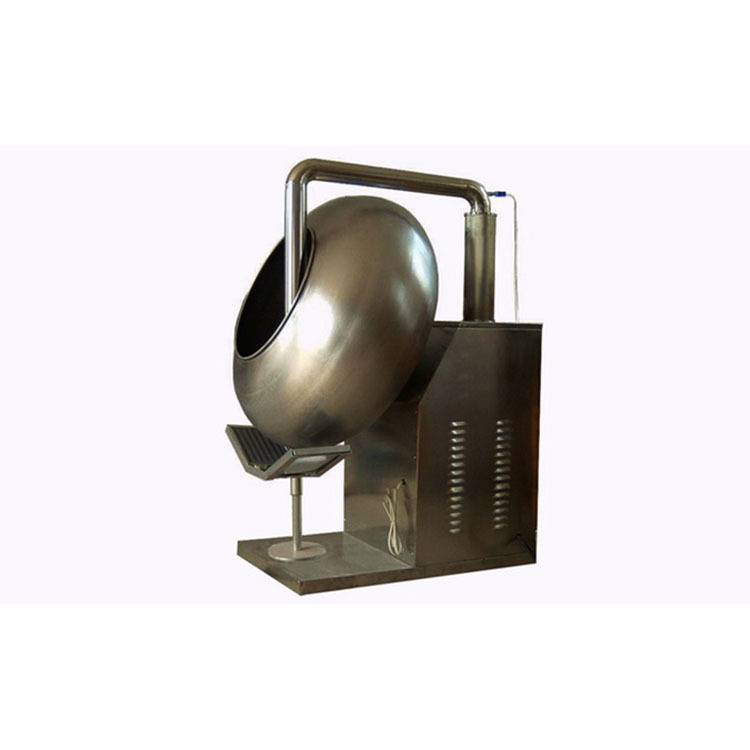

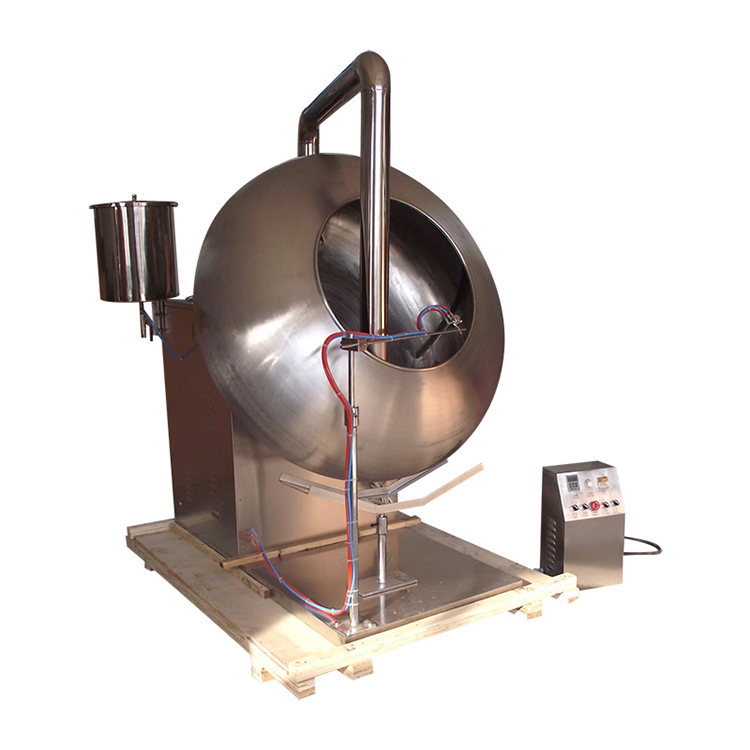

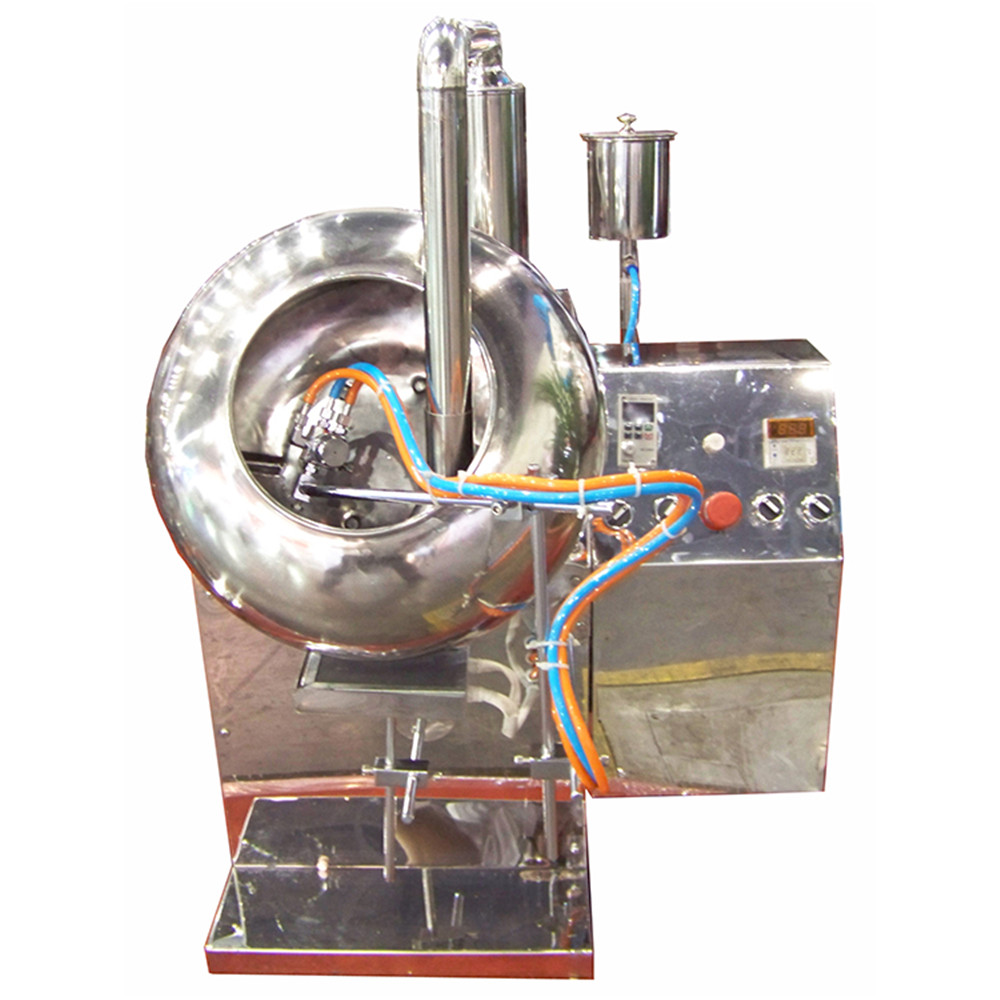

BY series water chestnut mold coating machine

-illustrate-

This machine is widely used in coating, glazing and granulation in the pharmaceutical industry. It can also be used for sphere mold forming in food, chemical and other industries.

-feature-

l The coating pan is made of stainless steel and complies with GMP standards.

l Stable transmission and reliable performance.

l Easy to clean and maintain.

l High thermal efficiency.

l One pot angle can produce process requirements and adjust coating

At the same time, it is easy to use.

-Technical Parameters-

Model	BY200	BY300	BY400	BY600
Pot diameter(mm)	200	300	400	600
Pot speed (r/min)	0-46	0-46	0-46	0-40
Motor power (KW)	0.25	0.37	0.55	0.55
Heating wire power (W)		500	500	800
Blower power (W)		40	40	60
Capacity (kg/time)	1	2	5	15
Other heating power (W)		500	500	600
Weight (kg)	60	65	70	120
Overall size (cm)	35×40×68	49×59×77	49×59×81	70×54×130

Model	BY800	BY1000	BY1250
Pot diameter(mm)	800	1000	1250
Pot speed (r/min)	0-32	0-32	0-28
Motor power (KW)	1.1	1.5	2.2
Heating wire power (W)	1000	1000	1000
Blower power (W)	250	250	250
Capacity (kg/time)	30-50	50-70	80-150
Other heating power (W)	1000×2	1000×2	1000×2
Weight (kg)	240	280	450
Overall size (cm)	93×90×150	110×110×160	142×125×165
