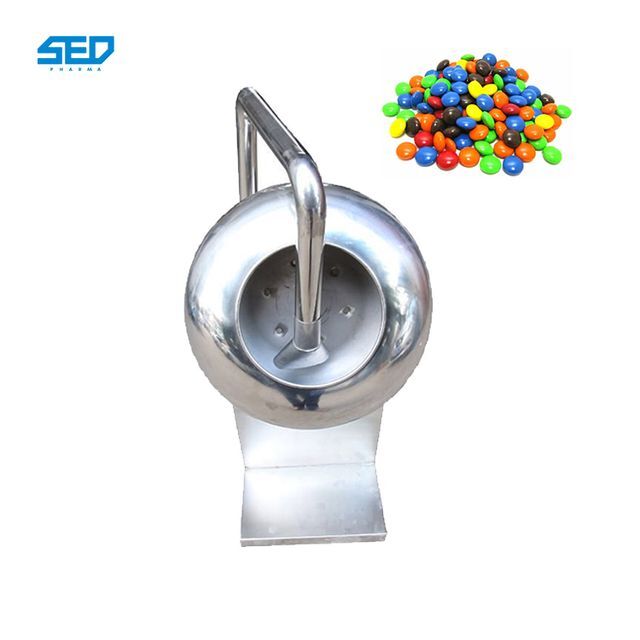

Multifunctional Coating Machine Coating Machine Sugar Peanut Chocolate Coating Tablet Coating Pan Machine

Supplier: Hangzhou Shengde Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms SED Machinery
Price: $550.00 /set
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Fan power (kW):	0.06
Marketing Type:	New Products 2020	Showroom location:	not any
brand:	SED-Pharma	Applicable industries:	Manufacturing Plants, Food and Beverage Plants, Farms, Food Stores, Energy and Mining, Food and Beverage Stores, Others
Coating temperature (℃):	1 - 80℃	Main selling point:	easy to operate
Heating power (kW):	0.5	Model:	SED-400BY-D
Capacity (kg/batch):	2-6	Voltage:	220V50Hz
Core Components Warranty:	1 year	Supply capacity:	30 sets per month
Weight (kg):	35	Coating Type:	Heating and coating
Core components:	PLC, engine, gearbox, motor, gear, pump	usage:	Pharmaceutical
Motor power (kW):	0.12	Mechanical test report:	Not available
Power (kW):	0.68	Video external inspection:	if
Coating roller diameter (mm):	400 mm	Packaging Preview:
Dimensions (mm):	560400850	Health status:	new
Warranty:	1 year	Dimensions (LWH):	560400850
Disc diameter (mm):	400	place of origin; place of origin:	Zhejiang, China
Weight (kg):	35	Packaging Details:	wooden box
port:	Ningbo or Shanghai Port	Pan rotation speed (rpm):	46
Total Power (kW):	0.68

Product Description

This machine is suitable for sugar coating, polishing and rolling of Chinese and Western medicine tablets, pills, pills, small pills, water pills, drop pills and granules in pharmaceutical, chemical, food, scientific research institutes, hospitals, etc. It can also be used for trial production of new drugs in scientific research institutions.

Working principle:

Through the pot body, the tablets roll, slide and rub in the pot, so that the coating powder is evenly distributed on all the tablets. The included electric hair dryer outlet pipe can be extended into the pot for heating. At the same time, the blower blows hot air into the inner layer of the pot to remove the moisture on the surface of the tablet, thereby obtaining the hard candy coating.
tablet.

*Model*	300BY-D	400BY-D	600BY-D	800BY-D	1000BY-D
Diameter of icing pan(mm)	300	400	600	800	1000
capacity(kg/batch)	1-4	2-6	6-15	30-50	50-80
Internal heating power(kilowatt)	0.5	0.5	0.8	0.9	0.9
icing pan speed(change)	0-46	0-46	0-40	0-32	0-32
main motor power(kilowatt)	0.12	0.12	0.75	1.1	1.1
blower motor power(kilowatt)	0.06	0.06	0.1	0.2	0.2
weight(Kilogram)	30	35	115	230	240
total power(kilowatt)	0.66	0.68	1.7	2.2	2.3
aspect(mm)	560300850	*560400850*	7806001360	11508001550	115011001600
