Container Pipeline Manufacturing Line

Supplier: Nanjing Auto Electric Co., Ltd.
Region: Jiangsu, China
Contact: Ms Karen Peng
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

place of origin; place of origin:	China	Video external inspection:	Not available
Main selling point:	Famous brand PLC	Showroom location:	Malaysia
Warranty:	1 year	After-sales service provided:	On-site installation and commissioning training, on-site maintenance and repair services
Voltage:	380	Packaging Preview:
Marketing Type:	normal product	port:	Nanjing
weight:	in standard, standard	Welding process:	TIG, MAG, MIG, SAW
Health status:	new	Dimensions (LWH):	custom made
Welding Type:	automatic welding	brand:	National Economic Council
payment terms:	letter of credit, wire transfer	Local service location:	Malaysia
Core Components Warranty:	1 year	Certification:	CE, ISO
Core components:	motor	Mechanical test report:	Not available
Supply capacity:	200 sets per year	Applicable industries:	Construction Engineering, Energy and Mining
Packaging Details:	container

Pipe fitting manufacturing line (container type/mobile type)

Containerized/movable pipe fitting manufacturing line, the machine is installed in the container. More suitable for live production.

1. Facts

Suitable for pipes from 2 to 60 inches;

Suitable for CS, SS, AL.S pipes;

Reduce project manufacturing costs to 0.25 man-hours/diameter inch

Automatic manufacturing rate can be as high as 80%

X-ray one pass rate≥99.5%

Innovative WPS for application of various materials

Project implementation follows international standards such as API650, ASME, AWS

Return on investment much faster than expected

2. Applicable industries: oil and gas, refineries, petrochemicals, onshore and offshore, chemical, nuclear power plants, shipbuilding, power plants, energy, aerospace.

pipe making machine

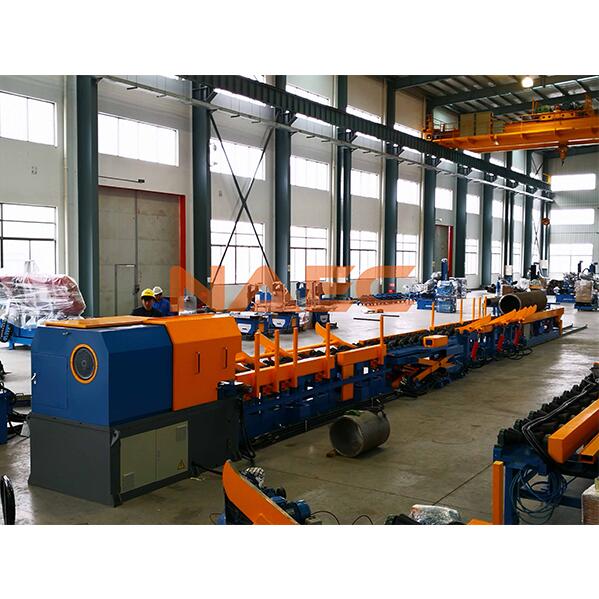

1		Pipe cutting and beveling machine >Suitable for pipes not larger than 8", maximum thickness: 20mm > Cutting efficiency: 100 times/8 hours >PLC control, automatic measurement, to ensure the same processing cycle >Widely used in small diameter CS/SS production line

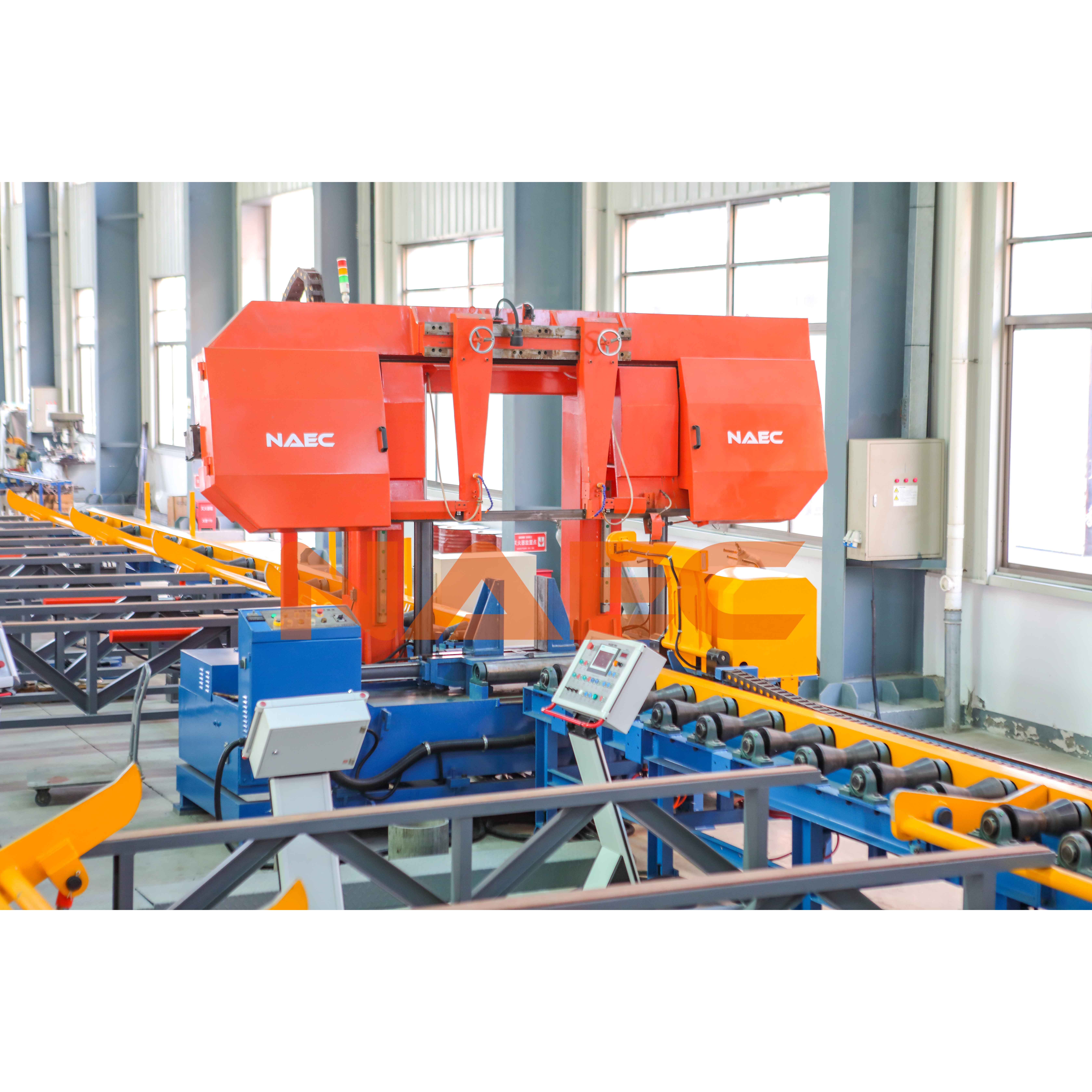

2		High Speed Band Saw >Three models (16", 24", 48") >PLC system control; self-test function, accuracy: ±0.5mm >Using hydraulic self-centering chuck > Only 6 minutes to cut 25mm thick 24 inch tube > Widely used in CS/SS production line.

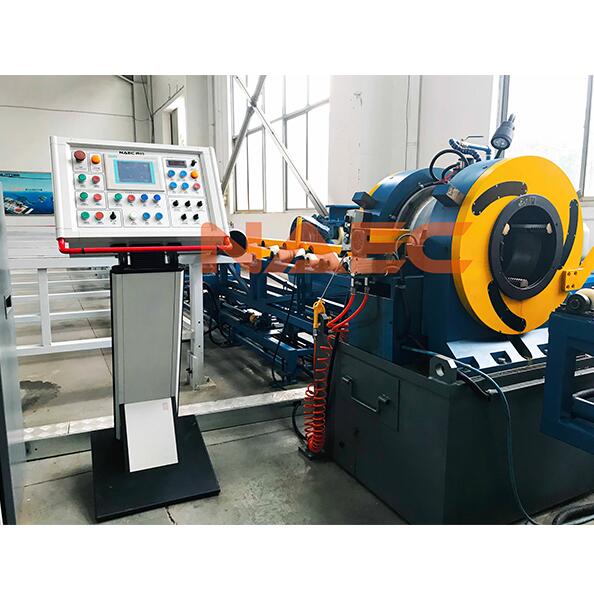

3		High-speed CNC pipe end beveling machine >Automatic self-centering chuck >Single V, Double V, U bevel >Pipe end reversing device is available >High-speed bevel: For example, 37.5 degree bevel of SS pipe end only takes 2.5 minutes (diameter: 610mm, thickness: 25mm) >Various models available: 16", 24", 32", 48"

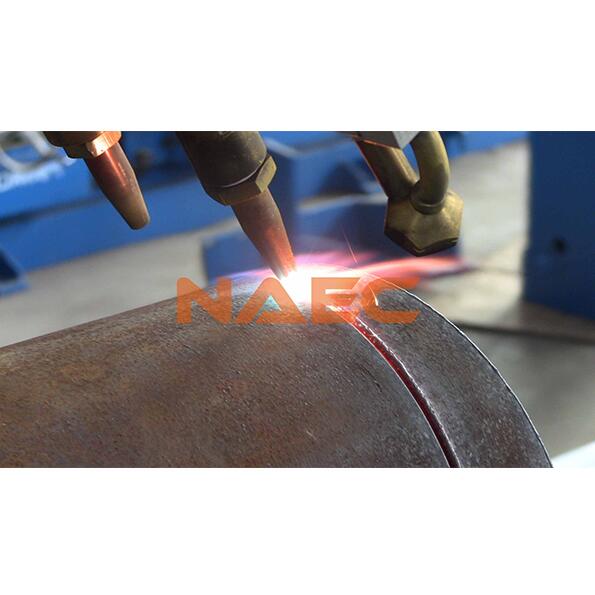

4		Two-axis/multi-axis CNC flame/plasma cutting machine > Efficient pipe cutting, pipe end beveling, intersection line profiling of main and branch pipes with automatic measurement. > Five-axis/multi-axis cutters can create more complex contours with a variety of bevel types >Standard machines are suitable for pipes up to 24''

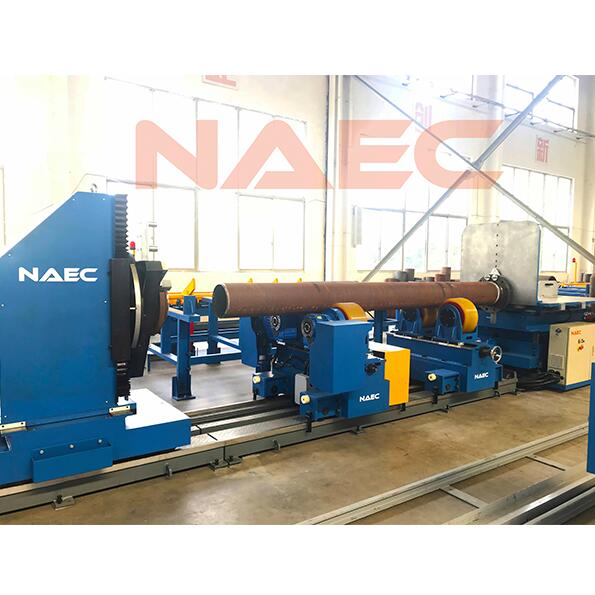

5		Multifunctional refill station >Suitable for the assembly of flanges, elbows, tees, reducers and special T-joints. > Light (manual) and heavy (electric) options are available. >Different types available, 8", 24", 32", 48", 60"

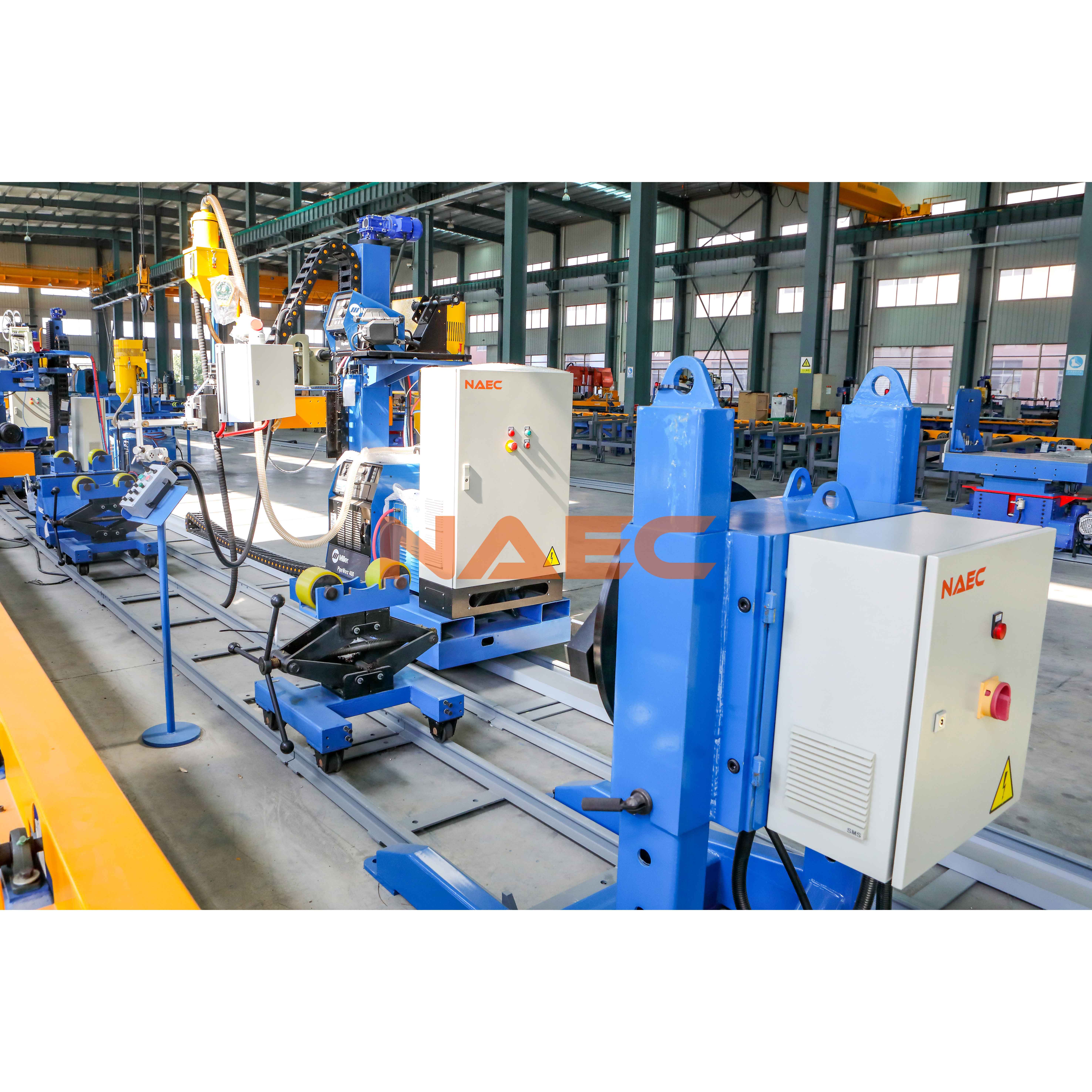

6		Automatic welding station >With two welding heads >TIG/MIG/SAW optional >PLC system control and WPS programming >Max. Even with TIG/MIG technology, the efficiency reaching the welding head can reach 400D.I/8hrs. >Various types available, 8" type, 24" type, 32" type, 48" type, 60" type

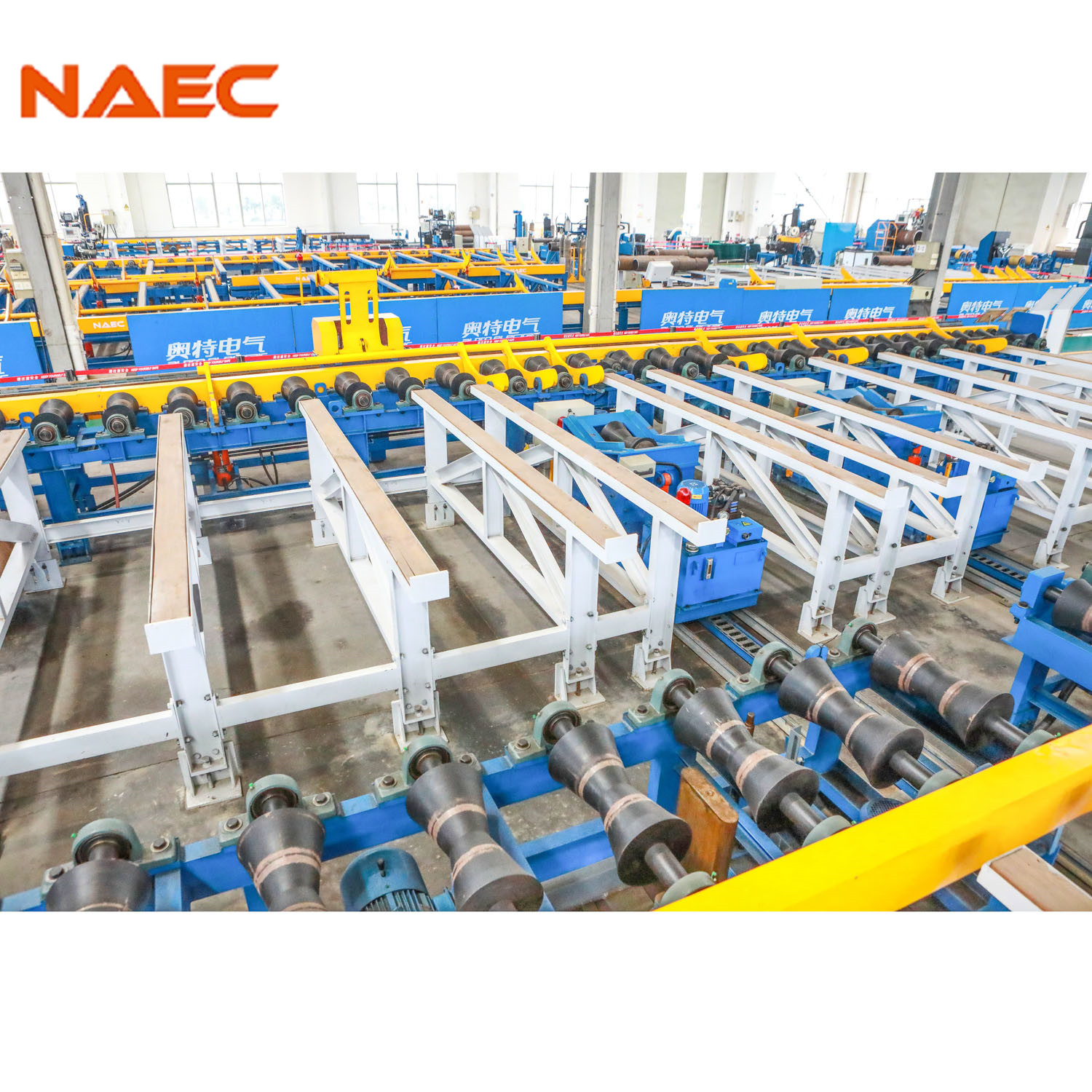

7		Conveyor Handling System > Pipes used in the pipe manufacturing process are convenient for transportation. > Its speed is adjustable between 2M and 20M/min.
