Stainless Steel/ Alloy Steel Pipe Spool Fabrication System2-24"

Supplier: Nanjing Auto Electric Co., Ltd.
Region: Jiangsu, China
Contact: Ms Karen Peng
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Place of Origin:	Jiangsu China;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Condition:	New;
Brand Name:	NAEC;

Product Description

Stainless Steel/ Alloy Steel Pipe Spool Fabrication System2-24"

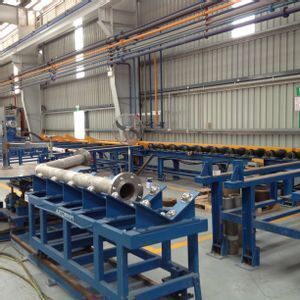

Stainless Steel /Alloy Steel Pipe Spool Fabrication System 2-24" is designed for pipe spool/piping fabrication.

Applicable Industries: Oil & Gas Plants, Oil Refinery &Petrochemical Facilities, Onshore & Offshore Facilities, Nuclear Power Plants, Shipbuilding, Power Plants, etc.

Highlights:

l realize 80% automated fabrication rate

l matched with pipe spool lean fabrication software management system realize 0.25manhour/DI productivity

l reduce client's fabrication cost

l guarantee client's fabrication quality

l improve client's competitiveness

Technical Description

Production Line Type:	Fixed in workshop
Suit for Pipe Diameter:	2 to 24inch
Suit for Pipe Material:	SS/ALS
Suit for Pipe Wall Thickness:	2-SCH60
Suit for Pipe Length:	12M
Cutting & Beveling Speed:	No more than 5 mins to finish 2 bevels
Cutting Precision:	1mm
Cutting Self Measuring Function	Included
Conveying Speed:	2-20 m/min
Fitting-up Mode:	Motorized fitting up
Welding Type:	Automatic root pass, fill and cap pass
Welding Process:	TIG/MIG/SAW are available in one station
Management software:	Pipe Spool Lean Fabrication Software Management System
Average Productivity:	0.25manhour/DI

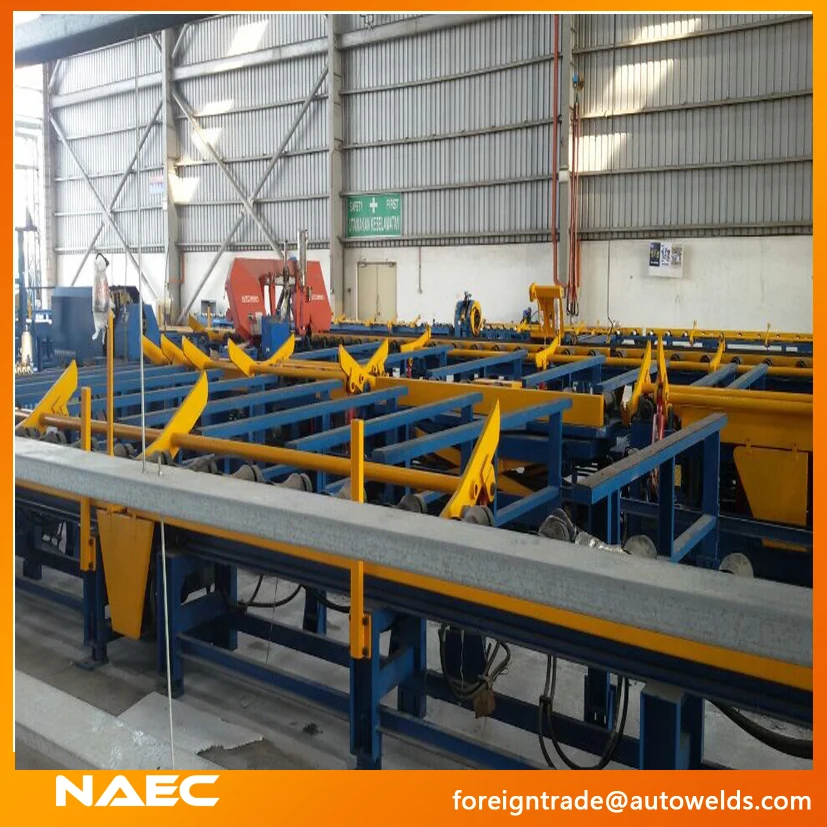

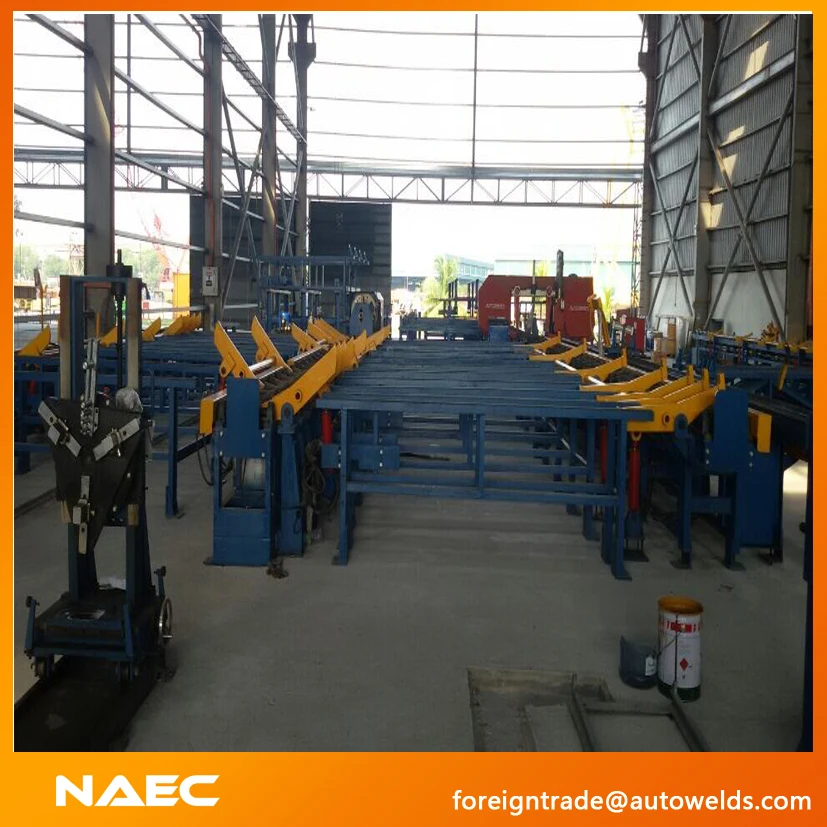

System Configuration:

Fabrication Procedure	Machines/stations
Cutting:	Band saw cutting machine
Beveling:	Pipe end beveling machine
Conveying:	Conveying system
Pipe/fittings storage:	Pipes rack/ fittings rack
Pipe hoist:	Jib crane/ overhead crane
Fitting-up	Multi-function fitting up station

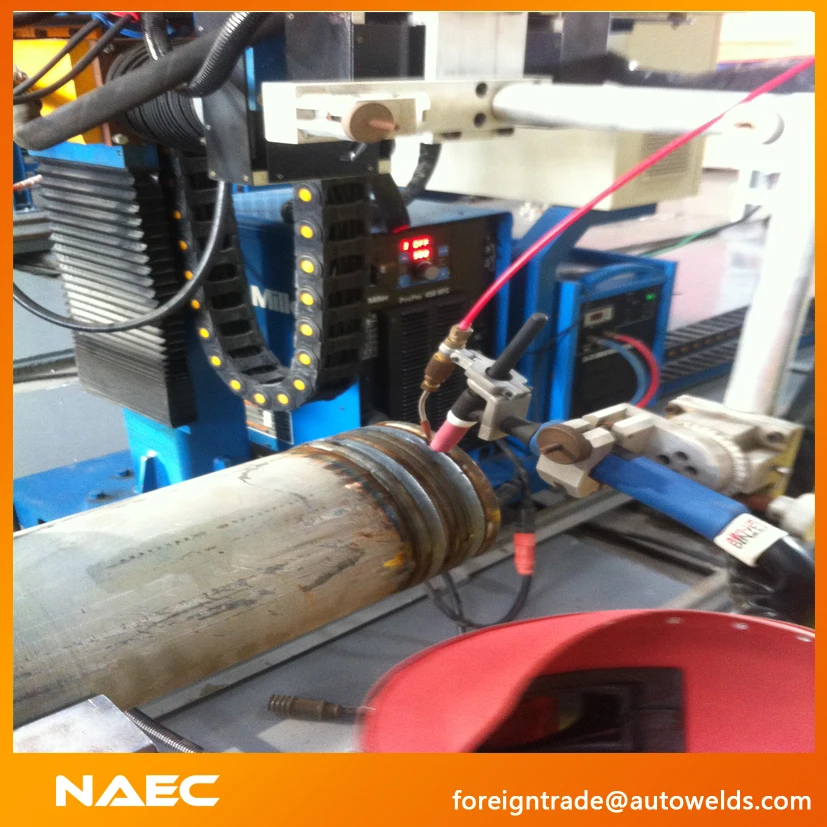

Welding	Automatic pipe welding station

Q&A:

Q:Can this system process compound V bevel?

A: Yes, it can process single V, compound V and U type bevel.

Q: How to control the misalignment?

A: Several steps can control the misalignment and get good welding quality.

1.Precise cutting & beveling prepare better welding condition.

2.Control misalignment during fitting-up.

3. Our automatic welding station can allow 0-3mm misalignment and get good welding quality.

Q: What's the root pass method?

A: Usually we recommend automatic TIG.

Q:What's the welding power brand?

A: It's USA MILLER.

Q: How to control welding quality?

A: Except to control every step processing quality before welding, we have programmed 40 sets WPS in our welding station for operate choose suitable WPS.

Q:How to deal with heavy thick wall pipes?

A: We have heavy duty type pipe welding station which can weld heavy thick wall pipes, such as power plant pipe spools.

Welcome to visit NAEC in Nanjing, China.
