copper wire bv/bvr 1.5mm 2.5mm 4mm 6mm 10mm house wiring cable pvc wire
-
Supplier: Liaocheng Development Zone Jinlaihui Metal Material Factory -
Region: Shandong, China -
Contact: Ms Jessica Li -
Price: $1.29 / 100 - 999 meters
$0.09 / >=1000 meters -
Min. Order: 100 meters
Product details
| Insulation Materials: | PVC | Number of conductors: | 3 |
| Jacket Material: | polyvinyl chloride, polyvinyl chloride | type: | insulation |
| application: | Motor, control board, main board | color: | black, red, yellow, blue or customized |
| payment terms: | letter of credit, wire transfer | jacket: | PVC |
| Conductor material: | copper | implement: | Copper/Copper Clad Aluminum |
| Certification: | CCC/CE/ROHS | Voltage: | o.6/1kv 300/300v 300/500v 450/750v |
| Packaging Details: | Waterproof paper+plastic film+iron packing+bundling, or according to customer requirements. | Supply capacity: | 5000 metric tons of standard size inventory per month |
| standard: | BS6346 IEC60502 | place of origin; place of origin: | Shandong China |
| Packaging Preview: | port: | Qingdao |
Specification
product name | RVV, copper PVC insulated PVC sheathed flexible cable |
Executive standard | GB/T5023.5-2008; GB 5023-1997; IEC 60227-1997; |
conductor | Most of them are oxygen-free pure copper; a few tinned copper wires |
insulation | PVC |
sheath | PVC/WDZ/NH/ZR |
color | black/white/custom |
Specification | 0.5 square - 6 square (2 cores - 24 cores) |
number of cores | Multi-core; more than two cores twisted into cables (including ordinary, flame-retardant, low-smoke, halogen-free, refractory, cross-linked) |
Rated voltage | 400/750V, 300/500V, 300/300V |
Burn test | Passed GB/T18380 flame retardant test |
Rated temperature | 70°C |
Environmental testing | Compliant with EU RoHS environmental protection directive, and passed SGS test |
packing rice | Generally 200 or 300 meters/roll |
feature | 1. Acid and alkali resistance, oil resistance, moisture resistance, mildew resistance, environmental protection, etc. Features; 2. Uniform insulation thickness, easy to peel and cut; 3. Good flame retardancy and cold resistance; 4. Excellent insulation mechanical properties, bright colors and easy installation; |
application | 1. It is suitable for power devices, fixed wiring and flexible connection appliances with a rated voltage of 450/750V and below; 2. Household electrical wires; Power cords; 3. Building intercom system and special power cord for monitoring; 4. Machine tool manufacturing, instrumentation, household appliances, lighting equipment, power stations, ETC. ; |

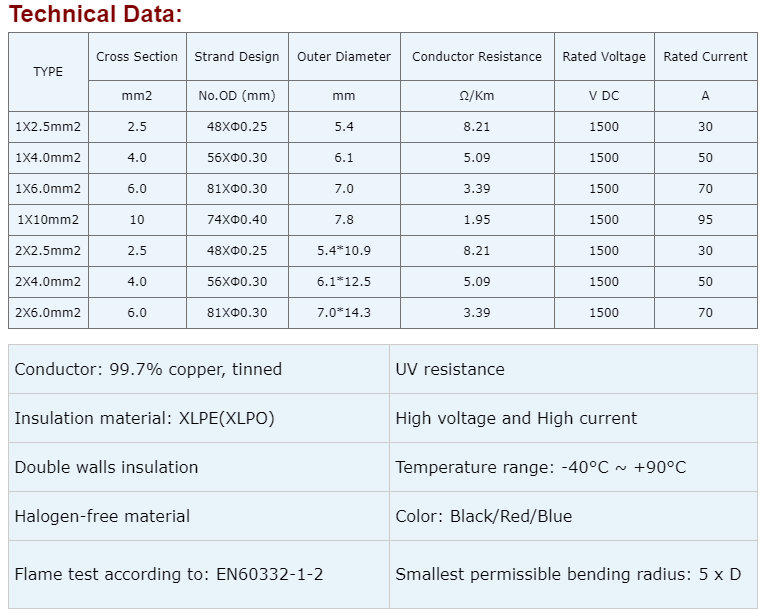

Technical data
