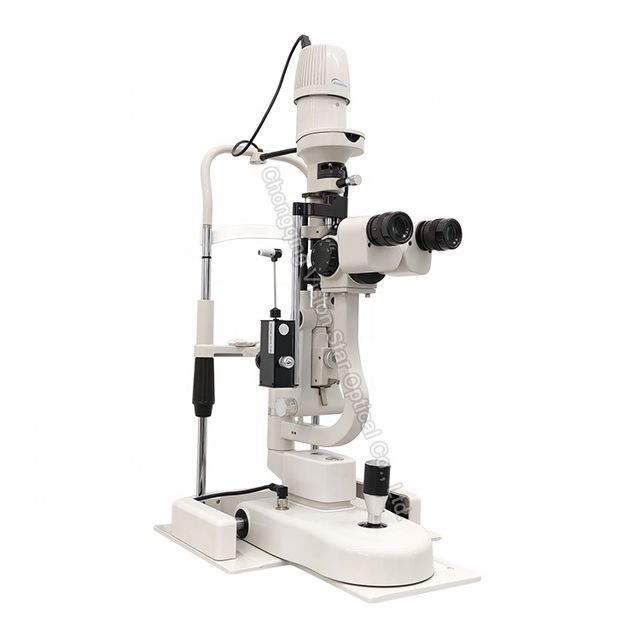

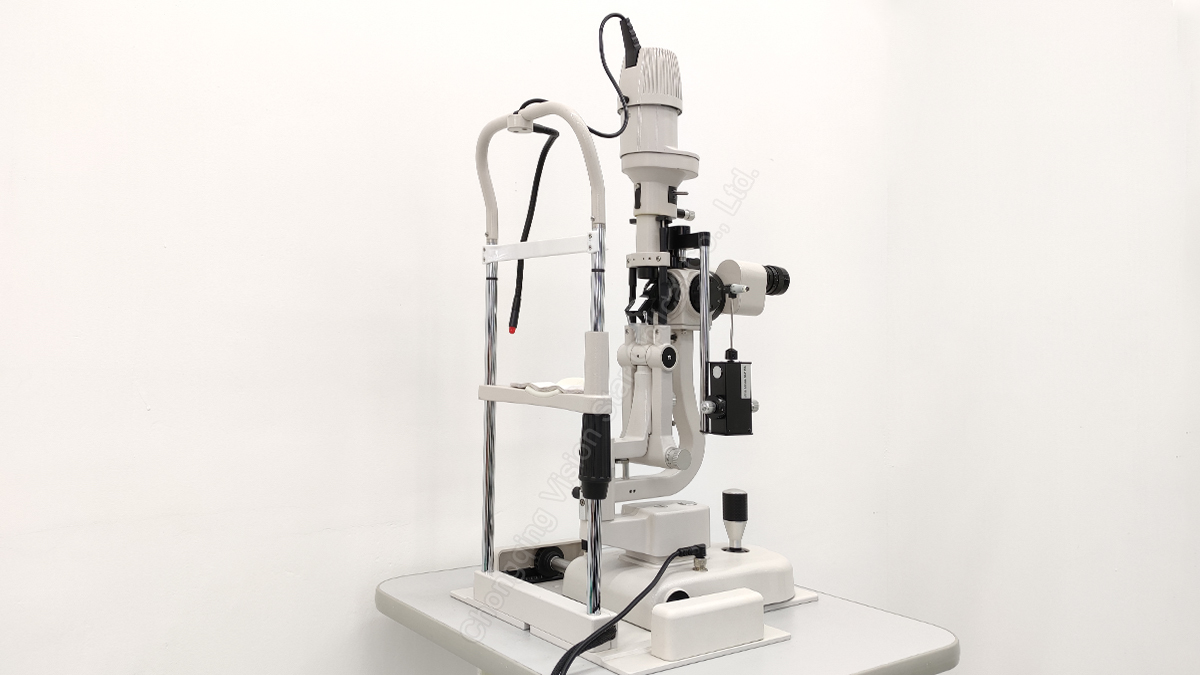

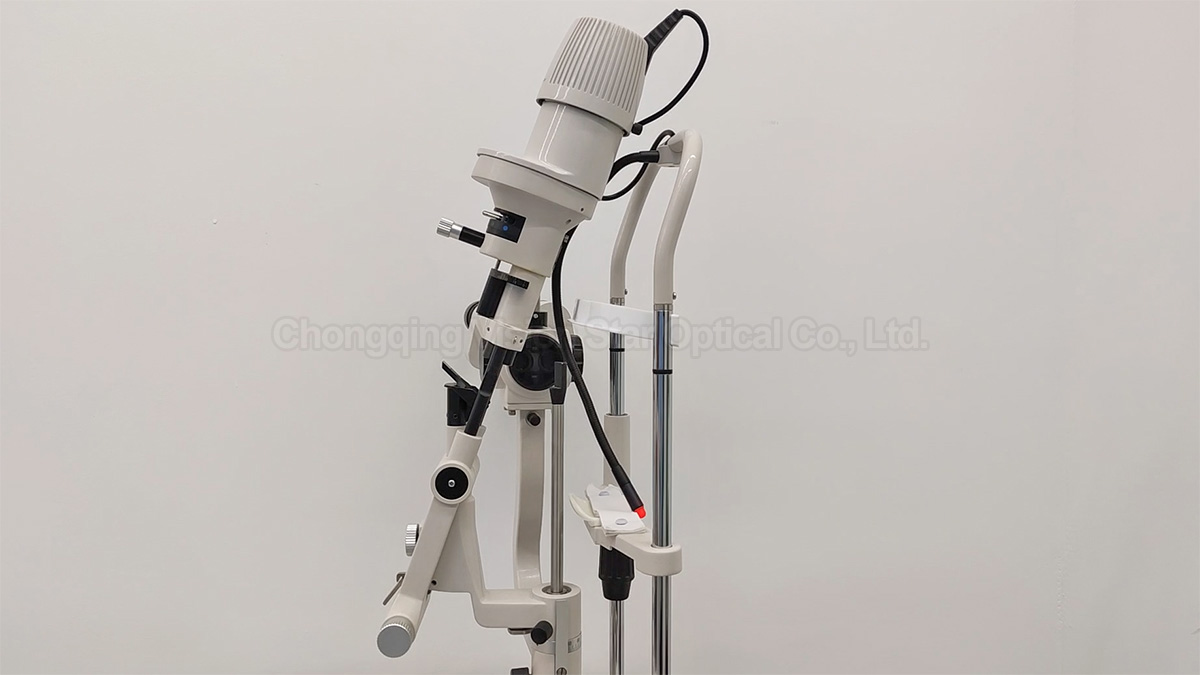

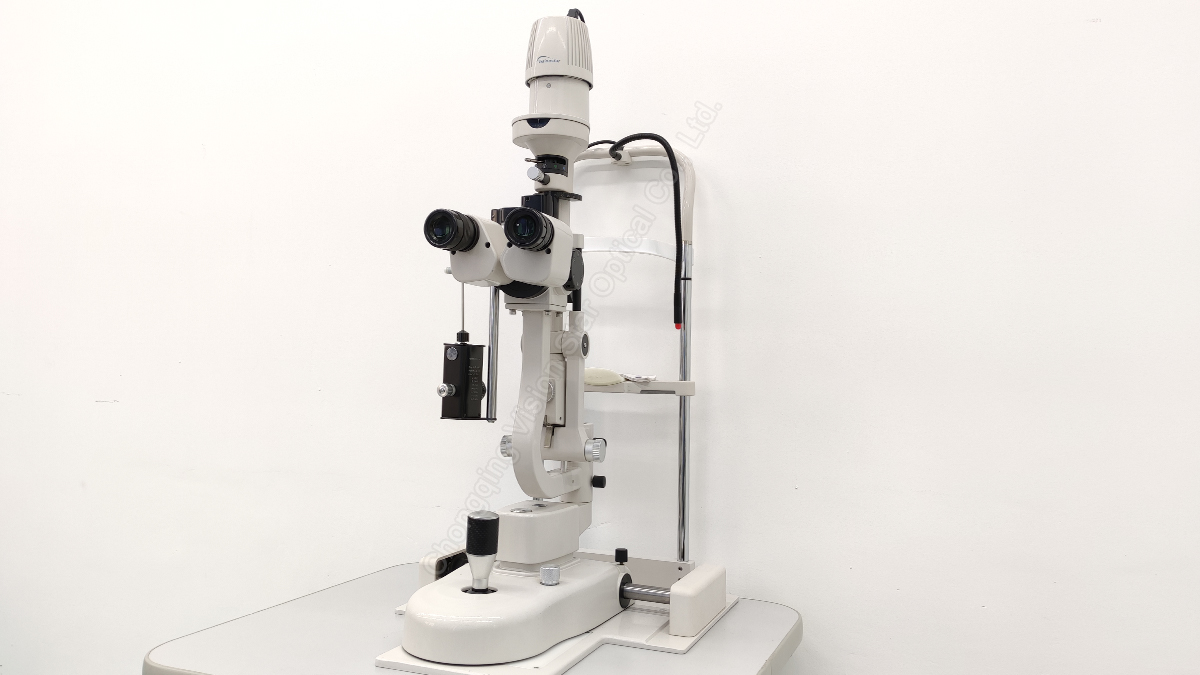

S5 Quintuple LED Slit Lamp

Click here to contact

Product details

place of origin; place of origin:	Chongqing, China	Maximum Lighting Intensity:	60000 lux
brand:	VSO	Lighting Type:	top lighting
Multiplier:	drum	Microscope Type:	Parallel type, Galileo system
port:	Shenzhen, Shanghai, etc.	Lighting source:	Imported LED lights
Model:	S5 Slit Lamp	Supply capacity:	S5 slit lamp microscope 1000 units per month
type:	Ophthalmic Optical Equipment	payment terms:	Western Union, T/T, MoneyGram, Alibaba Trade Assurance
Warranty:	1 year	eyepiece:	12.5X
Custom Support:	OEM, ODM	model:	S5 Slit Lamp
Diopter adjustment:	-7D~+7D	enlarge:	6X 10X 16X 25X 40X
Packaging Details:	S5 Slit Lamp Microscope Standard Export Package

S5 Ophthalmic Class 5 Magnifying Slit Lamp

feature:

1. Superior optical quality ensures a comfortable field of view.

2. Parallel. Galileo system.

3. LED lighting, long service life.

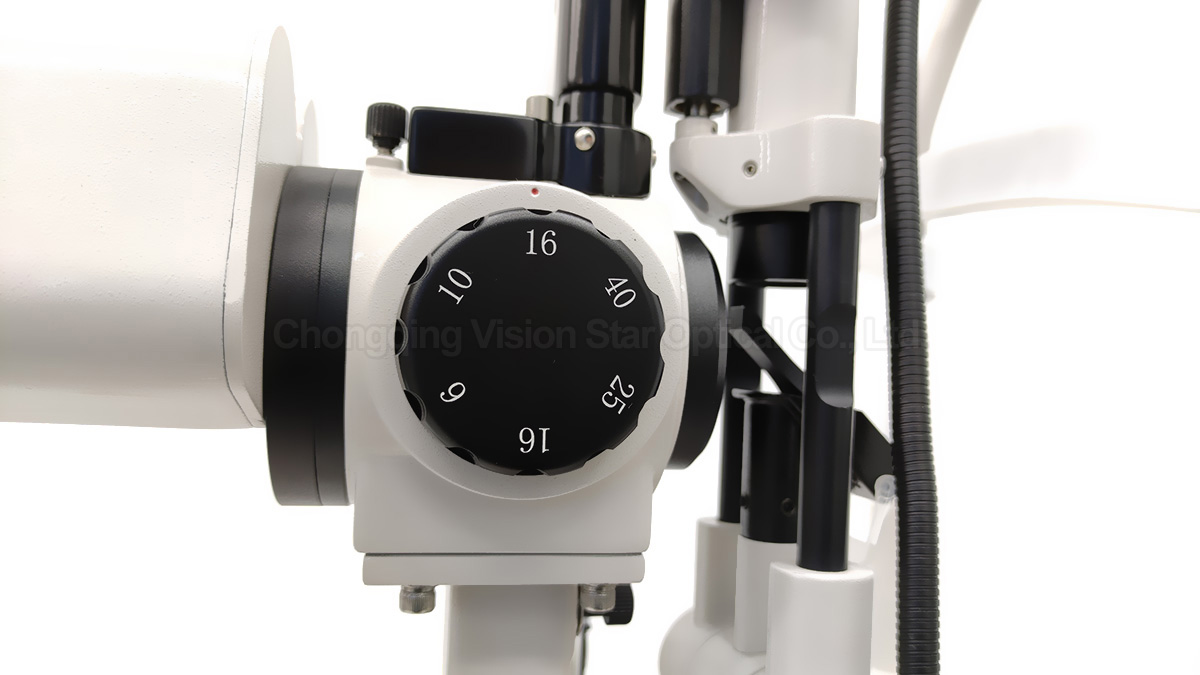

4. 5-level magnification.

5. Top-illuminated slit lamp with wide beam, wide field of view and high depth of field.

6. Reserve laser and applanation tonometer interfaces.


light up	5 times

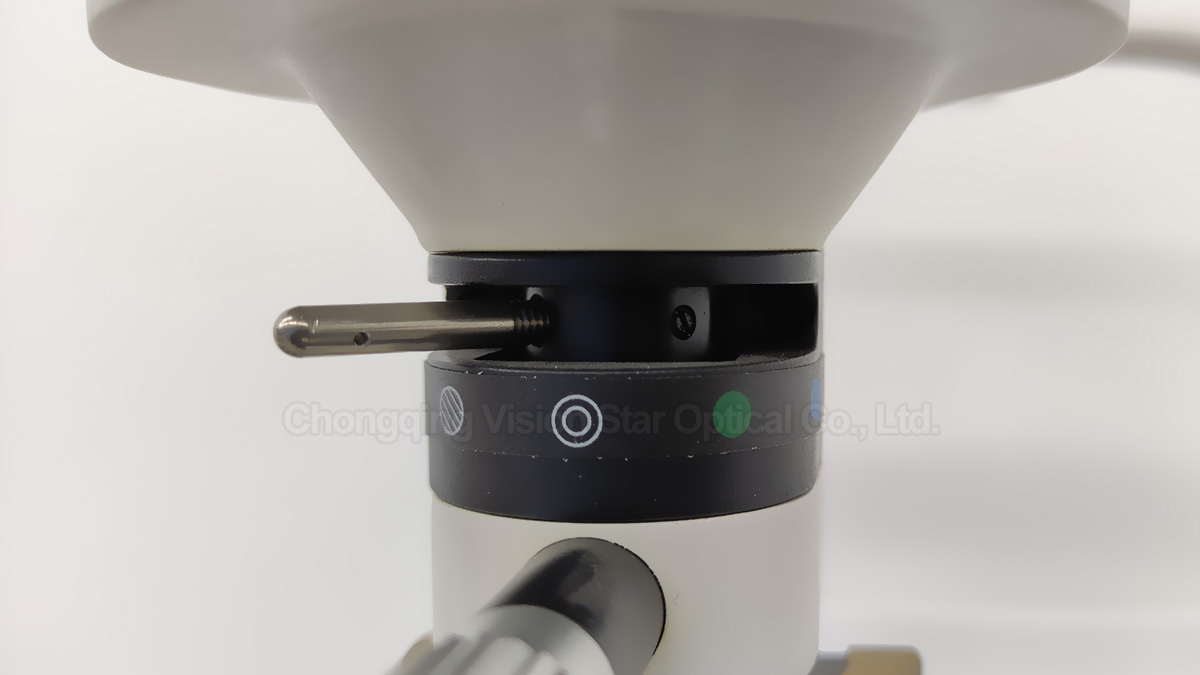

4 filters	Maximum slit width 14mm

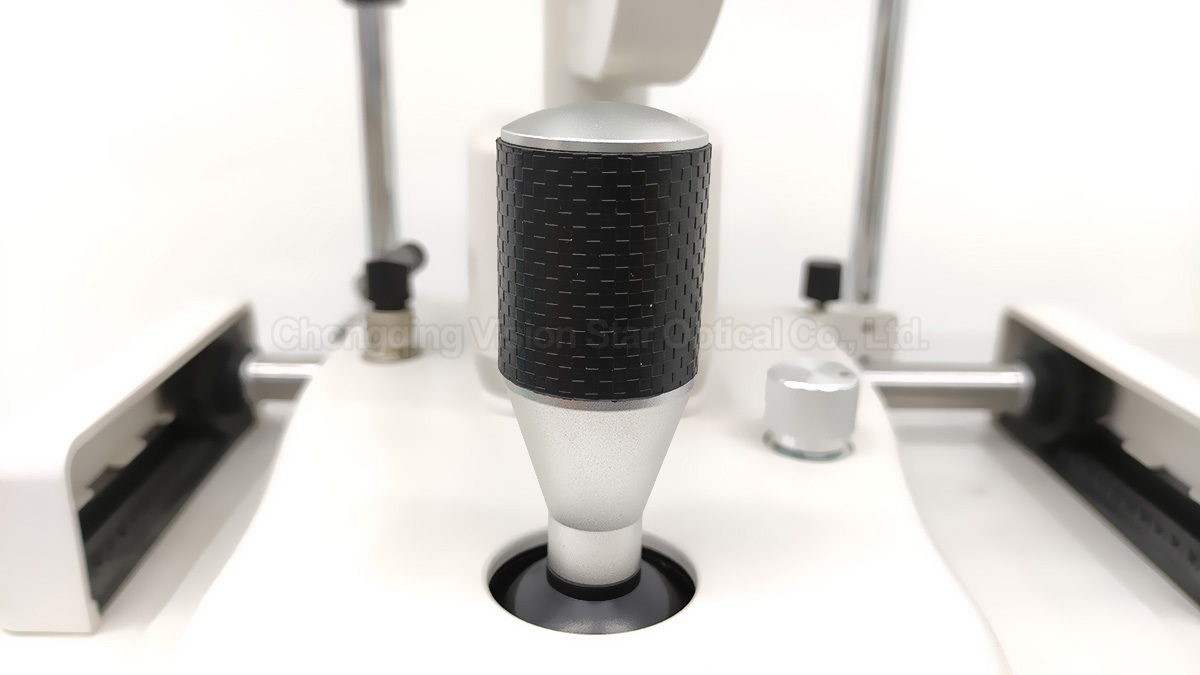

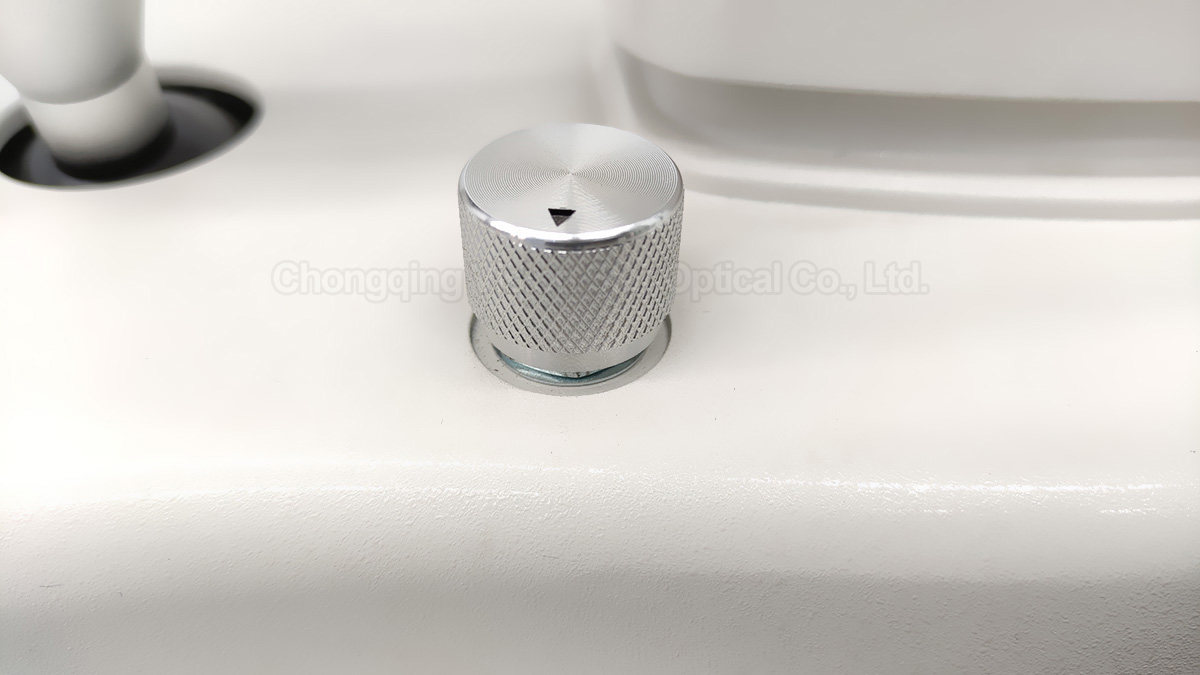

Stepless light brightness adjustment	smooth joystick

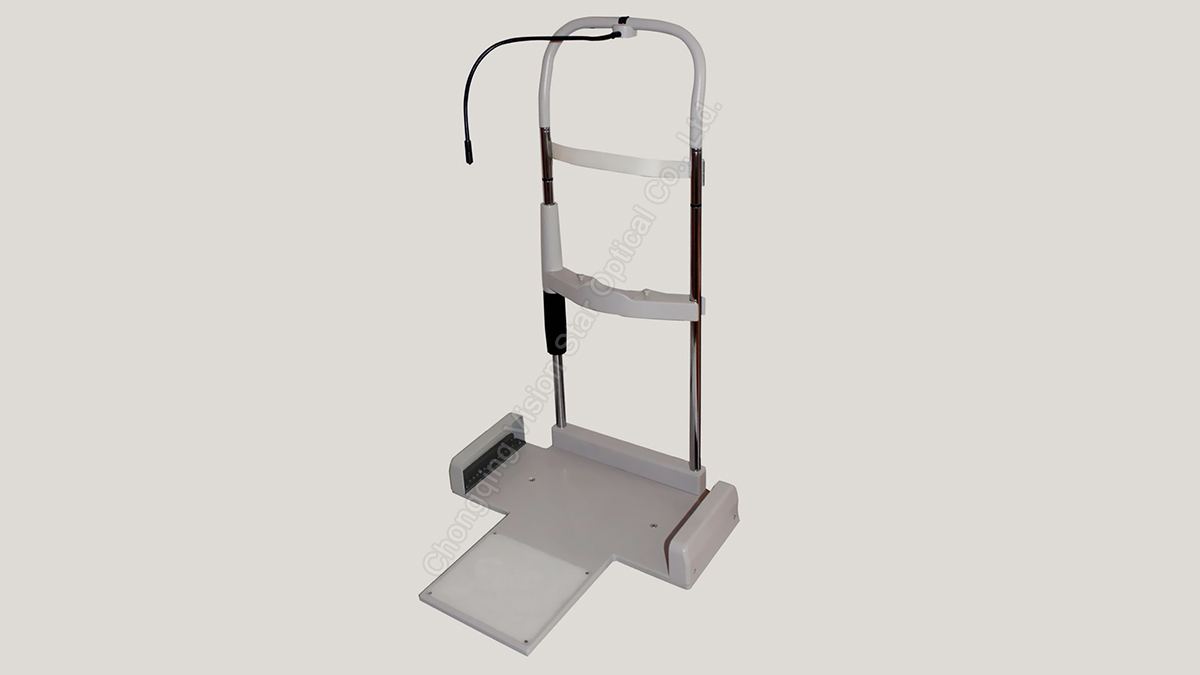

Metal base plate for easy installation and movement	Adjustable lighting angle

Tonometer and Laser Interface	Advanced Optical System

Specification:

Model	S5
lighting type	top lighting

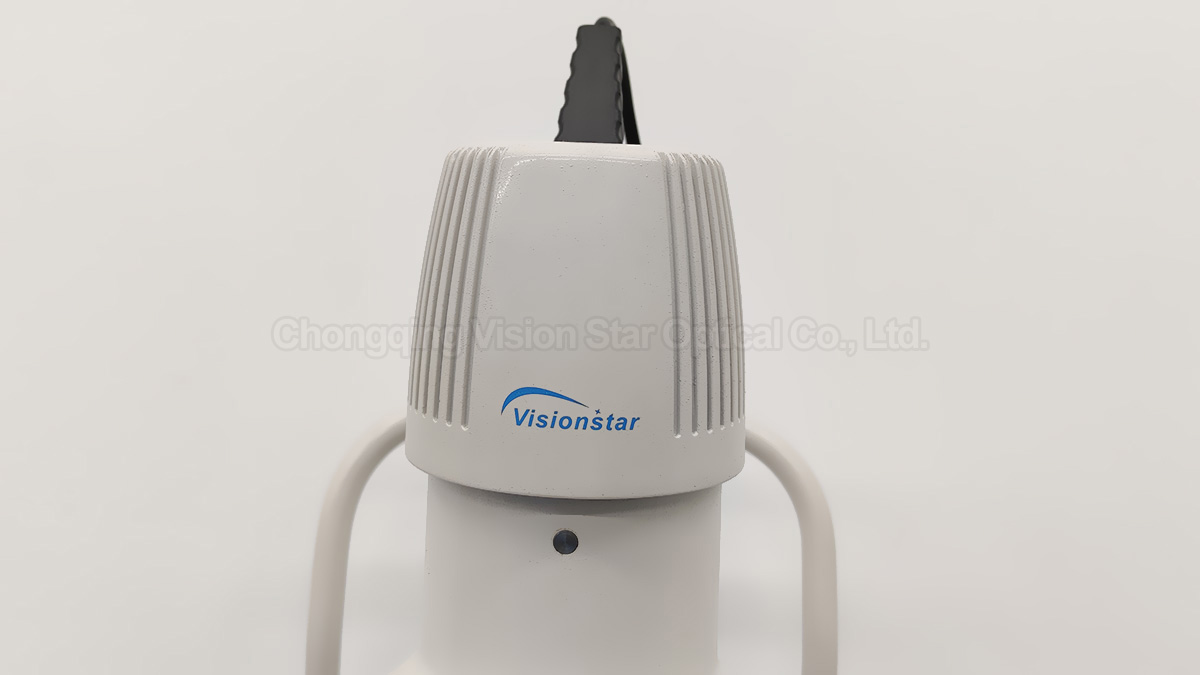

light source	Imported LED lights
maximum lighting intensity	60000 lux
Microscope Type	Parallel type, Galileo system

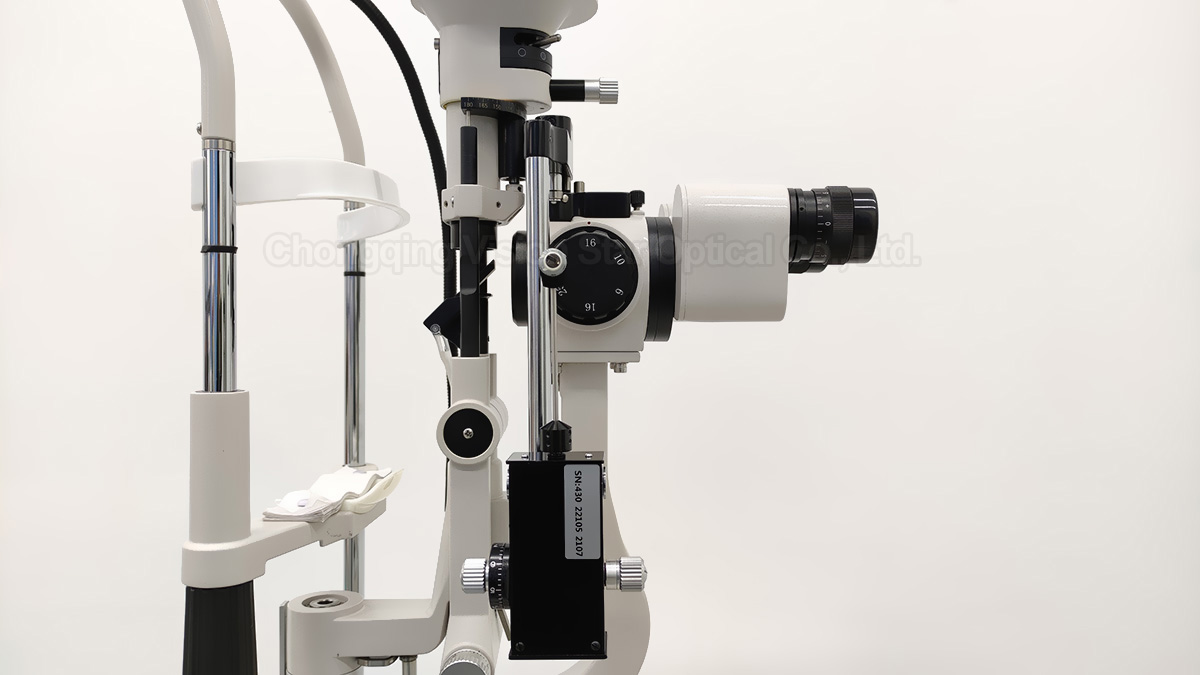

magnification converter	drum

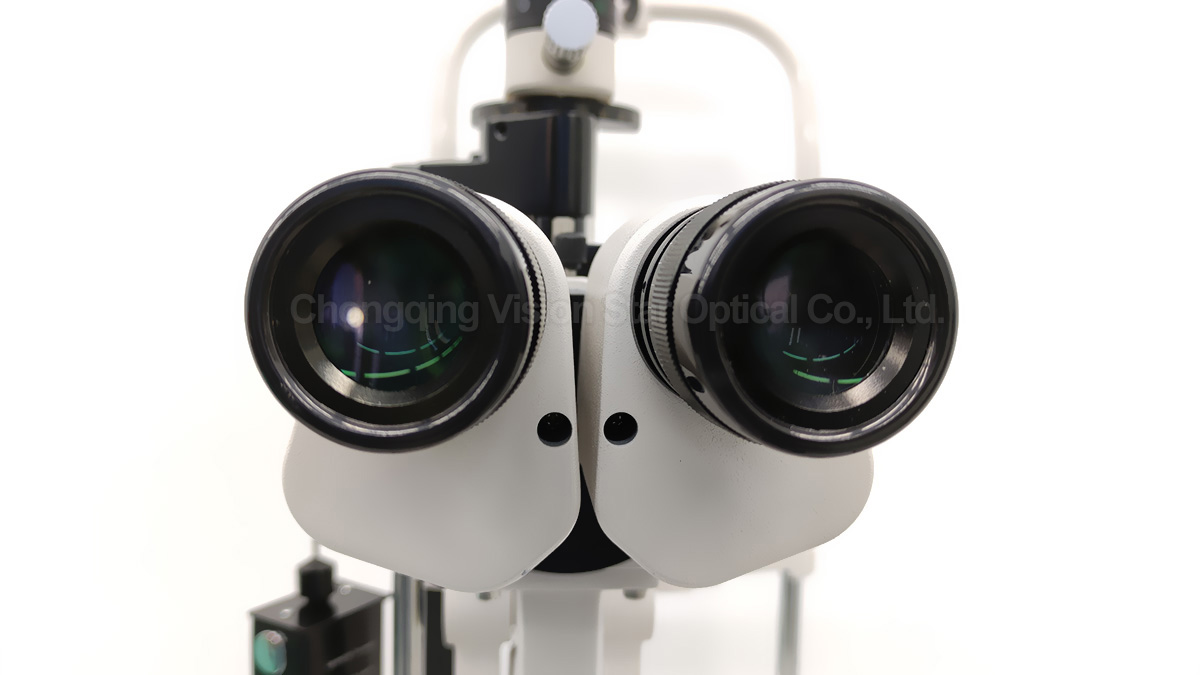

eyepiece	12.5X
enlarge	6X 10X 16X 25X 40X
Field of view diameter	6X:33mm10x:22mm 16X:14mm 25X:8.5mm 40X:5.5mm
Diopter adjustment	-7D~+7D
pupil range	52mm~82mm
brightness	Continuously adjustable
slit image width	0mm~14mm continuous
slit image length	1mm~14mm continuous
slit image angle	0~180 continuous rotation
lighting tilt	5 10 15 20

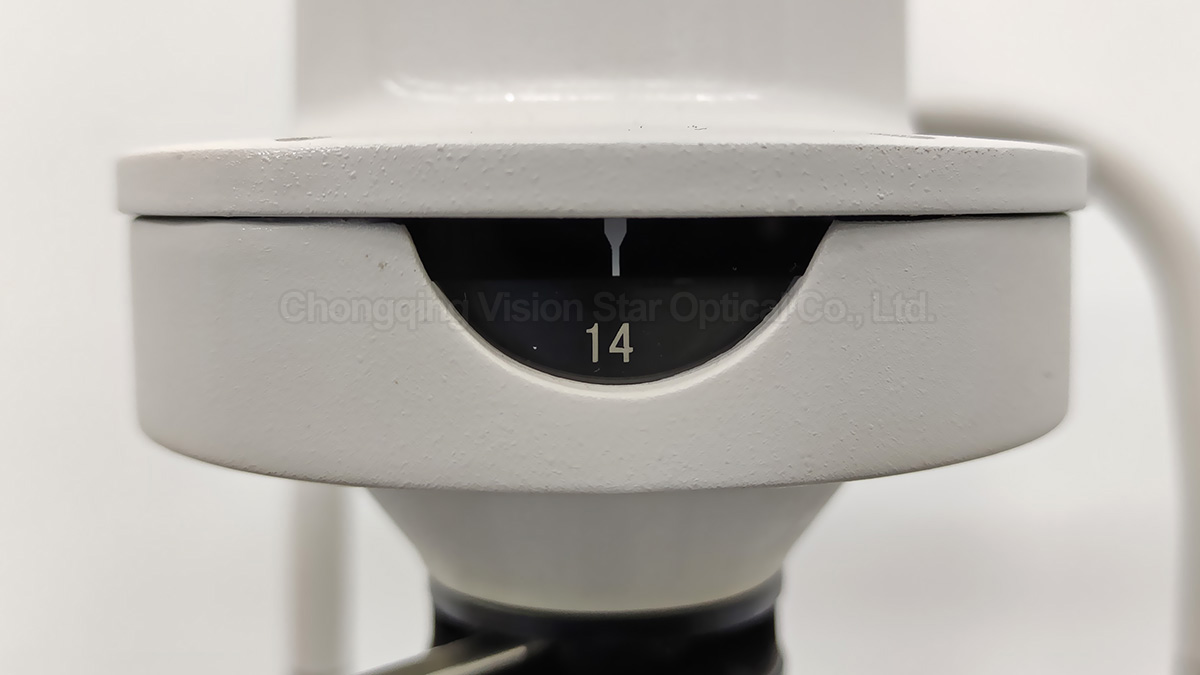

Slit aperture size	14 10 5 3 1 0.2 (mm) & 1~14mm continuous
filter	Endothermic, Grey, Redfree(Green), Cobalt Blue
fixed	Red LED 3.5V
Image grabber	not any
background lighting	not any
Input voltage	70VA
input power	100V~240V 48~62HZ
Outer packaging	carton
aspect	740"650"450mm
g/weight	23kg
