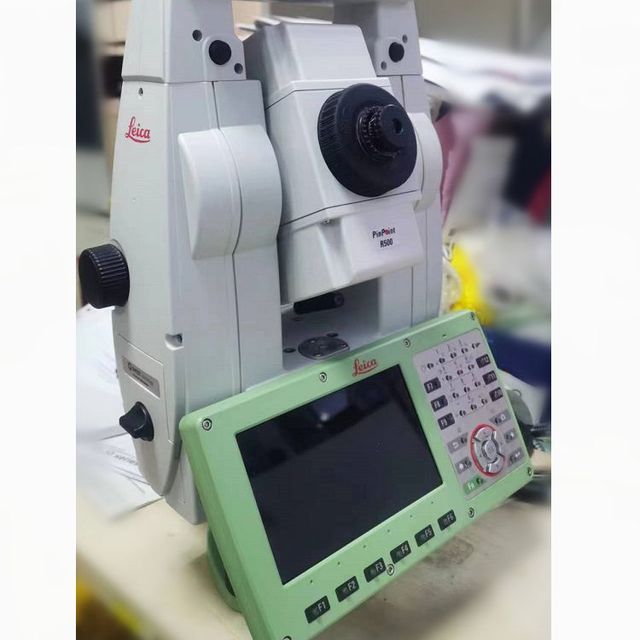

Second hand 1 second precision robot total station TS16P R500 total station price

Supplier: Chongqing Qianlixing Instrument Co., Ltd.
Region: Chongqing, China
Contact: Ms Sophia LI
Price: $13000.00 / 1 - 2 sets
$12600.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

image:	upright	Storage:	50,000 points
brand:	Reka	High-speed ranging:	0.15 seconds
Packaging details:	1 piece in 1 box	Angle accuracy:	1''
Measurement mode:	robot	Operating temperature:	-20℃~50℃
Place of origin:	Switzerland	No reflector:	500m
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	port:	Shenzhen
Warranty:	3 months, 6 months	Supply capacity:	3 items per month
model:	TS16P,TS16P	Customization support:	OEM, ODM
exhibit:	Dual LCD display	Package preview:

Product Description

Viva TS16 total station
angle measurement
Accuracy 1 Hz and V	Absolute, continuous, diameter	1 inch (0.3 mg), 2 inch (0.6 mg), 3 inch (1 mg), 5 inches (1.5 mg)
distance measurement
Range 2	Prism (GPR1, GPH1P) 3 No prism/any surface 4	1.5m to 3500m R500: 1.5m to >500m, R1000: 1.5m to >1000m
Accuracy/measurement time	Single (prism) 2,5 Single sided (any surface) 2, 4, 5, 6	1mm + 1.5ppm / usually 2.4s 2mm + 2ppm / usually 3s
Laser spot size	50m away	8mm x 20mm
Measurement technology	system analyzer	Coaxial visible red laser
Videography
panoramic camera	sensor Field of view frame rate	5-megapixel CMOS sensor 19.4° Up to 20 frames per second
Auto Aim - ATRplus
Target aiming range 2 / Target locking range 2	Circular prism (GPR1, GPH1P) 360° prism (GRZ4, GRZ122)	1500m/1000m 1000m/1000m
Accuracy1,2 / measuring time	ATRplus angle accuracy Hz, V	1 inch (0.3 mg), 2 inch (0.6 mg), 3 inch (1 mg), 5 inches (1.5 mg)/usually 3-4 seconds
Power search
range/search time	360° prism (GRZ4, GRZ122)	300m/usually 5s
Guidance Light (EGL)
Working range/accuracy		5–150m / usually 5cm @ 100m
General
field software	Leica is obsessed with apps
Display and keyboard	5" (inch), WVGA, Color, Touch, Face I Standard/Face II Optional	37 keys, lighting
processor	TI OMAP4430 1GHz dual-core ARM® Cortex™ A9 MPCore™	Operating System – Windows EC7
energy management	Replaceable lithium-ion battery	Working hours 5–8 hours
data storage	internal memory memory card	2GB SD card 1 GB or 8 GB
interface	RS232, USB, Bluetooth®, WLAN
weight	Total station with battery	5.3 - 6kg
Environmental indicators	range of working temperature Dust/Water (IEC 60529)/Humidity	–20°C to +50°C IP55/95%, non-condensing

Viva	TS16M	TS16A	TS16P	TS16I	TS16G
angle measurement	√	√	√	√	√
prism ranging	√	√	√	√	√
prismless distance measurement	√	√	√	√	√
Automatic lighting ATR Plus	×	√	√	√	√
Super search PS	×	×	√	√	×
wide angle camera	×	×	×	√	×
guiding light	√	√	√	√	×
