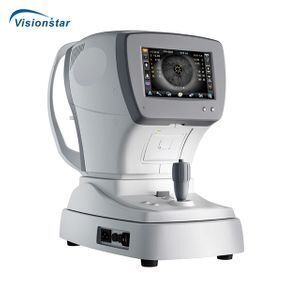

FA-6500K Auto Refractometer with Keratometer

Click here to contact

Product details

Packaging Detail:	Standard Exporting Carton with Protecting Foam for Auto Refractometer;	Power supply:	100-240V 50/60HZ;
Port:	Shanghai, Shenzhen Etc.;	Payment Terms:	T/T,Western Union,Trade Assurance;
Brand Name:	VSO;	Memory of data:	10 measure value for each right and left eye;
Product Name:	Auto Refractometer;	Model Number:	FA-6500K Auto Refractometer;
Corneal diameter:	2.0 -14mm (increment:0.1mm);	Cylinder:	-8 - +8D 0.125D step;
Type:	Auto Refractometer;	Spherical:	-20 - +20D (VD=12) 0.125D Step;
Chart:	Follow-up Colorful Fogging Chart System;	Supply Ability:	500 Unit/Units per Month Auto Refractometer;
Place of Origin:	Chongqing China (Mainland);	Display:	7" TFT LCD;
Printer:	Thermal printer;

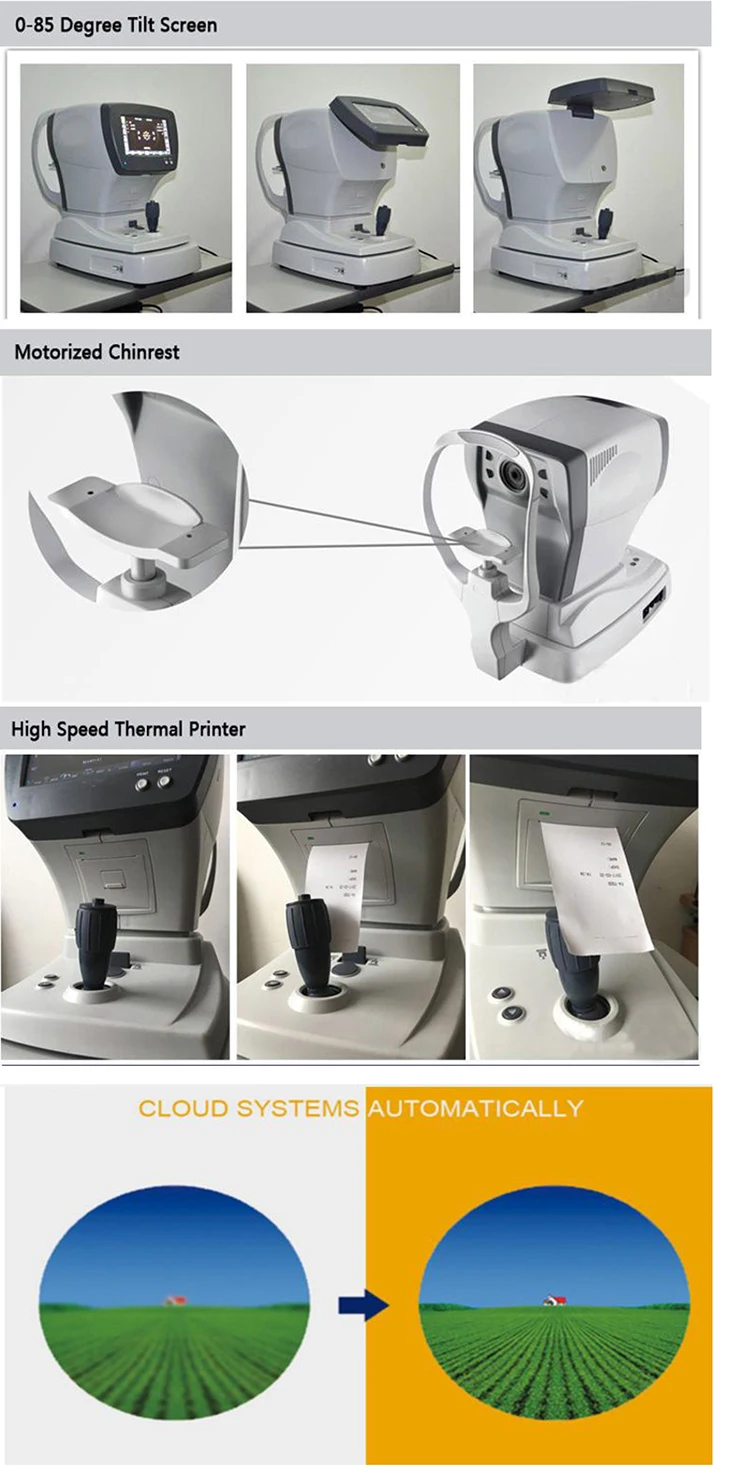

Features:

1. 7'' TFT LCD monitor:

2. Bigger better monitor, icon display,menu for easier operation and setting;

3. Motorized joystick: A Motorized joystick with auto-tracing mode is adopted, so operation is easier;

Technical Specification
Refractometer
Spherical	-20 - +20D (VD=12) 0.125D Step
Cylinder	-8 - +8D 0.125D step
Axis	0-180° 1° step
Pupil distance	45-88mm, 1mm step
VD	0mm,12mm, 13.75mm
Min. pupil size	2.0mm
Keratometry
Radius of curvature	5.0-10mm (increment:0.01mm)
Corneal Power	33.75-67.50D (when corner equivalent refractive index is 1.337)
Corneal Power	Increment selectable from 0.12,0.25D
Corneal astigmatism	0.00-8.00D (Increment selectable from 0.12,0.25D)
Axis	1-180D (increment :1°)
Corneal diameter	2.0 -14mm (increment:0.1mm)
Memory of data	10 measure value for each right and left eye
Others
Chart	Follow-up Colorful Fogging Chart System
Display	7” TFT LCD
Print	Thermal printer
Power supply	100 – 240V 50/60HZ
Dimension	476x268x472mm
Weight	20kg (44lb)
