CNC diamond wire saw for cutting marble and granite

  • Supplier: Laizhou Oriental Machinery Co., Ltd.
  • Region: Shandong, China
  • Contact: Ms Annie Liu
  • Price: $27300.00 / 1 - 4 sets
    $26500.00 / 5 - 9 sets
    $25500.00 / >=10 sets
  • Min. Order: 1 set
Product details
Saw diameter:8-11mmSupply capacity:Annual output of 1000 CNC diamond wire saw machines for cutting marble and granite
port:QingdaoMain selling point:automatic
Video external inspection:ifPackaging Details:Bare package of CNC diamond wire saw machines for cutting marble and granite
Mechanical test report:ifDimensions (L*W*H):9800x7000x5200mm
Productivity:0.5-2Mplace of origin; place of origin:China
Whether the table rotates:360total measurement:9800x7000x5200mm
Packaging Preview:Cutting Thickness (Maximum):2200mm
use:graniteHealth status:new
type:stone cutting machineWarranty:1 year
brand:OMCApplicable industries:Building materials store, construction engineering
Overall length of saw:21350mmCore components:motor
strength:20.09KWLocal service location:not any
payment terms:wire transferCore Components Warranty:1 year
Tool lifting stroke:2200mmMarketing Type:Hot Products of 2019
After-sales service provided:Online support, free spare parts, video technical supportLine speed:0-45m/s
Certification:Ce, GSVoltage:380
Maximum process size:4000x2000x2100mmAfter Warranty Service:Video technical support, online support, spare parts
Production capacity:100%Showroom location:not any
weight:7.5-15T, 15000kgproduct name:CNC diamond wire saw for cutting marble and granite
Recommended Products











CAD imported CNC 5-axis touch screen stone

Kitchen Countertop Bridge Cutting Table Saw

machine price















     OMC 5 Axis Quartz Granite Marble

CNC Milling and Cutting Bridge Saw Machine








Product Description

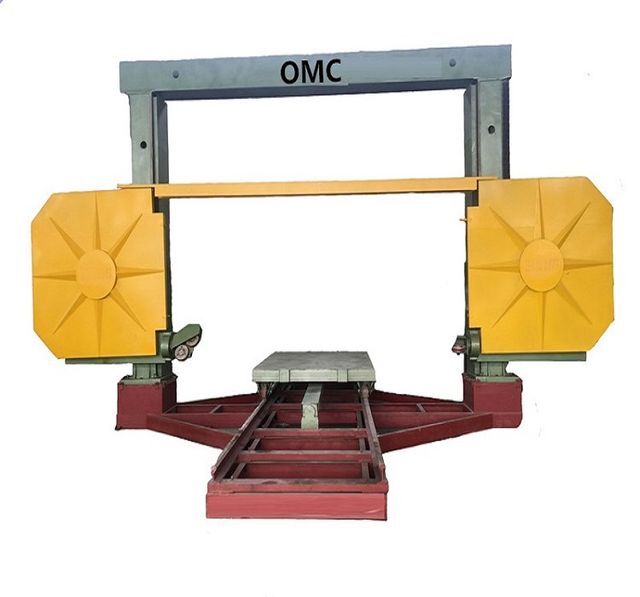

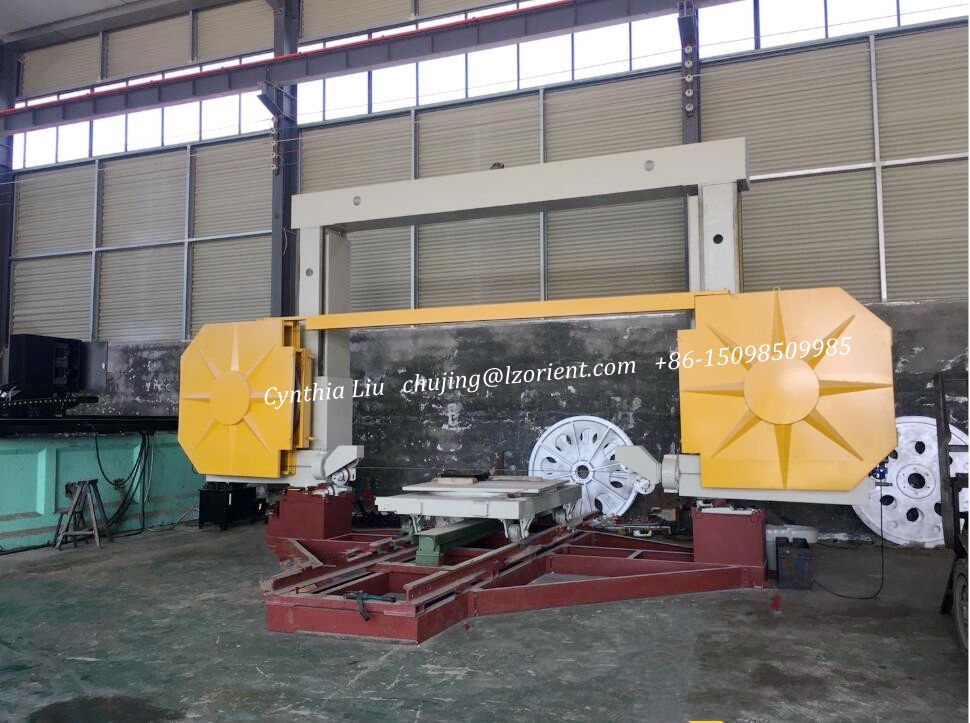

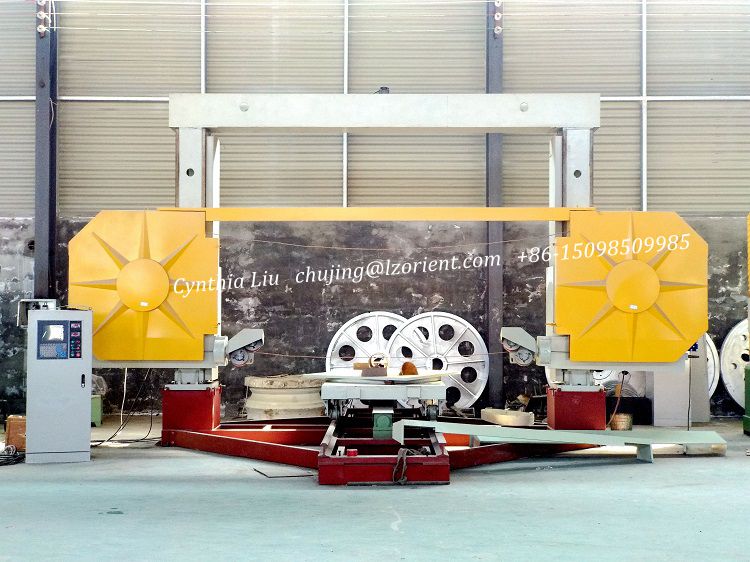

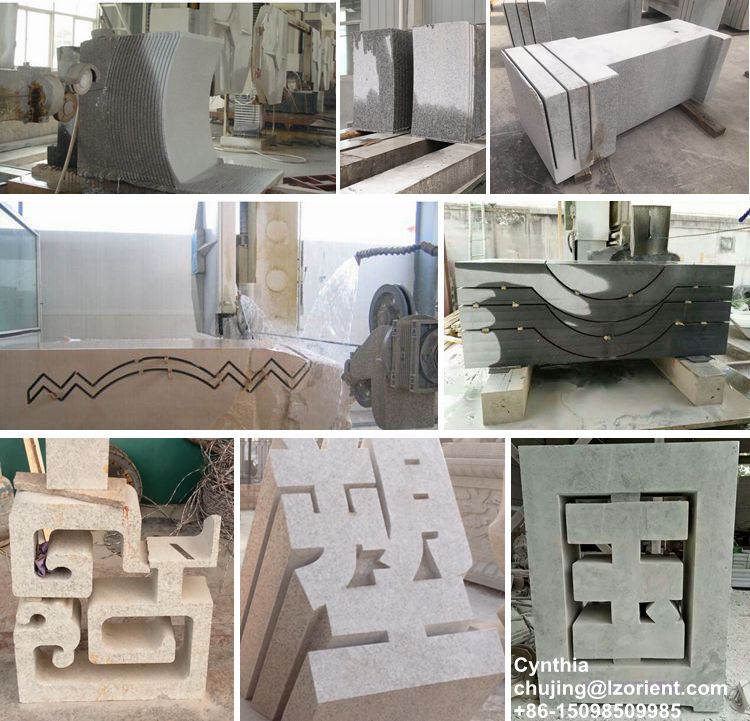

Description: CNC diamond wire saw cutting machine adopts CNC system and four-axis linkage, which can process various complex shapes of stones such as circles, slates, Roman columns, numbers, letters, and Chinese characters. The machine is well received by customers for its good quality and high machining accuracy.



Model SJ1500*3000 SJ1800*3600 SJ2200*4000
total power 12.15KW 7.5KW 15.65 kW
main motor power 7.5kW 7.5KW 11KW
Saw diameter Φ8-Φ11mm Φ8-Φ11mm Φ8-Φ11mm
Diamond wire length 16350mm 19350mm 21350mm
Line speed 0-40m/s 0-40m/s 0-40m/s
Tool vertical stroke 1600mm 1900mm 2200mm
Trolley size 1380x2250mm 1800x2620mm 2800x2000mm
Max process size 3000*2000*1500mm 3600*2000*1800mm 4000*2000*2100mm
Load capacity 20-30 tons 20-30 tons 20-30 tons
Productivity

1-2m²/h (marble)

0.5-1²/h(granite)

1-2m²/h (marble)

0.5-1²/h(granite)

1-2m²/h (marble)

0.5-1²/h(granite)

total measurement 7500*6000*3800mm 8800*6800*4800mm 9800*7000*5200mm
Rail length 6m 6m 6.5m
weight 7.5T 9.5T 15.5T
table rotation Manual 360° rotation Manual 360° rotation Automatic 360° rotation
container 20'GP 40'GP 40'GP

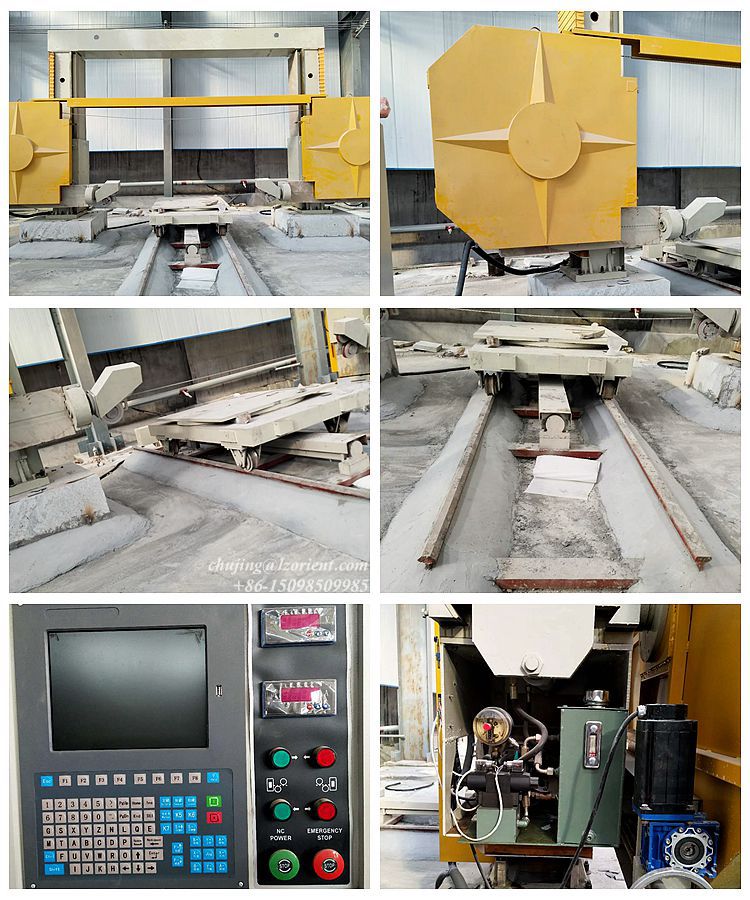

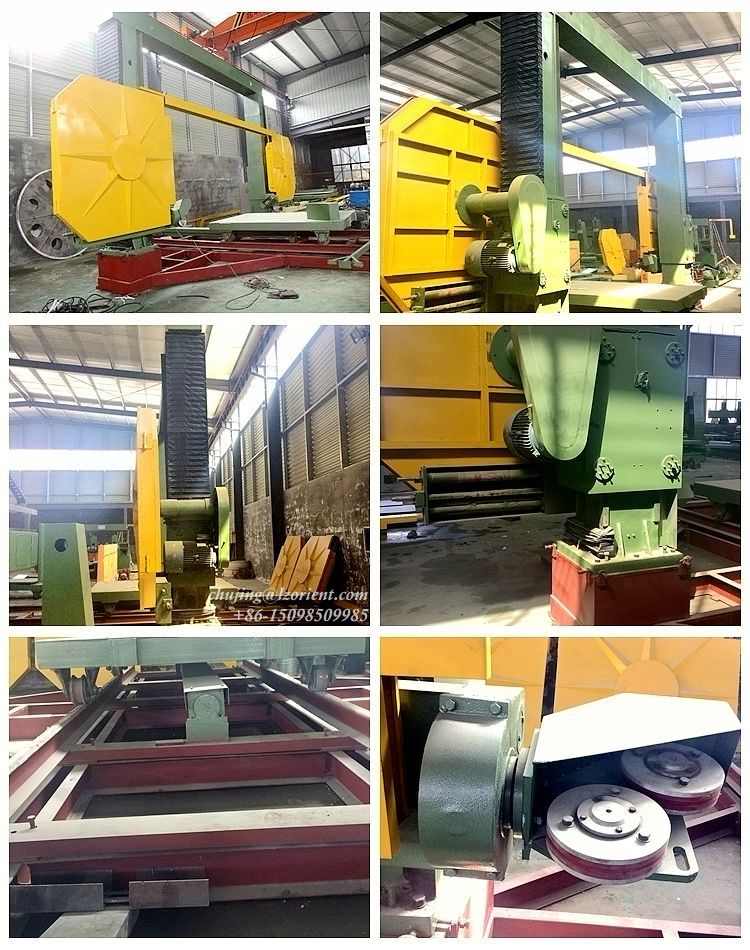

function display

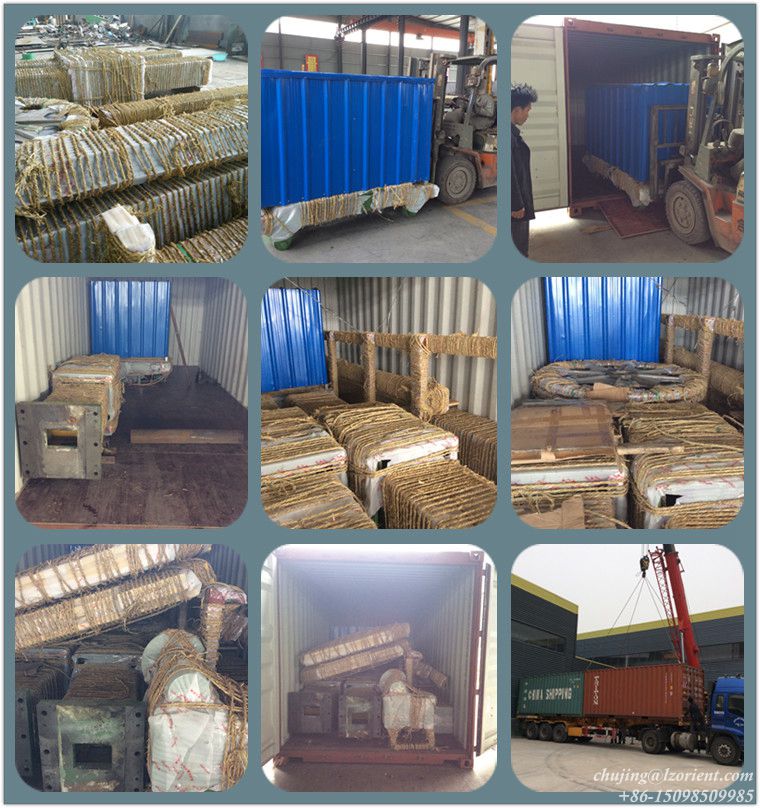

Packaging and Shipping

Outer packaging: bare packaging













1. More than 20 years experience in stone machinery manufacturing

2. Fast and safe delivery

3. Experienced service team

4. Provide OEM and ODM services

5. High reputation in the world

6. First-class quality, reasonable price, best performance
