OMC 5 axis quartz granite marble stone CNC milling cutting bridge saw machine

Supplier: Laizhou Oriental Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Annie Liu
Price: $55400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core Components:	Motor;	Z axis working stroke:	460mm;
Payment Terms:	T/T;	Type:	Stone Cutting Machine;
B axis working stroke:	0-90 degree chamfer automatically;	Certification:	GS,CE;
Production Capacity:	100%;	After-sales Service Provided:	Online support,Free spare parts,Video technical support;
Dimension(LWH):	630749253414mm;	Control method:	CNC;
A axis working stroke:	360 degree free rotation;	Port:	Qingdao;
Programming method:	Manual or CAD image input;	Brand Name:	OMC;
Package Preview:	;	Weight:	6500kg;
Showroom Location:	None;	X axis working stroke:	3500mm;
After Warranty Service:	Video technical support,Online support,Spare parts;	Warranty:	1 Year;
Marketing Type:	New Product 2020;	Condition:	New;
R.P.M:	6000;	Key Selling Points:	Easy to Operate;
Applicable Industries:	Building Material Shops,Construction works ;	Cutting thickness (max):	100mm;
Maximum cutting thickness:	140mm;	Warranty of core components:	1 Year;
Blade diameter:	350-500mm;	Use:	Granite;
Machinery Test Report:	Provided;	Voltage:	380V;
Local Service Location:	None;	Place of Origin:	China;
Power:	11kw;	Y axis working stroke:	2000mm;
Packaging Detail:	Naked packing for OMC 5 axis quartz granite marble stone CNC milling cutting bridge saw machine;	Supply Ability:	600 Set/Sets per Year;
Video outgoing-inspection:	Provided;

PRODUCT RECOMMENDED

CAD import CNC 5 Axis touch screen

stone kitchen countertop bridge

cutting table saw machine price

High quality granite bridge saws

5 axis CNC stone cutting machine

Product Description

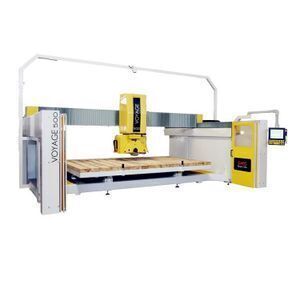

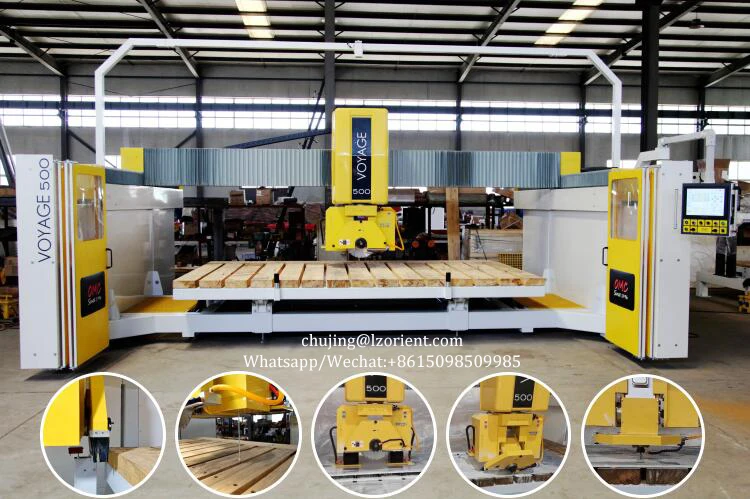

VOYAGE500 is the new generation multi-function processing machine which is associated to be designed and manufactured. With pattern operation and advanced intelligent control system and synchronous CNC control system, the machine can be easily operated without knowing complicated CNC knowledge. This machine can be used to realize some advanced functions like: Camera function --- positioning typesetting, automatic measurement of plate thickness and tool size, the machine head can rotate 360 degrees and chamfer 90 degree. It can cut, drill, slot, dig round, mill, profile edge, open basin hole, stove hole, slash cutting and other multi-functional integration, with high-quality motor, high precision and fast speed. It is suitable for quartz stone, rock slab, artificial stone, granite, marble and other large, medium and small stone decoration projects.

Characteristic:

1. Compact size without needing the ground base.

2. With advanced CNC control system and all pattern operation, the machine can be operated without professional operators.

3. With powerful functions, the machine can work almost all the jobs of a small factory.

4. With less electricity and more efficiency, the cost is decreased much.

5. High quality accessories and electric parts are used to secure long service life and low cost.

Model	VOYAGE500
Programming method	CAD image input & Manual programming
Control method	CNC
Main motor power	11KW (optional 4KW / 7.5KW)
Working voltage	380V 3phase (Customized)
R.P.M	1000-6000r/min
Blade size	350-500mm
Cutting thickness	140mm
Working table size	3800*2300mm
X-axis working stroke	3500mm
Y-axis working stroke	2000mm
Z-axis working stroke	460mm
A-axis working stroke	360°free rotation
B-axis working stroke	Auto 0-90 degree chamfer
Overall size	630749253414mm
Weight	6500KG
40’OT container load	1
