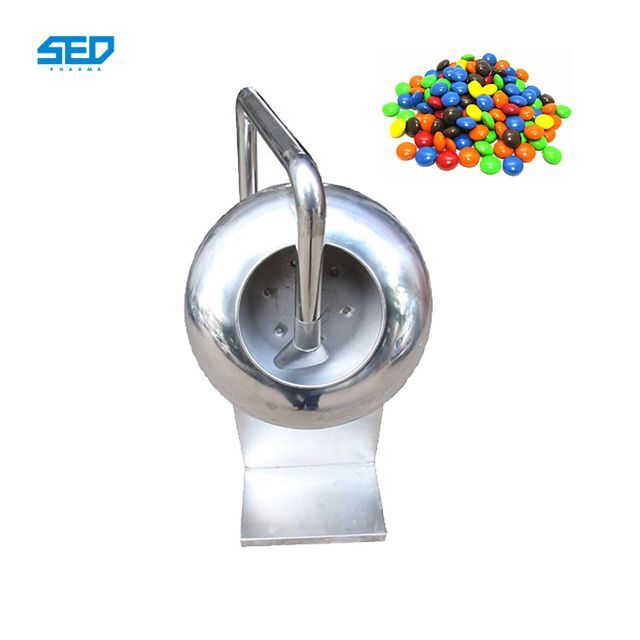

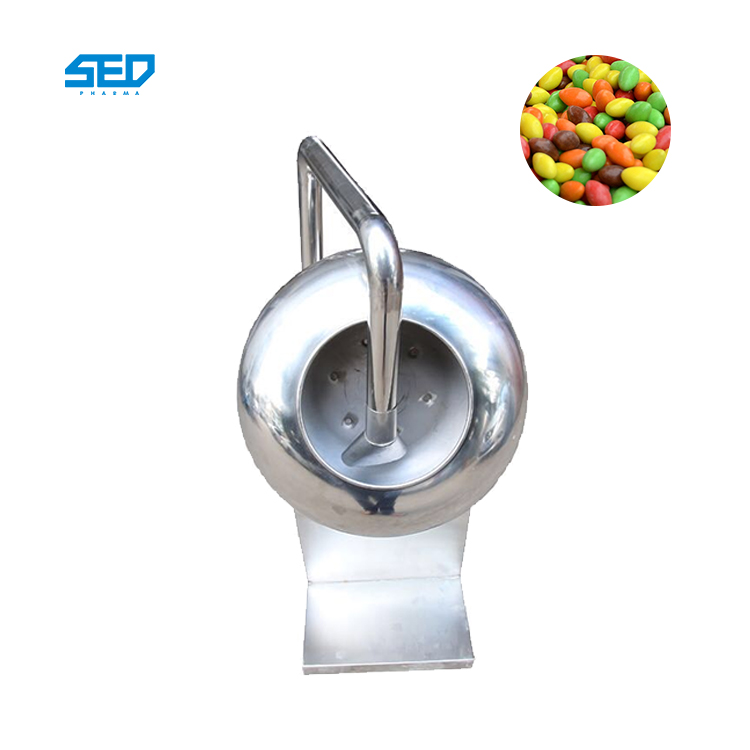

Pills Candy Tablets Film Coating Machine Automatic Peanut Coating Pan Machine

Supplier: Hangzhou Shengde Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms SED Machinery
Price: $550.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimensions (LWH):	560400850	Coating temperature (℃):	1 - 80℃
Motor power (kW):	0.12	Voltage:	220V50Hz
place of origin; place of origin:	Zhejiang, China	Coating roller diameter (mm):	400 mm
Coating Type:	Heating and coating	Disc diameter (mm):	400
Weight (kg):	35	Main selling point:	easy to operate
Pan rotation speed (rpm):	46	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Core Components Warranty:	1 year	Packaging Preview:
Mechanical test report:	Not available	Model:	SED-JB400
Core components:	PLC, engine, gearbox, motor, gear, pump	brand:	SED-Pharma
Weight (kg):	35	Health status:	new
Applicable industries:	Manufacturing Plants, Food & Beverage Plants, Food Stores, Energy & Mining, Food & Beverage Stores	Dimensions (mm):	560400850
Marketing Type:	New Products 2020	Power (kW):	0.68
Video external inspection:	if	Packaging Details:	wooden box
Fan power (kW):	0.06	Showroom location:	not any
usage:	Pharmaceutical	Warranty:	1 year
Total Power (kW):	0.68	Heating power (kW):	0.5

Product Description

This machine is suitable for sugar coating, polishing and rolling of Chinese and Western medicine tablets, pills, pills, small pills, water pills, drop pills and granules in pharmaceutical, chemical, food, scientific research institutes, hospitals, etc. It can also be used for trial production of new drugs in scientific research institutions.

Working principle:

Through the pot body, the tablets roll, slide and rub in the pot, so that the coating powder is evenly distributed on all the tablets. The included electric hair dryer can extend into the pot for heating. At the same time, the blower blows hot air into the inner layer of the pot to remove the moisture on the surface of the tablet, thereby obtaining the hard candy coating.
tablet.

Model	SED-JB300	SED-JB400	SED-JB600	SED-JB800	SED-JB1000
diameter. Pan(mm)	300	400	600	800	1000
Capacity (kg/time)	1-4	2-6	6-15	30-50	50-80
Pan speed (rpm)	46	46	40	32	32
Motor power (kW)	0.12	0.12	0.75	1.1	1.1
Fan power (kW)	0.06	0.06	0.1	0.2	0.2
Internal heat power (kW)	0.5	0.5	0.85	0.9	1
Total Power (kW)	0.66	0.68	1.7	2.2	2.3
Dimensions (mm)	560300850	*560400850*	7806001360	11508001550	115011001600
Weight (kg)	30	35	115	230	240
