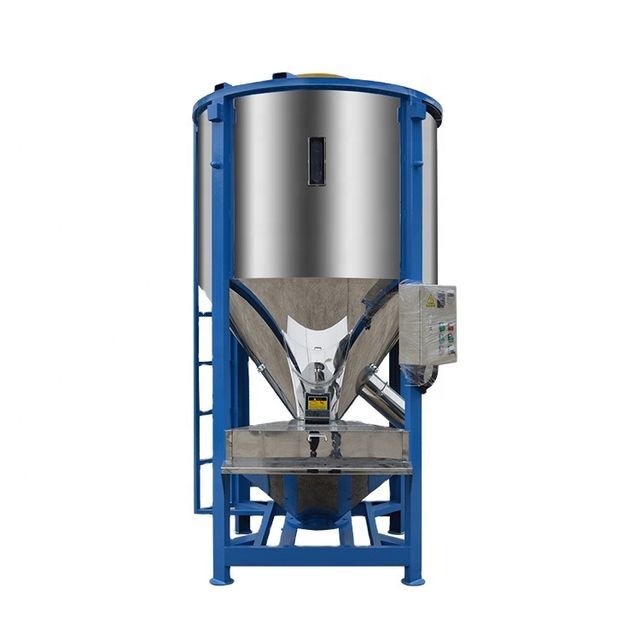

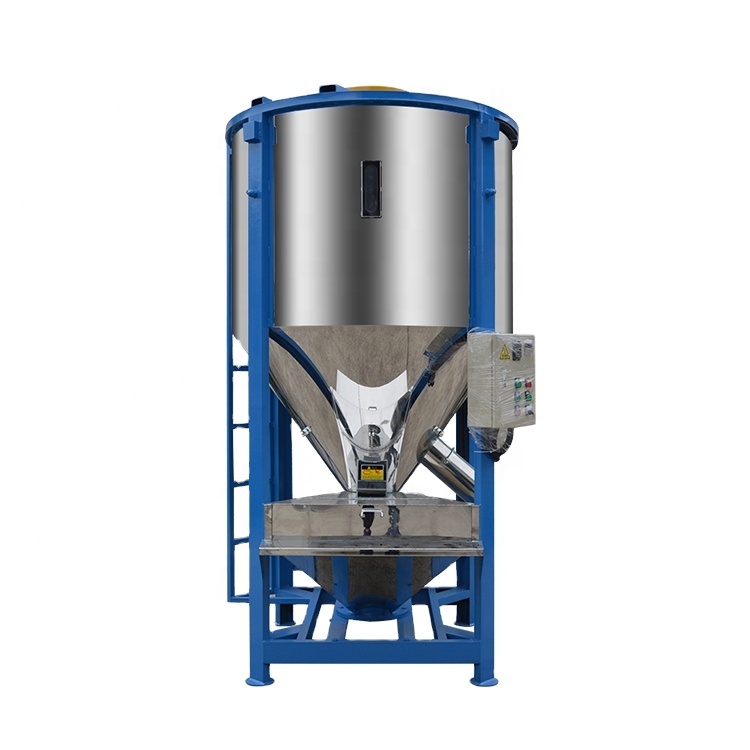

CE Large Capacity PET PP PVC Plastic Granules Plastic Raw Material Vertical Mixer

Supplier: Dongguan Sixing Machinery Manufacturing Co., Ltd.
Region: Guangdong, China
Contact: Mr Peng Eric
Price: $1750.00 / 1 - 1 sets
$1700.00 / 2 - 2 sets
$1600.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Packaging Preview:		Packaging Details:	wooden box
After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services	brand:	four star
Core components:	motor	capacity:	500kg/1000L
Warranty:	1 year	Weight (kg):	520kg
Video external inspection:	if	Applicable industries:	plastic
Output (kg/hour):	500 - 10000 kg/h	Supply capacity:	120 sets per month
Capacity (kg):	500	application:	Plastic particles mixed color
Core Components Warranty:	1 year	place of origin; place of origin:	Guangdong, China
port:	Shenzhen Shekou Port	Voltage:	custom made
After-sales service provided:	On-site installation and debugging training, on-site maintenance and repair services, online support, video technical support	Local service location:	Russia, Thailand, Malaysia
Marketing Type:	New Products 2020	Showroom location:	Canada, United Kingdom, United States, France, Germany, Vietnam, Indonesia, India, Mexico, Russia, Spain
Mechanical test report:	if	payment terms:	L/C,Western Union,D/P,D/A,T/T,Visa
Main ingredients:	201/304/316 Stainless Steel	Material:	Stainless steel
Power (kW):	3kW	Certification:	Chief Executive
Health status:	new	Auto grade:	automatic
Dimensions (LWH):	120012002450mm

SX-L500

Capacity: 500kg / 1000L

Power: 3kw Heating power: 12KW Fan power: 0.55kw

Voltage:custom madeBarrel Material: 201/304/316 Stainless Steel Size: 1200*1200*2450mm Weight: 520kg

SX-L series vertical mixer is suitable for mixing various plastic granules and crushed materials. The capacity is 500kg-10000kg. Heated drying systems are also available as an option.

Model	capacity	Motor Power	drying power	speed	aspect	weight
SX-L500	500kg/1000L	4p-3kw	12kW	350 rpm	120012002450mm	520kg
SX-L1000	1000kg/2000L	4p-4kw	18kW	350 rpm	150015002850mm	730kg
SX-L1500	1500kg/3000L	4p-5.5kw	18kW	350 rpm	165016503100mm	890kg
SX-L2000	2000kg/4000L	4p-5.5kw	30kW	350 rpm	185018503400mm	1050kg
SX-L3000	3000kg/6000L	6p-5.5kw	30kW	300 rpm	210021003700mm	1260kg
SX-L5000	5000kg/10000L	6p-7.5kw	30kW	300 rpm	225022504250mm	1860kg
SX-L6000	6000kg/12000L	6p-11kw	30kW	300 rpm	225022504800mm	2150kg
SX-L8000	8000kg/16000L	6p-11kw	60kW	300 rpm	225022505800mm	2580kg
SX-L10000	10000kg/20000L	6p-15kw	60kW	300 rpm	225022506800mm	2890 kg
