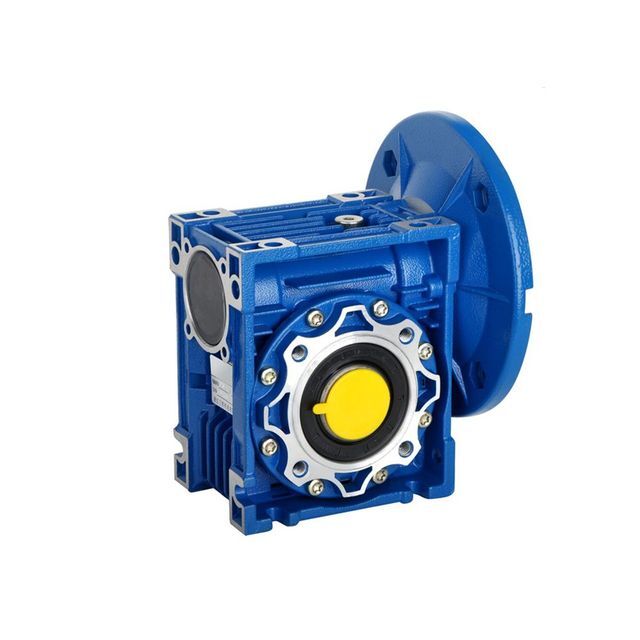

NMRV050 GEARBOX Gearbox Gearbox Gear Motor Reduction Ratio 1:10 1:20 1:30 1:40

Click here to contact

Product details

ratio:	5,7.5,10,15,20,25,30,40,50,60,80,100	Single package size:	17X13X20 cm
Input flange:	IEC flange for mounting the motor	Sales unit:	single product
Gross weight per piece:	15.000 kg	strength:	0.12KW,0.18KW,0.25KW,0.37KW,0.55KW,0.75KW
brand:	triple	Shell material:	Aluminum & Cast Iron
Output torque:	4~2320Nm	Quality Control System:	ISO9001:2008
color:	RAL9006 (grey) or RAL5010 (blue)	Input speed:	0.28~4.7rpm
Output speed:	1400rpm (4 poles)	Label:	customer request
transmission:	insect	custom made:	acceptable
Packaging Details:	carton + wooden box	place of origin; place of origin:	Zhejiang, China

Product Description

1. High quality aluminum alloy material, light weight, no rust

2. Large output torque

3. Smooth operation, low noise, can work for a long time under harsh conditions.

4. High heat dissipation efficiency.

5. Beautiful appearance, long service life and small size.

6, suitable for all-round installation.

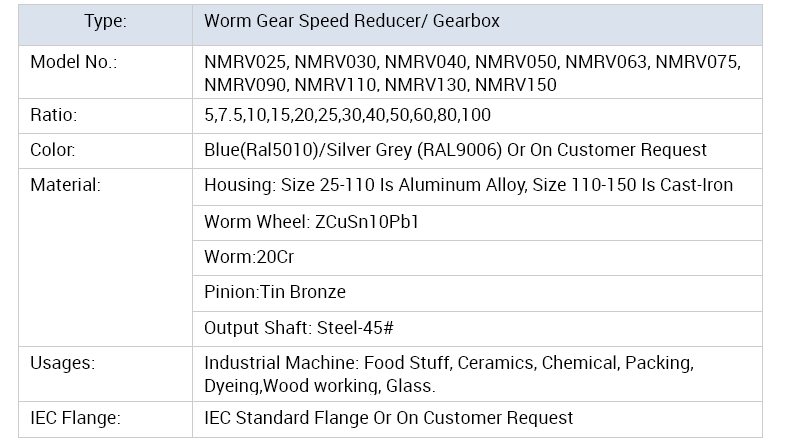

type:	Worm gear reducer/gearbox
model. :	NMRV025, NMRV030, NMRV040, NMRV050, NMRV063, NMRV075, NMRV090, NMRV110, NMRV130, NMRV150
ratio:	5,7.5,10,15,20,25,30,40,50,60,80,100
color:	Blue (Ral5010)/Silver Grey (RAL9006) or as customer's request
Material:	Housing: Aluminum alloy for sizes 25-110, cast iron for sizes 110-150
	Worm gear: ZCuSn10Pb1
	Worm: 20Cr
	Pinion: Tin Bronze
	Output shaft: Steel-45#
use:	Industrial machinery: food, ceramics, chemicals, packaging, dyeing, woodworking, glass.
IEC flange:	IEC standard flange or according to customer requirements
