Professional scrap radiator separator/air conditioning radiator crusher and separator machine/Waste heat separator

Product details
name:radiator crusher and separator machine;Place of Origin:Henan China (Mainland);
motor:7kw;After-sales Service Provided:Free spare parts,Field maintenance and repair service,Online support,Video technical support;
features:separate single layer and double layers;finished product one:the copper pipe is stay the same;
Packaging Detail:wooden box for radiator crusher and separator machine;Warranty:1 Year;
Brand Name:Aslan machinery;raw material:Waste air conditioner radiator;
Port:qingdao port;specification of radiator:25cm,21cm and 19cm;
capacity:2-3ton per 8 hours;Payment Terms:L/C,T/T,Western Union,MoneyGram,Trade Assurance;
weight:600kg;Supply Ability:200 Set/Sets per Month;
finished product two:the aluminum is irregular pieces.;function:to recycling the copper from radiator;

Air conditioner radiator copper separator machine/ radiator crusher and separator machine



Product Description



This radiator crusher and separator machine is used for separating the outside aluminium foil and the inside copper pipe of wasted air conditioning radiator.

Each set of this kind of machine just can separate two different specification radiators.

Because the interval width of the copper pipe are different in the radiator, so we need you can offer us the width of the copper pipe of the radiator.

In China, the width of the radiator copper pipe is 21MM, 25MM, and 19MM. Besides, the thickness is one layer and two layers.

If the thickness is 3 to 4 layer, then the Band Saw Machine is necessary.



Features for radiator crusher and separator machine

 radiator separator iscomposed of motor, reduction box, rack, press roller, blade, and pinch roller and so on.

The copper and aluminum of the radiator are separated by the cut of the blade.

 After separated, the copper pipe is stay the same, and the aluminum is irregular pieces.





Specification for radiator crusher and separator machine



Item

1. Band Saw Machine

Machine size: 1000*1200*1700 mm

Weight:400kg

Motor: 2.2 kw

Function: it can divide 3-4 layers radiators into single layer or double layer



2. Air conditioning radiator separator

Machine size: 1650*850*1150mm

Machine weight: 600kg

Motor: 7 kw

Capacity: 2-3ton /8 hours

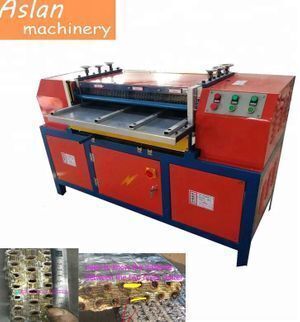

for radiator crusher and separator machine photo attached , please check it .



Our Services

About after sell service for our Aslan machinery co.,ltd

usually machine guarantee time is about 1 year . Within guarantee time. Machine breaking caused by machine itself

design defect , we are responsible for it .we can provided free charge breaking part, .If machine breaking caused by

humane factor , user need take responsibility for it , we will provided technical support .

 About goods shipping of our Aslan machinery co.,ltd

We have long time working shipping forwarder. We can do our best to send machine to your port safe and sound .

If your need , we can help you do custom clearance .

About payment term for our Aslan machinery co.,ltd

Currently, in order to protect you and us rights .both us in safe , hope we can do business in safe way .

L/C(>20000USD),Western Union,T/T(bank transfer),Escrow
which one is you want , we can discuss it .

About our online Service:
24 hours online to solve any problem . Your email will be reply within 12 hours . Your satisfy is our pursuit .

sincerely hope our cooperation.



if you are interested in our air condition radiator separator,welcome to send inquire to us :
