Customized China flowtech KIO liquid refrigerant price air digital flowmeter gas glass tube rotameter flow indicator for water

Click here to contact
Product details
port:Shanghaibrand:Fuliu Technology
type:Variable Area Water Flow Meters, Variable Area Air and Gas Flow Meters, Variable Area Oil Flow MetersWarranty:3 years
Packaging Details:wooden boxplace of origin; place of origin:Zhejiang, China
model:VA/SA/FA10S/20Spayment terms:L/C,T/T,Western Union
Supply capacity:1000 pieces per month

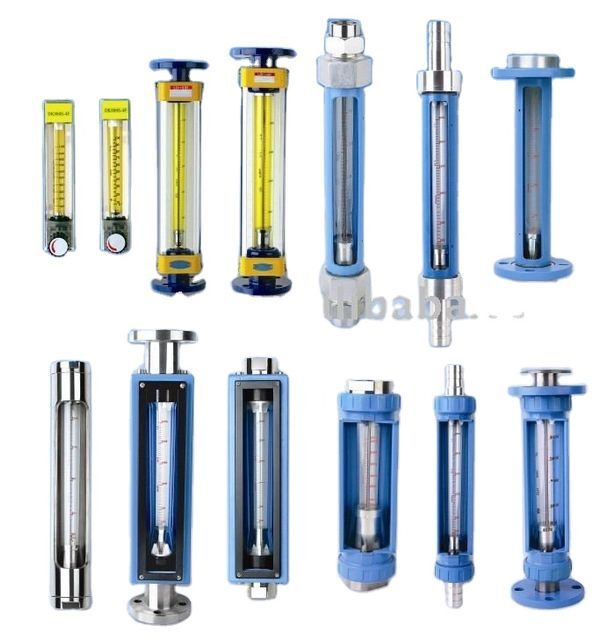

VA30S series glass tube rotor flowmeter
VA30S glass tube flowmeter is a new product of our company. Compared with similar products in China, it has the advantages of high measurement accuracy, good interchangeability, and many connection methods. The temperature, pressure, density, viscosity, etc. of the flow provide the actual flow scale to solve the problem of correction of the indication value. Regular and anti-corrosion types.

VA30S Specifications
DN
(mm)		 Model Measuring range work pressure
(bar)		 temperature.
water
(liter/hour)		 Air
(Meter3/H)
15 VA30S-15 4-40 0.12-1.2 ≤10 -20120
6-60 0.3-3
10-100 0.5-5
16-160 0.8-8
25-250 1.2-12
40-400 39864
63-630
25 VA30S-25 63-630 2-20 ≤10
100-1000 3-30
160-1600 5-50
250-2500 8-80
40 VA30S-40 160-1600 5-50 ≤9
250-2500 8-80
400-4000 12-120
50 VA30S-50 400-4000 12-120 ≤7
630-6300 20-200
1000-10000 30-300
4000-40000


VA30S Installation Dimensions
DN
(mm)		 VA30S pipe thread connection
large Second One D G Weight (kg)
15 344 270 25 38 1/2"F/NPT 1/2"BSP
25 348 236 40 55 1"F/NPT 1"BSP
40 370 226 50 70 1-1/2"F/NPT 1-1/2"BSP
50 380 226 60 89 2"F/NPT 2"BSP

Compared with domestic similar products, VA/FA/SA10S/20S series glass flowmeters have the advantages of high measurement accuracy, good interchangeability, and many connection methods, especially the flow value of the flowmeter is scaled in millimeters. The temperature, pressure, density and viscosity of different flow rates provide the actual flow scale to solve the problem of correction of the indication value. The connection method VA series is threaded connection, and FA series is flange connection.
Connection, SA series is a flexible pipe connection...

VA30S series glass rotor flowmeter
VA30S glass rotor flowmeter is a new product of our company. Compared with similar domestic products, it has the advantages of high measurement accuracy, good interchangeability, and many connection methods. Especially the flow value of the flowmeter is scaled in millimeters, which can be Provide the actual flow scale according to the temperature, pressure, density, viscosity, etc. of different flow rates, and solve the problem of correction of the indication value and the anti-corrosion type.

VA30S Specifications
DN
(mm)		 Model Measuring range work pressure
(bar)		 temperature.
water
(liter/hour)		 Air
(Meter3/H)
15 VA30S-15 4-40 0.12-1.2 ≤10 -20120
6-60 0.3-3
10-100 0.5-5
16-160 0.8-8
25-250 1.2-12
40-400 39864
63-630
25 VA30S-25 63-630 2-20 ≤10
100-1000 3-30
160-1600 5-50
250-2500 8-80
40 VA30S-40 160-1600 5-50 ≤9
250-2500 8-80
400-4000 12-120
50 VA30S-50 400-4000 12-120 ≤7
