15kv 25kv 415v 50 100kva 160 400 kva 500 630 1250kva 1500 kva 2000 kva 3000kva produces power transformer
- 899.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Coil structure: | ring | brand: | galaxy |
| Input voltage: | 11kv/10.5kv/10kv/6.3kv/6kv | model: | S11-M-2000/15 |
| port: | Qingdao | Material: | copper |
| usage: | strength | Supply capacity: | 600 sets per month |
| application: | Industrial power | product name: | Power transformer 200kva 1000kva 1250kva 2000kva with price |
| stage: | three | Packaging Details: | 11kv 415v 50kva 63kva 160kva 50 400 kva 500kva 630 kva 1500 kva Power transformer 200kva 1000kva 1250kva 2000kva Same price packing standard: wooden case |
| standard: | IEC60076 | Vector group: | Dyn11 / Yyn0 |
| Rated Capacity: | 30-3000kva | payment terms: | L/C,D/P,D/A,T/T |
| Packaging Preview: | Coil number: | Autotransformer | |
| color: | grey | place of origin; place of origin: | Henan, China |
| frequency: | 50/60Hz | Certification: | ISO9001 |

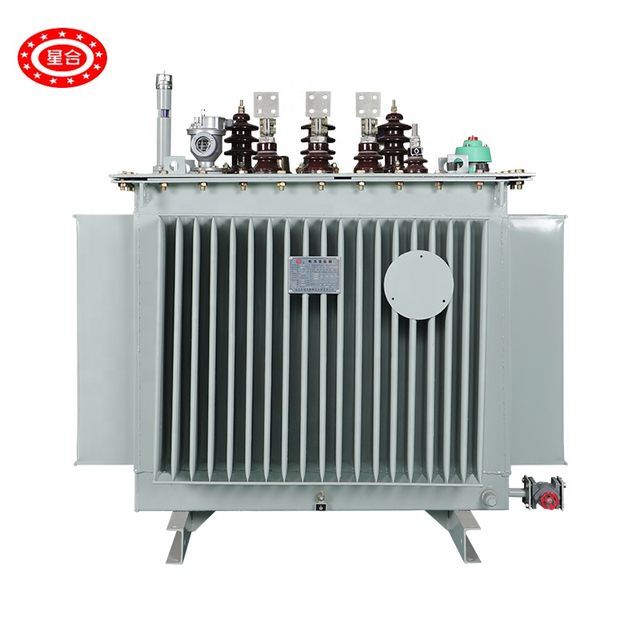

Product display
15 kv 415v 50 100kva 160kva 400kva 500kva 630 kva 1000 1250 kva 2000 kva power transformer manufacturing price
The fully-sealed transformer adopts fully-filled oil-tightness. The corrugated tank shell accommodates the expansion of the oil with its own elasticity. The fuel tank is permanently sealed and has been widely used in various power distribution equipment.
Normal use conditions:
Altitude cannot exceed: 1000m Maximum ambient temperature: +40°C
Maximum daily average temperature: +30°C Maximum annual average temperature: +20°C
Minimum outdoor temperature: -25°C
Product Standards:
Oil type: 25#/45# oilstandard: IEC6029625#
shell pressure: 25 kPaPorcelain bottle standard: IEC60137
overload capacity: 10%short circuit capabilitystandard: ANSI C57.12-2000
Noise Satisfactionstandard: ANSI/IEEE C57.12.90 or IEC 60076-10

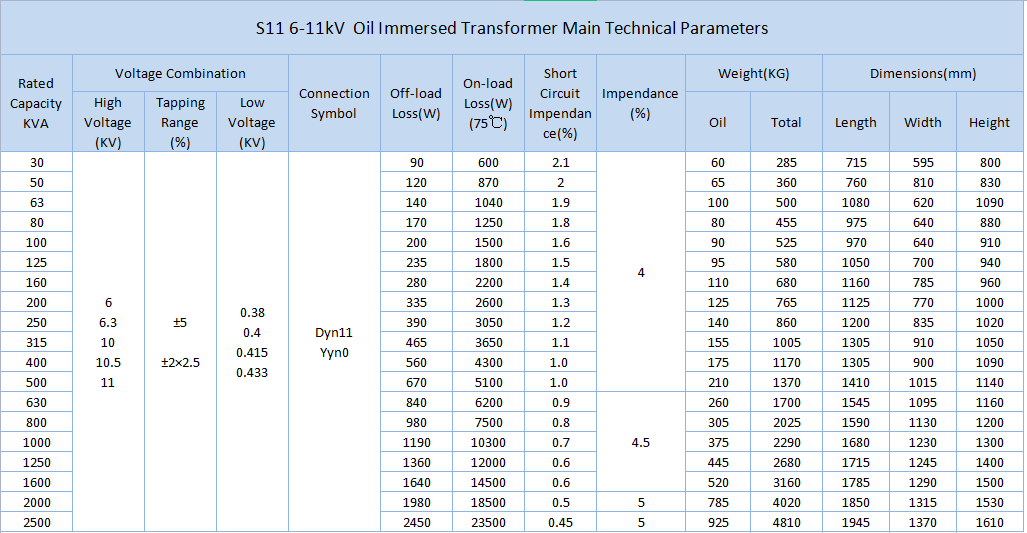

Product parameters

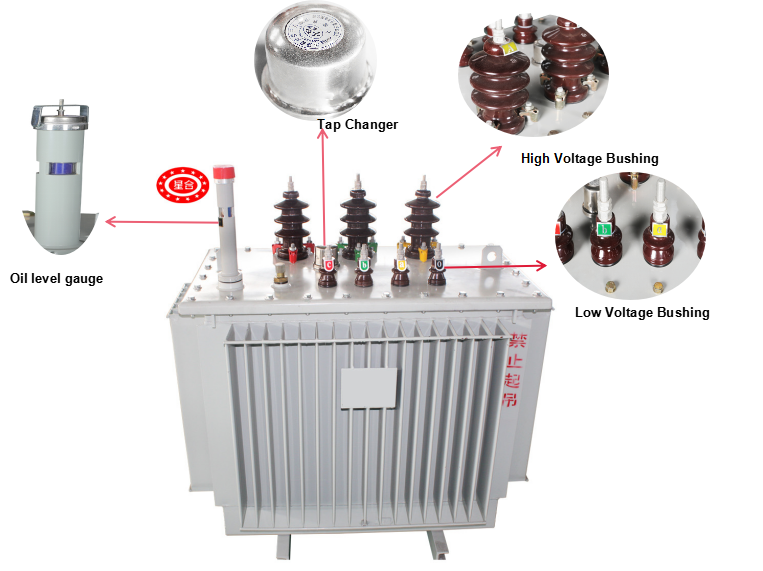

Technology and Details

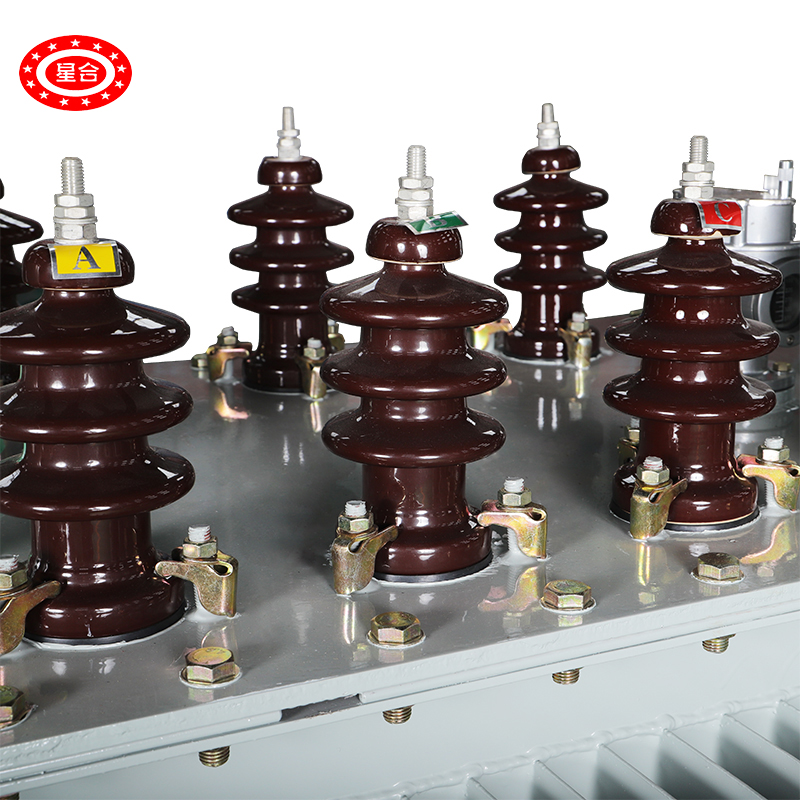

Porcelain insulator
(copper/aluminum)

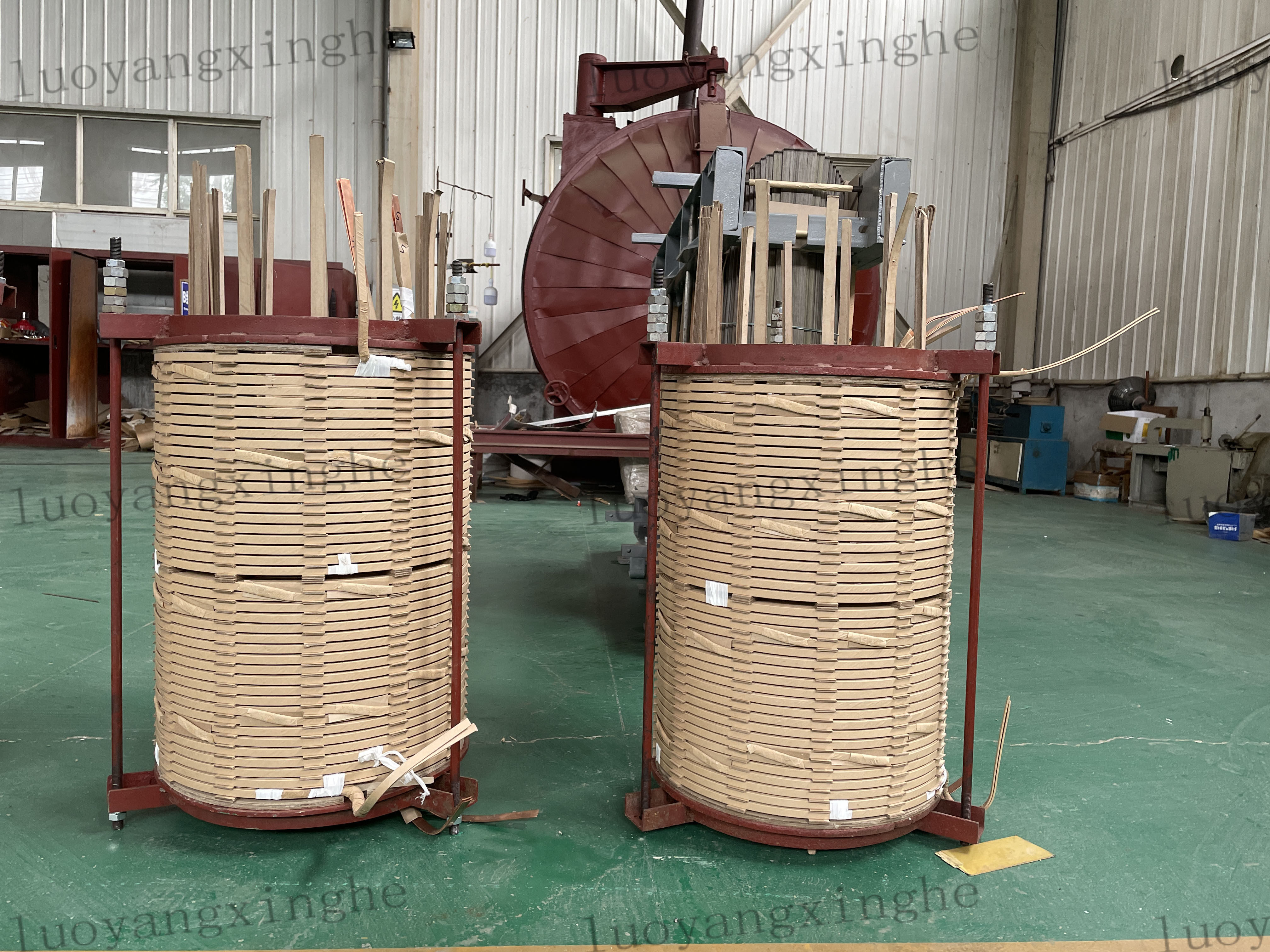

(wire/foil)
Determining the load loss value
Click here for product details.
Workshop equipment

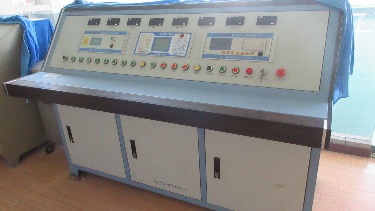

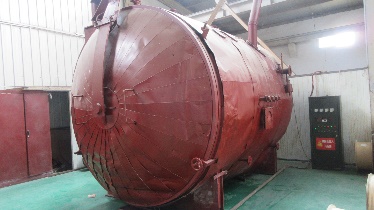

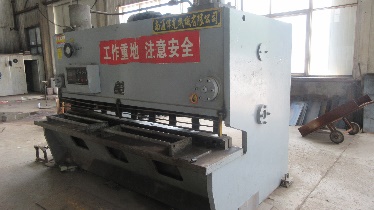

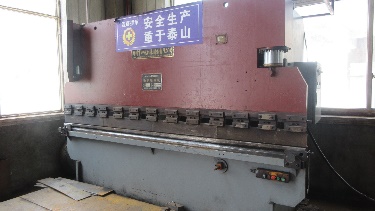

Cutting machine bending machinedrying roomtest equipment
