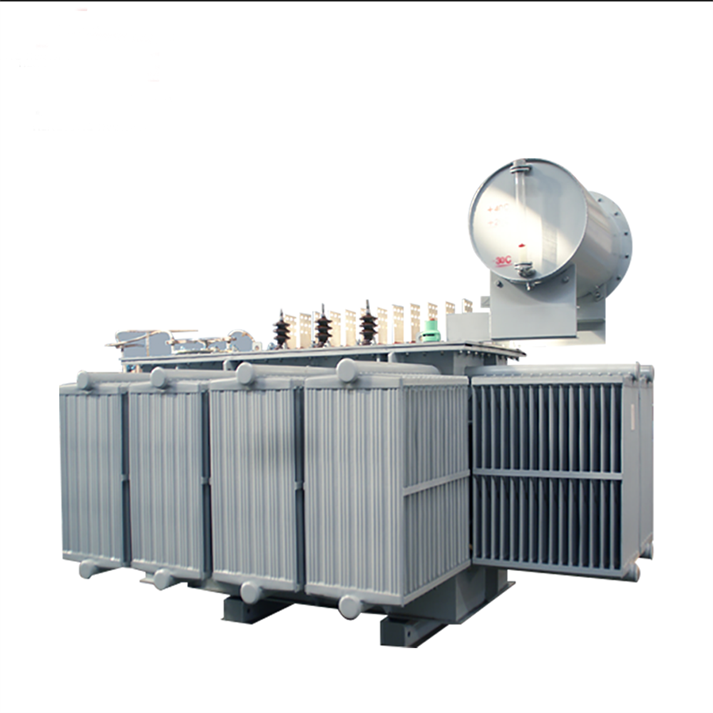

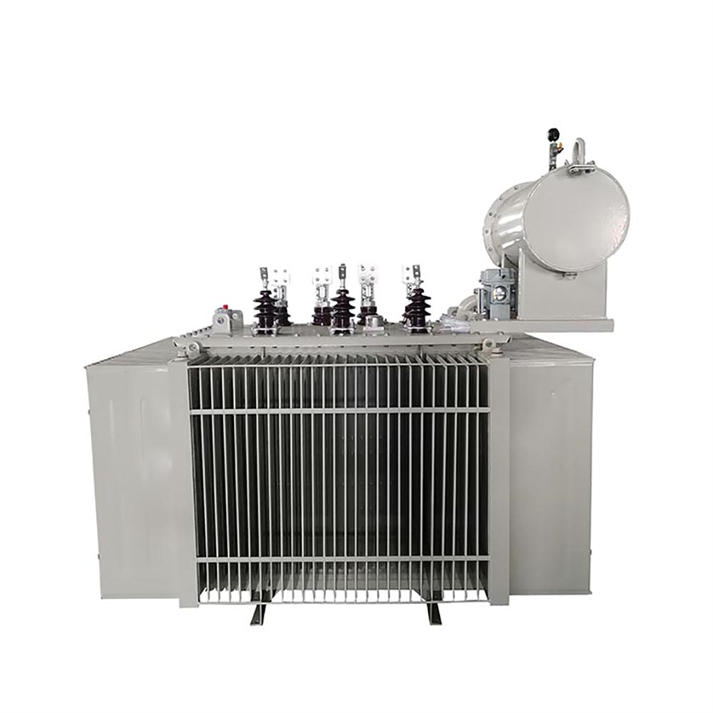

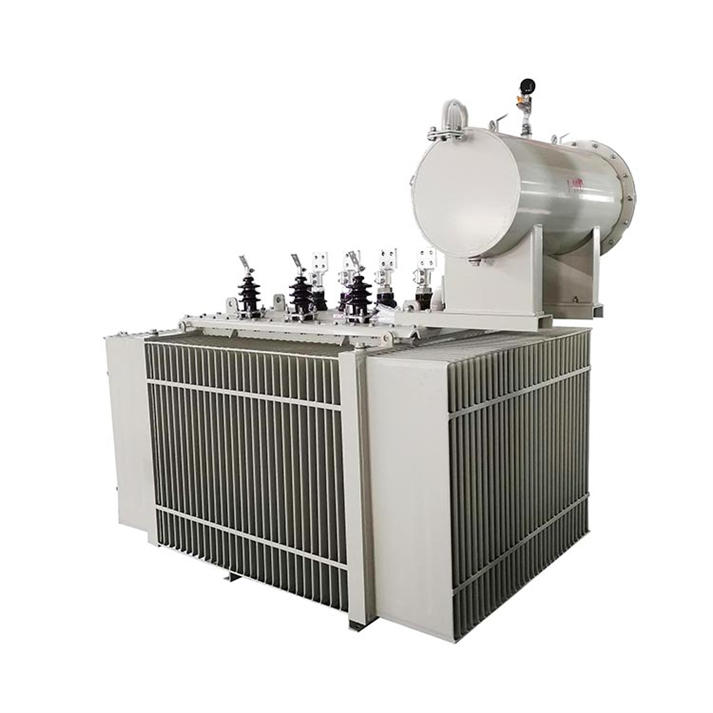

Oil Price Transformer Immersed Transformer 3 Phase 10kv 20kv 125kva Oil Powered Power High Voltage Transformation
- 4500.00 1 - 49 pieces
- 4200.00 50 - 499 pieces
- 3900.00 >=500 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Transformer type: | Oil immersed transformer | standard: | IEC ANSI IEEE |
| Winding material: | copper\aluminum | product name: | Oil-immersed transformer 10kv 20kv oil-immersed power transformer |
| Vector group: | Dyn11/Yyn0/Yd11/YNd11 | Warranty: | 2 years |
| Material: | 100% copper wire | usage: | Power distribution |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | model: | S11 |
| brand: | first force | port: | any port in china |
| type: | power transformer | frequency: | 50/60 Hz |
| Number of coils: | 2 | Origin: | China |
| application: | Distribution System | Coil structure: | dynamic 11 |
| Supply capacity: | 1000 pieces per month | stage: | 3 |
Recommended Products
Specification
Rated Capacity | voltage ratio | vector set | No-load loss (kw) | independence |
30kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.1 | 4% |
50kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.13 | 4% |
100kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.2 | 4% |
200kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.34 | 4% |
315kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.42 | 4% |
500kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.6 | 4% |
1000kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 1.15 | 4.5% |
1250kva | 6kv/11kv/33kv | Dyn11/Yd11/Yyno | 4.5% | |
2500kva | 11kv/33kv | Dyn11/Yd11/Yyno | 2.3 | |
4000kva | 11kv/33kv | Dyn11/Yd11/Yyno | 2.8 | |
10mva | 11kv/33kv/69kv/110kv | Dyn11/Yd11/Yyno | ||
40mva | 11kv/33kv/69kv/110kv | Dyn11/Yd11/Yyno | ||
100mva | 11kv/33kv/69kv/110kv/220kv | Dyn11/Yd11/Yyno |
Product Description
