Product Details

model:	single phase transformer	product name:	16 kva 25kva 37.5kva single phase pole mounted transformer
Coil structure:	ring	Rated Capacity:	16kva 25kva 37.5kva
Supply capacity:	600 sets per month	place of origin; place of origin:	Henan, China
payment terms:	L/C,D/P,D/A,T/T	standard:	IEC60076
brand:	galaxy	Packaging Preview:
Material:	copper	usage:	strength
Packaging Details:	16 kva 25kva 37.5kva single-phase pole mounted transformer packing standard: wooden case	Coil number:	Autotransformer
type:	Oil immersed transformer	port:	Qingdao, Shanghai
feature:	low loss	stage:	single
Vector group:	Dyn11 / Yyn0	frequency:	50/60Hz
application:	Industrial power	Certification:	ISO9001

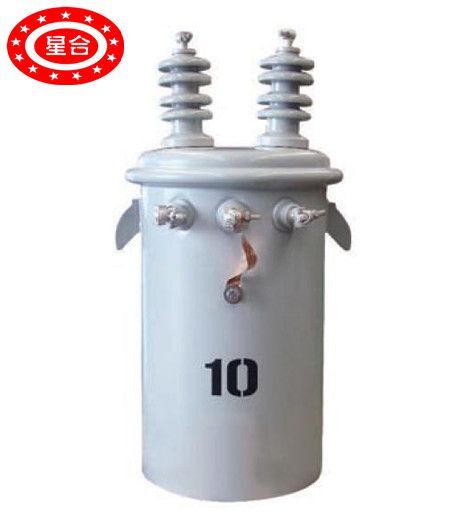

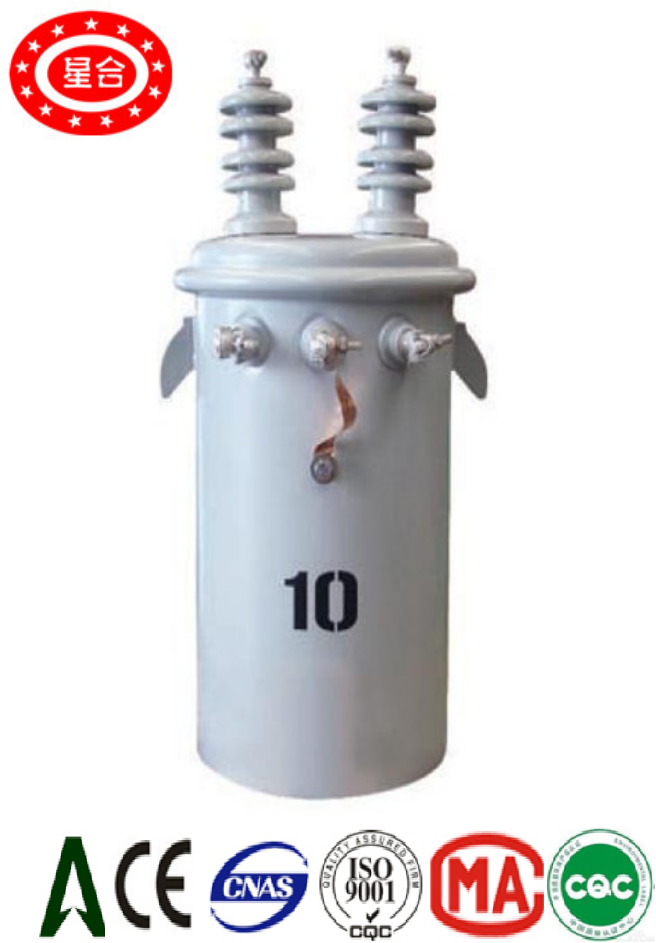

Product display

10 15kva 25 kva 37.5kva 50 kva 100 kva 375kva 10kv to 600v step-down dual voltage single phase column transformer price

Single-phase transformers have great advantages as distribution transformers, which can reduce the length of low-voltage distribution lines, reduce line losses, and improve power supply quality. Adopt high-efficiency and energy-saving coil core structure design. The characteristics of the transformer are that the column is suspended, the volume is small, the basic investment is small, the low-voltage power supply radius is reduced, and the line loss is reduced by more than 60%. The transformer adopts a fully sealed structure, with strong overload capacity, high reliability in continuous operation and simple maintenance.

Product Standards:Oil type: 25# /45# Oil standard: IEC60296 25# Shell pressure: 25 kpa Porcelain bottle standard: IEC60137 Overload capacity: 10% Short circuit capacity standard: ANSI C57.12-2000 Noise compliance standard: ANSI/IEEE C57 .12.90 or IEC 60076-10

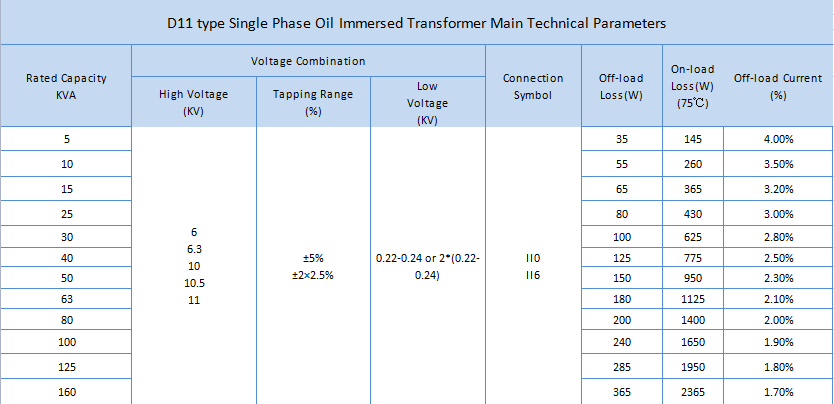

Product parameter table

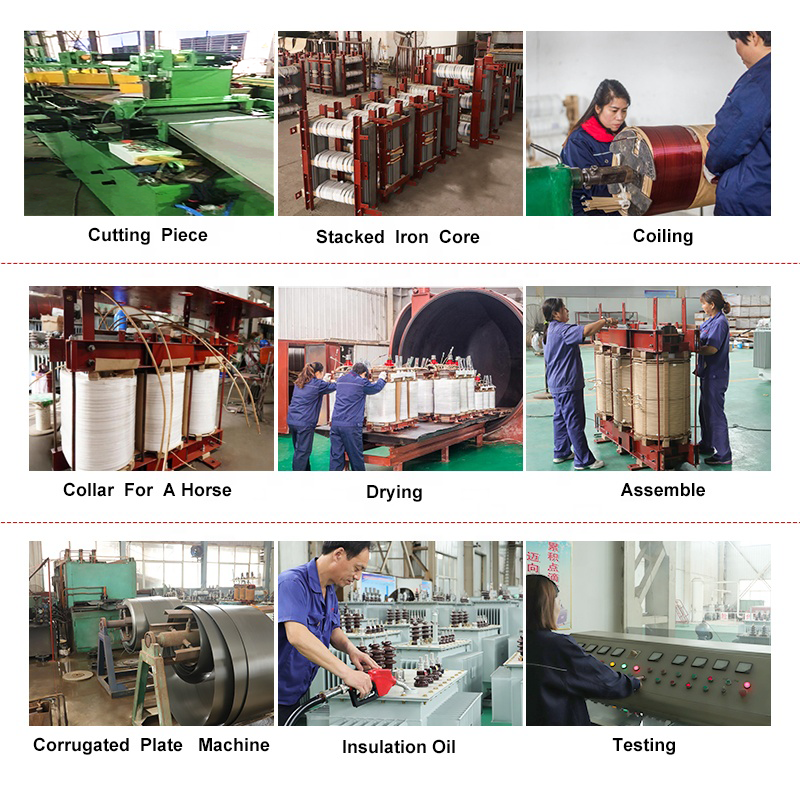

production process

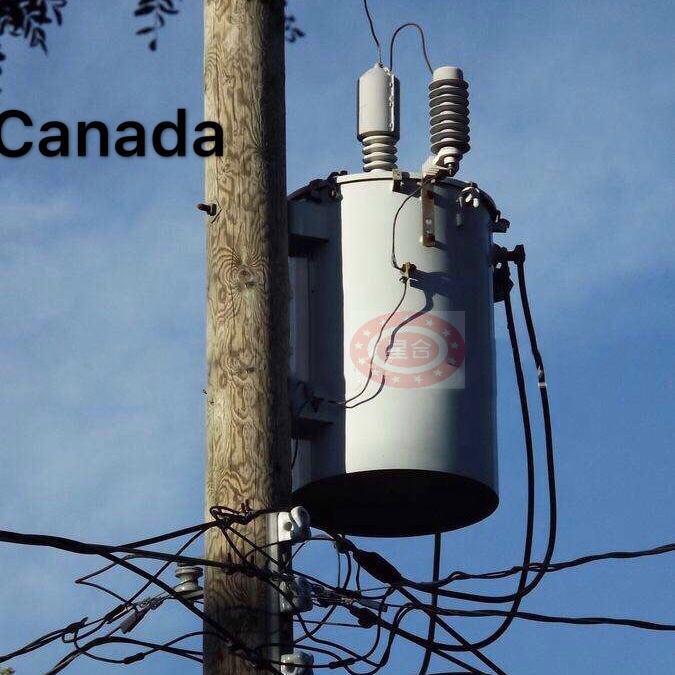

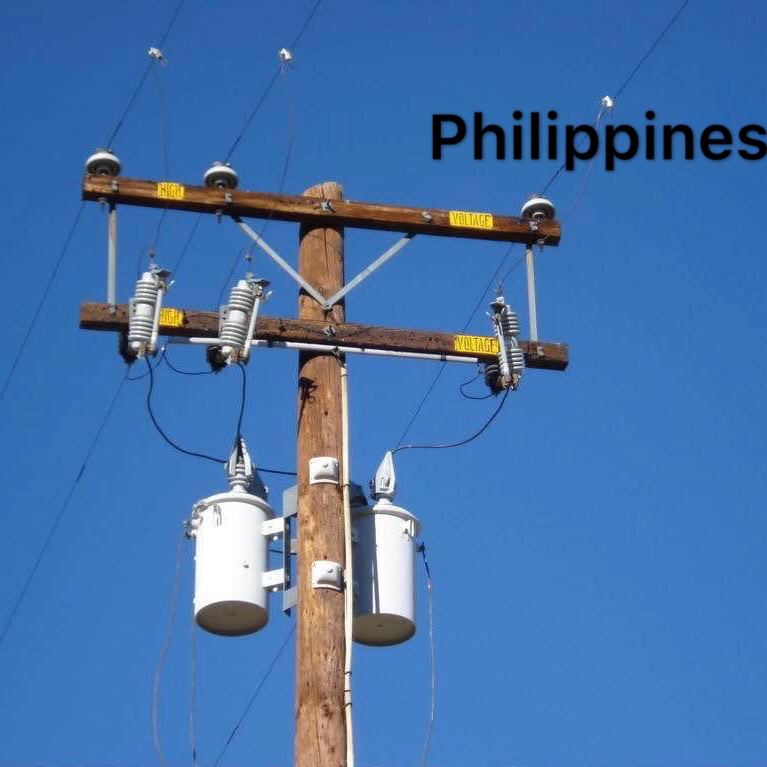

Engineering cooperation case

Domestic and foreign engineering cases

Customer site visits and long-term cooperation

If you have any questions, please click here, we will give you the most satisfactory answer

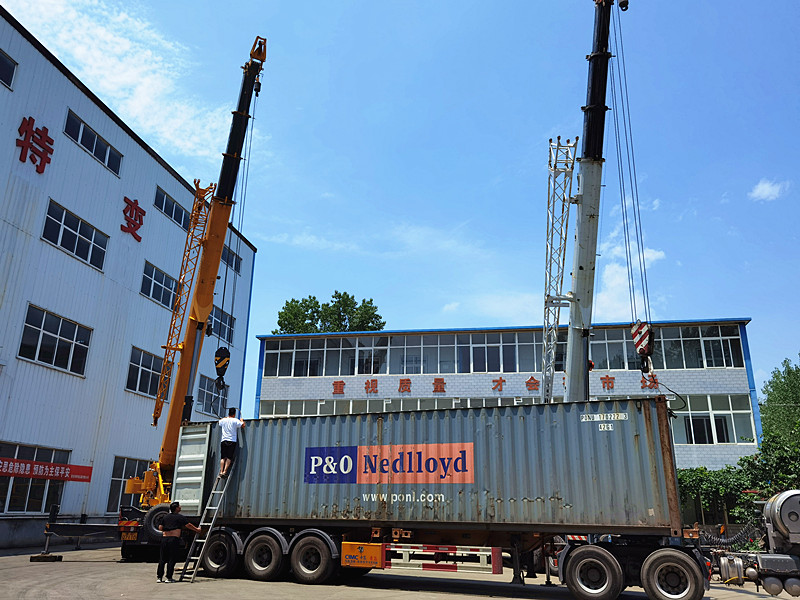

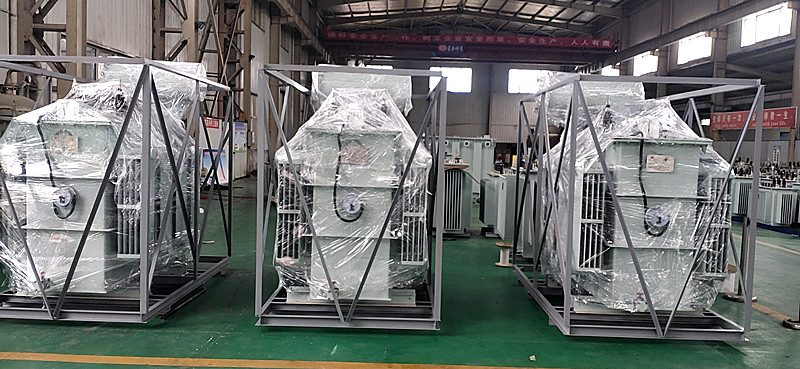

Packaging and Shipping

Generally, we will use wooden packaging suitable for long-distance transportation such as sea transportation. We can also customize special packaging according to customer requirements.
