Smart Diaphragm Fuel Gas Meter with Remote control TG-J1.6/2

Supplier: Yueqing Cowen Import And Export Co., Ltd.
Region: Zhejiang, China
Contact: Mr. Alex Wang
Price: $3.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Temperature:	-10℃~40℃;	Place of Origin:	Zhejiang China (Mainland);
Model no.:	TG-J1.6/2.5;	Port:	Ningbo/Shanghai;
Supply Ability:	10000 Piece/Pieces per Month;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Place of Origin:	Zhejiang,China;	Nominal flow rate:	1.6/2.5;
Product name:	Smart Diaphragm Fuel Gas Meter with Remote control;	Minimum flow:	0.016/0.025;
Brand Name:	Tengen;	Altitude:	≤2000;
Maximum flow:	2.5/40;	Packaging Detail:	Standard package or according to customer's requirements;
Brand:	Tengen;	Standard:	GB/T6968-2011;
Model Number:	TG-J 1.6/2.5 Fuel Gas meter;

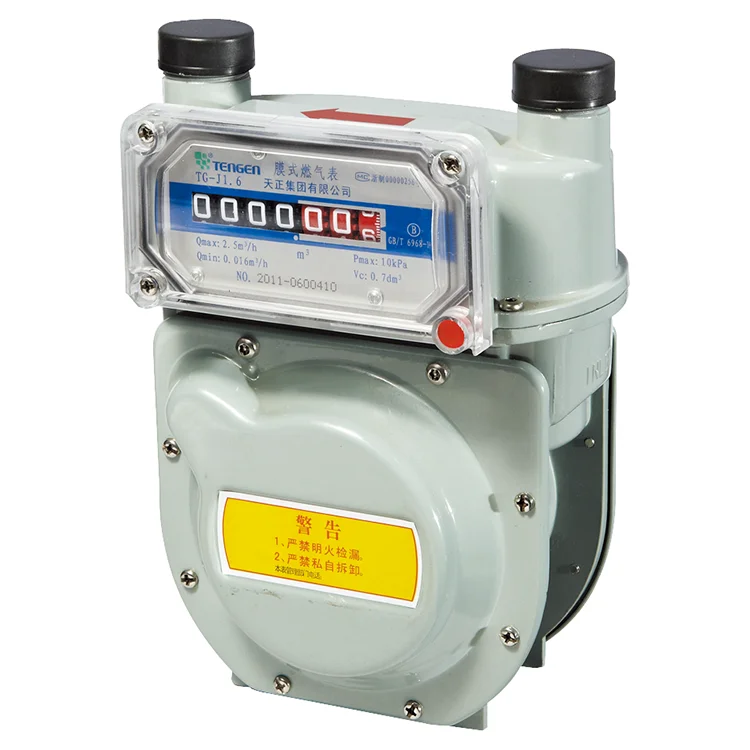

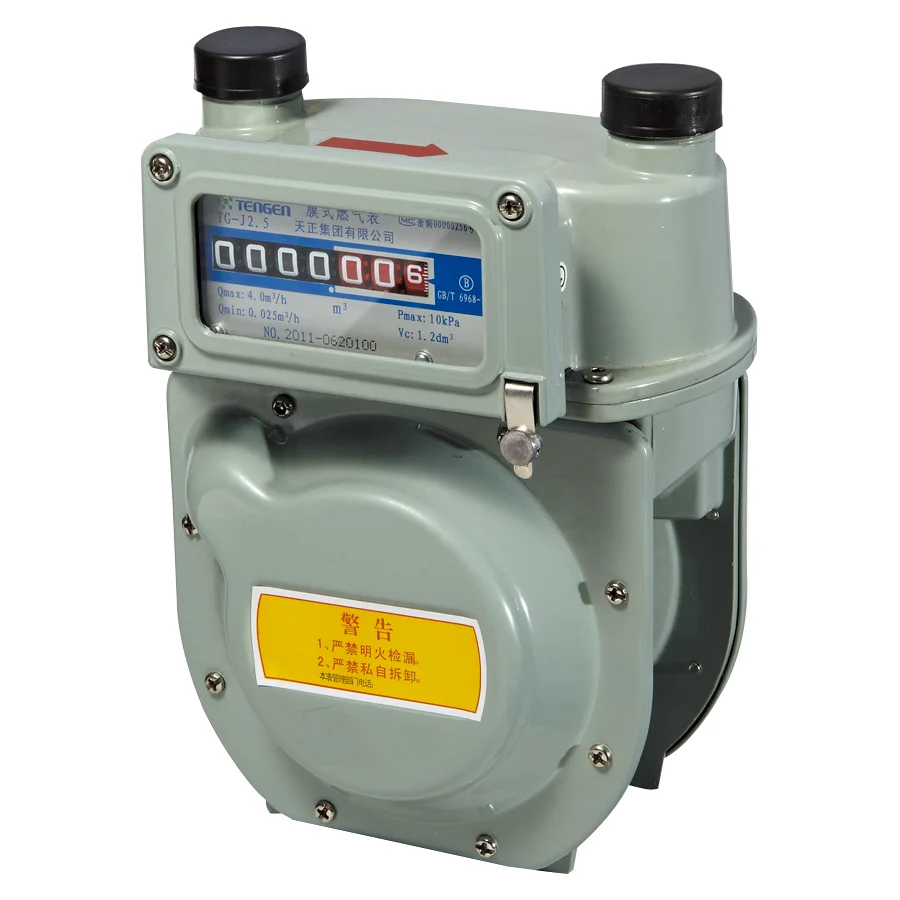

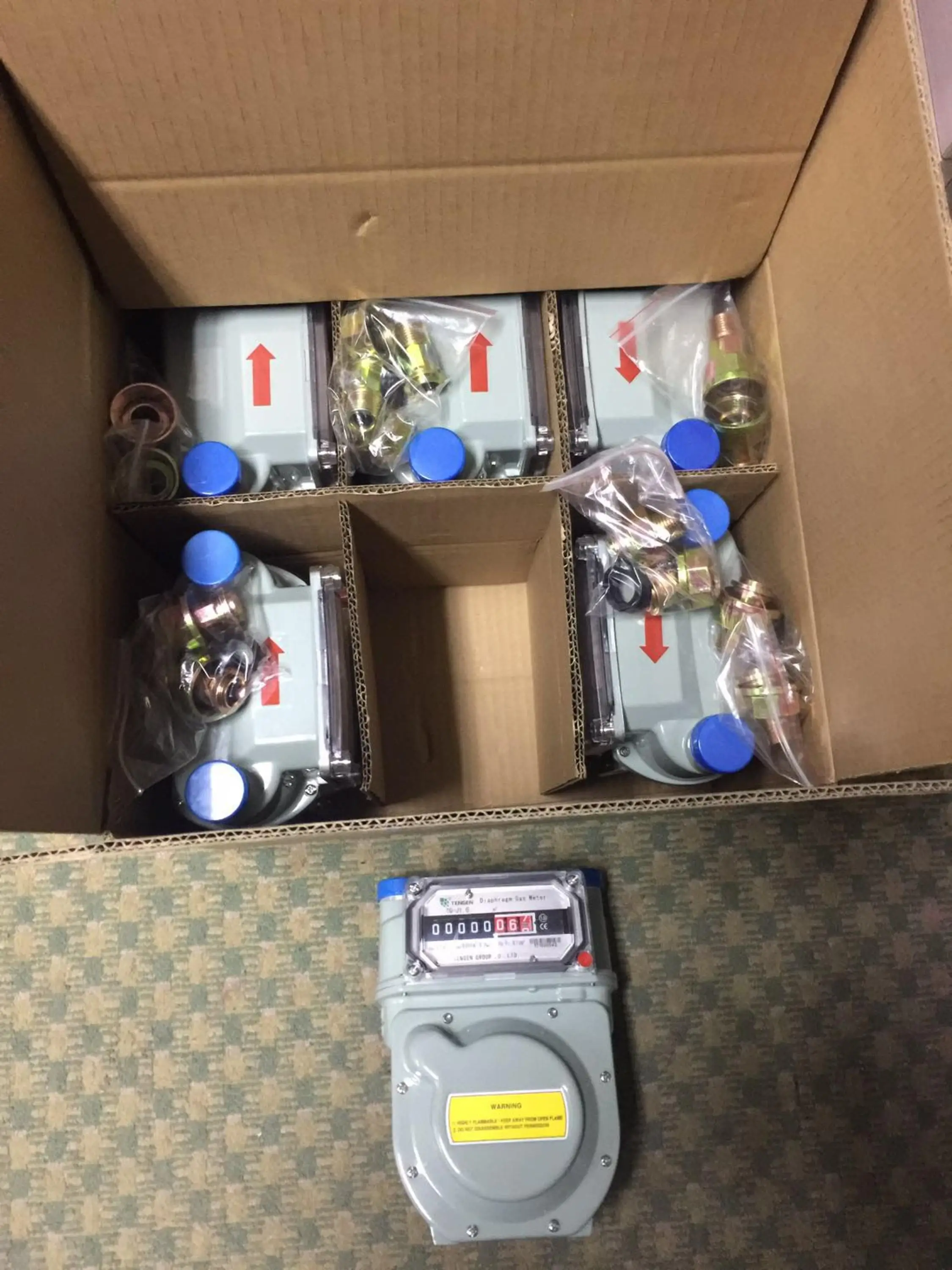

Smart Diaphragm Fuel Gas Meter with Remote control TG-J1.6/2.5

Application

Smart Diaphragm Fuel Gas Meter with Remote control TG - J1.6/2.5 watchcase adopt aluminum alloy die casting, the plastic parts such as high strength engineering plastics processing molding, to high quality material and reasonable structure design to ensure that the product is still under long-term work can reach the indicators, this series of Smart Diaphragm Fuel gas meter with remote control's specifications conform to GB/T 6968-1997 the requirements stipulated in the membrane type gas meter, therefore is an ideal gas industry measuring instruments.

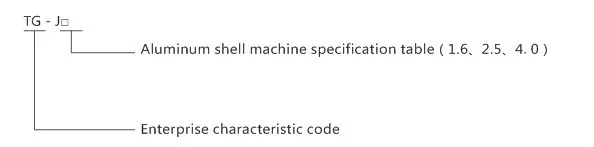

Model and Meaning

Main Technical Parameter

Item	Unit	Parameter
		TG-J1.6	TG-J2.5
Nominal flow rate	m³/h	1.6	2.5
Maximum flow	m³/h	2.5	40
Minimum flow	m³/h	0.016	0.025
maximum working pressure	kPa	10
The basic error	%	Q min ≤Q<0.1max±3 0.1Qmin≤Q≤Q max±1,5
The pressure loss	Pa	≤ 200
Air tightness		Q max 200 or less under normal working conditions, and 1.5 times the pressure does not leak
Long-term performance		Under the maximum flow running 2000 hours can still reach the indicators standards

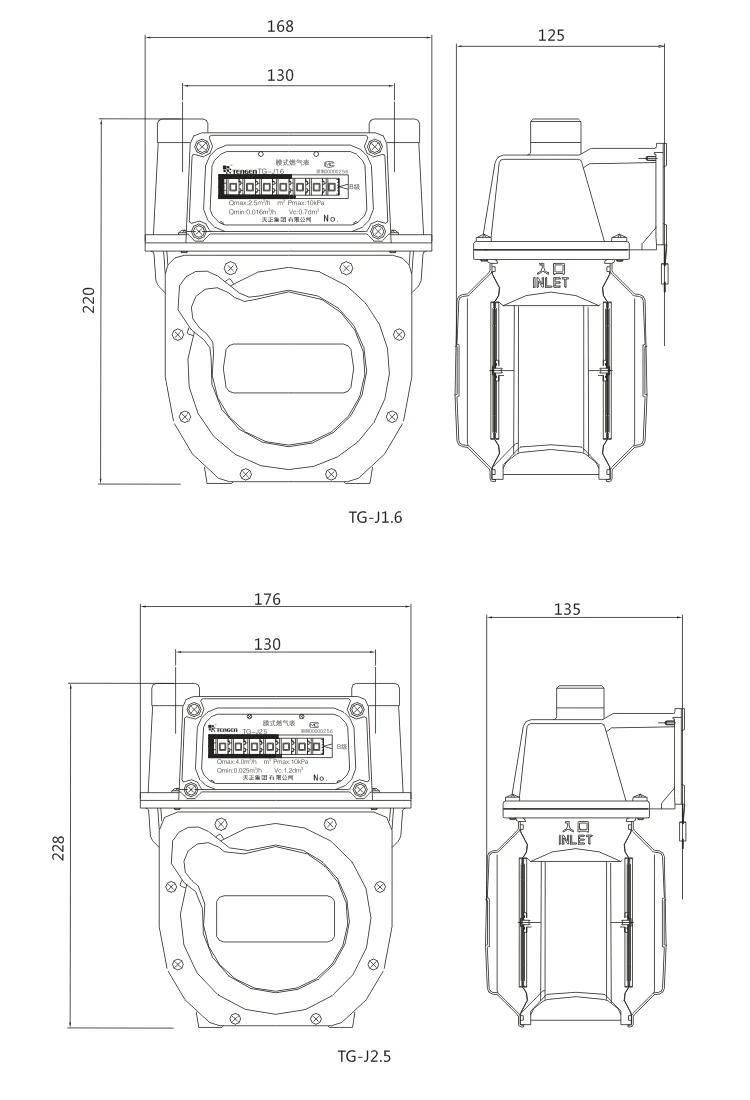

Overall dimensions	mm	168x125x220		176x135x228
Table joint thread		M30x2		M30x2
Table joint center distance	mm	130		130
weight of the	kg	1.7		1.8
