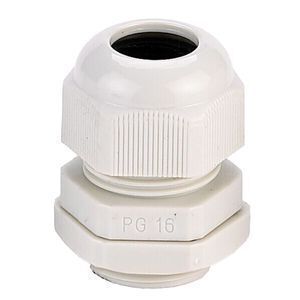

PG Rubber PVC electric Cable Gland

Supplier: Yueqing Cowen Import And Export Co., Ltd.
Region: Zhejiang, China
Contact: Mr. Alex Wang
Price: $0.02 /piece
Min. Order: 1 piece

Click here to contact

Product details

Certificate:	CE;	Material:	nylon 66;
Port:	Ningbo/Shanghai;	Supply Ability:	50000000 Piece/Pieces per Month;
Sample:	free;	Product name:	PG Plastic Nylon Cable gland;
Packaging Detail:	Platic bag + box;	Ambient temperature:	-40 °C to 100 °C;
Place of Origin:	Zhejiang China;	Brand Name:	Tengen;
Package:	Plastic bag + box;	Material:	Nylon;
Place of Origin:	Zhejiang,China;	Model Number:	PG7 Plastic Nylon Cable Gland;
Protection degree:	IP68;	Protection Level:	IP68;
Color:	Natural white;	Size:	all sizes;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Made up of:	Nut, Locknut and body;

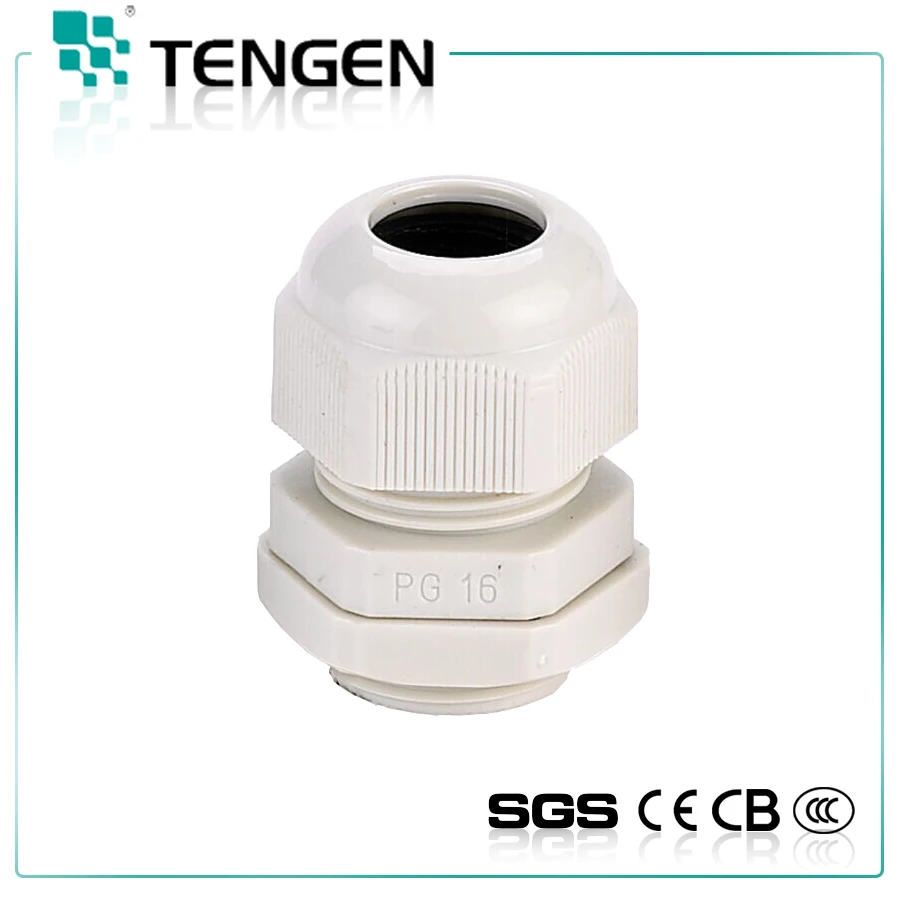

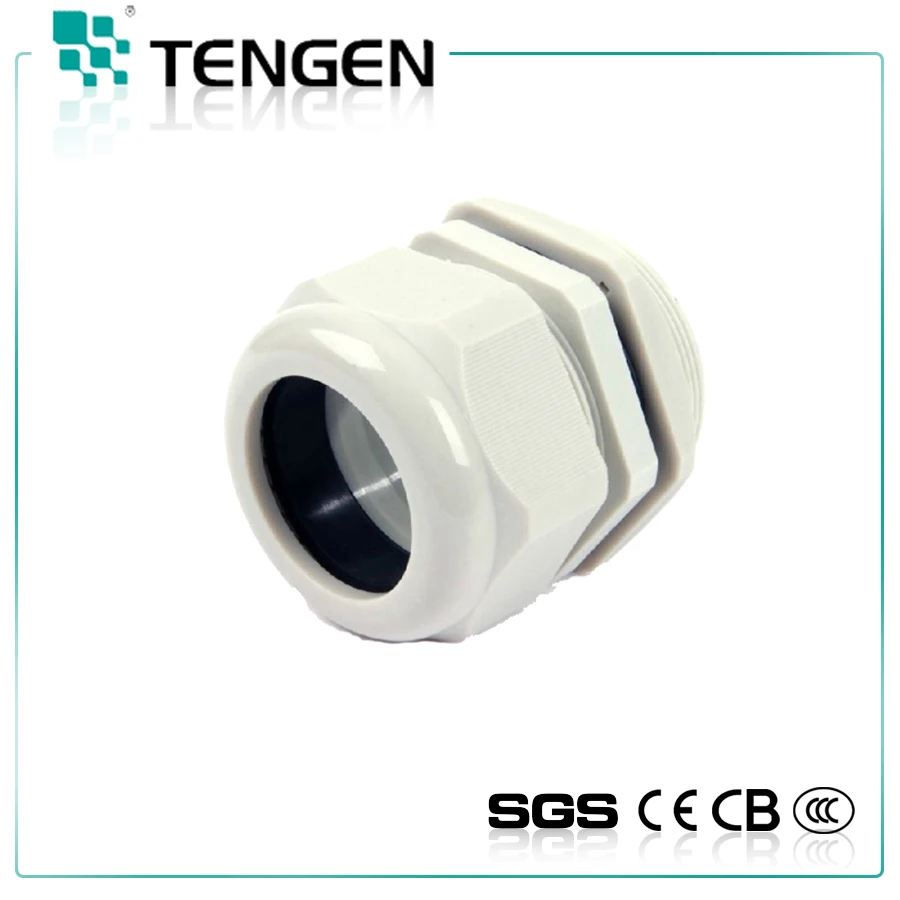

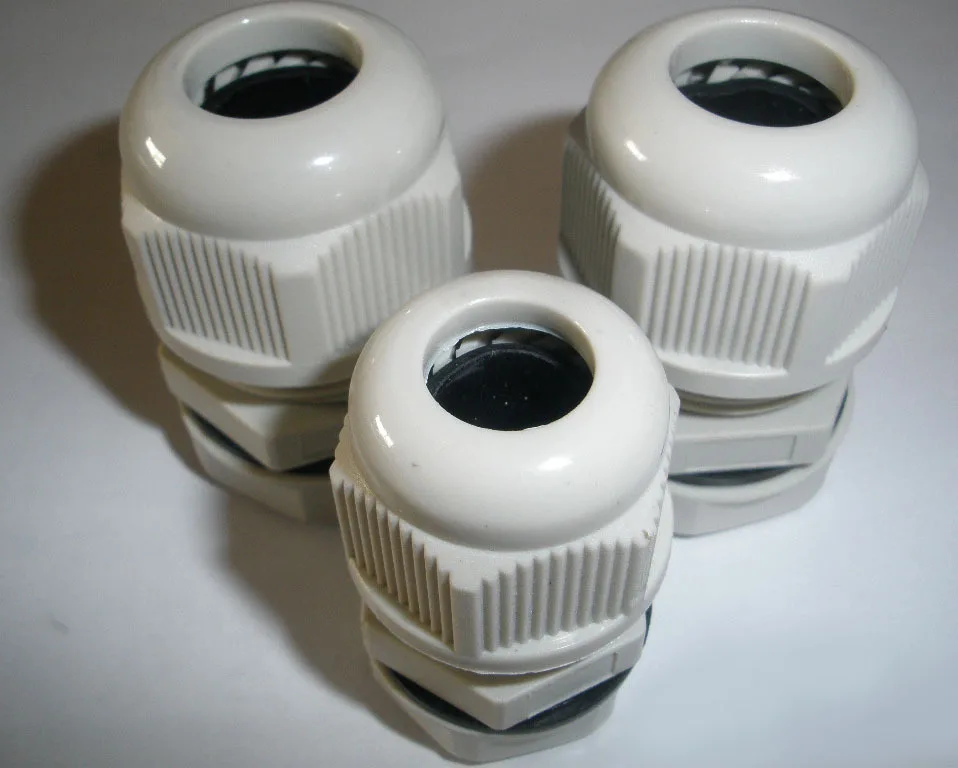

PG Rubber PVC electirc Cable Gland

Product Description:

Application: PG Rubber PVC electirc Cable Gland used for fixing cables and provide the effecitve protection against dust, water, oil penetrating the electrical distribution box, electromechanical control panel and other instruments.

Technical Data:

Product name	PG Rubber PVC electirc Cable Gland
Model No.	PG
Color	Natural white
Material	Nut, Locknut and Body Nylon66
Ruber Gasket	Nitrile Rubber
Protection degree	IP68
Ambient temperature	-40 °C to 100 °C
Certificate	CE
Sample	free
Delivery time	some have in stock

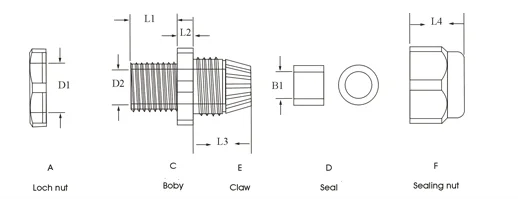

Size and Drawing

Thread specification AG	The application of cable(mm)	ThreadO. D.(mm)	PanelMountingHole(mm)	ThreadLength GL(mm)	Joint length H(mm)	SpannerSize(mm)
PG7	6.5-3	12.5	12.5-12.7	7	19	14
PG7	5-2	12.5	12.5-12.7	7	19	14
PG9	8-4	15.2	15.2-15.4	8	20	18
PG9	6-2	15.2	15.2-15.4	8	20	18
PG11	10-5	18.6	18.6-18.8	8	21	20
PG11	7-3	18.6	18.6-18.8	8	21	20
PG13.5	12-6	20.4	20.4-20.6	8	22	22
PG13.5	9-5	20.4	20.4-20.6	8	22	22
PG16	14-10	22.5	22.5-22.7	9	23	24
PG16	12-6	22.5	22.5-22.7	9	23	24
PG19	14-10	25	25-25.2	9	25	24/27
PG19	16-8	25	25-25.2	9	25	27
PG21	18-13	28.3	28.3-28.5	9	27	30
PG21	16-9	28.3	28.3-28.5	9	27	30
PG25	22-15	32	32-32.2	10	29	35
PG25	20-16	32	32-32.2	10	29	35
PG29	25-18	37	37-37.2	11	31	40
PG29	20-13	37	37-37.2	11	31	40
PG36	33-25	47	47-47.2	12	37	50
PG36	26-20	47	47-47.2	12	37	50
PG42	38-32	54	54-54.2	13	38	57
PG42	31-25	54	54-54.2	13	38	57
PG48	44-37	59.3	59.3-59.5	14	38	64
PG48	35-29	59.3	59.3-59.5	14	38	64
PG63	52-42	72	72-72.2	15	42	77
