Digital Switch Rail Vertical Wear Gauge Ruler for Turnout Measurement and Inspection

Supplier: Xiangyang Lianjie Mechanical&Electrical Co., Ltd
Region: Hubei, China
Contact: Mr Jodie Yuan
Price: $420.00 / 1 - 5 pieces
$360.00 / >=6 pieces
Min. Order: 1 piece

Click here to contact

Product details

Products Description

Switch Rail Gauge

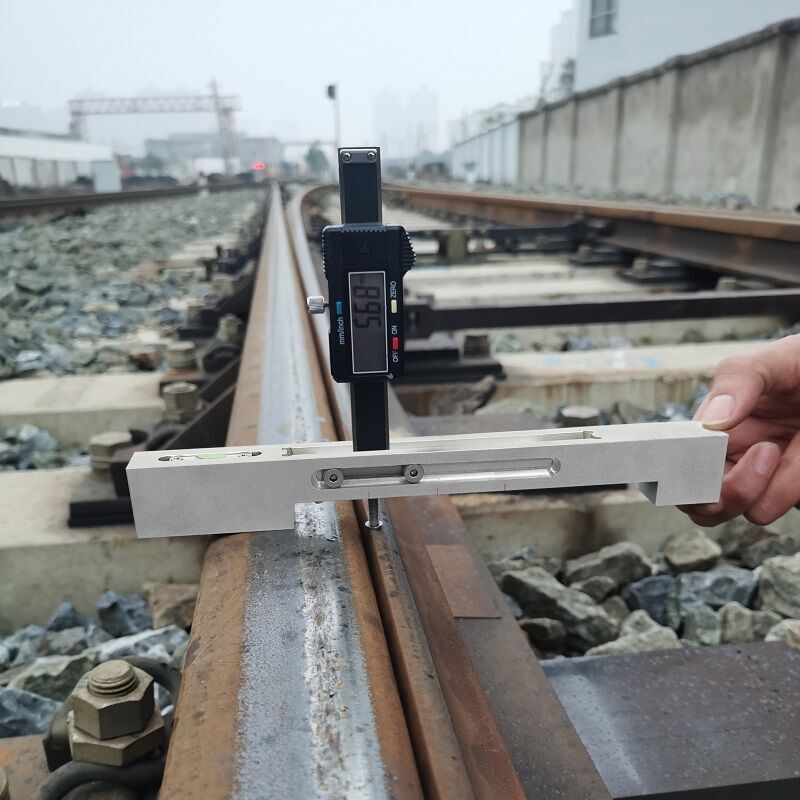

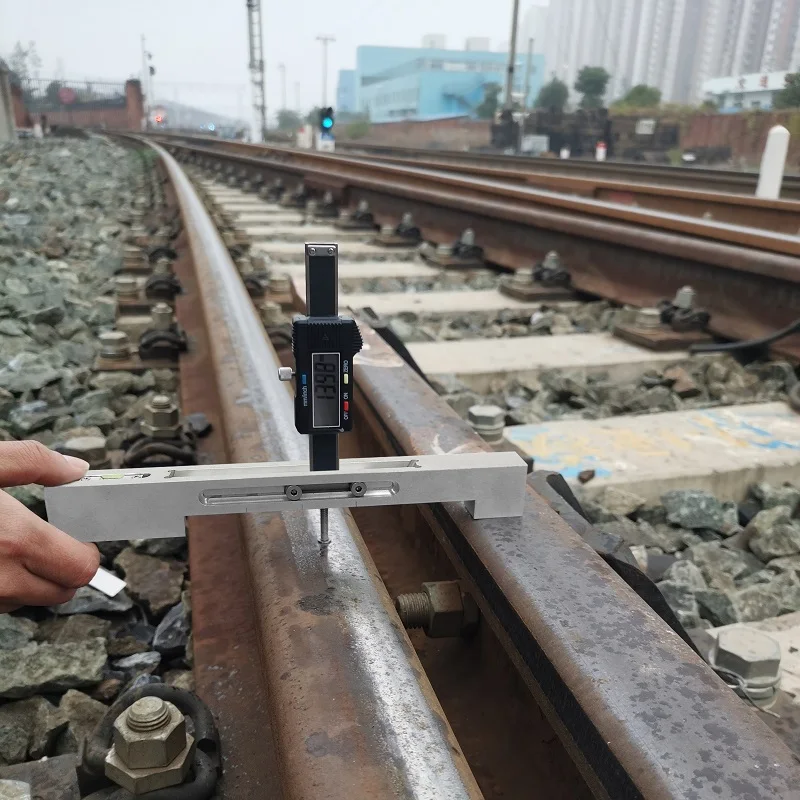

Switch rail height gauge is mainly used to measure the descent height value of the switch rail relative to the basic rail and point rail relative to the wing rail . This instrument has the features of high measuring precision, convenient calibration, simple structure, light weight and easy to carry. Reasonable switch rail height can not only ensure train running safely and smoothly, but also reduce the interaction between wheel and rail effectively,reduce the dynamic stress of track structure, keep the track in good geometric state, thus reduce the maintenance workload.

Functions:

1. Accurate measurement:keep long-term stability
2. Electronic type:easy to read
3. High precison:0.01mm
4. Accuracy:0.1mm
5. Multifunctional:
1) Measuring the switch rail

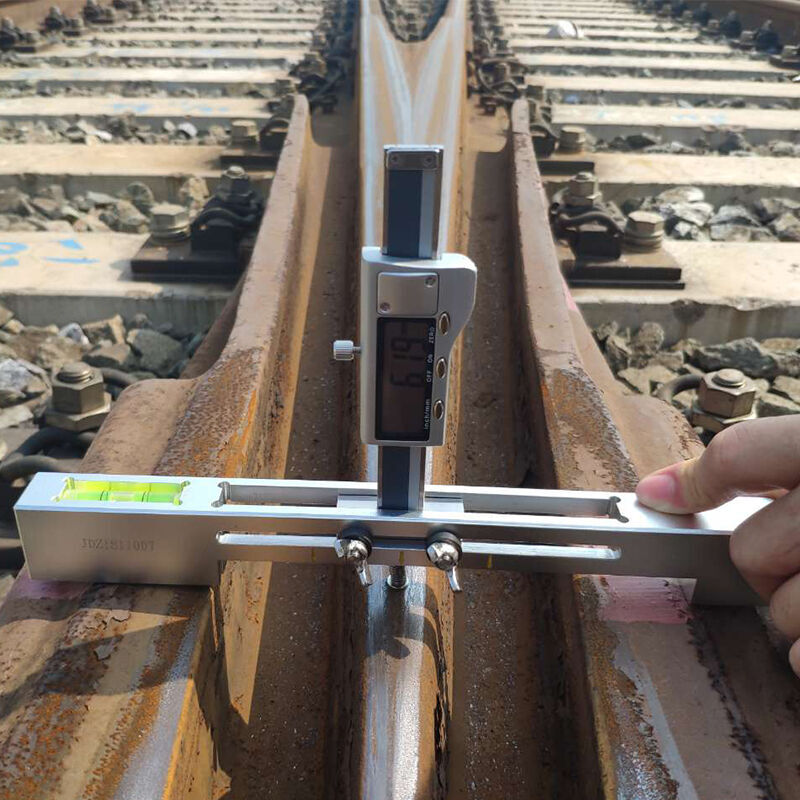

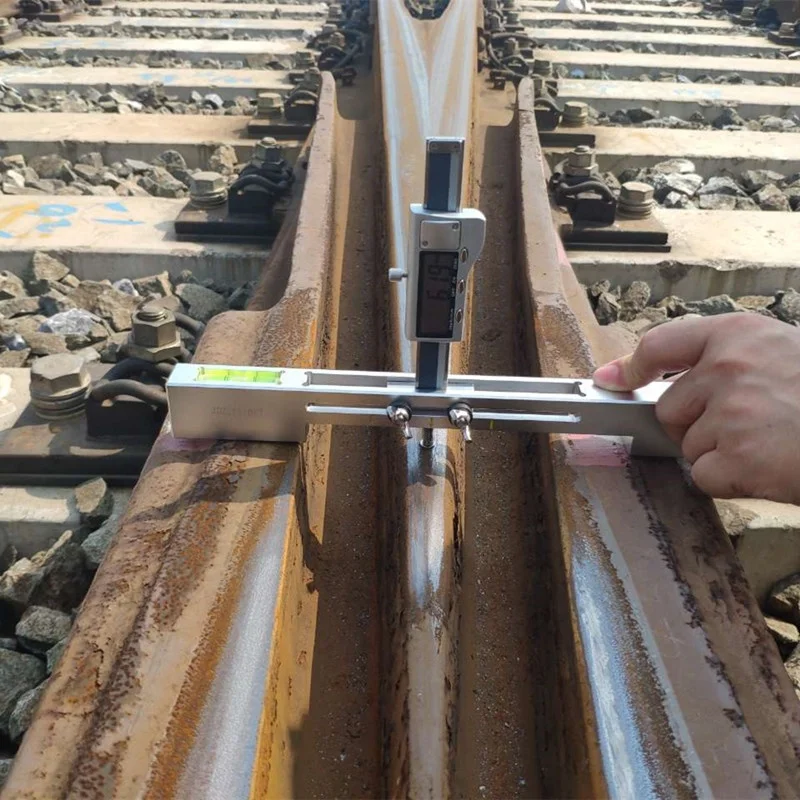

2) Measurement of turnout point rail
3) Check Rail measurement
4) Rail surface pits and abrasions

Detailed Parameter

Model	JDZ-1
Measure range	-5-30mm
Accuracy	0.1mm
Resolution	0.01mm
Power	1.5v
Weight	1.45kg
Size	27022180mm

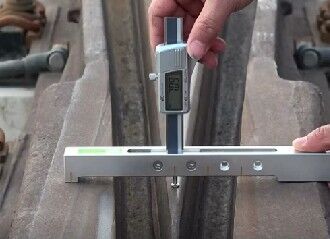

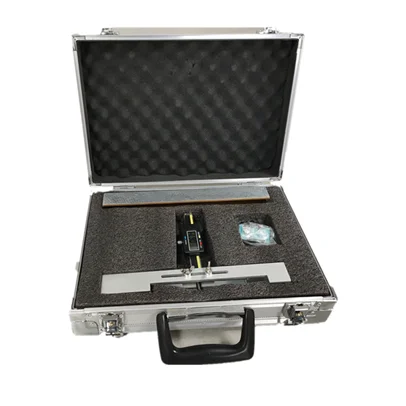

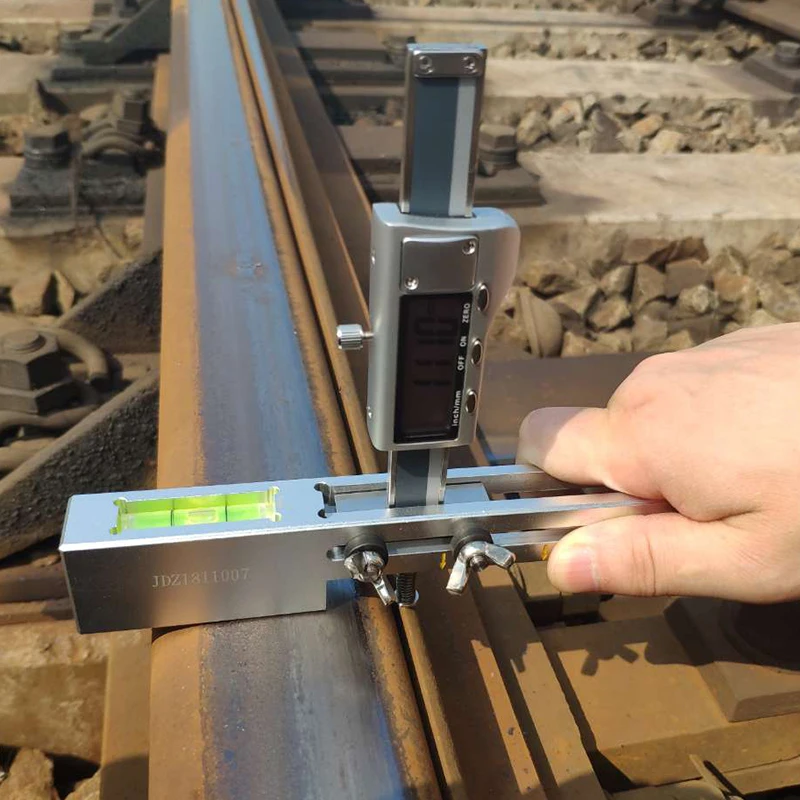

Details Images

Company Profile

Xiangyang Lianjie Mechanical & Electrical Co., LTD., established in 2013, specialized in designing and manufacturing of the geometry measurement systems for the railway. Including digital track gauges , mechanical track gauges, and turnout gauges. Our products meet the standard TB/t1924-2008 issued Ministry of Railways of the people 's Republic of China .
