wood pressing machine hot press hydraulic press for plywood, pvc, MDF door lamination
- 18000.00 1 - 2 sets
- 17500.00 >=3 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| working desk size: | 2500x1300mm | Supply capacity: | 100 sets per month |
| Showroom location: | Vietnam, Russia | Mechanical test report: | if |
| Video external inspection: | if | payment terms: | Western Union, T/T, MoneyGram |
| Core components: | Engines, Bearings, Pumps | Core Components Warranty: | 1 year |
| place of origin; place of origin: | Shandong China | Marketing Type: | Hot Products of 2019 |
| Heating medium: | Heat transfer oil or steam | Warranty: | 1 year |
| type: | Hot Press | Packaging Preview: | |
| Name: | Wood machine heat press | maximum. Service activation: | 80-120mm |
| Nominal pressure: | 100T | Main selling point: | high productivity |
| Applicable industries: | Mechanical repair shops, manufacturing plants, construction works | brand: | SOSN |
| After-sales service provided: | Video technical support | Voltage: | 380v (optional) |
| Maximum pressure (T): | 100 tons | Layers: | 5 |
| Table size (mm): | 1300×2500 | Weight (kg): | 3000kg |
| Packaging Details: | Wood machine heat press PE bag | pressure: | 200T |
| Health status: | new | port: | Qingdao |
product description

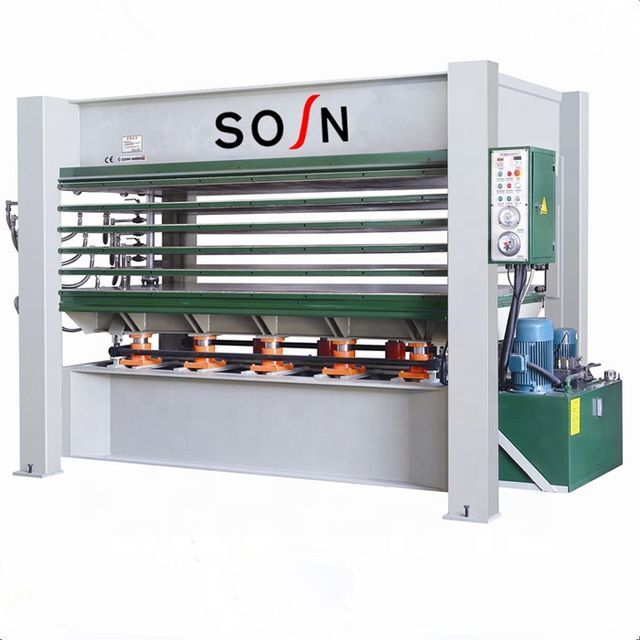

Wood machine heat press hydraulic heat press
---Suitable for lamination of veneer, fireproof board, decorative paper, etc. --- Lamination of furniture panels, building partitions, wooden doors or lamination of various decorative materials on wood-based panels. --- Can also be used for drying or leveling of veneers.
Function list
---Solid steel heat-conducting plate with deep hole drilling process. --- Automatic device to control closing and opening. --- Foot emergency switch, high safety. ---Secondary temperature protection device---Main hydraulic cylinders and composite materials are from Japan and Taiwan. --- Chint Electric Parts

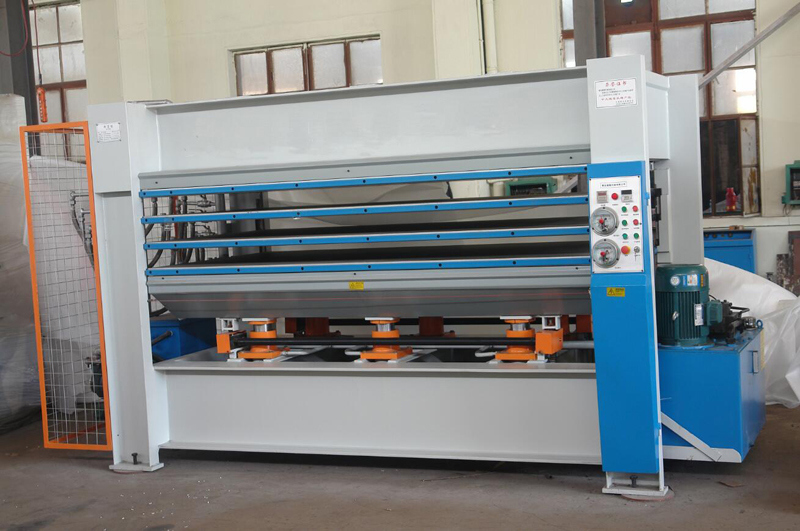

right façade

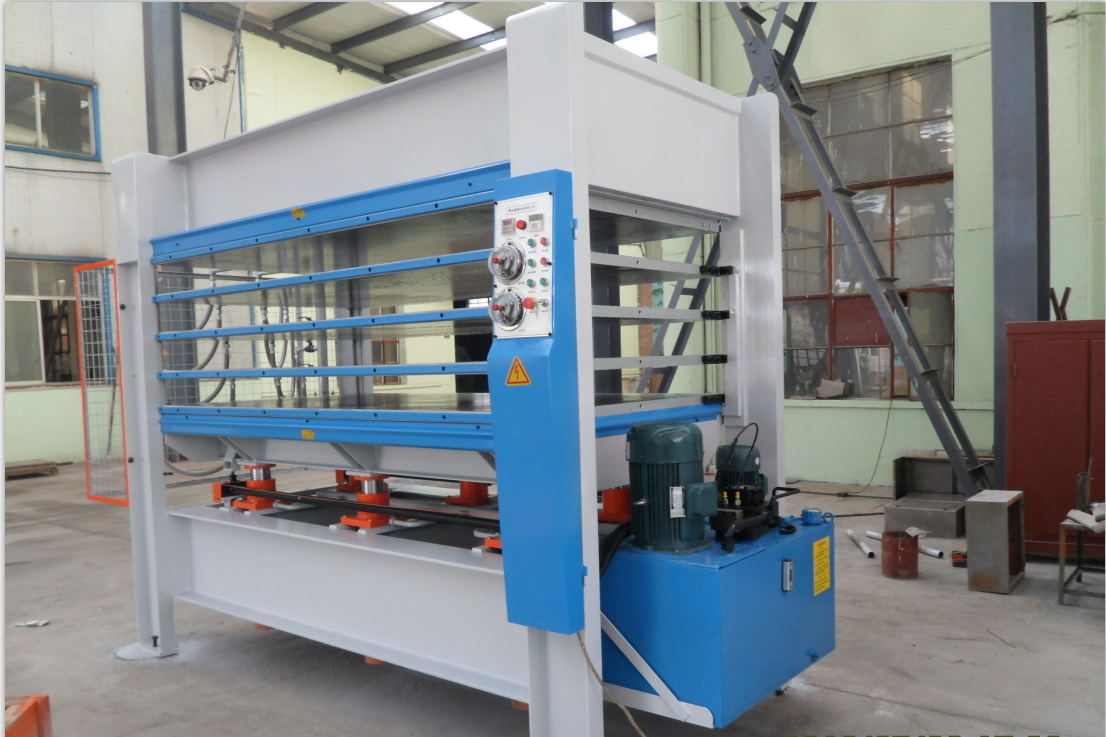

left facade
Front view
Product Specifications
Size (foot) | 4x8 |
Hot plate size (mm) | 1300x2500mm |
Nominal pressure | 100T |
maximum. Service opening | 100mm |
layers | 3 floors |
max pre. Integer of effective working width | 3.08 kg/cm² |
heating medium | Heat transfer oil or steam |
Installed power | 4.5kW |
heating power | 37.5kW |
No, diameter. cylinder | 6*90mm |
closing speed | 2mm/sec |
Voltage | 380v, 50hz, 3 phase |
Dimensions | 3900*1700*2000mm |
weight | 8.3T |

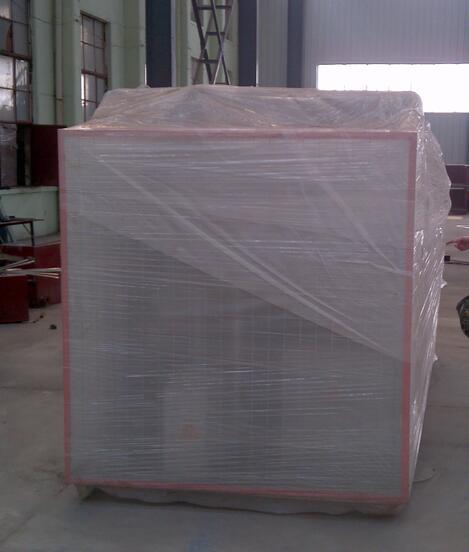

Strong film package
