DC 12V 24V 36V 48V Brushless Axial Cooling Fan 120mm 12038 120x120x38mm 5 Inch Power Cooler High Speed

Supplier: Shenzhen Gdstime Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Howie Luo
Price: $3.20 / 2 - 119 pieces
$2.60 / 120 - 999 pieces
$2.25 / >=1000 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Packaging Details:	53X28X22cm	type:	Axial Fan
Warranty:	2 years	payment terms:	Western Union, T/T, MoneyGram, Paypal

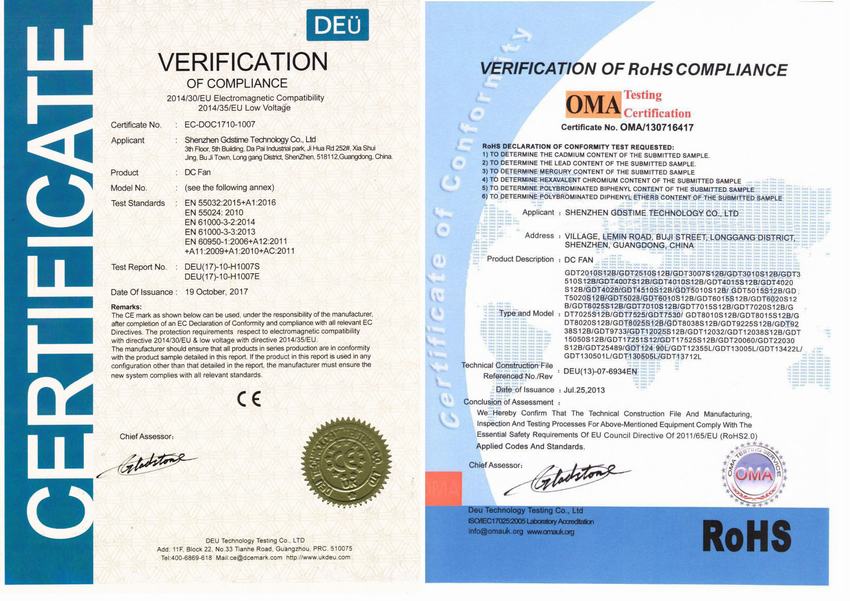

model:	GDP 1238	Certification:	ce, RoHS
Install:	Detached	Blade material:	plastic
After-sales service provided:	Online support	Voltage:	5-48V
Packaging Preview:		Supply capacity:	80,000 pieces per month
Current type:	DC	Applicable industries:	Food Store, Print Store, Energy & Mining, Food & Beverage Store
port:	Shenzhen	place of origin; place of origin:	Guangdong, China
brand:	Time Network

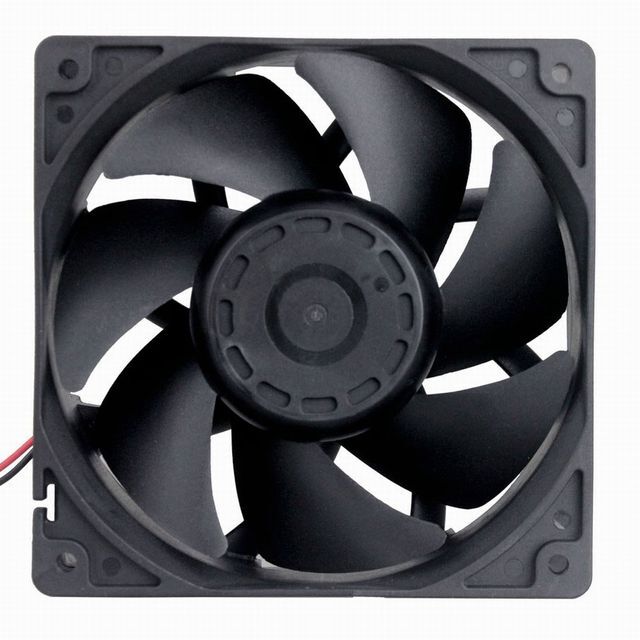

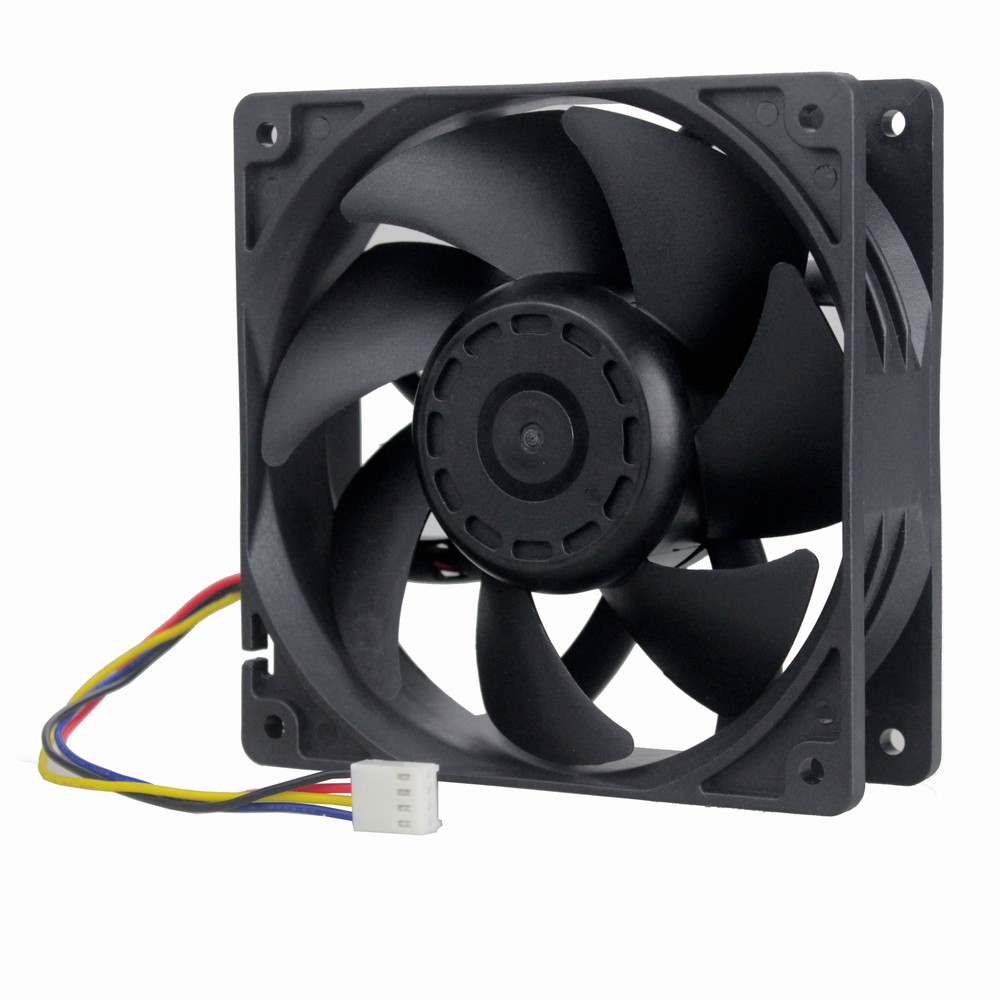

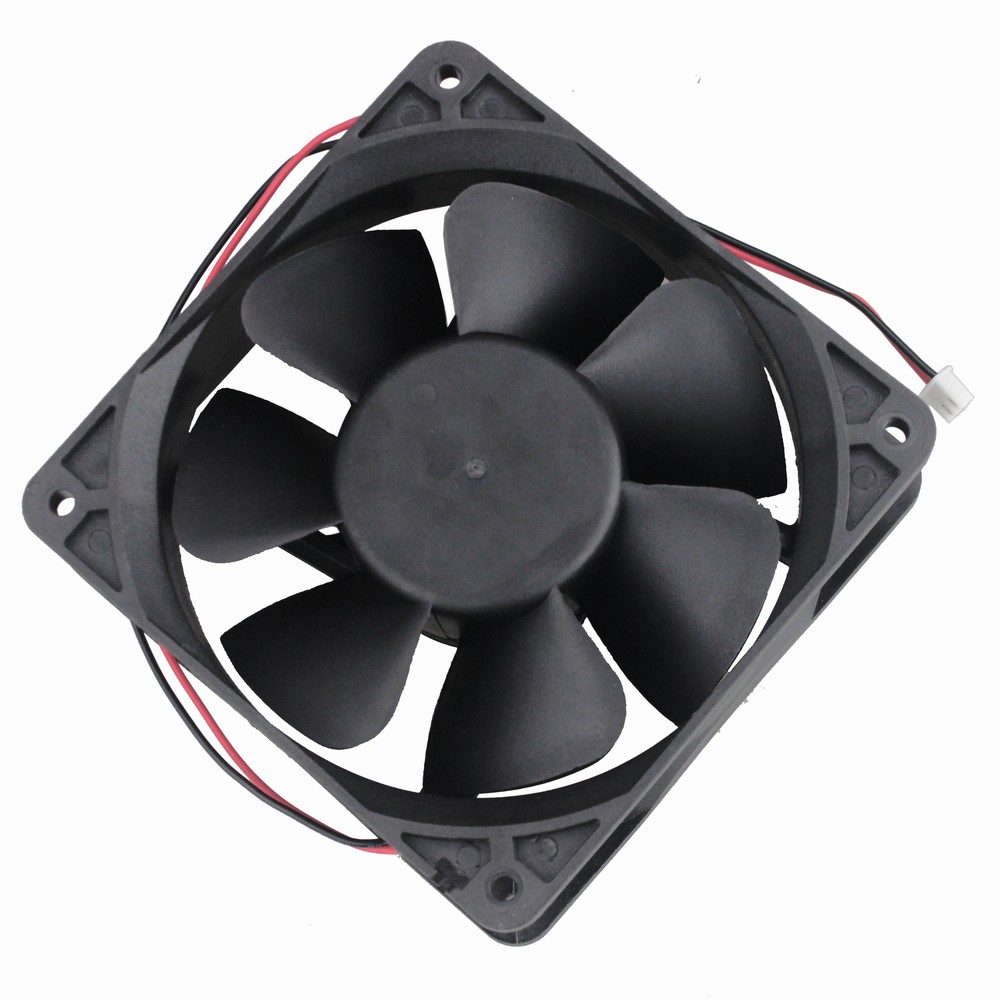

Gdstime DC 12038 120X38MM 120MM cooling fan

Product Description

Product Description

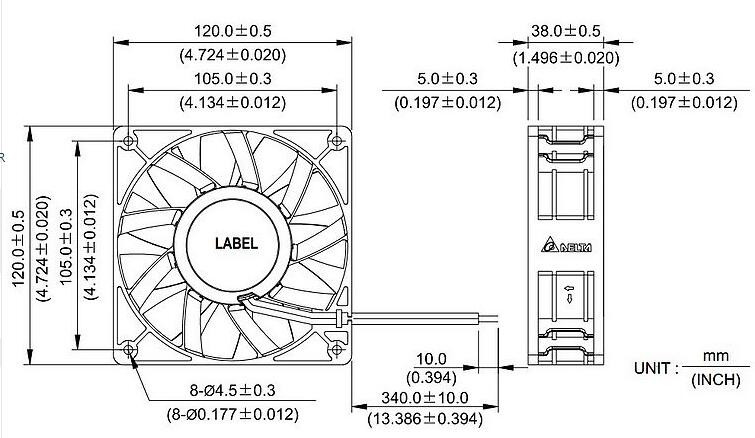

Fan size: 120x120x38mm
Rated voltage: DC 12-48V
Rated current: 0.1-2.5A
Bearings: Sleeve/ball bearing
Fan speed: 2500-5500 RPM±10%
Noise level: 38.1-59.8dBA±10%
Air volume: 98.7-231CFM
Weight: 230g

Click to view live link

feature:
1. Small MOQ 2pcs
2. Fans in stock, 1-3 days after payment

3. Quality Assurance - Test each fan before shipment

4.free sample

scope

Model	bearing	Rated voltage	operate Voltage scope	Rated current	Rotating speed	Airflow CFM	Air pressure (at H₂○)	Noise level dBA
Model	bearing	Rated voltage	operate Voltage scope	Rated current	Rotating speed	Airflow CFM	Air pressure (at H₂○)	Noise level dBA
GDP 1238	sleeve/ball	12V	7-13.5V	0.42	2500	98.7	0.32	38.1
				0.5	2800	116	0.39	41.6
				0.6	3500	158	0.56	48.3
				0.82	4200	173.4	0.77	50.1
				0.98	4500	179.2	0.93	54.2
				1.8	5300	213	1.17	58
				2	5500	217	1.29	59.6
				2.2	6000	227	1.48	61
		24V	14-26V	0.2	2600	109.5	0.33	40.2
				0.33	2800	116	0.39	41.6
				0.35	3000	125.1	0.43	42
				0.4	3500	158	0.56	48.3
				0.5	4200	173.5	0.77	50.1
				0.62	4500	179.2	0.93	54.2
				0.78	4800	194.7	1.31	56.7
				1	5500	217	1.29	59.6
		48V	28-54V	0.1	3000	125.1	0.43	42
				0.15	3500	158	0.56	48.3
				0.33	4200	173.4	0.93	54.2
				0.78	4800	194.7	1.31	56.7
				0.9	5800	224	1.45	60.2
