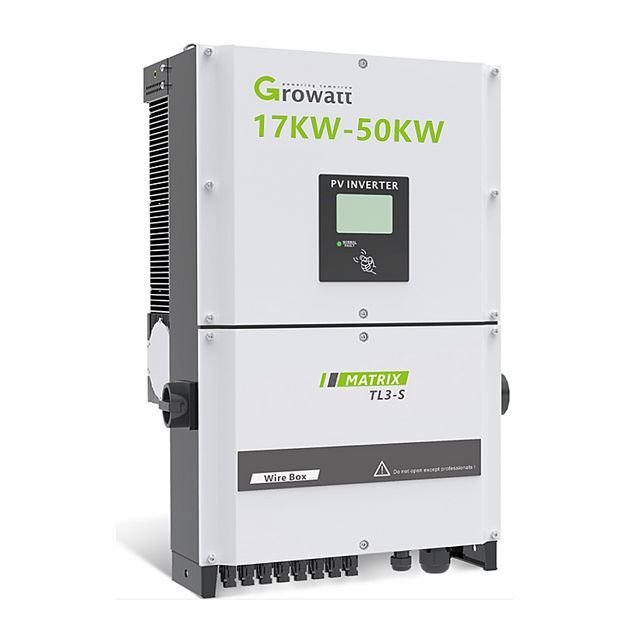

W-18 Growatt Inverter 20KW 25KW 30KW 40KW TL3-S Solar Inverter Grid-connected Three Phase 380V Solar Inverter

Supplier: Eitai (Xiamen) New Energy Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Chris Zheng
Price: $1209.00 / 1 - 9 sets
$1157.00 / 10 - 99 sets
$1105.00 / 100 - 999 sets
$1050.00 / >=1000 sets
Min. Order: 1 set

Click here to contact

Product details

AC nominal voltage:	230V/400V	Certificate:	Chief Executive
size:	470/754/270 mm	Packaging Preview:
Starting voltage:	250V	model:	Growatt 20000TL3-S
place of origin; place of origin:	Fujian China	maximum. Recommended PV power:	25000W
type:	DC/AC inverter	Packaging Details:	Net weight: 48kg Gross weight: 50.5kg Size: 470754270 mmmm Carton size: 535842335mm
AC Grid Connection Type:	3W+N+PE	Warranty:	5 years
Output frequency:	50Hz/60Hz ±5Hz	Dimensions (W/H/D) in mm:	470/754/270 mm
exhibit:	LCD Monitor	Supply capacity:	1,000,000 watts per month
The output voltage:	230V/400V	AC grid frequency:	50Hz/60Hz ±5Hz
payment terms:	letter of credit, wire transfer	Name:	20KW solar grid-connected inverter
Inverter efficiency:	17KW-50KW	output type:	three phase
Full load DC voltage range:	200V - 1000V	Input voltage:	200V - 1000V
Output current:	48.3A	weight:	48kg, 48kg
brand:	Growatt

product data

Parameter display example

data sheet	20000TL3-S	25000TL3-S	30000TL3-S	40000TL3-NS
Input data (DC)
maximum. recommended PV (for module STC)	25000W	31250W	37500W	50000W
maximum. DC voltage	1000V	1000V	1000V	1000V
Starting voltage	250V	250V	250V	250V
PV voltage range	200V - 1000V	200V - 1000V	200V - 1000V	200V - 1000V
MPP working voltage range (nominal Voltage)	580V	580V	580V	580V
Full load DC voltage range	400V - 800V	400V - 800V	450V - 800V	540V - 800V
maximum. Input Current	37.5A/37.5A	37.5A/37.5A	34A/34A	38A / 38A
quantity Standalone MPP tracker/string per MPP tracker	12.5A	12.5A	12A	12A
Output (AC)
Rated AC output strength	20kW	25kW	30kW	40kW
maximum. alternating current	22.2kVA	27.7kVA	33.3 kVA	44.4 kVA
maximum. output current	32.2A	40.3A	48.3A	64.5A
AC nominal voltage	230V/400V	230V/400V	230V/400V	230V/400V
AC grid frequency; scope	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz
adjustable power factor	0.8 ahead - 0.8 behind	0.8 ahead - 0.8 behind	0.8 ahead - 0.8 behind	0.8 ahead - 0.8 behind
THDI	<3%	<3%	<3%	<3%
AC connection	3W+N+PE	3W+N+PE	3W+N+PE	3W+N+PE
efficiency
maximum. efficiency	98.70%	98.70%	98.90%	99%
Euro-weighted efficiency	98.40%	98.40%	98.40%	98.50%
MPPT efficiency	99.50%	99.50%	99.50%	99.50%
