China 1/4 3/4 DN20 DN25 2 inches full certified with high pressure 600 WOG NPT Female with brass valve thread with price ball

  • Supplier: Zhejiang Valogin Technology Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Mr. Valogin VG
  • Price: $2.22 / 1 - 99 pieces
    $1.78 / 100 - 999 pieces
    $1.49 / >=1000 pieces
  • Min. Order: 1 piece
Product details
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramport:Ningbo
Warranty:3 yearsMedium temperature:normal temperature
structure:ballstrength:manual
application:generalbrand:V&G
model:VG-A10172place of origin; place of origin:Zhejiang, China
Custom Support:OEM, ODMmedia:water
Port size:1/4" - 2"Supply capacity:1,000,000 pieces per month
Packaging Details:standard packaging.type:Ball valve
our service
Why choose us?
market

Our valve exports are $80 million. Our sales and service network has covered more than 60 countries and regions around the world.
automation

70% of the production capacity is automated. We achieved the goal of 12 million pieces per month
Certification

Company - CNAS ISO9001 ISO18001
USA - UPC AB1953 NSF SA UL FM
European ACS DVGW WRAS EN215 INIG
Australia - Watermark AGA
R & D team

We have a R&D team of more than 30 people. If there are samples, the development time is one week.
project

We have a stable supply capacity, with an annual output value of more than 100 million.
Supply capacity

We are the supplier to many large-scale events, such as the 2012 London Olympics.

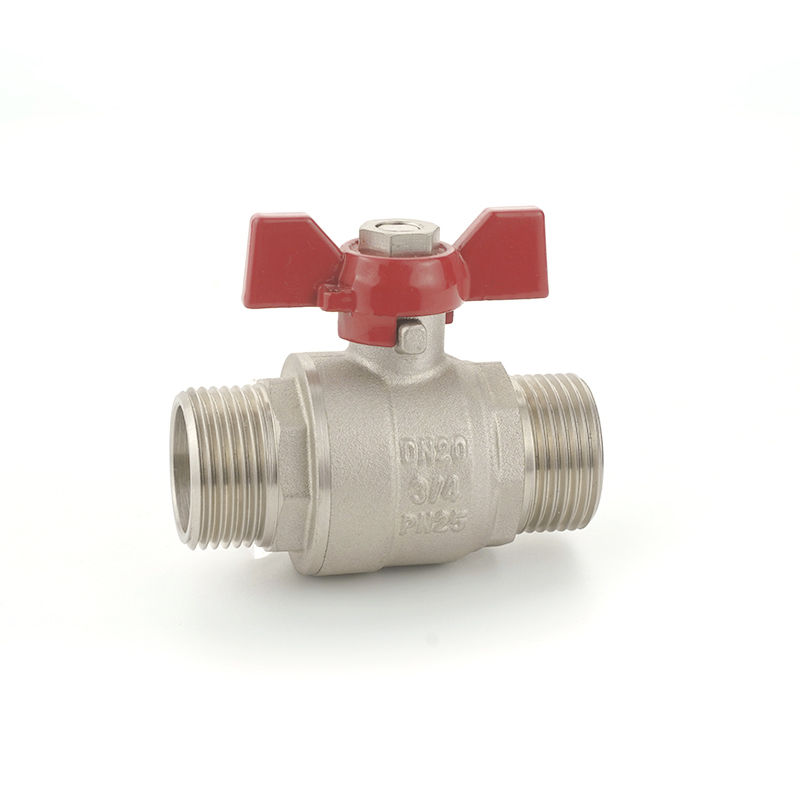

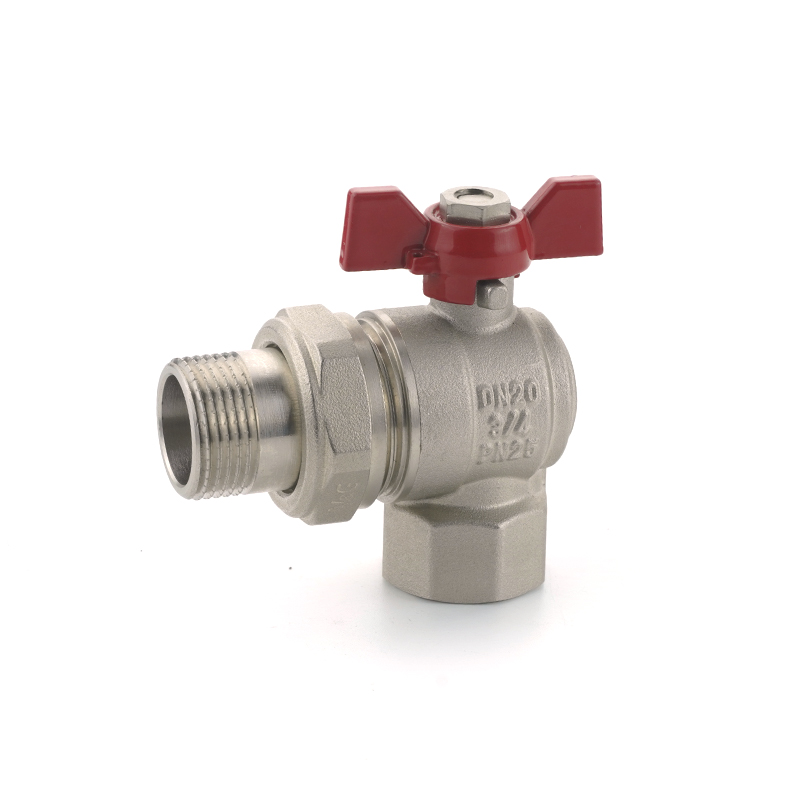

more products
introduce

1/4" - 2" Pressure PN40 Lead Free Brass Ball Valve

Suitable for piped water systems. American standard. Subject: Treaty on the Non-Proliferation of Nuclear Weapons. Lead-free material.

Product Description
Product Description

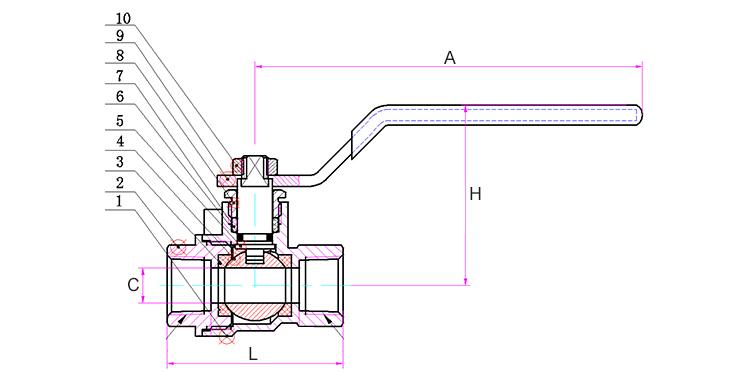

Do not. Part Name Material
1 Body brass
2 cap brass
3 seat Teflon
4 ball brass
5 Dry brass
6 O-ring Nitrile rubber
7 gland Teflon
8 compression nut brass
9 deal with iron
10 nut Stainless steel



aspect


size code One C large H
1/4" VG-A10172-1/4 88 9 40 41
3/8" VG-A10172-3/8 88 10 42 42
1/2" VG-A10172-1/2 101.5 15 54 46
3/4" VG-A10172-3/4 101.5 19 61.5 53
1" VG-A10172-1 123.5 25 74 71.5
11/4" VG-A10172-11/4 123.5 32 83 77.7
11/2" VG-A10172-11/2 148 40 97 84
2" VG-A10172-2 148 50 113 91.5

product properties

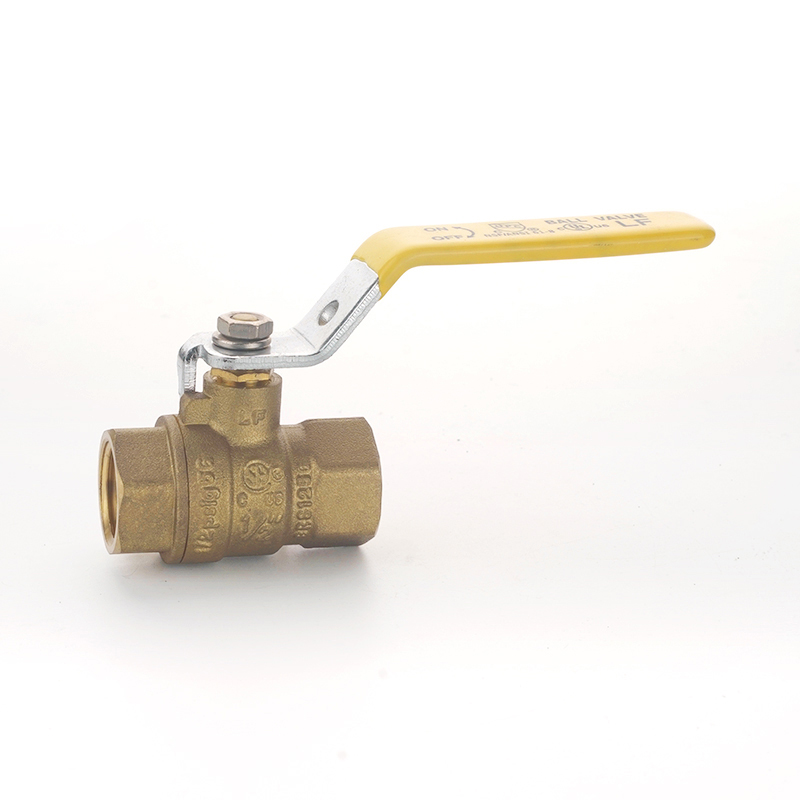

Item: Ball Valve
Size: 1/4" - 2"
Brass material: lead-free brass
Connection Type: Female NPT x Female NPT
Operating temperature: 600 WOG

full port
1/4" to 1" LF Brass Ball Chrome Plated

11/4" to 2" 304 Stainless Steel Balls

Iron yellow lever handle

Certifications: CSA, FM, UL, NSF61, NSF372, cUPC

Bale
